What Is an Air Jack? Advantages, Types for Automotive Use

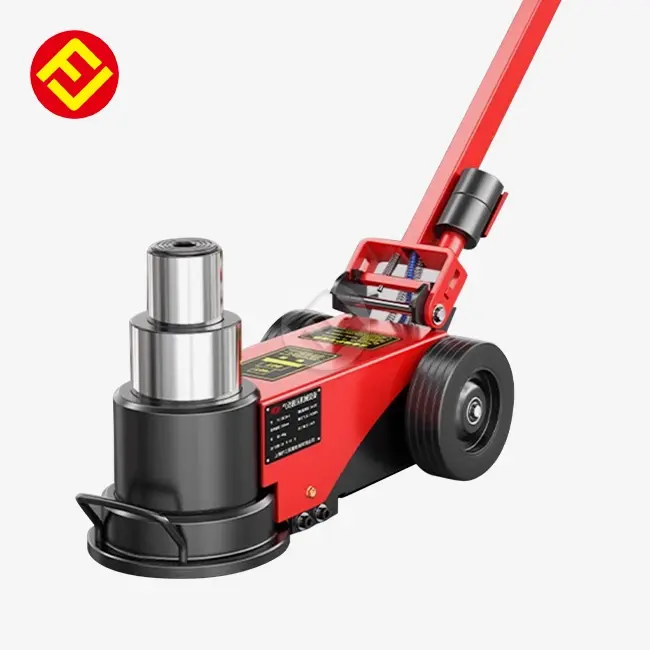

An air jack, also called a small pneumatic jack, is a lifting tool that uses compressed air to create strong vertical pulling force. This equipment works with gas pressure sent through a standard air compressor link, not like hydraulic or hand jacks that use fluid physics or physical pumping. When the system's strengthened internal tanks or bladders are inflated, they move quickly upward, lifting cars, machinery, and heavy parts in seconds. This technology has changed car shops, assembly lines, and maintenance work by making it much easier to get to places that are out of reach for vehicles with low clearance. It does this by drastically cutting down on lifting time and physical strain. The main benefit is speed and comfort—full stretch can be reached in less than five seconds without any extra work from the user.

What Is an Air Jack? Understanding the Basics

How Pneumatic Lifting Technology Works

Pneumatic jacks use a carefully designed internal structure to turn the energy in compressed air into mechanical lifting action. When linked to an air source that works at 0.4 to 0.8 MPa (85 to 115 PSI), air comes in through a controlled opening and fills a piston cylinder or multi-layered rubber cushion. The compressed air applies even pressure to the inside surface, which causes it to expand and move up and down. High-quality models have flexible steel guides inside the bladder that keep it from moving side to side and keep it stable while lifting, even when the load isn't level. It only takes three to five seconds for the air to rise to its full height, which is much faster than hydraulic systems that need to be pumped over and over by hand or electric jacks that use slower motor-driven mechanisms.

The frames are usually made of carbon steel or an aluminium metal, and the cylinders are chrome-plated to protect them from rust and make them last longer. Seals made of fluororubber or nitrile rubber keep the air pressure stable and stop leaks while the machine is running. Safety valves protect both the equipment and the people who are using it by letting go of extra pressure automatically if the system goes over its stated limits. An exhaust silencer lowers the noise when the balloon deflates, so the tool can be used in workshops where noise control is important.

Comparing Pneumatic, Hydraulic, and Electric Jacks

There are different operating needs for each type of moving technology. While hydraulic pumps are very stable and can hold a lot of weight, they need to be pumped by hand, which slows down repeated jobs. Electric jacks don't need to be operated by hand, but they depend on a power source and are usually slower to use than gas ones. The small pneumatic jack fills in these gaps because it can be used quickly and with little physical effort. All it needs is a link to an air generator, which is common in most industry and automobile facilities.

For high-frequency pulling jobs where speed directly affects output, pneumatic types work best. Tyre shops that work on dozens of cars every day can respond instantly to air-powered lifts, which cuts down on worker tiredness and vehicle return time. When a load needs to be held for a long time, hydraulic systems are still the best choice. However, gas jacks with mechanical locking mechanisms can safely hold loads when they are properly secured.

Common Automotive and Industrial Applications

These tools are used in auto repair shops to change tires, maintain brake systems, work on suspensions, and check the undercarriage. When the height is dropped to 130–150 mm, techs can put the jack under lowered sports cars, modified vehicles, and machinery that has little ground clearance, which is impossible for regular floor jacks. During pit stops, when every second counts, racing teams like that the lift can be used right away.

Pneumatic jacks are used on manufacturing assembly lines to move and place parts, which requires frequent changes in height. Maintenance teams that work on construction tools use portable air-powered jacks to fix machines that are far away, thanks to their small size and ease of use. In mining, tough pneumatic lifting tools are needed because they can work in rough, dusty places where hydraulic seals could fail or get dirty.

Advantages of Small Pneumatic Jacks for Automotive Use

Speed and Operational Efficiency

The main benefit of mini air jack lifting equipment is that it cuts down on the time it takes to lift things by a huge amount. Traditional hydraulic jacks need 15 to 30 pumps to get to working height, which can take seconds when there are a lot of jobs to do. When you connect pneumatic models to air, they reach the same height in less than five seconds. This speed saves money right away—a busy tyre shop that works on 50 cars every day can save 40 to 50 minutes per shift just by not having to pump tires by hand.

It's also good for prices to drop quickly. When techs let go of air pressure through the exhaust valve, the car drops right away. This lets them move quickly between jobs. With variable pressure control, you can precisely change the height for alignment work or delicate placing jobs. This gives you more options than hand jacks can offer.

Enhanced Safety Features and Best Practices

Good air jacks have safety valves built in that stop them from over-inflating, which could damage internal parts or make the situation unsafe. When the system hits its highest rating capacity, which is usually 0.8 MPa, these valves let out extra pressure automatically. This keeps workers from having to deal with broken equipment. The flexible internal stabiliser stops the jack from moving laterally while it's being lifted, which is a typical way for bladder-style jacks that don't have enough structural support to fail.

When purchasing managers look at lifting tools, they should make sure that the types they consider have non-return check valves. This important part keeps the load in place until the workers can safely lower the car by trapping air in the bag if the supply line suddenly cuts off. When engineers work under a higher car, they need to make rules that mechanical jack stands must be used. This is because gas jacks are only good for lifting and placing, not for long-term support.

Rubber bladders should be checked for cuts, scrapes, or chemical damage from brake fluid or oil contact on a regular basis. The quality of the surface treatment affects how long something lasts. For example, spray-painted or anodised finishes keep steel parts from rusting in damp workshop settings.

Durability and Maintenance Requirements

Pneumatic lifting systems have fewer moving parts than hydraulic systems, which makes upkeep easier and less often needed. Since there are no hydraulic seals to leak or break down over time, there are no problems with oil exposure. The chrome-plated inside of the cylinder doesn't rust or score easily, so it works smoothly even after thousands of lift cycles.

Maintenance focuses on three things: the quality of the air flow, the stability of the seals, and checking the structure. In cold places, moisture in compressed air lines can damage internal valves and cause the lines to freeze. Failures caused by wetness can be avoided by adding an inner air dryer or draining the compressor tank on a frequent basis. Valve function is kept up by applying pneumatic tool oil to the air inlet link every three months. By looking at the rubber bladder visually before each use, possible weak spots can be found before they cause major tears.

Quality control standards, like ISO9001 approval, make sure that the Products" target="_blank" style="color:blue" >products are always made the same way. Units are tested for leaks, put under pressure to 150% of their maximum capacity, and have their life cycle validated by modelling more than 5,000 lift operations. These quality standards make sure that the structure is sound and that the seal works well in real life, which gives purchasing managers faith in its long-term dependability.

Types of Small Pneumatic Jacks and Their Specific Uses

Trolley, Bottle, and Scissor Jack Configurations

There are different ways to set up pneumatic jacks so that they work best in different situations. Trolley-style air jacks are stable and portable because they are mounted on frames with wheels. Because it has wheels built in, techs can exactly place the jack under lifting points without having to move the device themselves. This saves time and effort during setup. These types work well in car repair shops where jacks move back and forth between service bays all the time.

Bottle jacks for small pneumatic jack are made with a vertical cylinder structure and a small size, making them perfect for places like next to car frames or under machinery housings that are tight on space. The narrow base makes it possible to place in tight spaces where trolley jacks wouldn't fit. The lifting ability is usually between 2 and 5 tonnes, which is enough for most cars and light trucks.

Pneumatic jacks in the shape of scissors have a diamond-shaped coupling system that grows vertically when air pressure fills the internal cylinder. This setup is very stable across the entire pulling range and properly spreads the load across several touch spots. Because scissor jacks have a wide base, they can be used on softer areas where heavy loads might shift or sink because the ground pressure is lower.

Lightweight vs. Heavy-Duty Capacity Options

Models made of an aluminium metal are 25–35% lighter than steel models of the same size and shape, making them easier to move around for mobile service work or emergency roadside assistance. Most of the time, these units can handle 2 to 3 tonnes, which is enough for cars, SUVs, and light trucks. The lower weight makes it possible for one person to move the equipment without lifting it, which is helpful for businesses that have to move things around a lot.

Heavy-duty air jacks made of carbon steel or alloy steel can hold 5 to 10 tonnes and support business cars, building equipment, and factory machinery. Stability is maintained by frames that are reinforced and bladders that are bigger so they can hold more weight. The thicker material and structural support make it heavier, but they are necessary for tough jobs where equipment failure could hurt someone seriously or damage property.

Specialty Jacks for Precision Automotive Operations

Low-profile race jacks are a special type of jack made for cars that have less than 100 mm of ground clearance. The height when folded is between 80 and 100 mm, which lets it fit under sleek body panels and side skirts without the need for ramps. In races where speed and ease of use are important, these tools are essential for motorsport teams.

Specific alignment jacks have moving top plates that let the wheels turn easily while the suspension shape is being changed. This feature gets rid of the need to lower and move the car several times during alignment procedures. This saves a lot of time in shops that do a lot of alignment work.

Performance Comparison Across Jack Types

Comparing pneumatic jacks against alternative technologies clarifies selection criteria. Manual hydraulic pumps are the cheapest to buy at first, but they take the most hard work, which means they cost the most to run over time. Electric jacks offer a modest speed and remove the need for physical labour, but they rely on the availability of electricity and the upkeep of batteries. While hydraulic floor jacks are very stable and can hold a lot of weight, they don't react as quickly as pneumatic types.

When working with current compressed air infrastructure, pneumatic pumps offer the best balance of speed, cost, and ease of use. They are very cheap to run because they only use 0.1 to 0.3 cubic feet of air per cycle, which makes them great for high-volume use. The lack of hydraulic fluid removes the chance of polluting the environment and the cost of removal, which is becoming an increasingly important factor under environmental laws.

How to Choose the Best Small Pneumatic Jack for Your Automotive Needs?

Critical Selection Criteria for B2B Buyers

The lifting ability for mini air jack must match the largest cars or equipment that is usually repaired, plus at least 20% more than the highest load that is expected. A shop that works on light passenger cars needs models that can hold two to three tonnes, while shops that work on large trucks need models that can hold five to ten tonnes. Accessibility under low-clearance vehicles depends on the collapsed height. Make sure this standard fits the lowest vehicle ground level in your service mix.

The required air pressure affects how well it works with current blower systems. Most small pneumatic jacks work well between 0.4 and 0.8 MPa (85 to 115 PSI), which is the pressure range that most workbench pumps can handle. Check that the compressor's CFM (cubic feet per minute) number can handle ongoing use if more than one jack will be working at the same time.

Specifications for the materials used, the type of surface treatment, and approval marks are all signs of a good build. The rust resistance of carbon steel construction with spray painting is good enough for dry indoor settings. Anodised aluminium alloy construction is better at resisting rust, which is useful for buildings near the coast or in places with a lot of dampness. ISO9001 and CE approvals show that safety standards and quality control are met during production.

Cost Considerations and Bulk Purchasing Value

The price per unit depends on the size, the building materials, and the complexity of the features. 2-ton models are usually 30–40% less expensive than 5-ton heavy-duty types. When you buy in bulk from makers, you can save 15–25% compared to market prices. This is a big deal for wholesalers or fleet repair businesses that have multiple service sites.

The total cost of ownership is more than just the price of the car. Consider how often upkeep needs to be done, how easy it is to get new parts, and how long the intended service life is. A good hydraulic jack from a well-known brand will work well for 8 to 12 years with little upkeep, but a cheap one might need a new joint or structural fixes after 3 to 5 years. A warranty that lasts between one and three years shows that the company that made the product is sure it will last.

Sourcing from Reliable Manufacturers and Distributors

For people who buy a lot, going directly to the maker gives them the best prices and most customisation choices. Manufacturers in China make high-quality gas lifting equipment at reasonable prices. They can make equipment to both standard and unique specs. When looking at different providers, make sure you get written information about the quality control steps they take, such as leak testing techniques, pressure testing procedures, and life cycle validation methods.

Technical support is very important for OEM buyers who need to make changes to the design or get help with integration. Manufacturers that give technical advice, 3D design testing, and parameter optimisation help make sure that equipment works as it should. Response time for technical questions and quote requests—ideally 24 to 48 hours—shows how efficient an organization is and how committed it is to customer service.

Distribution partnerships make it possible to keep supplies close to home and speed up delivery for small orders or new parts. Lead times are cut from weeks to days when established dealers keep popular models and common wear parts in stock. The trade-off is higher unit prices compared to buying directly from manufacturers, which is fine for businesses that value ease over lowering costs.

Conclusion

The use of pneumatic lifting technology has been shown to increase output and improve worker health in factory settings, car repair shops, and industry maintenance settings. The small pneumatic jack can lift heavy things quickly and is easy for operators to use. It solves important problems in high-volume processes. Understanding the operating principles, setup choices, and selection criteria helps procurement professionals choose technology that meets all of their needs and has the lowest total cost of ownership. Following strict safety rules and doing regular repair will protect both people and machine purchases over the long run. The technology keeps getting better with new materials, better safety features, and more specialised designs that can be used in a wider range of industry and vehicle settings.

FAQ

How much weight can I lift for use in a car shop?

Most work on passenger cars needs hydraulic jacks with a capacity of two to three tonnes, which are enough for sedans, SUVs, and light trucks. To properly handle bigger frames and focused loads, commercial car repair calls for 5–10 tonne models. To find the right size, figure out the heaviest car that can fit and add 20 to 25 percent for safety.

Are hydraulic jacks more dangerous than gas ones?

If you use motorised support stands the right way, both methods are safe. With pneumatic jacks, you can work faster, which means you spend less time under higher cars. Safety valves and check valves are built into good models to stop over-pressure and accidental dropping. Long-term, hydraulic jacks are better at keeping loads steady, but they take more physical work to use.

Are hydraulic jacks strong enough to lift big industrial vehicles?

Heavy-duty air jacks that can hold 5 to 10 tonnes can easily lift delivery cars, business trucks, and medium-duty equipment. Make sure that the model's grade meets or goes over the vehicle's weight. Steel construction and strengthened bladders made for regular use under maximum loads are good for commercial uses.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Pneumatic Lifting Solutions

For almost 40 years, FLA Industrial & Trading Co., Ltd. has been making high-quality small pneumatic jacks all over the world. Our engineering team creates unique hydraulic lifting solutions that are exactly what you need, from choosing the right materials to making the most of their ability. Each unit goes through strict leak tests, pressure confirmation to 150% of its stated capacity, and life cycle simulations to make sure it will work reliably in harsh settings. Fortune Global 500 partners and wholesalers in North America, Europe, and Australia buy equipment from us that is ISO9001 and CE approved at prices that are competitive with those of the maker. Email our sales team at sales@flaindustrial.com to talk about buying in bulk, forming an OEM relationship, or making your own pneumatic jack setups. Our helpful technical support team gets you quotes and specs within 24 to 48 hours, which speeds up the buying process. Find out how working with a well-known small pneumatic jack maker can help your business offer better products and run more smoothly.
