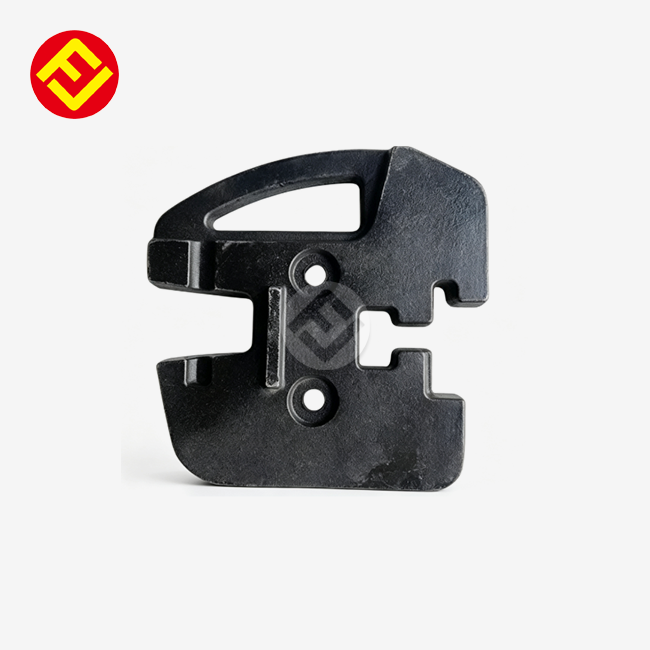

Counterweight For Agricultural Machinery

Counterweight For Agricultural Machinery - Professional Ballast Solutions for Farm Equipment

FLA Industrial & Trading Co., Ltd. specializes in manufacturing precision-engineered counterweight for agricultural machinery, delivering critical ballast solutions that optimize axle load distribution and operational stability for tractors, harvesters, and seeders. Our Products" target="_blank" style="color:blue" >products utilize premium materials including HT200/HT250 gray cast iron and ductile iron, maintaining strict density consistency of 7.2 g/cm³ and weight tolerance within ±1% to ±2%. With 2,000 tons of inventory and ISO9001/CE certification, we support rapid delivery cycles of 7-15 days for standard and customized configurations. Our advanced manufacturing combines sand casting, CNC machining, and multi-stage surface treatments including electrophoretic deposition primers and polyurethane topcoats, passing 500+ hour salt spray testing to ensure durability in demanding agricultural environments.

What Makes Quality Counterweight for Agricultural Machinery Essential

It's a high grade designed ballast solution that tackles important operating difficulties in today's agricultural equipment. When you are running high-horsepower tractors with heavy implements or front-end loaders, the center of gravity of the machine changes drastically. wheel slippage >15% which causes tractive inefficiency and leads to soil compaction and fuel loss.

Professional counterweights tackle three basic difficulties. First they will optimise weight to power ratios. For heavy draft work, this will normally be 45 to 55 kg per horsepower. Second, they avoid dynamic instability problems such as power hop and tipping accidents in operating loaders. Third, they provide the greatest possible transmission of power from the engine to the ground via optimum distribution of the load on the axles, generally around a 40/60 front/rear weight split.

Without properly produced ballast your equipment may experience earlier tire wear, higher operating expenses and the possible safety dangers while operating on hillsides or carrying big loads.

Technical Specifications and Material Standards

Understanding the technical parameters helps you select the right productfor your specific applications.

Gray cast iron remains the industry standard due to its high density and excellent vibration damping properties. Ductile iron is specified when you need higher impact resistance under shock loads. All materials undergo spectrometer testing to verify Carbon, Silicon, and Manganese content, ensuring consistent metallurgical properties.

Our surface treatment process begins with Sa 2.5 shot blasting, followed by electrophoretic deposition primers for complete coverage, and finishes with high-solid polyurethane topcoats. This protects your investment against fertilizer exposure, manure, and UV degradation throughout years of field service.

Application Scenarios for Different Equipment Types

The product requires specific configurations based on your operational requirements and equipment type.

High-Horsepower Tractor Draft Work: When plowing heavy clay or subsoiling, suitcase weights mount on your front bracket to counterbalance rear-mounted tillage equipment. Rear wheel weights bolt directly to rims, increasing traction without overloading axles or transmission housings. This configuration achieves optimal 40/60 front-to-rear weight distribution.

Front-End Loader Operations: Lifting heavy round bales or handling silage demands substantial rear ballast. A three-point hitch ballast box is mandatory to prevent the rear axle from losing traction. Without proper rear counterweight, your pivoting front axle bears excessive load, risking axle failure and machine tipping during lifting cycles.

Combine Harvester Steering Systems: When operating with wide, heavy headers on uneven terrain, counterweights attached to rear steering axles ensure wheels remain grounded. This maintains steering authority when the header is raised, preventing loss of control on hillsides.

Each application scenario requires precise weight calculations and mounting compatibility. Our technical team provides layout optimization and 3D design verification to ensure your counterweight configuration matches your specific machinery brand and operational requirements.

Quality Control and Inspection Protocols

Professional manufacturers implement rigorous quality control protocols that align with OEM standards. Our inspection procedures ensure every counterweight for agricultural machinery meets structural integrity and mounting precision requirements.

Chemical Composition Analysis: Spectrometer testing verifies material grade compliance, controlling Carbon, Silicon, and Manganese levels to prevent brittleness and ensure consistent casting properties across production batches.

Dimensional and Fitment Testing: We utilize CMM (Coordinate Measuring Machines) and Go/No-Go gauges for mounting holes and slots. Misaligned mounting points represent critical reject criteria since they cause vibration and damage to tractor frames during operation.

Weight Tolerance Verification: Strict adherence to specified tolerances is maintained throughout production. Underweight castings compromise machine performance, while overweight units stress machinery components unnecessarily.

Non-Destructive Testing: Ultrasonic testing detects internal shrinkage cavities or sand inclusions that could lead to catastrophic structural failure under operational loads. This ensures casting integrity without damaging the component.

Coating Adhesion Testing: Cross-cut tests per ISO 2409 and salt spray testing verify rust resistance performance. Our coatings consistently exceed 500-hour exposure benchmarks, ensuring long-term protection against aggressive agricultural chemicals.

Customization Capabilities for Non-Standard Requirements

FLA Industrial's core strength lies in customizing special-shaped counterweights that meet your unique machinery configurations. Standard catalog products cannot address every mounting interface or space constraint in modern agricultural equipment.

Our customization process begins when you provide dimensional requirements, mounting interface specifications, or target weight parameters. Within 24-48 hours, our engineering team delivers 3D design proposals and weight calculations for your review.

We excel at reverse engineering and 3D scanning of existing mounting brackets. This guarantees 100% compatibility with specific tractor brands, whether you operate John Deere, Kubota, Case IH, or other manufacturers. The casting material remains consistent, but mold design adapts to your exact bolt patterns and mounting notch configurations.

For special-shaped parts, our production system maintains delivery cycles of just 7-15 days. We provide production progress feedback throughout manufacturing, ensuring you stay informed of order status. This rapid customization capability eliminates lengthy lead times that disrupt your equipment maintenance schedules.

From initial mold development through final surface treatment, our full-process technical support ensures your customized counterweight integrates seamlessly with your machinery.

FAQ

Q：What weight tolerance should I expect for OEM counterweights?

A：Industry standard is ±2% to ±3% of nominal weight. However, for precision ballasting in professional applications, we maintain ±1% tolerance. This ensures accurate axle load distribution calculations and predictable center of gravity positioning.

Q：How do cast iron counterweights compare to concrete alternatives?

A：Cast iron offers superior performance for professional machinery. With density approximately three times that of concrete, iron allows compact designs that preserve ground clearance and operator visibility. Concrete is bulky and prone to cracking under vibration, while cast iron provides long-term durability and maintains resale value.

Q：What prevents rust in harsh field environments?

A：Our multi-stage surface treatment includes shot blasting to Sa 2.5 cleanliness, electrophoretic deposition primer for complete coverage including recessed areas, and high-solid polyurethane topcoat. This system consistently passes 500+ hour salt spray testing, resisting fertilizer, moisture, and chemical exposure.

Q：Can mounting designs accommodate different tractor brands?

A：Yes. While core material specifications remain constant, we customize mold designs for mounting interfaces. Using reverse engineering and 3D scanning, we guarantee compatibility with specific front brackets or wheel rim hole patterns for your target machinery brand.

Q：What causes counterweight fractures during operation?

A：Fractures typically result from excessive Phosphorus content causing cold shortness, or internal porosity from casting defects. We control Phosphorus below 0.15% and conduct low-temperature impact testing to ensure components withstand collision shocks during field operations.
