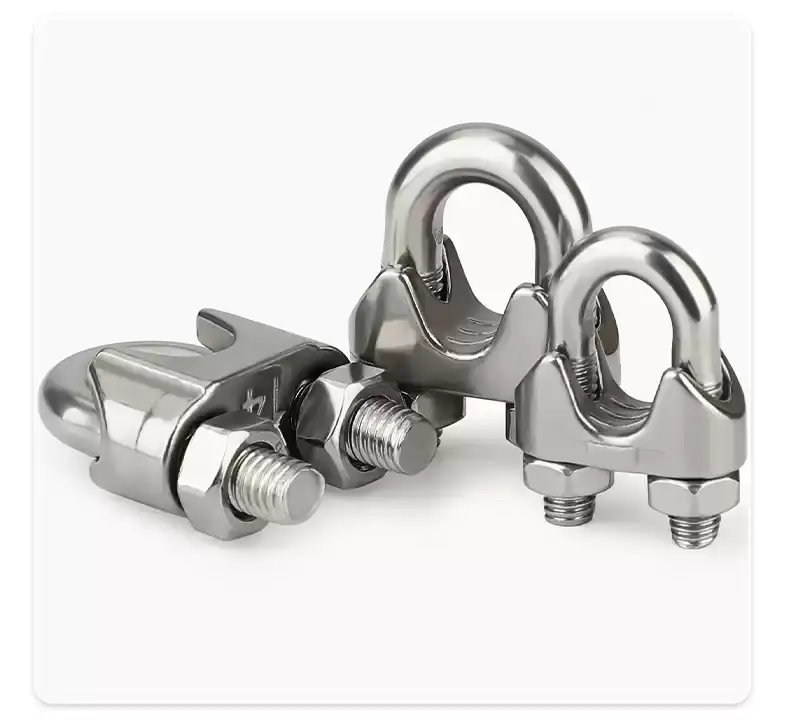

Stainless Steel Wire Rope Fasteners
Application: Used for fastening, connecting, and end termination of wire ropes; widely applied in marine engineering, construction, shipbuilding, and other fields
Appearance: Natural stainless-steel finish, bright surface, corrosion resistant
Place of Origin: China
Manufacturing Process: Precision casting, forging, machining, polishing
Certification: ISO9001, CE
Stainless Steel Wire Rope Fasteners
Product Introduction
When you're working with wire rope frameworks in challenging situations, you require dependable securing arrangements that won't let you down. Stainless steel wire rope fasteners from FLA Mechanical & Exchanging Co., Ltd. are outlined particularly for your most requesting applications. These precision-engineered components give secure associations and conclusion terminations for wire ropes over marine, development, and mechanical settings. Created from premium stainless steel 304 and 316 grades, our clasp convey remarkable erosion resistance and long-lasting execution. Whether you're building seaward stages, fixing ships, or introducing engineering cable frameworks, these latches guarantee your wire rope congregations stay secure and useful. With a shinning, normal stainless-steel wrap up and fastidious fabricating measures, you get professional-grade components that meet worldwide quality benchmarks.
Our latches are fabricated through progressed forms counting exactness casting, manufacturing, machining, and cleaning. This multi-stage approach guarantees dimensional exactness and predominant surface quality. You'll appreciate the consideration to detail that goes into each piece, from the littlest M2 estimate to the vigorous M32 specification.
Stainless Steel Wire Rope Fasteners Specification
| Specification | Pitch (P) | Total Height (L) (mm) | Hole Diameter (a) (mm) | Screw Diameter (A) (mm) | Shank Diameter (d) (mm) | Clip Height (h1) (mm) | Hexagon Opposite Side (S) (mm) | Applicable Wrench (mm) |
|---|---|---|---|---|---|---|---|---|
| M2 | 0.4 | 17.1 | 4.5 | 3 | 2.5 | 9 | 5.4 | 5.5 |
| M3 | 0.5 | 20.3 | 5.3 | 4 | 3.4 | 8.6 | 6.9 | 7 |
| M4 | 1.25 | 22.7 | 6.6 | 4 | 3.4 | 9.8 | 6.9 | 7 |
| M5 | 0.8 | 26.7 | 7.1 | 5 | 4.3 | 9.4 | 7.8 | 8 |
| M6 | 1 | 32.3 | 7.1 | 6 | 5.2 | 11 | 9.8 | 10 |
| M8 | 1.25 | 34.5 | 10.1 | 6 | 5.2 | 15 | 9.8 | 10 |
| M10 | 1.5 | 44.8 | 10.1 | 8 | 7.1 | 15 | 12.5 | 12.5 |
| M12 | 1.75 | 51.2 | 14.8 | 10 | 8.5 | 18.1 | 15.8 | 16 |
| M14 | 2 | 56.3 | 14.4 | 10 | 8.6 | 21.3 | 15.8 | 16 |
| M16 | 2 | 64.6 | 18.6 | 12 | 10.5 | 24 | 17.8 | 18 |
| M18 | 2.5 | 73.6 | 20.1 | 12 | 10.7 | 29.5 | 17.8 | 18 |
| M20 | 2.5 | 73.9 | 20.5 | 12 | 10.7 | 29.8 | 17.8 | 18 |
| M22 | 2.5 | 76.5 | 25.1 | 12 | 10.7 | 32.5 | 17.8 | 18 |
| M24 | 3 | 79.9 | 27.1 | 12 | 10.7 | 33 | 17.8 | 18 |
| M26 | 3 | 86.6 | 27.8 | 12 | 10.7 | 35.6 | 17.8 | 18 |
| M30 | 3.5 | 100.3 | 33.3 | 16 | 14.1 | 35.6 | 23.8 | 24 |
| M32 | 3.5 | 100.3 | 33.6 | 16 | 14.5 | 35.6 | 23.8 | 24 |
Note: Due to continuous upgrading and optimization of product technology, there may be errors in product appearance and parameters. Please refer to the actual product. Our contact email address is sales@flaindustrial.com.
Usage Scenarios
You'll discover these wire rope latches priceless over various applications:
Marine Building: Secure fixing frameworks on vessels, seaward stages, and dock establishments where saltwater erosion is a steady challenge.
Construction Industry: Make dependable cable railing frameworks, pressure structures, and suspension applications in buildings and bridges.
Shipbuilding: Amass pole fixing, security lines, and cargo securing frameworks that must withstand unforgiving sea conditions.
Architectural Applications: Introduce enriching cable frameworks, canopy bolsters, and glass exterior maintenance frameworks with confidence.
Industrial Settings: Execute lifting gatherings, transport frameworks, and fabric taking care of gear where security is paramount.
The flexibility of stainless steel wire rope fasteners implies you can utilize them in both indoor and open air situations without stressing almost rust or degradation.
Product Features
Superior Erosion Resistance: Our stainless steel 304 and 316 materials ensure against rust, indeed in saltwater and chemical environments.
Precision Building: Each clasp meets strict dimensional resiliences, guaranteeing appropriate fit and solid execution in your assemblies.
Comprehensive Estimate Extend: From M2 to M32 details, you'll discover the culminate estimate for your particular application needs.
Bright Surface Wrap up: The cleaned appearance not as it were looks proficient but moreover gives extra erosion protection.
High Stack Capacity: Fabricated through fashioning and accuracy casting, these latches handle significant working loads safely.
Easy Establishment: Standard hexagon measurements cruel you can utilize common torques for fast, productive assembly.
Temperature Soundness: Stainless steel development keeps up quality over a wide temperature range.
Quality Control
We take quality genuinely at each organize of generation. Our fabricating handle incorporates thorough assessment focuses to guarantee you get as it were the finest components.
Each group experiences dimensional confirmation to affirm all determinations coordinate the plan parameters. Surface quality assessments check for any abandons or inconsistencies. Fabric composition testing confirms the adjust stainless steel grade.
Our ISO9001-certified quality administration framework guarantees reliable generation benchmarks. This certification illustrates our commitment to keeping up universal quality benchmarks all through the whole fabricating process.
Load testing on test units affirms that quality necessities are met. We too conduct erosion resistance testing to confirm long-term toughness in cruel environments.
Before shipment, last assessments guarantee your clasp arrive in culminate condition, prepared for prompt use.
Why Choose Us?
Instant Specialized Back: When you require answers around measuring, stack appraisals, or 3D plans, we react inside 24-48 hours. This speedy turnaround makes a difference you make choices quicker and keeps your ventures moving forward.
Customization Ability: Our center quality lies in making special-shaped parts and non-standard components. If you have special necessities that standard clasp can't meet, we'll create custom arrangements custom fitted to your correct specifications.
Fast Conveyance: With 2,000 tons of stock, we can transport standard items quickly. Indeed for customized orders, our productive generation framework conveys in fair 7-15 days.
No Arrange Measure Limits: Whether you require a little group for testing or large-volume generation amounts, we've got you covered.
Complete Specialized Help: From starting shape advancement and 3D plan confirmation to generation advance overhauls, we direct you through each step.
Proven Unwavering quality: Our items serve clients over apparatus, building materials, and mechanical divisions worldwide.
Certifications
Our commitment to quality is supported by universally recognized certifications:
- ISO9001 Quality Administration Framework: Guarantees steady generation measures and ceaseless change processes
- CE Item Security Certification: Affirms our items meet European security, wellbeing, and natural assurance standards
These certifications grant you certainty that each stainless steel wire rope fasteners meets thorough worldwide prerequisites for both fabricating quality and item security.
FAQ
Q: What's the difference between 304 and 316 stainless steel?
A: Grade 316 contains molybdenum, which provides superior corrosion resistance, especially in marine and chemical environments. Grade 304 offers excellent general-purpose corrosion resistance at a more economical price point.
Q: Can you provide custom sizes not listed in the specification table?
A: Absolutely! Custom sizing is one of our specialties. Just send us your requirements, and we'll provide a solution within 24-48 hours.
Q: How do I select the right size fastener for my wire rope?
A: Match the hole diameter to your wire rope diameter, then ensure the load rating meets your application requirements. Contact Us if you need assistance with selection.
Q: What's your minimum order quantity?
A: We don't impose strict minimum order quantities. We can accommodate both small trial orders and large production runs.
Q: How long does delivery take for standard Products" target="_blank" style="color:blue" >products?
A: Standard products from our 2,000-ton inventory can ship immediately. Custom products typically deliver within 7-15 days.
Q: Do you provide load rating information?
A: Yes, we can provide detailed load specifications for each size. Contact us with your specific requirements.
Q: Can these fasteners be used in outdoor applications?
A: Definitely. The stainless steel construction makes them ideal for both indoor and outdoor use, including harsh marine environments.
Contact Us
Ready to secure your wire rope systems with premium fasteners? We're here to help you find the perfect solution.
Email: sales@flaindustrial.com
Whether you need technical specifications, pricing information, custom design assistance, or general stainless steel wire rope fasteners inquiries, our team responds quickly to keep your projects on track.
Reach out today and experience the FLA Industrial difference—where quality meets customization, and customer service is always our priority.
