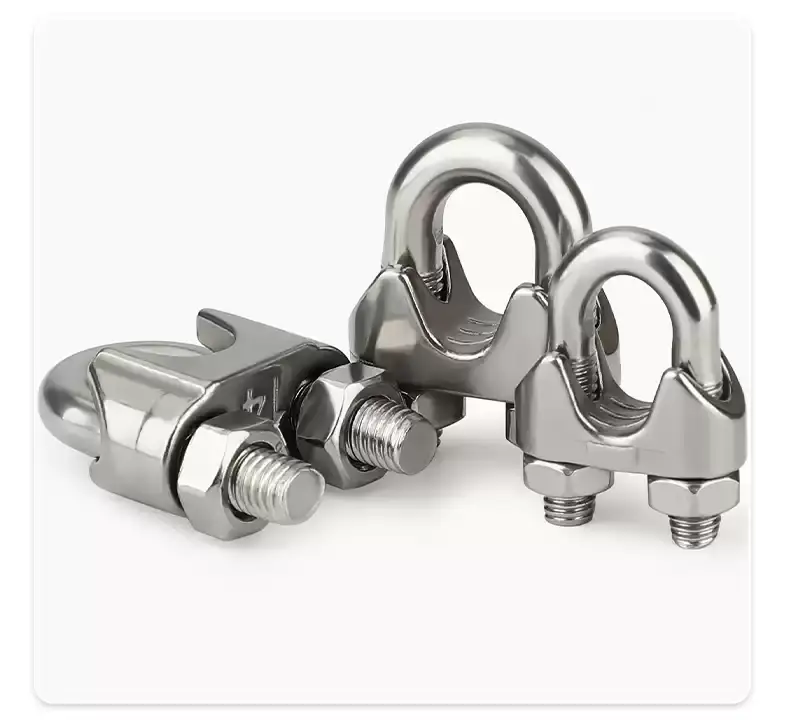

Stainless Rope Clamp
Application: Used for fastening, connecting, and end termination of wire ropes; widely applied in marine engineering, construction, shipbuilding, and other fields
Appearance: Natural stainless-steel finish, bright surface, corrosion resistant
Place of Origin: China
Manufacturing Process: Precision casting, forging, machining, polishing
Certification: ISO9001, CE
Stainless Rope Clamp - Professional Wire Rope Fastening Solution
Product Introduction
When you're looking for a solid affixing arrangement for your wire rope frameworks, the stainless rope clamp stands out as your trusted choice. Made by FLA Mechanical & Exchanging Co., Ltd., this precision-engineered component is particularly planned to secure, interface, and end wire ropes in requesting situations. Made from premium stainless steel 304 or 316 review materials, each product conveys uncommon erosion resistance and long-lasting execution. Whether you're working in marine designing, development ventures, or shipbuilding businesses, our rope clamps give the quality and toughness you need.
Our clamps include a shinning, common stainless-steel wrap up that not as it were looks proficient but too withstands unforgiving climate conditions and destructive situations. Through progressed fabricating forms counting exactness casting, manufacturing, machining, and cleaning, we guarantee each piece meets worldwide quality measures. With ISO9001 and CE certifications backing our items, you can believe that you're getting components that perform dependably day after day.
Stainless Rope Clamp Specification
| Specification | Pitch (P) | Total Height (L) (mm) | Hole Diameter (a) (mm) | Screw Diameter (A) (mm) | Shank Diameter (d) (mm) | Clip Height (h1) (mm) | Hexagon Opposite Side (S) (mm) | Applicable Wrench (mm) |
|---|---|---|---|---|---|---|---|---|
| M2 | 0.4 | 17.1 | 4.5 | 3 | 2.5 | 9 | 5.4 | 5.5 |
| M3 | 0.5 | 20.3 | 5.3 | 4 | 3.4 | 8.6 | 6.9 | 7 |
| M4 | 1.25 | 22.7 | 6.6 | 4 | 3.4 | 9.8 | 6.9 | 7 |
| M5 | 0.8 | 26.7 | 7.1 | 5 | 4.3 | 9.4 | 7.8 | 8 |
| M6 | 1 | 32.3 | 7.1 | 6 | 5.2 | 11 | 9.8 | 10 |
| M8 | 1.25 | 34.5 | 10.1 | 6 | 5.2 | 15 | 9.8 | 10 |
| M10 | 1.5 | 44.8 | 10.1 | 8 | 7.1 | 15 | 12.5 | 12.5 |
| M12 | 1.75 | 51.2 | 14.8 | 10 | 8.5 | 18.1 | 15.8 | 16 |
| M14 | 2 | 56.3 | 14.4 | 10 | 8.6 | 21.3 | 15.8 | 16 |
| M16 | 2 | 64.6 | 18.6 | 12 | 10.5 | 24 | 17.8 | 18 |
| M18 | 2.5 | 73.6 | 20.1 | 12 | 10.7 | 29.5 | 17.8 | 18 |
| M20 | 2.5 | 73.9 | 20.5 | 12 | 10.7 | 29.8 | 17.8 | 18 |
| M22 | 2.5 | 76.5 | 25.1 | 12 | 10.7 | 32.5 | 17.8 | 18 |
| M24 | 3 | 79.9 | 27.1 | 12 | 10.7 | 33 | 17.8 | 18 |
| M26 | 3 | 86.6 | 27.8 | 12 | 10.7 | 35.6 | 17.8 | 18 |
| M30 | 3.5 | 100.3 | 33.3 | 16 | 14.1 | 35.6 | 23.8 | 24 |
| M32 | 3.5 | 100.3 | 33.6 | 16 | 14.5 | 35.6 | 23.8 | 24 |
Note: Due to continuous upgrading and optimization of product technology, there may be errors in product appearance and parameters. Please refer to the actual product. Our contact email address is sales@flaindustrial.com.
Usage Scenarios
Our wire rope clamps serve you over different businesses and applications:
Marine Designing: Secure fixing frameworks, grapple lines, and deck hardware on ships and seaward stages where saltwater erosion is a steady challenge.
Construction Destinations: Secure security cables, lifting gear, and brief structures. The clamps hold solidly indeed beneath energetic loads and vibration.
Shipbuilding: Interface different wire rope gatherings amid vessel development and support. The corrosion-resistant properties guarantee long benefit life in oceanic environments.
Industrial Offices: Introduce cable railings, security boundaries, and apparatus cable frameworks. Idealize for both indoor and open air applications.
Architectural Applications: Make cutting edge cable railing frameworks for overhangs, staircases, and embellishing establishments where aesthetics meet functionality.
Product Features
Premium Fabric Choice: Made from high-grade stainless steel 304 or 316, advertising predominant resistance to rust, erosion, and chemical exposure.
Precision Designing: Each clamp experiences strict dimensional control through progressed fabricating forms. This guarantees idealize fit and most extreme holding power.
Versatile Measure Extend: With details from M2 to M32, you'll discover the right measure for essentially any wire rope distance across and application requirement.
Easy Establishment: The hexagonal plan permits for straightforward fixing with standard torques. Clear markings offer assistance you select the adjust instrument size.
Durable Wrap up: The shinning cleaned surface not as it were looks proficient but moreover gives an extra layer of assurance against natural damage.
High Stack Capacity: Designed to handle significant pressure loads, giving you peace of intellect in safety-critical applications.
Quality Control
Quality isn't fair a guarantee at FLA Industrial—it's built into each step of our handle. Your stainless rope clamp experiences thorough review at numerous stages:
Material Confirmation: We test crude materials to affirm they meet the indicated stainless steel review measures some time recently generation begins.
Process Checking: All through casting, producing, and machining operations, our quality group performs standard checks to guarantee dimensional accuracy.
Performance Testing: Each bunch experiences stack testing to confirm quality and holding capacity meet or surpass evaluated specifications.
Surface Review: We look at each piece for surface abandons, guaranteeing the cleaned wrap up is smooth and free from imperfections.
Final Confirmation: Some time recently bundling, items get a comprehensive review covering all measurements, string quality, and generally appearance.
Our ISO9001 quality administration framework certification illustrates our commitment to steady quality. The CE certification affirms our items meet European security guidelines, giving you certainty when indicating our clamps for your projects.
Why Choose Us?
Fast Reaction Time: Require a cite, weight determination, or 3D plan? We get back to you inside 24-48 hours, making a difference you move your extend forward quickly.
Extensive Stock: With 2,000 tons of stock on hand, we can transport standard rope clamps instantly. No holding up weeks for your basic components.
Custom Arrangements: Got a interesting application? Our center quality is customizing special-shaped parts. We can create non-standard sizes and extraordinary structures custom-made to your correct requirements.
Quick Turnaround: Indeed for customized items, our proficient generation framework conveys in fair 7-15 days. You won't confront venture delays.
Technical Back: From starting shape advancement and 3D plan confirmation to generation advance overhauls, our group underpins you all through the whole process.
Proven Unwavering quality: Our items serve clients over marine, development, and mechanical divisions around the world. We've built our notoriety on quality that performs.
Flexible Volume: Whether you require a little group for a particular extend or expansive amounts for continuous operations, we handle orders of all sizes without limitations.
Certifications
-
ISO9001: Quality administration framework certification guaranteeing reliable generation standards
- CE: European item security certification affirming compliance with wellbeing, security, and natural security prerequisites
FAQ
Q: What's the difference between 304 and 316 stainless steel rope clamps?
A: Both materials offer excellent corrosion resistance. Stainless steel 316 contains molybdenum, providing superior resistance to chlorides and saltwater. We recommend 316 grade for marine applications and coastal environments. For general industrial use, 304 grade performs excellently at a more economical price point.
Q: How do I select the correct clamp size for my wire rope?
A: Match the specification (M2-M32) to your wire rope diameter and application requirements. Check the hole diameter (a) in our specification table—this should accommodate your rope comfortably. If you're unsure, Contact Us at sales@flaindustrial.com with your rope diameter and application details.
Q: Can you customize rope clamps for special applications?
A: Absolutely! Customization is one of our core strengths. We can modify dimensions, materials, and structures to meet your specific needs. Simply provide your requirements, and we'll develop a solution with 3D design verification before production.
Q: What's your delivery time for standard versus custom Products" target="_blank" style="color:blue" >products?
A: Standard sizes ship immediately from our 2,000-ton inventory. Custom rope clamps typically deliver within 7-15 days, depending on complexity and quantity.
Q: How many clamps should I use per wire rope connection?
A: Generally, we recommend using at least two clamps per connection for safety and reliability. For critical applications or larger diameter ropes, three or more clamps may be appropriate. Consult engineering guidelines for your specific application.
Q: Do your clamps work with both stainless and galvanized wire ropes?
A: Yes, our product works with various wire rope types. However, for optimal corrosion resistance, pairing stainless steel clamps with stainless steel rope is ideal, especially in corrosive environments.
Contact Us
Ready to secure your wire rope systems with quality clamps that deliver lasting performance? We're here to help you find the perfect solution for your application.
Email: sales@flaindustrial.com
Reach out today for:
- Product quotations and specifications
- Custom design consultation
- Technical support and installation guidance
- 3D design files for your engineering team
- Sample requests for testing
Our stainless rope clamp's team responds within 24-48 hours to ensure your project keeps moving forward. Whether you need standard products from our extensive inventory or custom-engineered solutions, FLA Industrial & Trading Co., Ltd. has the expertise, capacity, and commitment to meet your wire rope fastening needs.
Let's work together to make your next project a success!
