Double-Head Clamps
Double-Head Clamps

Double-Head Clamps

Material: malleable cast iron + Steel Screw Rod
Application: Wood panel splicing, frame clamping
Finish: Painted or Electroplated
Origin: China
Manufacturing Process: Casting, Machining, Assembly
Certification: ISO9001

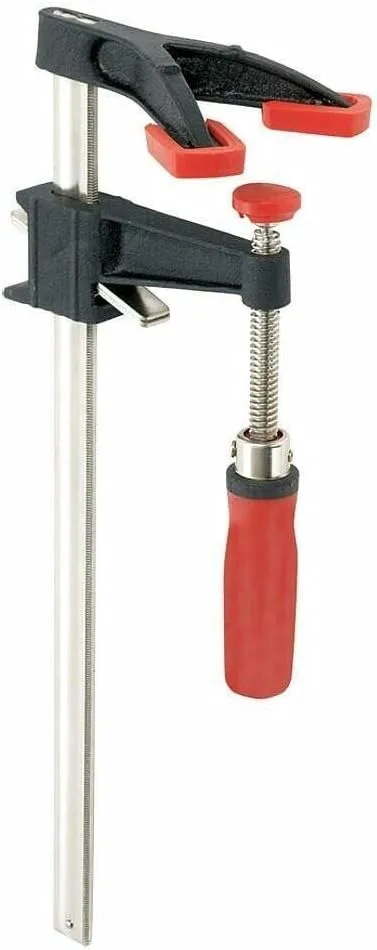

Double-Head Clamps for Wood Panel Splicing and Frame Clamping: Malleable Cast Iron Body with Steel Screw Rod

FLA Industrial & Trading Co., Ltd. supplies Double-Head Clamps for wood panel splicing and frame clamping. The body is malleable cast iron. The screw rod is steel. Every clamp goes through casting, then machining, then assembly, and gets a paint or electroplating finish. Production runs under an ISO9001 quality management system. Stock of 2,000 tons keeps standard models available. Custom special-shaped parts ship in 7–15 days. Pricing comes back within 24–48 hours, and so do unit weight and 3D design feedback. Before production, material is confirmed. Performance and dimensional accuracy get checked as well.

Overview

Each side of a joint gets its own clamping head on This product. Both parts are pulled toward each other and held in line. Wood panel splicing is one fit, because boards are joined edge to edge. Frame clamping is the other, where frame parts have to stay square during assembly. We also supply the Double-Head Clamps in custom sizes to suit your drawing.

Machinery, building materials and woodworking jobs all rely on these clamps. Sizes and special structures get confirmed per order. Send us the workpiece type and the clamping layout you need.

Double-Head Clamps

Materials, Process and Finish

Malleable cast iron goes into the body. Steel is used for the screw rod. That cast body makes up the base of the clamp. Force comes from the threaded rod.

Three steps go into every clamp: casting, machining and assembly. Before assembly, machining brings the parts to the dimensions they need.

Two finishes are available:

  • Painted: a paint coating applied over the cast surface.
  • Electroplated: a metal coating layer applied instead of paint.

Specifications

Specification Total Length (mm) Total Width (mm) Clamping Length (mm) Clamping Width (mm)
6 Inch 248 110 160 60
12 Inch 395 110 308 60
18 Inch 550 110 460 60
24 Inch 700 110 615 60
30 Inch 850 110 765 60
36 Inch 1000 110 915 60

Sizes and special structures get confirmed with each order. The product data we have does not list dimensions, clamping range, load capacity or unit weight. Ask us to confirm these when you send your inquiry.

product-1-1

Key Features and Benefits

Both sides of a joint get held at the same time by this product. That cuts down on shifting when glue is setting, or when you are fixing a frame.

  • Two clamping heads: you get one head on each side of the joint, so the parts stay in line.
  • Cast iron body and steel screw rod: there is a cast base, plus a threaded rod that puts on the clamping force.
  • Two finish options: painted or electroplated.
  • Custom shapes: non-standard sizes and special structures are available.

product-1-1

Applications

Standard models are used for two main jobs:

  • Wood panel splicing: boards get joined edge to edge, which makes wider panels.
  • Frame clamping: frame parts stay square while the assembly work goes on.

Buyers in machinery and building materials ask for special-shaped versions too. They need them for their own fixtures. For other uses, send us your drawings and the conditions you work in. We will check if Double-Head Clamps fit the job.

Quality Control and Certification for Double-Head Clamps

An ISO9001 quality management system guides production. Control of the process runs through casting, machining and assembly.

We confirm the product attribute parameters with you before production starts. Material, performance and dimensional accuracy are all part of that. Got specific checks for your project? List them in your inquiry. That way they get reviewed early.

product-1-1

Customization and Technical Support

FLA makes non-standard this product. Special-shaped parts for machinery and building materials come from us as well. From the first order step to the last, our support stays with you:

  • Early stage: We make the mold for custom parts. 3D design and checks are part of this step too. That way you can review the shape before production starts.
  • Mid stage: product layout optimization and confirmation of material, performance and dimensional accuracy.
  • Late stage: production progress feedback matched to delivery progress.

Supply and Delivery

A 2,000-ton inventory supports standard models. Custom orders, including special-shaped parts, can be delivered in 7–15 days.

Pricing, unit weight and 3D design requests receive a reply within 24–48 hours. Share your packaging requirements with your quote request so they can be confirmed early.

FAQ

Q: What materials are used?

A: The body is malleable cast iron and the screw rod is steel.

Q: Which finishes can I choose?

A: You can choose a painted finish or an electroplated finish.

Q: Can I order a special shape or size?

A: Yes. Non-standard sizes and special structures are available, and sizes are confirmed per order. Send your drawings with your inquiry.

Q: How long does a custom order take?

A: Custom orders can be delivered in 7–15 days.

Q: How quickly will I receive a quote?

A: Pricing, unit weight and 3D design feedback are provided within 24–48 hours.

Contact Us

Send your Double-Head Clamps drawings, quantities and packaging requirements to sales@flaindustrial.com. We reply with pricing, unit weight and 3D design feedback within 24–48 hours.
