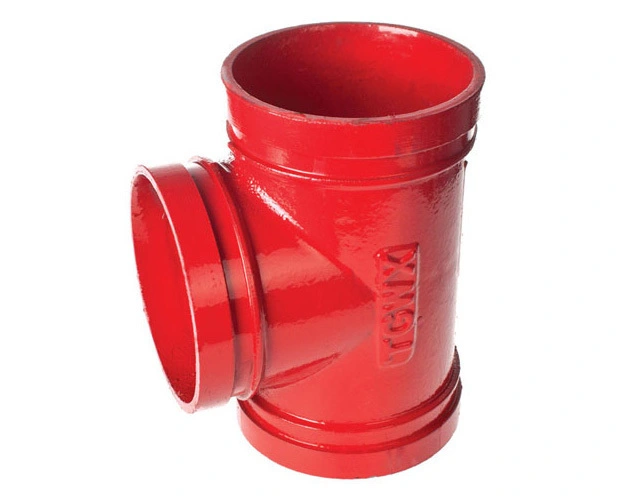

Grooved Equal Tee
Application: Branching or merging of three-way pipeline systems
Finish: Red Painted or Galvanized
Origin: China
Manufacturing Process: Casting, Machining
Certification: ISO9001, CE, UL/FM
Grooved Equal Tee - Professional Pipe Branching Solution
Product Introduction
When your channeling framework needs dependable branching associations, the grooved equal tee offers the culminate arrangement. Made from high-grade pliable press, this fitting is particularly planned for three-way pipeline frameworks where you require to department or consolidate stream headings effectively. Whether you're working on fire assurance frameworks, HVAC establishments, or mechanical liquid transport, our product conveys remarkable execution and speedy establishment. Accessible in ruddy painted or galvanized wraps up, each fitting experiences accuracy casting and machining forms to guarantee dimensional exactness and long-lasting solidness. Sponsored by ISO9001, CE, and UL/FM certifications, you can believe that each piece meets exacting universal quality standards.
Our notched fittings rearrange your establishment prepare essentially. Not at all like conventional strung or welded associations, notched frameworks spare you important time on-site whereas keeping up prevalent joint integrity.
Grooved Equal Tee Specification
| Nominal Diameter (mm) | Pipe Fitting Outer Diameter D (mm) | Nominal Pressure (MPa) | Basic Outline Dimension L (mm) |
|---|---|---|---|
| 32 | 42.4 | 2.5 | 60 |
| 40 | 48.7 | 2.5 | 60 |
| 50 | 57 | 2.5 | 70 |
| 50 | 60.3 | 2.5 | 70 |
| 65 | 76.1 | 2.5 | 76 |
| 80 | 88.9 | 2.5 | 85 |
| 100 | 108 | 2.5 | 95 |
| 100 | 114.3 | 2.5 | 95 |
| 125 | 133 | 2.5 | 110 |
| 125 | 139.7 | 2.5 | 110 |
| 150 | 159 | 2.5 | 120 |
| 150 | 165 | 2.5 | 120 |
| 150 | 168.3 | 2.5 | 120 |
| 200 | 219.1 | 1.6 | 165 |
| 250 | 273 | 1.6 | 215 |
| 300 | 323.9 | 1.6 | 230 |
| 350 | 377 | 1.6 | 280 |
Note: Due to continuous upgrading and optimization of product technology, there may be errors in product appearance and parameters. Please refer to the actual product. Our contact email address is sales@flaindustrial.com.
Usage Scenarios
You'll discover notched tee fittings vital over different applications:
Fire Security Frameworks - Make department lines for sprinkler dispersion with certainty. The fast establishment decreases venture timelines significantly.
HVAC Frameworks - Idealize for chilled water and warming dissemination systems where you require dependable branching points.
Industrial Channeling - Handle water, oil, and other liquid transport in fabricating offices where downtime costs money.
Municipal Water Supply - Perfect for water conveyance systems requiring strong, pressure-resistant connections.
Building Mechanical Rooms - Streamline complex channeling formats with easy-to-install three-way connections.
The notched association strategy permits for pipe development and vibration retention, making it especially appropriate for situations with temperature vacillations or seismic considerations.
Product Features
Quick Establishment - You can total associations in minutes without welding or threading. Essentially groove the pipe, position the tee, and secure with couplings.
Superior Pliable Press Development - This fabric gives fabulous strength-to-weight proportion and affect resistance compared to standard cast iron.
Pressure Evaluated Execution - With weight evaluations up to 2.5 MPa, you get solid execution in requesting applications.
Corrosion Assurance - Select between ruddy painted or galvanized wraps up based on your natural requirements.
Wide Estimate Run - From 32mm to 350mm ostensible breadth, we cover most standard channeling applications.
Flow Productivity - Smooth inner surfaces minimize weight drop and keep up ideal stream characteristics.
Flexible Framework Plan - The grooved equal tee permits for simple framework adjustments and future extensions without major rework.
Quality Control
Quality isn't fair a promise—it's built into each step of our fabricating process.
Material Confirmation - We test all approaching pliable press materials for chemical composition and mechanical properties some time recently generation begins.
Dimensional Assessment - Each fitting experiences accuracy estimation to guarantee groove measurements, outlet dispersing, and in general geometry meet specifications.
Pressure Testing - Irregular tests from each generation clump experience hydrostatic testing to confirm weight ratings.
Surface Quality Checks - Our group assesses coating thickness and attachment to ensure long-term erosion resistance.
Final Assessment - Some time recently bundling, each product gets a comprehensive visual and dimensional check.
This thorough quality control guarantees you get steady, dependable items that perform as anticipated in your basic channeling systems.
Why Choose Us?
Customization Ability - Require non-standard sizes or uncommon setups? Our center quality lies in customizing special-shaped parts. We can create items with interesting measurements and structures to coordinate your particular requirements.
Rapid Reaction - When you ask estimating, weight determinations, or 3D plans, we give criticism inside 24-48 hours. This speeds up your decision-making handle considerably.
Inventory Accessibility - With 2,000 tons of stock, we transport standard items rapidly. For custom orders, anticipate conveyance in fair 7-15 days.
Technical Back - From beginning form improvement to 3D plan confirmation, we bolster you all through the extend. We'll optimize item formats and affirm all parameters some time recently generation begins.
Certified Quality - Our ISO9001, CE, and UL/FM certifications illustrate our commitment to worldwide quality standards.
Volume Adaptability - Whether you require a little clump or large-volume supply, we handle orders of all sizes without limitations.
Certifications
Our items and fabricating forms hold the taking after certifications:
- ISO9001 - Quality administration framework certification guaranteeing steady generation standards
- CE - European item security certification affirming compliance with wellbeing and security requirements
- UL/FM - Fire security certifications for items utilized in fire assurance applications
These certifications approve our commitment to creating furrowed pipe fittings that meet worldwide security and quality benchmarks.
FAQ
Q: What's the difference between painted and galvanized finishes?
A: Red painted finishes are standard for indoor fire protection systems and provide good corrosion resistance. Galvanized finishes offer superior protection in humid or corrosive environments.
Q: Can you provide custom sizes not listed in the specification table?
A: Absolutely! Custom sizing is one of our specialties. Contact Us with your requirements, and we'll develop a solution tailored to your needs.
Q: How do I install a tee?
A: You'll need grooved pipe ends and grooved couplings. Simply position the tee, align the grooves, place the coupling gasket, and tighten the coupling bolts. No welding or threading required.
Q: What's the typical lead time for standard sizes?
A: Standard sizes ship from our 2,000-ton inventory quickly—usually within days of order confirmation.
Q: Do you provide installation support or technical drawings?
A: Yes, we provide 3D designs, technical specifications, and installation guidance to ensure proper system integration.
Contact Us
Ready to streamline your piping project with reliable grooved fittings? Our grooved equal tee's team is here to help you select the right specifications and answer your technical questions.
Email: sales@flaindustrial.com
Whether you need standard Products" target="_blank" style="color:blue" >products from our extensive inventory or custom-engineered solutions, we'll respond within 24-48 hours with the information you need to move your project forward.
Let FLA Industrial & Trading Co., Ltd. be your trusted partner for quality grooved pipe fittings that deliver performance, reliability, and installation efficiency.
