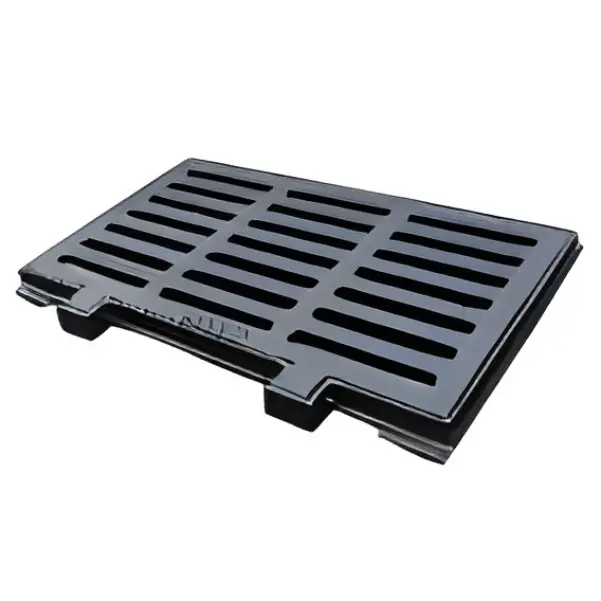

Ductile Iron Trench Grate
Ductile Iron Trench Grate

Ductile Iron Trench Grate

Technical Specifications
Product Name: Gully Cover
Material: Ductile Iron
Load Ratings: B125, C250, D400, E600
Dimensions: Customizable length, width, and height to fit your exact installation needs.

Ductile Iron Trench Grate Gully Covers for Roads, Parking and Industrial Sites: B125 to E600 Ratings, Custom Sizes

FLA Industrial & Trading Co., Ltd. supplies cast drainage parts for roads and car parks. One item on that list is the Ductile Iron Trench Grate, sold under the name Gully Cover. Spheroidal graphite iron goes into the casting. Load ratings run B125, C250, D400 and E600. Length, width and height all come made to order, so the part fits your installation. Per the supplier, tensile strength reaches at least 500 MPa. Weight drops by roughly 30-40% next to a gray iron grate doing the same job. Send your drawings with the load class. Back comes pricing, unit weight and comments on your 3D design.

What Is Grate?

Count the Gully Cover as a drainage cover. Spheroidal graphite (SG) iron is the material it is cast from, and people also call that ductile iron. In gray iron the graphite shows up as flakes. Those flakes work like stress points, so the metal turns brittle. A magnesium or cerium treatment changes the graphite into nodules. Strength goes up. Impact resistance goes up with it.

Three common problems are what This product is built to handle. Vehicle loads in motion can crack a brittle cover. Runoff that carries salt or acid eats into the metal. Weak covers in busy zones need replacing again and again.

Specifications

Specification (mm) Load Capacity Specification (mm) Load Capacity
590×480×20 A15 380×500×20 A15
590×300×20 A15 350×500×40 C250
500×500×40 C250 350×500×30 B125
500×500×30 A15 350×500×30 B125
450×750×40 B125 320×500×20 A15
450×750×30 A15 300×500×40 C250
400×600×40 C250 300×500×30 B125
400×600×30 B125 300×500×20 A15
400×500×40 C250 250×500×30 B125
400×500×30 B125 200×400×20 A15
394×594×30 A15 340×500×20 C250
380×500×40 B125 - -

Exact sizes are not listed in this spec data. Neither are unit weight, clear opening, the standard it meets, or test reports. Before you order, email and ask for those.

Strength and Weight

Gray iron holds up worse under tension than ductile iron does. A lighter part can still carry the same load rating, though. Per FLA, their grates weigh around 30-40% less than the gray iron grates they replace. Handling gets easier and shipping costs drop when the weight goes down.

Under extreme stress, ductile iron bends a little first. It does not crack all at once.

Load Ratings and Applications

Traffic load and local rules decide which load class your Ductile Iron Trench Grate needs. The Gully Cover comes in B125, C250, D400 and E600.

Commercial and mixed-traffic zones (C250). A raised relief pattern makes the surface slip resistant. Shopping complexes and parking structures tend to ask for that. In these areas, delivery trucks share the ground with people on foot and on bikes. Spots like these are where this class belongs.

Municipal highways and urban roads (D400). Longitudinal drainage set beside fast lanes takes shock loads and vibration. Locking mechanisms help put off theft and stop covers from shifting. Building a fire lane? Look up the load class your local code calls for.

Ports and heavy industry (E600). At container terminals, forklifts and reach stackers press down very hard on small spots. Let us know how you use the equipment. Our team can then confirm which option is right.

Design Features

The shape of the grate openings lets more water through. You can ask for bolt-locking mechanisms or hinge systems. Theft is harder with them. Rattling goes down too. Polyethylene cushioning inserts (seating rings) lower the metal-on-metal noise between frame and grate. Before you request a quote, make sure your size is available.

Surface Protection Options

Every this product can come with black bituminous paint, fusion-bonded epoxy or hot-dip galvanizing. Each finish keeps the iron from oxidizing. Road salts and hydrocarbons stay out too. When you order, let us know which finish you want.

Is your site located where acid exposure is heavy? Ask the supplier about epoxy coatings made for that kind of work. Also ask about ductile alloys that stand up better. The surface will oxidize as time passes. Find out which finish suits the place where the part goes.

product-1-1

Quality Control and Certification for Ductile Iron Trench Grate

FLA states that most of its Products" target="_blank" style="color:blue" >products hold ISO quality management system certification and CE product safety certification. Ask for the certificate that matches your item before ordering.

For project submittals, you can also request the following documents. Please confirm in writing which ones are available for your order.

  • Material checks: chemistry and graphite nodularity results.
  • Load testing: proof-load results for the specified load class.
  • Dimensional and seating checks: measure flatness. Confirm the frame and the grate seat together properly, which stops rocking and keeps noise and wear down.
  • Coating records: record the measured thickness of every bituminous or epoxy layer.

Ductile Iron Trench Grate

Custom Sizes and Technical Support

Customized special-shaped parts are FLA's core strength. We develop non-standard sizes and special structures for machinery, building materials and other industries.

  • Early stage: Mold development for custom products, plus 3D design and verification before production.
  • Middle stage: Product layout refinement and confirmation of material, performance and dimensional accuracy.
  • Late stage: Production progress feedback matched to delivery progress.

Supply and Delivery

FLA keeps 2,000 tons in stock for standard orders. Custom orders for a Ductile Iron Trench Grate go out in 7-15 days. Special-shaped parts fall under custom orders too. Send your request to us. Pricing and unit weight come back within 24-48 hours. You also get 3D design feedback in that window. Compare the lead time with your quantity and design.

product-1-1

product-1-1

FAQ

Q: Why does ductile iron work better than gray iron?

A: Ductile iron gives you more tensile strength. A lighter design works at the same load rating. That can lower shipping cost and cut the risk of breakage.

Q: Which load class suits a fire lane?

A: Check what your local code asks for. Send us that requirement. From there we confirm the class that fits, chosen out of B125, C250, D400 or E600.

Q: How can I reduce theft or rattling?

A: Put bolt-locking mechanisms or hinge systems in the spec. You can also ask for polyethylene seating rings. Metal-on-metal noise gets quieter with them.

Q: Will the grate rust?

A: Over time, the surface may oxidize. One way to protect the iron is black bituminous paint. That works. Epoxy applied by fusion bonding is another option. Hot-dip galvanizing also helps.

Q: Can it handle chemical runoff?

A: Working on an industrial site where the acid is strong? Ask for epoxy coatings made for that kind of exposure. Ductile alloys are the other route to look at.

Q: Can you make non-standard sizes?

A: Yes. Length, width, and height are up to you. FLA says feedback comes back within 24-48 hours. Custom parts show up in 7-15 days.

Contact Us

Send your drawings, load class and quantity for a Ductile Iron Trench Grate to sales@flaindustrial.com. FLA will reply with pricing, unit weight and 3D design feedback within 24-48 hours.
