250mm Deep Throat G Clamps for Metalwork: Reach and Grip Selection

When your standard G clamp simply cannot reach the clamping point you need, a deep throat G clamp 250mm becomes the tool that keeps your project on track. These extended-reach clamps are purpose-built for metalwork scenarios where the clamping zone sits well inside the workpiece edge — behind a flange, across a wide panel, or deep into a structural assembly. In this guide, I'll walk through what makes these clamps distinct, how to select and use them correctly, and what procurement teams should consider when sourcing in bulk.

Specification

Type	Model	Throat Depth x Jaw Opening
Deep Throat Clamp	Deep Throat 1.5 Inch	35mm × 110mm
Deep Throat Clamp	Deep Throat 2 Inch	46mm × 140mm
Deep Throat Clamp	Deep Throat 3 Inch	82mm × 110mm
Deep Throat Clamp	Deep Throat 3 Inch	85mm × 185mm
Deep Throat Clamp	Deep Throat Large 3 Inch	95mm × 250mm
Deep Throat Clamp	Deep Throat 4 Inch	105mm × 186mm
Deep Throat Clamp	Deep Throat Large 4 Inch	110mm × 305mm

Understanding 250mm Deep Throat G Clamps: Features and Specifications

What Sets Deep Throat Designs Apart?

The throat depth of a standard G clamp is usually between 80 and 100 mm. With a deep mouth version, that reach goes up to 120 mm or more, so the screw can reach work areas that it wouldn't normally be able to reach. In structural steel construction, this is very important because gusset plates need to be clamped to I-beam webs behind the flange width. The extended frame's shape spreads eccentric load stress through a strengthened ribbed throat curve, which keeps the frame from bending under rated loads.

Material and Build Specifications

The 250mm Deep Throat G Clamps from FLA Industrial are made from drop-forged carbon steel or alloy steel that has been forged, stamped, machined precisely, and given a finish. It is either nickel-plated or painted on the outside. Both of these finishes pass the salt spray test according to ASTM B117 for being resistant to rust in industrial settings. Each unit has cold-rolled Acme threads that reduce the number of turns needed for each compression cycle. It also has a ball-joint swivel pad that can adjust to surfaces with up to 35 degrees of unevenness. Most of the time, rated proof loads are between 800 kg and 1,200 kg. Certified by both ISO 9001 and CE, the product is safe to use.

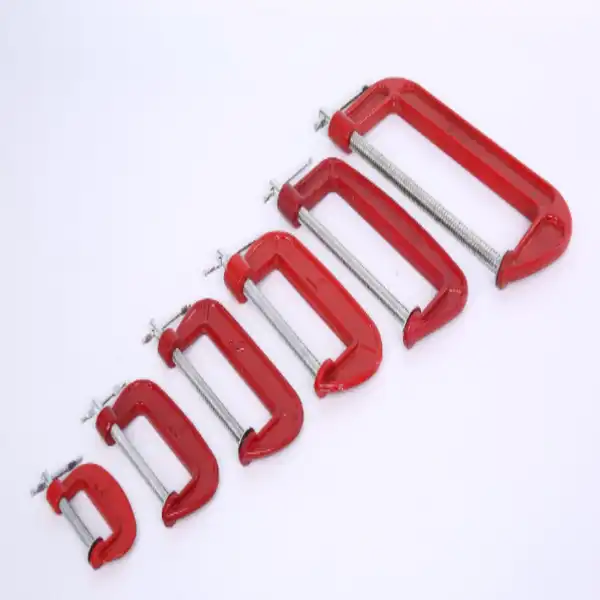

Size Range and Selection Reference

FLA has a lot of different throat configurations to meet the needs of different jobs. Here is the design grid that is out there:

Deep Throat 1.5 Inch | 35mm - 110mm | Deep Throat 2 Inch | 46mm - 140mm | Deep Throat 3 Inch (Large) | 85mm - 185mm | Deep Throat 4 Inch | 105mm - 186mm | Deep Throat Large 4 Inch | 110mm - 305mm

Model	Throat Depth × Jaw Opening
Deep Throat 1.5 Inch	35mm × 110mm
Deep Throat 2 Inch	46mm × 140mm
Deep Throat 3 Inch	82mm × 110mm
Deep Throat 3 Inch (Large)	85mm × 185mm
Deep Throat Large 3 Inch	95mm × 250mm
Deep Throat 4 Inch	105mm × 186mm
Deep Throat Large 4 Inch	110mm × 305mm

Pick the model based on both the jaw opening and the throat depth. These two measurements tell you if the clamp will work for your purpose.

How to Use 250mm Deep Throat G Clamps Effectively?

Positioning for Maximum Grip Without Surface Damage

When using Deep Throat G Clamps 250mm, place the swivel pad directly on top of the workpiece and make sure it sits flat before applying torque. When working with finished metal, put a scrap piece of steel or copper between the pad and the workpiece to prevent marks. If you're welding, make sure the screw axis is parallel to the weld line so that the threaded bearing isn't directly exposed to spatter.

Avoiding Common Clamping Errors

Grip slippage usually happens when the spindle axis isn't straight across from the workpiece face. This lets the pad move around while it's being loaded. When workers apply too much force, above the maximum SWL, the thread deforms. A simple test: if the swivel pad doesn't line up perfectly with the anvil face when the clamp is fully closed, the frame probably stretched too far and needs to be taken out of service right away.

Maintenance and Safety Protocols

Molybdenum disulfide grease or a dry-film lubricant should be used on the spindle threads because wet oils attract metal particles from welding and grinding, which speeds up thread wear. Before you use each clamp, check it for cracks in the frame, bent shafts, or damaged threads. You should never use these clamps for lifting things overhead or for dynamic suspension; they are only meant to hold things in place when they are compressed. When clamping down hard, standard PPE like safety glasses and gloves should always be worn.

Choosing the Best 250mm Deep Throat G Clamp for Your Metalwork Needs

The F-1 Criteria Screening Approach

To choose the best extended-reach clamp, you need to look at five things in order: the throat depth, the jaw opening range, the frame material grade, the sturdiness of the surface treatment, and the total weight for the user to carry. Drop-forged steel frames work better than gray cast iron frames in deep throat situations. This is because the forging process matches the grain structure, which means that the frame doesn't break when the lever arm load goes up.

OEM Options and Quality Certifications

Checking for ISO 9001 approval and CE compliance is a must for B2B buying teams that buy under private-label or OEM agreements. FLA Industrial sells both, and the company can make OEM modifications for throat depths or jaw shapes that aren't standard. The production wait time is 7–15 days. You can be sure of the quality of the metal before placing a bulk order by asking any supplier for Charpy V-Notch impact test data and Go/No-Go thread gauge inspection reports.

Comparing Against Standard Clamp Types

Deep throat G clamps cost more per unit than regular G clamps, or C clamps with the same jaw opening, and the extra cost is only worth it when the job really needs the extra reach. A standard clamp is all you need for edge-clamping jobs where the clamping zone is within 80 mm of the edge of the workpiece. The longer throat version is used to build structures, laminate wide transoms for boats, and set up CNC jigs where the clamp needs to clear bulkheads or flanges.

Procurement Guide: Buying 250mm Deep Throat G Clamps in Bulk

Vendor Evaluation Criteria

Before making a decision on a supplier of Deep Throat G Clamps 250mm for bulk B2B orders, make sure they provide static proof load test certificates at 1.5 times the rated SWL, salt spray test results, and dimensional inspection reports that confirm Acme thread tolerances. If a supplier can't provide these documents, there is a significant quality risk. FLA Industrial keeps 2,000 tons of stock on hand and sends full technical documentation with every order.

Pricing, Lead Times, and Volume Planning

Extended-reach clamp prices depend on the type of steel, how it is treated on the outside, and the number of clamps ordered. Within 24 to 48 hours, FLA answers questions about prices, confirms weights, and looks over 3D designs. Aligning order size with available stock levels cuts lead time by a large amount for procurement managers who plan to restock every three months. Standard models can be shipped from stock, but OEM or non-standard configurations need 7–15 days to be made.

After-Sales Support and Long-Term Sourcing

A long-term relationship with a source is about more than just price. When handling long or large purchase cycles, having access to technical help is important. This includes mold development, plan optimization, and reports on production progress. Hardware distributors and building procurement heads can count on FLA Industrial's team to provide technical help and warranty support after the sale. This way, Products" target="_blank" style="color:blue" >products will always work well across project cycles.

Benefits and Applications of 250mm Deep Throat G Clamps in Metalwork

An extended-reach heavy-duty G clamp is most useful in three workplace situations where both reach and grip are needed:

• Structural steel fabrication and welding: These clamps allow stiffener plates to be secured to I-beam webs past the flange width, keeping the screw threads away from direct weld spatter while maintaining contact at the precise weld point. This is a scenario where standard clamps physically cannot perform the task.
• Marine and composite laminating: In boat construction, laminating thick transoms or gunwales across wide panel widths requires central pressure application. The 250mm jaw opening handles multiple ply layers, and the deep throat prevents the delamination voids that peripheral-only pressure creates.
• Automotive and CNC jig fixturing: Assembly jigs anchored to worktables in high-vibration CNC environments need clamps that clear bulkheads while maintaining grip. The rated proof load of 800–1,200kg on these units holds position reliably under repeated machine torque cycles.

In all three cases, the extended frame shape replaces several standard clamps with a single tool that is the right size. This cuts down on setup time and improves the accuracy of placement.

Conclusion

When working with metal, choosing the right Deep Throat G Clamps 250mm means matching the throat depth and jaw opening to the shape of your workpiece, not just choosing the biggest one available. Clamps made of drop-forged steel, with properly oiled threads and certification for test-load resistance, are more reliable in real-world applications. All of FLA Industrial's products meet ISO 9001 and CE standards and come in 1.5-inch to 4-inch deep-throat sizes. This makes them a good choice for distributors, fabrication companies, and industrial purchasing teams that need to buy in bulk.

FAQ

Why choose a deep throat G clamp over a standard 250mm G clamp?

Standard G clamps typically have a throat depth of 80–100mm. The deep throat version offers 120mm or more, allowing access past structural obstructions or to the center of wide panels — applications where standard clamps cannot physically position the screw over the required clamping point.

What lubricant should I use on the spindle threads?

Use a dry-film lubricant or molybdenum disulfide-based grease. Wet oil lubricants attract welding dust and metal grindings that accelerate thread wear and reduce clamping precision over time.

Can these clamps be used for lifting?

No. Deep throat G clamps are rated for static compression holding only. They are not designed or certified for overhead lifting or dynamic suspension loads under any conditions.

How do I know if a clamp frame is damaged?

Close the clamp fully. If the swivel pad does not center squarely on the anvil face, or if the spindle shows visible bending, the frame has been over-torqued past its elastic limit. Remove it from service immediately.

Are drop-forged frames better than cast iron for this throat depth?

Yes. At deep throat dimensions, the increased lever arm magnifies frame stress considerably. Drop-forged frames carry superior grain structure and elasticity compared to grey cast iron, which is prone to sudden fracture rather than providing a visible warning deformation.

Source Your Deep Throat G Clamps 250mm from FLA Industrial

Every clamp that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. We are a reliable source for Deep Throat G Clamps 250mm, and our products are ISO 9001 and CE certified. We also have 2,000 tons of ready-to-ship products and can answer all bulk pricing questions within 24 to 48 hours. Please go to flaindustry.com or email your requirements directly to sales@flaindustrial.com to get a quote that fits your needs.
