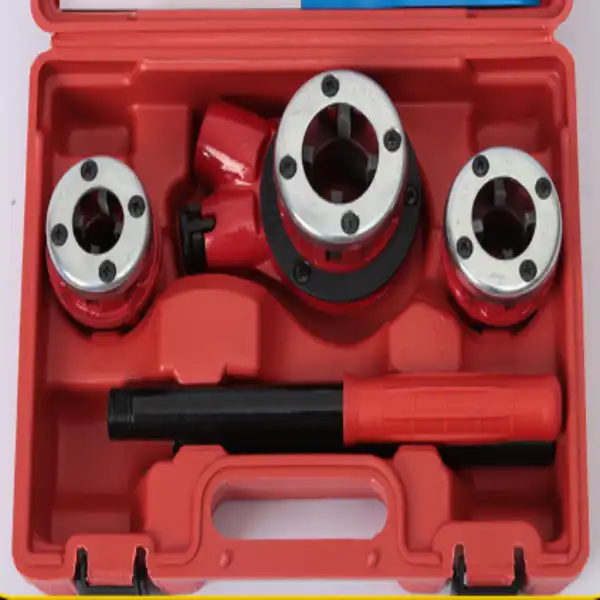

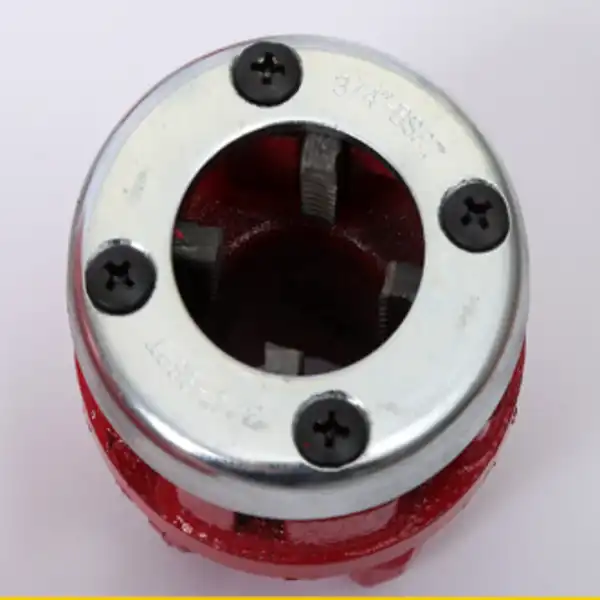

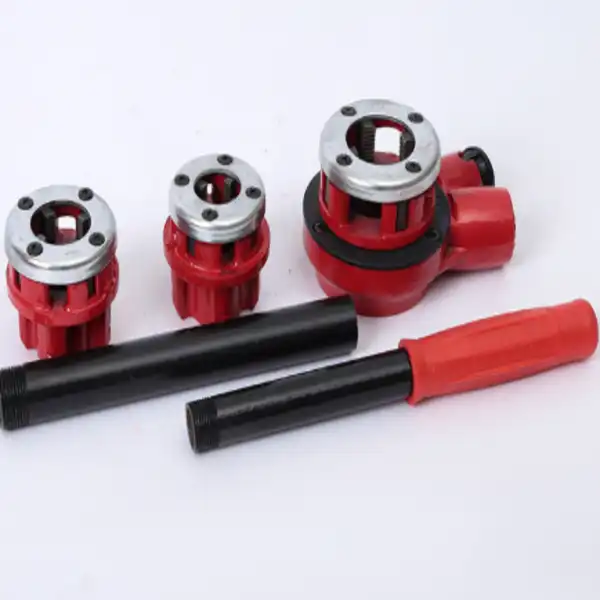

Alloy Steel Pipe Threading Dies Ensure Accurate Threads for Industrial Pipes

When precision matters most in pipe installation, alloy steel pipe threading dies deliver the cutting accuracy that industrial projects demand. Manufactured from high-grade alloy tool steel—commonly enriched with chromium and tungsten—these dies cut clean, dimensionally consistent threads on black iron, galvanized, and schedule pipe that meet ANSI B1.20.1 (NPT) and ISO 7-1 (BSPT) standards. Whether you manage a plumbing supply house, run a construction crew, or oversee HVAC retrofits, understanding what separates a reliable threading die from a substandard one directly impacts job quality and tooling costs.

Specification

Specification	Product Type	Product Size (cm)	Material	Applicable Pipe Diameter (mm)
American Standard 62A	3-head (1/2, 3/4, 1")	39×21×10	Alloy Steel / High-Speed Steel	15-25
American Standard 62B	4-head (1/2, 3/4, 1", 1-1/4")	39×21×10	Alloy Steel / High-Speed Steel	15-32
American Standard 62C	5-head (3/8, 1/2, 3/4, 1", 1-1/4")	39×21×10	Alloy Steel / High-Speed Steel	10-32
American Standard 62D	6-head (1/4, 3/8, 1/2, 3/4, 1", 1-1/4")	39×21×10	Alloy Steel / High-Speed Steel	6-32

Understanding Alloy Steel Pipe Threading Dies: Fundamentals and Specifications

What Makes Alloy Steel the Preferred Die Material

Grades of alloy tool steel, like 9SiCr or SKS3, usually have between 0.9% and 1.2% carbon and between 1.2% and 1.6% chromium. The dies have a Rockwell Hardness of HRC 58–62 after being quenched and tempered. This gives them great resistance to wear and tear while still being tough enough to withstand the first bite without breaking. They are not like plain carbon steel, which gets dull quickly on rough zinc-coated pipe, or high-speed steel (HSS), which is stronger but breaks easily when it comes into contact with stresses from being out of line, which happens a lot in portable power drives.

Thread Standards and Die Types You Should Know

Industrial pipe Threading Tools follow three main thread systems: metric ISO profiles, NPT (National Pipe Taper), and BSPT. Alloy Steel Pipe Threading Dies can be designed for these common thread standards, helping ensure accurate thread formation for different industrial piping applications. The NPT taper ratio is 1:16, which creates a self-sealing joint that is important for pipes and fire protection systems when properly assembled. Die configurations include solid (fixed), adjustable, and pipe-specific chasers, with Alloy Steel Pipe Threading Dies available in configurations suited to different threading requirements. Adjustable Alloy Steel Pipe Threading Dies allow small changes to the pitch, while pipe-specific chasers can fit directly into general die heads compatible with Ridgid 12R or Rex-type machines. This gives operators greater flexibility on the job site without requiring additional adapters. For demanding pipe-threading work, properly selected

Choosing the Right Threading Dies for Industrial Applications

It's not enough to just choose the right pipe size when choosing the right die. You need to think about the base material, thread standard, and pipe plan all at the same time.

Alloy steel dies work best with Schedule 40 and Schedule 80 black iron, galvanized steel pipe, and normal carbon steel tube. These are the materials that are used most often in plumbing, HVAC, fire suppression, and watering systems for farms. For cutting stainless steel or rare alloys, you need dies made of HSS or cobalt. If you use alloy dies on stainless steel, the cutting teeth will wear down almost immediately. When pipe surfaces still have mill scale or light corrosion on them, which happens a lot during renovation projects, the chromium-rich cutting edges of alloy dies keep their sharpness for longer than carbon alternatives.

When it comes to sourcing, ISO-certified and OEM-qualified suppliers are more consistent from batch to batch. This is because they use quality control measures like Rockwell hardness testing across the whole tooth profile, not just the surface, and optical profile projection to check the thread angle (60° for NPT and 55° for BSPT). If you only buy from certified suppliers, you're less likely to get dies with soft spots that cause uneven wear during the project.

Operational Best Practices: How to Use and Maintain Threading Dies

The single most important thing that affects both thread quality and die life is using the right technique.

Preparation and Lubrication

Before using the die head, always clean the pipe ends to remove burrs, scale, and other surface debris. Proper preparation is essential when working with Alloy Steel Pipe Threading Dies, because contaminants can affect cutting accuracy and shorten die life. Apply an adequate amount of high-sulfur threading oil and continue using it throughout every cut. Threading oil performs two important functions: it cools the cutting edges of Alloy Steel Pipe Threading Dies and helps carry away metal chips that could damage thread flanks or increase the risk of leakage if they become trapped in the joint. Consistent lubrication also helps Alloy Steel Pipe Threading Dies maintain smoother cutting performance and cleaner thread profiles. Ski

Alignment and Threading Technique

Line up the die square with the path of the pipe. Even a small change in angle makes the thread depth uneven on one side, which can't be fixed by lubrication. Move forward at a steady, controlled speed and stop every so often to break up the chips so they don't all fit into the die gullets. When drilling is rushed or forced at too high of speeds, heat is created that softens the tool steel and speeds up side wear.

Maintenance and Replacement Timing

If you use the right amount of grease, a good set of metal dies should be able to thread about 300 to 500 ends of 1-inch Schedule 40 black pipe. Clean the die teeth of chips with a brush and a light solvent after each use. Then, put them in a dry case to keep them from rusting. Check the relief points on a regular basis. The dies are no longer useful when the threads start to show signs of being torn or chattered on the surface. Re-sharpening is scientifically possible, but it's usually not worth the money because of the precise chamfer shape needed for tapered pipe threads. Professional regrinding costs more than replacement.

Procurement Guide: Buying Threading Dies for Your Business

Comparing unit prices isn't the only thing that smart B2B buyers do. Here are the most important things that will protect your purchase:

• Material certification and hardness documentation: Request mill certificates confirming steel grade and Rockwell hardness test results. Consistent HRC 58–62 across the tooth profile is non-negotiable for reliable service life.
• Interchangeability verification: Confirm that dies fit your existing die heads. Incompatible interfaces cause costly delays on active job sites.
• Batch-level QC records: Reputable alloy steel pipe threading die suppliers provide cutting performance test reports, including Schedule 40 threading trials that reveal chatter or torn-thread defects before shipment.
• Bulk order and lead time planning: For distributors and contractors managing ongoing project pipelines, negotiating volume agreements with defined lead times—typically 30–45 days for overseas manufacturing—ensures continuity without overstocking.
• Warranty and after-sales terms: Clarify whether defective-batch replacement is covered and what documentation triggers a warranty claim.

Together, these buying factors lower procurement risk and help ensure that Alloy Steel Pipe Threading Dies perform consistently from the first cut to the last. Buyers should evaluate cutting accuracy, material quality, compatibility, and expected service life when selecting Alloy Steel Pipe Threading Dies for demanding industrial applications. Another way to strengthen supply chain reliability is to work with a manufacturer that has ISO certification and a proven history of serving Fortune Global 500 companies. Choosing an experienced supplier can provide greater confidence that each batch of Alloy Steel Pipe Threading Dies meets the required production and quality standards. For long-term procurement, reliable manufacturing and documented quality control are essential to maintaining consistent performance from Alloy Steel Pipe Threading Dies.

Overcoming Challenges and Common Issues with Threading Dies

Threading problems happen to even the most skilled workers. The most common complaints are thread deformation, galling, and incomplete thread profiles. All three of these problems can be traced back to a clear cause.

Galling usually happens when fitting galvanized pipe without enough oil, which lets zinc bond onto die teeth very closely. The fix is easy: fill the cut with high-sulfur oil as soon as the teeth touch the pipe. Rough or torn threads are generally a sign of worn relief angles or the wrong choice of die, like using a carbon steel die on a material that it wasn't made for. Not all threads are completed because the die head is not adjusted correctly or the stop device on the die head is worn out.

As an example from the real world, fire suppression contractors who switched from carbon steel to alloy chasers for threading galvanized pipes said they had to replace fewer dies on-site every 1,000 thread ends. This directly cut down on material costs and got rid of the project delays caused by having to reorder emergency tools.

Conclusion

Alloy Steel Pipe Threading Dies are a good compromise between cheap carbon steel tools and high-end HSS tools. In plumbing, HVAC, fire suppression, and construction, they need materials that are hard, tough, and resistant to wear. These materials don't break easily, unlike harder materials can when they're being threaded by hand or in a portable setting. By choosing the right grade, following the rules for lubrication and alignment, and only buying from certified suppliers with clear quality control procedures, you can turn a normal consumable into a reliable production asset that keeps job quality high and project deadlines met.

FAQ

How do alloy steel dies differ from carbon steel dies in service life?

Alloy steel dies contain chromium and tungsten additions that significantly improve abrasion resistance on galvanized and black iron pipe. In practical field use, they outlast carbon steel dies by a notable margin on abrasive pipe materials, particularly zinc-coated surfaces where carbon edges dull rapidly.

Can these dies thread stainless steel pipe?

No. Alloy steel pipe threading dies are engineered for black iron, galvanized steel, and standard carbon pipe. Stainless steel requires HSS or cobalt-grade dies. Attempting to thread stainless with alloy dies will destroy the cutting teeth almost immediately.

 How often should dies be inspected during active use?

Inspect after every 50–75 threaded ends under normal production conditions. Check for chipped teeth, worn relief angles, and chip buildup in gullets. Replace when thread surface finish degrades to a torn or chattered appearance.

Are alloy steel dies compatible with motorized threading machines?

Yes, provided the die head interface matches the machine's chuck specification. For continuous high-production automated runs, HSS is often preferred for thermal management. Alloy steel dies are optimal for portable power drives and manual ratchet threaders where impact toughness is the priority.

Is resharpening cost-effective?

Rarely. The precision tapered geometry required for NPT and BSPT profiles makes professional regrinding expensive relative to replacement cost. Most industrial buyers treat alloy threading dies as consumable tooling.

Partner With FLA Industrial & Trading Co., Ltd. for Reliable Threading Solutions

Every alloy steel pipe drilling die FLA Industrial & Trading Co., Ltd. makes is based on our nearly 40 years of experience making things. As a reliable provider of Alloy Steel Pipe Threading Dies in the U.S., Germany, and Australia, we back up every product with ISO-certified quality control, documented hardness testing, and proof that it can be used with standard die heads. You can email our sales team at sales@flaindustrial.com or go to flaindustry.com to get a catalog or a unique price right away.
