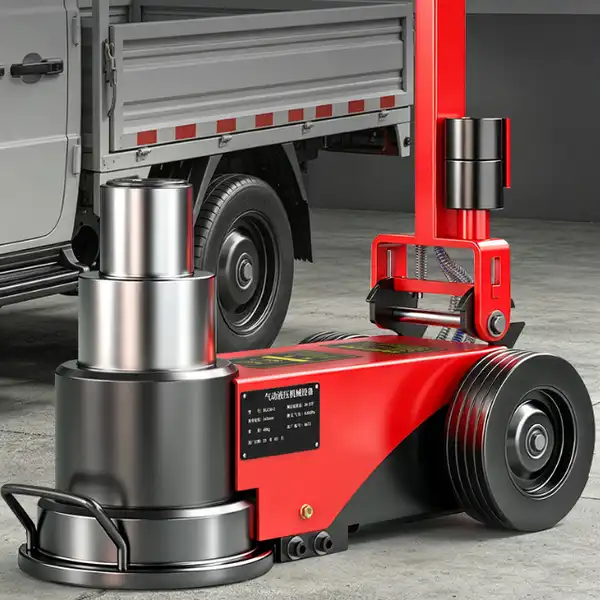

Can a Small Pneumatic Jack Handle Efficient Lifting in Limited Spaces?

Yes, a Small Pneumatic Jack can handle efficient lifting in limited spaces. These air-powered devices are specifically engineered to deliver rapid vertical displacement in confined work environments where traditional hydraulic or mechanical jacks cannot fit or function optimally. Operating on compressed air at pressures between 0.4 and 0.8 MPa, they achieve full extension in under five seconds while maintaining stable load distribution through internal telescopic stabilizers. Their compact footprint and low-profile design make them invaluable for automotive service bays, industrial machinery maintenance areas, and warehouse operations where clearance is restricted yet lifting demands remain critical.

Specifications

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Small Pneumatic Jacks and Their Application in Confined Areas

Core Components and Operating Principles

A pneumatic jack, which is also known as an air bag jack or balloon jack, takes energy from compressed air and turns it into controlled vertical force. The system is made up of a chrome-plated steel cylinder that holds a multi-layered reinforced rubber airbag. It is connected to a shop compressor by a standard air hose. When 85–145 PSI of air is pumped into the bag, it evenly expands, raising the top plate while the internal telescopic guide stops it from wobbling side to side. Unlike hydraulic systems that use fluid mechanics and hand pumping, this design doesn't require physical user tiredness and greatly speeds up cycle times.

The building materials are different depending on what they are used for. Carbon steel frames are strong enough for heavy industrial use, while aluminum alloy frames are lighter for emergency response kits that need to be carried around. Seal materials, which are usually fluororubber or nitrile rubber, don't break down in harsh chemicals or temperatures that range from -20°C to +80°C. Chrome-plated cylinder innards make sure that the airbag expands smoothly without causing damage from friction. If properly kept, this means that the airbag will last longer than 5,000 lift cycles.

Types of Pneumatic Jacks for Tight Environments

When compact models are made for small spaces, they aim for the lowest possible collapsed height, often getting as low as 130–150 mm of clearance before inflation. This lets techs slide them under sports cars that have been lowered, modified cars with side skirts, or machines that are placed on simple plinths. Portable versions have carrying handles and quick-disconnect fittings that let you move them quickly between workstations without using any tools.

When you compare these to bottle jacks, you'll notice big differences. Bottle jacks need to be pumped by hand and take up vertical room even when they're not in use, which means they can't be used in situations with limited clearance. For wheeled movement, trolley jacks need floor space that can't be found in workshops with limited room. Even though scissor jacks are small, they work slowly and need constant physical effort. Pneumatic choices get rid of these problems by delivering air instantly and making height adjustments easy.

Key Industry Applications

Auto repair shops can work a lot faster with these tools, which is very helpful. Technicians can do things like rotate tires, check brakes, and fix suspensions faster when they can place cars in seconds instead of minutes. High-throughput shops that work on dozens of vehicles every day say that using air-powered lifting solutions has increased their productivity by more than 30%.

Pneumatic jacks are used on industrial assembly lines to move parts around during the manufacturing process. Assembling electronics, making furniture, and making appliances all need to change the height of parts a lot of the time to make sure they are perfectly aligned. Fixed-height supports can't match the incremental positioning accuracy of the variable pressure control. This cuts down on assembly errors and rework rates.

Warehouse operations teams use these jacks to fix broken equipment and keep loads stable in an emergency. The rapid deployment feature keeps operations running as smoothly as possible when forklifts need immediate maintenance or palletized goods need to be temporarily raised for inspection. Strong pneumatic lifting is also needed in mining and big equipment repair situations where it has to last in tough conditions.

Evaluating the Efficiency of Small Pneumatic Jacks in Limited Spaces

Lifting Capacity Relative to Operating Pressure

The relationship between air pressure input and load-bearing output is at the heart of performance metrics. At the best pressure levels, small class hydraulic jacks can usually take 2.5 to 3 tons. Increasing the pressure from 0.6 MPa to 0.8 MPa increases the pulling force by the same amount. However, going over the manufacturer's recommendations can cause the airbag to burst. Precision pressure controls let workers set the exact amount of force needed, which stops both dangerous under-lifting and dangerous overloading.

Calculations of efficiency for a Small Pneumatic Jack show clear benefits. To get to working height, a standard hydraulic jack needs 40 to 60 pump strokes, which takes 90 to 120 seconds of hard work. Pneumatic equivalents can reach the same height in less than 5 seconds with no physical effort, which saves 95% of the time needed for each lift cycle. This efficiency adds up to big savings on labor costs and better throughput in daily operations that involve hundreds of lifts.

Maneuverability Considerations

When shifting happens a lot, weight becomes very important. Aluminum alloy air jacks are 30–40% lighter than similar hydraulic units while still being structurally sound thanks to aerospace-grade metal compositions. This lighter weight makes it possible for a single person to handle the machine without any mechanical help, which speeds up work in tight repair pits or busy production floors.

Minimizing the footprint is what size optimization is all about. When they are folded up, good hydraulic jacks usually measure less than 300 mm long and 200 mm wide. This means they can fit into toolboxes and other storage places that bigger equipment can't. Accessory compatibility increases functionality; for example, adapter plates allow for different lifting points, extension hoses let you position the machine far away from the compressors, and exhaust mufflers lower noise levels in workshops.

Comparative Analysis with Alternative Technologies

Hydraulic jacks are good for long-term support jobs because they give you exact control and can keep the load in place forever without any power input. But because they use sealed fluid systems, there is a chance of leaks, viscosity changes depending on temperature, and maintenance is harder because oil needs to be changed and seals need to be replaced on a regular basis. Pneumatic systems don't have these problems because they work with air, but they need a generator that is always available.

Electric jacks are portable because they run on batteries, but they are heavier because of the motor systems and battery packs that they have. Because they use screw drive or rack-and-pinion mechanisms, they can't lift as quickly as pneumatic ones. When it comes to safety, things are also different. Electric jacks can be dangerous when they're wet, but pneumatic units can work safely in wet situations as long as the air lines stay dry.

Comparing operational speeds shows that pneumatic jacks can lift loads twenty times faster than manual hydraulic jacks and ten times faster than electric models. This speed edge is very useful in situations where time is of the essence, like during pit stops in motorsports or emergency car extractions, where every second counts.

Key Advantages and Safety Considerations of Using Small Pneumatic Jacks

Switching from old-fashioned moving methods to pneumatic ones has real practical benefits. Knowing these benefits along with basic safety rules will help you get the most out of your investment while keeping people and things safe.

Core Operational Advantages:

• Rapid Deployment Speed: Air-powered actuation achieves full lift height within 3-5 seconds, dramatically accelerating workflow compared to manual pumping systems that require 90-120 seconds for equivalent displacement. This velocity advantage multiplies across daily operations involving dozens of lift cycles.
• Reduced Physical Strain: Compressed air delivery eliminates repetitive manual pumping motions that contribute to operator fatigue and cumulative stress injuries. Technicians report decreased shoulder and back strain after switching to pneumatic equipment, particularly in high-frequency tire service environments.
• Enhanced Durability: Absence of hydraulic seals, fluid reservoirs, and pump mechanisms removes common failure points plaguing traditional jacks. Properly maintained pneumatic units withstand harsh industrial conditions including temperature extremes, chemical exposure, and vibration without performance degradation over 5,000+ operational cycles.
• Precise Load Positioning: Variable pressure adjustment enables incremental height control measured in millimeters rather than the coarse adjustments inherent to ratchet or screw-driven systems. This precision proves critical during assembly operations requiring exact component alignment.

These benefits directly fix productivity problems that procurement managers find when they look for new equipment like a Small Pneumatic Jack. When you combine speed, ergonomics, and dependability, you get a measurable return on your investment through lower labor costs and more work getting done.

Safety Protocols for Restricted Spaces

When using moving tools in small spaces, you need to be more aware of potential dangers in the area. Pneumatic jacks need to be put down on flat, stable areas that are free of dirt or oil that could make them slip while lifting a load. Uneven ground creates lateral shear forces that internal stabilizers can't fully counteract, which increases the risk of a sudden collapse.

To place the load, it needs to be carefully centered over the top plate of the jack. When loads are off-center, they cause tipping moments that make the structure less stable, even if the weight stays within the rated capacity. Manufacturers of vehicles specify specific lift points that are reinforced to handle concentrated forces. Deviating from these points could cause damage to the structure or uncontrolled load shifts.

To keep the air supply safe, it needs to be inspected regularly. When cables get old, they start to leak, which lowers the load and slowly loses pressure. Putting in quick-disconnect fittings with built-in check valves stops hoses from coming apart by accident while they're being used. In wet places, inline dryers are needed because too much moisture in the air lines speeds up internal rust and valve failure.

It is still very important to understand load limits. Rated limits are based on ideal conditions. Going beyond specs by even 10% greatly raises the chance of failure. When mobile equipment is being serviced, safety margins must be used because dynamic loading from hits or vibrations effectively increases static weight.

Maintenance Routines for Extended Lifespan

Schedules for preventive maintenance make equipment more reliable and keep people safe. Damage that is easy to see is found every day: cracks in rubber bladders, bent stabilizer rods, or rusted air fittings are all things that should be taken out of service right away. To find leaks, you have to put soapy water on inflated jacks and look for bubbles forming at seals and connection points.

One of the thorough checks that happen every month is pressure retention testing, which makes sure that the jacks can hold their maximum load for 24 hours without losing more height than what the maker allows, which is usually less than 3mm. This proves the stability of the check valve and makes sure the airbag leakage stays within the limits. Cycle testing with no load makes sure that the joint moves smoothly through all of its extension ranges, without locking or moving in strange ways.

Professional servicing once a year takes care of internal parts that operators can't reach. Certified technicians take units apart to check for wear on the chrome plating, replace worn-out seals, and make sure that the safety valve calibration meets pressure standards. Documenting these services creates audit trails that show that safety rules are being followed at work.

Proper keeping greatly increases the dormant lives. When jacks are kept, they stay slightly inflated so the rubber doesn't get creased or permanently deformed. Material that is kept in clean, climate-controlled places out of direct sunlight will last longer and be less likely to crack from UV exposure. Protective cases keep damage from happening when things are moved from one job spot to another.

How to Choose the Right Small Pneumatic Jack for Efficient Lifting Needs?

Selection Criteria for Procurement Professionals

Finding the maximum weight that needs to be carried plus enough safety gaps is the first step in figuring out the load capacity. To account for dynamic forces and measurement errors, engineers say to choose jacks that are rated 25–30% above the expected peak loads. Because of limitations in size, it is important to get an accurate reading of the available clearance, both when the height is collapsed for insertion and when it is extended to get the necessary lift distance.

How easy it is to apply depends on how well it works with existing pneumatic systems. Most pneumatic jacks can be used with standard shop compressors that deliver 85 to 145 PSI without any changes. Facilities that use specialized pressure systems may need custom tools to control the pressure. The amount of air that is used affects the size of the compressor. High-volume users need enough CFM capacity to run multiple jacks at the same time without pressure drops.

Long-term ownership costs for a Small Pneumatic Jack go beyond the initial purchase price and depend on how reliable the supplier is. Manufacturers who offer full warranties, which usually last between 12 and 24 months, show that they are confident in the durability of their Products" target="_blank" style="color:blue" >products. After the sale, having access to expert help is very important for fixing operational problems or finding replacement parts years after the purchase. Detailed documentation from vendors, such as maintenance schedules, spare parts catalogs, and compliance certificates, is highly valued by procurement managers.

Brand Comparison and Market Positioning

Well-known brands stand out by offering unique features that meet the needs of their industries. Bestair specializes in quick deployment systems with air connections that don't need any tools. These systems are popular with emergency response teams that need to set up quickly. Enerpac focuses on making precision control valves that allow for microadjustments that are useful in measurement labs and precision assembly work. Ingersoll Rand puts a lot of emphasis on rugged building for mining and big construction jobs where high levels of damage resistance are worth the extra cost.

Atlas Copco uses smart monitoring systems that send data about pressure and cycle counts in real time to software used for maintenance management. This helps big industrial sites use predictive maintenance strategies. Chicago Pneumatic aims for price-conscious customers with simpler designs that give up some advanced features in exchange for low prices that are good for small workshops that are watching their budgets.

Manufacturers of good products follow the ISO9001 quality management standards and get CE certification, which shows that they meet European safety standards. Products that go into dangerous areas need to have ATEX explosion-proof ratings that prove they can be used without sparks near flammable materials. Protocols for checking the integrity of pressure vessels are set by laws such as PED directives and GB standards.

Bulk Purchasing and Logistics Considerations

Through minimum order number agreements, buyers who buy in bulk can get better pricing structures. When you buy 50 or more units, you can often get 15 to 25 percent off the market price of a single unit. This can have a big effect on project costs for large-scale equipment standardization efforts. Having flexible payment terms, like net-30 or net-60 agreements, makes it easier to manage cash flow when buying capital equipment.

How well you package things affects how they are delivered and how well they store. Cases made for industrial use with molded foam inserts keep items safe during shipping and make it easier to organize tool crib storage. Palletization standards that work with standard forklift measurements make the arrival process easier in warehouses. For international shipments, you need to be very careful with the paperwork. Goods must be sent with business bills, certificates of origin, and material safety data sheets to avoid delays at customs.

Lead times depend on how complicated the design is. Stock configurations ship within 5 to 10 business days from well-known manufacturers who keep extra stock on hand. Depending on technical needs and line placement, production times can be extended to 4 to 8 weeks for items with custom pressure ratings, special mounting brackets, or materials that aren't common.

Real-World Case Studies and User Experiences from B2B Clients

Automotive Assembly Line Workflow Enhancement

A Midwest company that makes car parts ran into problems when working on engine subassemblies because they had to change the height of their workbench a lot of times to get to bolt patterns from different directions. Traditional hydraulic jacks slowed down production because technicians had to pump units by hand many times during shifts. This led to quality problems caused by fatigue and missed cycle time goals.

At 15 positions where engine block preparation was done, a Small Pneumatic Jack was put in place by management. With the quick lift feature, positioning time dropped from 120 seconds to 4 seconds per change, cutting out 90 minutes of work that didn't add value per shift. Over six months after the system was put in place, there were 40% fewer reports of musculoskeletal injuries, which was backed up by operators saying they were under less physical strain.

Productivity measures showed that the throughput went up by 12 engine parts per shift. This meant that the yearly income gains were higher than the costs of buying the equipment within the fourth month of operation. Maintenance tracking showed that there were no shutdown events caused by pneumatic jack failures during the evaluation period. This was in contrast to the previous hydraulic equipment, which had an average of three to four fix incidents per month.

Warehouse Safety Standard Elevation

A Northeast industrial supply company with a 200,000-square-foot building had trouble planning when to service their forklifts. With hydraulic floor jacks, it took two people to move them into place under cars, which caused schedule problems and slowed down necessary repairs. Old equipment leaked hydraulic fluid, which made concrete floors dangerous to walk on and raised concerns about environmental compliance.

Facilities management switched to small air jacks that let a single person service a truck. Because it was low-profile, it fit under lift trucks without needing drive-on ramps. This cut down on setup time and floor space. Getting rid of hydraulic fluid eliminated the risk of pollution, which helped the company meet its environmental goals and made it easier to handle dangerous materials.

Tracking of safety incidents showed that injuries related to maintenance went down by 65% in the year after pneumatic jacks were introduced. Time-to-repair measures went up by 30% because technicians could finish maintenance jobs faster without having to wait for an assistant to become available. As a result, fleet uptime went up, which cut down on the cost of renting equipment during long repair times.

Actionable Insights for Procurement Decision-Making

These examples show benefits that can be measured, not just user happiness. Cycle times get shorter when productivity goes up, which has a direct effect on output capacity without the need for capital growth. Safety improvements lower the cost of workers' compensation insurance and lower the risk of not following the rules and damaging the company's reputation.

The total cost of ownership, not just the buying price, should be taken into account in financial research. Pneumatic jacks don't need many consumables—they don't need hydraulic fluid or seal kits—so they cost less to maintain over time. Longer operating lifespans, which can be more than 10 years with proper care, spread the initial investment over more hours of use than shorter-lived options.

When planning for integration, physical needs must be taken into account. Facilities that don't have complete compressed air systems need to install compressors, which costs more money. Sharing pneumatic infrastructure, on the other hand, lets more than just lifting equipment work better, as it supports different kinds of tools.

Conclusion

Pneumatic jacks like a Small Pneumatic Jack have been shown to work better in industrial settings with limited room because they can be used quickly, put less pressure on the body, and are very reliable. Their small design solves the clearance problems that stop traditional hydraulic and mechanical lifting equipment from working. They also speed up work by letting you change the height almost instantly. The best value is achieved by making the right choice based on load requirements, space limitations, and the reputation of the supplier. The technology is mature because it has been used in industry for decades and has been rigorously tested for safety. This gives procurement professionals confidence when they are looking to upgrade equipment that will increase productivity, safety, and cost-effectiveness in a wide range of settings, from automotive service to heavy industrial maintenance.

FAQ

What lifting capacity should I specify for operations in confined spaces?

To make sure you have enough safety margins, choose pneumatic jacks that are rated 25–30% above the most weight you expect to lift. Small class units that can handle 2.5 to 3 tons are best for most automotive and light industrial uses, while heavy-duty models are designed to handle the maintenance needs of bigger machines.

How often do pneumatic lifting devices require maintenance inspections?

Every day, before each use, look for damage that is easy to see. Do full checks every three months, including seal inspections and pressure retention tests once a month. Set up professional servicing once a year for internal component validation and safety certification paperwork.

Should I choose pneumatic over electric jacks for mobile maintenance operations?

Pneumatic choices are much lighter and faster than electric types with batteries, so they are better when access to compressed air is available. Electric jacks work well in really remote areas that don't have access to power, as long as slower operation and more weight are accepted as trade-offs.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Pneumatic Lifting Solutions

When purchasing managers and engineers look at Small Pneumatic Jack suppliers, the quality of the equipment and the reliability of the manufacturer become very important. Industrial tool makers FLA Industrial & Trading Co., Ltd. have been making precise tools for almost 40 years and work with Fortune Global 500 companies in the US, Germany, and Australia. To meet ISO9001 and CE standards, our pneumatic jacks go through strict leak tests, pressure validation, and lifecycle verification. We are experts at making custom configurations that meet specific practical needs. This includes changing load limits, mounting interfaces, and surface treatments to work in corrosive environments. Technical support teams respond quickly, within 24 to 48 hours, to help with 3D design confirmations, parameter optimization, and real-time production updates that cut down on delays in procurement. Contact our experts at sales@flaindustrial.com to talk about buying in bulk and set up product demos that show how committed we are to quality, dependability, and customer satisfaction.
