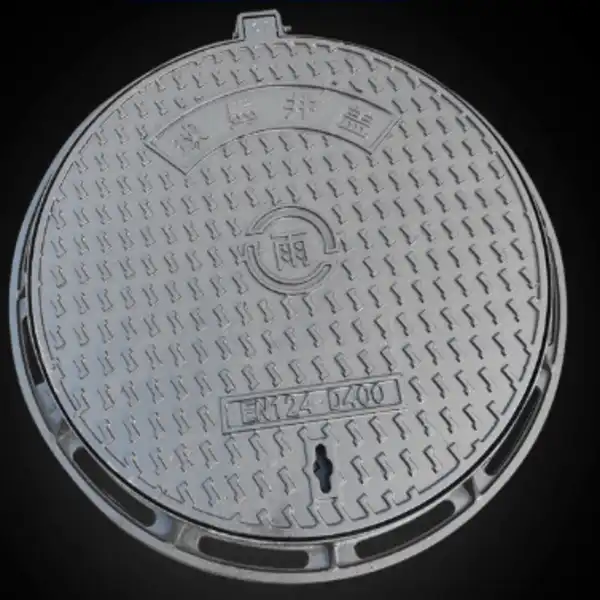

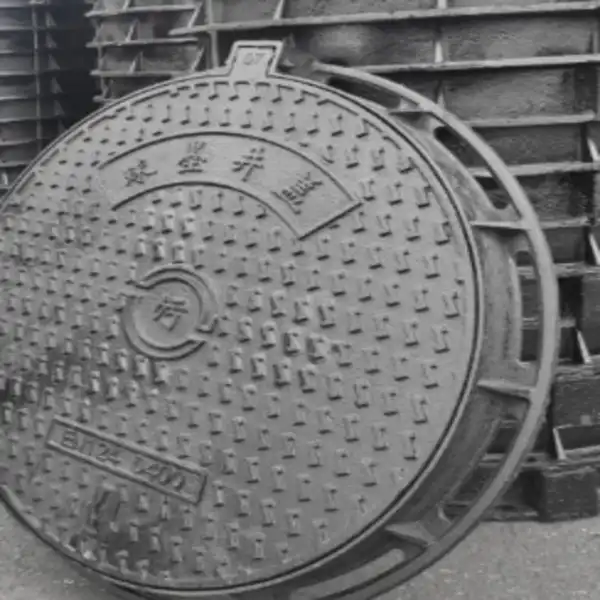

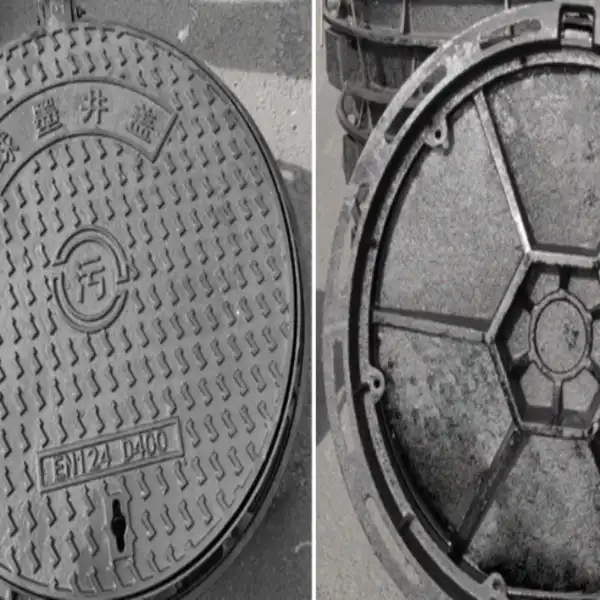

Cast Iron Round Manhole Cover Manufacturer Guide for Municipal and Construction Projects

When procurement engineers and construction managers search for the right ductile iron manhole cover, they face a market full of options with varying quality, certifications, and load ratings. This guide answers the most important questions about cast iron round manhole covers — from material science and load classifications to sourcing strategy and installation best practices. Whether you manage municipal road contracts, utility network upgrades, or heavy industrial facilities, understanding these technical and procurement details will help you make confident, project-specific decisions backed by verified standards like EN 124 and AASHTO M306.

Specifications

Parameter	Details
Product Name	Ductile Iron Manhole Cover
Brand	Feilong Gaian
Material	Ductile Iron (GJS-500-7)
Actual Load Capacity	30KN–450KN
National Standard Load Rating	A15–D400
Application Scope	Municipal roads, green belts, sidewalks, residential areas, parking lots, main roads, expressways
Safety Features	Anti-settlement, Anti-theft, Anti-noise, Anti-displacement, Anti-fall

Round Manhole Cover Sizes

Size (mm)	Type	Load Capacity
Φ1000×1150	Standard	B125
Φ900×1050	Standard	B125
Φ800×900	Standard	D400
Φ700×900	Standard	D400
Φ700×800	Standard	D400
Φ600×700	Standard	D400
Φ500×600	Standard	C250
Φ400×500	Standard	B125
Φ750×900	5-Proof	D400
Φ700×850	5-Proof	D400
Φ700×890	5-Proof	D400

Understanding Cast Iron Round Manhole Covers: Features and Benefits

What Defines a Round Manhole Cover?

A cast iron round manhole cover is an engineering closure that can be taken off and put back on. It keeps people from accessing sewage, water, phone, and electrical lines that are underground. The circular shape is not just a matter of taste; it is an intentional choice for the structure. A round cover can't fall through its own opening no matter what way it's facing. This gets rid of a safety problem that happens with square or rectangular designs when they aren't lined up diagonally.

Material Advantage: Ductile Iron vs. Grey Iron

Instead of the old gray cast iron, most modern covers are made of ductile iron (Spheroidal Graphite Iron, Grade GJS-500-7). The main change is the way graphite is structured. When magnesium is added to malleable iron, it changes flake graphite into spheroidal lumps. This gives the iron tensile strength of at least 500 MPa, yield strength of at least 320 MPa, and elongation of at least 7%. This nodularity gives the iron a lot of impact protection that gray iron of the same weight can't match. Brinell hardness is between 170 and 230 HBW, which means it can handle both high-cycle traffic wear and light impact loads.

Key Benefits for Municipal and Construction Use

Round ductile iron covers have benefits that can be measured and are important to both engineers and procurement managers. These are the main performance advantages that make them the standard choice for city and road projects:

• Safety by geometry: The round profile ensures the cover physically cannot drop through its frame, eliminating fall-through risk without relying on locking hardware.
• Even load distribution: The circular cross-section distributes axle loads radially, preventing the stress concentration points that cause premature cracking in corners of square covers.
• Corrosion resistance: Standard bituminous or epoxy coating protects against hydrogen sulfide (H₂S) from sewage gases and road salt in cold climates.
• Noise suppression: Precision-machined seating surfaces combined with optional polyethylene cushioning strips eliminate the "manhole rattle" that violates urban noise ordinances.

These benefits directly address the problems that most project engineers complain about: cracks caused by traffic, unauthorized access, noise complaints, and faster frame wear.

Technical Specifications and Installation Best Practices

Standard Dimensions and Load Rating Classifications

The European Standard EN 124-2 lists six different types of loads. These are A15 (15 kN) for green belts and pedestrian-only zones, B125 (125 kN) for sidewalks and parking lots, C250 (250 kN) for curbside channels, D400 (400 kN) for main roads, E600 (600 kN) for docks, and F900 (900 kN) for airport runways. In the U.S. market, the Feilong Gaian cast iron round manhole cover fits most public and industrial building needs. It has a load capacity range of 30 kN to 450 kN and covers the A15–D400 range.

Installation Protocol and Tolerance Standards

As important as the quality of the materials is how they are installed. The seat of the frame has to be level within ±2 mm of the finished road surface. Clean all contact surfaces to get rid of casting sand or other debris before putting the cover on. Set the frame in place with a mortar bed that is the right depth, and then check that it is straight. The "wobble test" is a common way to check a site: if a feeler gauge longer than 2 mm goes through the cover lip and frame at any point, the unit needs to be fixed or replaced before you let people in.

Maintenance, Inspection, and Replacement Criteria

A written check plan protects both the safety of the public and the life of the assets. Field teams should check seating contact every 12 months in areas with a lot of foot traffic and every 24 months in areas with a lot of homes. Cracks that can be seen on the cover face, permanent center deflection greater than 1/300 of the clear opening width (as defined by EN 124 permanent set test standards), or frame corrosion that shows the base metal are all signs that the cover needs to be replaced right away. Most of the time, proactive replacement processes increase the service life of infrastructure and lower the cost of emergency repairs.

Comparative Analysis: Choosing the Right Manhole Cover for Your Project

Ductile Iron Round vs. Square Covers

Square covers have a slightly larger clear opening area for the same frame footprint, but their diagonal size is bigger than the opening width, so a square cover that isn't lined up right can fall through at a 45-degree angle. This is not just a potential risk; it has been shown to hurt pedestrians. This variable is taken away completely by round covers. Most of the time, the round shape is safer for public use and doesn't affect the load-bearing capacity.

Ductile Iron vs. Composite Materials

Composite manhole covers made of polymer concrete or glass fiber reinforced plastic are lighter and don't let electricity flow through them, which makes thieves less likely to steal them. Composite covers, on the other hand, usually stop working at C250 load rates, and they break down faster in areas with big changes in temperature. Covers made of ductile iron rated D400 or higher are still the standard for airport taxiways, roads, and other places where long-term load stability is important.

Cost-Benefit Analysis for Procurement Managers

A good ductile iron cover costs more per unit up front than a composite one, but iron always comes out ahead in lifetime cost analysis. If you install a ductile iron D400 cover correctly, it will last longer than 30 years with normal traffic. In the same kind of environment, composite covers might need to be replaced every 10 to 15 years. For high-traffic areas, the total cost of ownership is cheaper over 30 years when ductile iron is used. This includes the costs of buying, installing, and replacing the material.

Sourcing and Procurement: How to Buy Cast Iron Round Manhole Covers?

Key Criteria for Selecting a Reliable Manufacturer

There are four main things that you should check when looking for a seller of cast iron round manhole covers. First, make sure that the ISO quality management certification and EN 124 compliance paperwork are correct. Second, ask for metallographic reports that show the nodularity rate for ductile iron is above 80%. Third, make sure you get load test certificates that include data from a hydraulic press that shows the load was held for 30 seconds without cracking. Fourth, find out how much the maker can make and how much they usually have in stock. Municipal projects that have to shut down because of a delayed cover supply are a real budget risk.

Ordering Procedures for Custom and Bulk Purchases

If you order common sizes from a reputable maker with enough stock, you can get them within days. Custom covers with non-standard diameters, specific locking mechanisms, branded surface patterns, or odor-tight double-seal configurations usually take 7–15 days from the time the drawing is confirmed until it is sent out. When you buy a lot of something, the contract should spell out the testing requirements for each lot, the packaging standards (like steel pallet banding for shipping containers), and the acceptance criteria based on EN 124 or AASHTO M306.

Negotiation Tips for Competitive Pricing

When negotiating the price of cast iron round manhole covers, the total landed cost should be taken into account, not just the unit price. On transatlantic exports, freight, customs taxes (HS Code 7325.10 for cast iron items), and inspection fees raise the ex-works price by 15 to 30 percent. To get an accurate picture of the total cost of acquisition, ask for FOB or CIF pricing. Long-term blanket buy orders that are released every three months usually get better unit prices and give production more importance.

Enhancing Project Outcomes with Certified, High-Quality Cast Iron Manhole Covers

EN 124 Certification and Regulatory Compliance

EN 124 load class certification is the standard for manhole cover performance around the world. For each load class, a proof load test is done on a hydraulic press, and then a fixed set of measurements is taken. The proof load for D400 covers, which are the most popular type for public roads, is 400 kN, and the center deflection must not be more than 1/300 of the clear area after the load. When projects ask for EN 124-certified covers, they get better liability protection and easier governmental approval in most U.S. city bidding processes.

Anti-Slip Surface Design for Public Safety

Anti-slip surface designs, like raised waffle squares or checkered profiles, are not just for looks. When it's wet, they keep the friction coefficients at levels that meet safety standards for road surfaces. This keeps both walkers and bicycles from slipping. The condition that the surface doesn't slip is especially important for B125 class uses like sidewalks and pedestrian plazas. The depth and area covered by the surface pattern should be written down in the procurement documents, not just assumed.

Advanced Coatings and Emerging Design Options

Standard bituminous paint coating protects against corrosion in a basic way. Epoxy powder coating or cold galvanizing is much better at protecting against chloride and sulfide attacks in harsh environments like coastal infrastructure, wastewater treatment plants, or access covers for chemical plants. Concerns about infrastructure security are addressed by hinged and locking cover designs. This is especially true for telecommunications and metering access points where tampering poses an operational risk.

Conclusion

Choosing the correct ductile iron cast iron round manhole cover can impact public safety, the project budget, and the long-term dependability of the infrastructure. Round ductile iron covers that meet EN 124 standards have been shown to hold loads well, offer geometric safety benefits, and last for more than 30 years on city roads, utility networks, and industrial sites. It is much less likely that something will break down early and cost a lot of money to replace if procurement managers check certifications, load test data, and mechanical quality records before making a purchase.

FAQ

Why is the round shape structurally superior to square covers?

A round cover's lip is geometrically uniform across every axis. It cannot fall through its opening regardless of how it is rotated, a safety failure that can occur with square covers at diagonal misalignment. This geometric property is why EN 124 and most municipal specifications default to circular designs.

What load class should I specify for a main road project?

EN 124 Class D400 (400 kN) is the standard specification for public carriageways carrying normal road traffic. Class F900 applies to airport runways and container terminal aprons. Class B125 covers sidewalks and car parks.

Can ductile iron covers be sealed against odor or water infiltration?

Standard models allow air exchange. Odor-tight and water-tight covers are available with rubber or neoprene double-seal gaskets and bolted locking mechanisms, typically specified for sewage access points in residential or commercial areas.

What causes manhole covers to rattle under traffic?

Rattling results from uneven contact between the cover seating surface and the frame. CNC-machined seating or polyethylene cushioning gaskets fitted into the frame eliminate this issue. The wobble test (feeler gauge >2 mm clearance triggers rejection) is the standard quality check.

How do I verify a manufacturer's quality claims?

Request ISO certification documents, EN 124 load test reports with hydraulic press data, and metallographic analysis confirming nodularity rate above 80%. These three documents provide objective verification independent of marketing materials.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Procurement

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years, is ISO certified, and has 2,000 tons of ready-to-ship goods. Their Feilong Gaian ductile iron manhole cover line has load ratings from A15 to D400, can be made to order in 7 to 15 days, and meets EN 124 safety standards. Looking for a reliable company to buy cast iron round manhole covers in bulk for construction or city projects? Email sales@flaindustrial.com or go to flaindustry.com to get pricing and product details.

References

1. European Committee for Standardization. EN 124-2: Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas — Ductile Iron Covers. CEN, 2015.

2. American Association of State Highway and Transportation Officials. AASHTO M306: Standard Specification for Drainage, Sewer, Utility, and Related Castings. AASHTO, 2021.

3. Roedel, C., & Wang, S. Cast Iron Engineering Applications in Municipal Infrastructure. Journal of Materials in Civil Engineering, ASCE, 2018.

4. British Standards Institution. BS EN 124-1: General Requirements for Manhole Covers and Gully Gratings. BSI, 2015.

5. American Foundry Society. Ductile Iron Data for Design Engineers. AFS Technical Series, 2019.

6. International Molybdenum Association. Ductile Iron: Properties and Applications in Heavy-Duty Infrastructure. IMOA Technical Report, 2020.
