Coupling Clamp Grooved Simplifies Pipe Joining in Commercial Systems

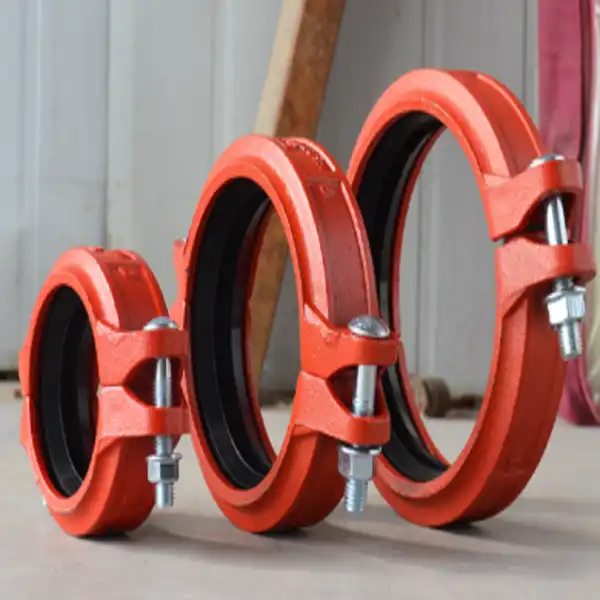

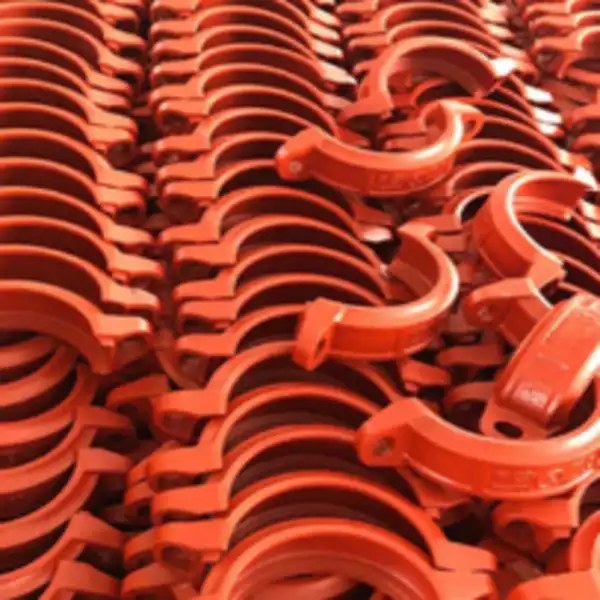

A grooved coupling clamp is one of the most practical mechanical pipe joining solutions available in commercial construction today. Rather than relying on welding or flanging, this system uses two ductile iron housing segments that engage a circumferential groove on pipe ends, held together by a pressure-responsive EPDM gasket and zinc-plated bolts. The result is a secure, leak-proof joint that cuts installation time by up to 50% compared to traditional methods. At FLA Industrial & Trading Co., Ltd., our Coupling Clamp Grooved is engineered for firefighting pipelines, HVAC systems, and water supply networks across demanding commercial environments.

Specification

Specification	Size (inch)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding Grooved Coupling Clamps: Functionality and Benefits

Connections for modern industrial pipe systems need to be stable and easy to put together quickly. Grooved pipe couplings meet this need by replacing welded or flanged joints, which require a lot of work, with a mechanical system that any trained technician can do without needing a hot-work permit.

The main mechanism is easy to understand. Either a circular slot is rolled onto the pipe end (cold-worked), or it is cut out with a machine. The coupling housing keys fit into this groove, and the C-shaped EPDM gasket makes a seal that works on its own. As the pressure inside the line rises, it increases the sealing force. This design gets rid of leak paths and makes the joint itself able to handle changes in temperature and seismic activity.

Key Performance Advantages

Because of these benefits, grooved joints are the best choice in many fields:

• Rapid assembly without hot work: No welding or threading means no fire hazard on site, no hot-work permits, and no post-weld inspection delays. Field crews report assembly speeds roughly twice that of flanged connections.
• Vibration and thermal compensation: The elastomeric gasket isolates acoustic noise and dampens vibration transmission between pipe sections, protecting pumps and chillers from stress fatigue upstream.
• Straightforward maintenance access: Disassembly requires only standard hand tools. A technician can remove and re-seat a grooved joint in minutes, reducing planned maintenance windows significantly.

-- Easy access for maintenance: Standard hand tools are all you need to take something apart. It only takes minutes for a worker to take out and put back in place a grooved joint, which cuts down on planned repair windows by a large amount.

Comprehensive Installation and Maintenance Guide for Grooved Coupling Clamps

When system pressure levels reach 300 PSI, proper installation of a Coupling Clamp Grooved connection is essential. Before assembly, the pipe grooves must meet the dimensional requirements specified by ANSI/AWWA C606 and ASTM A536 to ensure that the Coupling Clamp Grooved connection can engage correctly. Many joint failures are caused by grooves that are too shallow, so careful inspection is necessary before installing a Coupling Clamp Grooved fitting. Always check the “A dimension,” which refers to the groove distance from the pipe end, against the manufacturer's data sheets. Verifying these dimensions helps ensure that each Coupling Clamp Grooved connection is properly installed and capable of maintaining reliable system performance.

Installation Essentials

Before you seat the seal, the pipe ends must be clean, dry, and free of burrs. Use the gasket oil that came with the gasket on both the gasket lips and the pipe ends. Place the gasket in the middle of the housing and place both halves on top of it. Tighten the bolts by hand one at a time to make the housing fit together evenly. For smaller sizes, torque to the specified level, which is usually 60 to 80 ft-lbs. Do this until the metal bolt pads touch. Never trust visual pad-to-pad touch without also using a torque wrench to make sure.

Routine Maintenance Protocols

Every three months, the machine should be inspected for gasket extrusion, housing corrosion, and bolt torque retention. Epoxy-coated or hot-dip galvanized finishes make service intervals much longer in places where chemicals are present or where there is a lot of humidity. Salt spray testing according to ASTM B117 proves that a coating will last. FLA's galvanized finish options meet this standard. It is much cheaper to replace gaskets before a planned stop than to have a system fail in the middle of activity.

Evaluating and Choosing the Right Grooved Coupling Clamp for Your Needs

In the real world, not all curved pipe connections work the same way. The main difference is between stiff and bendable types. Rigid joints firmly grip the pipe, aligning it like a welded joint. They work well for straight runs that don't need to move at all. Flexible couplings let you control both linear and angular movement. This makes them the best choice for areas that are prone to earthquakes, thermal cycle loops, and pump discharge lines where vibration separation is important.

The choice of material has a similar effect on life. Ductile iron that meets ASTM A536 Grade 65-45-12 has a tensile strength of 65,000 PSI and an elongation of 12%. It is more resistant to impact than gray iron. Within the recommended range of -29°C to 110°C, carbon steel housings work well in higher-temperature situations.

Gasket Material Selection

Chemical compatibility for a Coupling Clamp Grooved connection is largely determined by the gasket material. EPDM rubber can handle water, steam up to 230°F, and weak acids, making it a suitable option for many Coupling Clamp Grooved piping applications. When oil-based media, hydraulic fluids, or petroleum Products" target="_blank" style="color:blue" >products flow through the line, Nitrile (NBR) gaskets are generally a better choice for a Coupling Clamp Grooved connection. Silicone gaskets can extend the upper service temperature range for certain applications. Checking gasket and pipe materials in advance helps prevent specifying the wrong rubber for a Coupling Clamp Grooved system under pressure, reducing the risk of leakage and other common installation problems.

Sizing and Specification Considerations

FLA's grooved coupling range goes from 1" to 48" (25 mm to 1,200 mm), so it can fit everything from pipelines in homes to large-diameter water mains in cities. Up to 300 PSI (2.07 MPa) of working pressure is allowed. Teams in charge of buying things should compare the schedule and wall thickness of pipes to the dimensions of coupling keyways that are roll-grooved. When wall material is moved instead of removed, like in Schedule 10 pipe, the wall stays strong enough for most commercial uses.

Why Grooved Coupling Clamps Are the Preferred Choice in Commercial Systems

It is well known that the construction industry is moving toward grooved mechanical joints. Grooved couplings are used in all high-rise fire suppression systems because they are flexible enough to handle earthquake shifts between stories without breaking the riser stacks, which is a key life-safety performance requirement under NFPA 13. In mechanical rooms, the elastomeric gasket's ability to reduce vibrations helps the links between chillers and cooling towers. This extends the life of the equipment by lowering the dynamic loads that are transferred.

Industrial users get an edge in upkeep that is hard to get with flanged systems. In slurry piping applications, repair crews can turn worn pipe sections 90 degrees to change the way they wear without having to cut or re-weld. This greatly increases the service life of pipes in rough conditions. This useful adaptability, along with UL/FM-certified performance data, makes it clear for engineering teams to choose grooved systems for both new construction and repair projects.

How to Procure Grooved Coupling Clamps: Best Practices for B2B Clients

It takes more than comparing unit prices to source Coupling Clamp Grooved fittings on a large scale. Procurement engineers should ask suppliers for hydraulic burst-test results for each Coupling Clamp Grooved product. A fitting rated for 300 PSI should be evaluated against an appropriate burst-pressure requirement, with a 900 PSI test level representing a 3:1 pressure ratio when specified by the applicable standard or manufacturer. Before placing large orders, it is also important to obtain a spectrographic analysis confirming the ductile iron composition and verifying compliance with Grade 65-45-12 requirements for the Coupling Clamp Grooved material. Reviewing these test records helps buyers assess the quality and pressure performance of each Coupling Clamp Grooved product before committing to bulk procurement.

When making an RFQ, you should include information about the pipe schedule, the type of groove (roll or cut), the required surface finish, the gasket material, and any certification standards that apply (ISO9001, CE, UL/FM). Clear specifications cut down on back-and-forth and let suppliers send accurate quotes that are comparable. Within 24 to 48 hours, FLA Industrial & Trading Co., Ltd. confirms prices, offers dimensional models, and 3D design files, speeding up the decision-making process without sacrificing technical accuracy.

Conclusion

Grooved Coupling Clamp Grooved products are widely used in industrial piping systems because they provide reliable mechanical connections and simplify installation. In addition to meeting standards such as ISO 9001, CE, and UL/FM approval requirements, a Coupling Clamp Grooved connection eliminates many hot-work hazards, reduces installation labor, accommodates thermal and seismic movement, and makes maintenance easier. A well-specified Coupling Clamp Grooved fitting is typically made from ductile iron meeting ASTM A536 requirements, uses an EPDM gasket, and can be supplied with a painted or hot-dip galvanized finish. This type of Coupling Clamp Grooved connection is suitable for fire protection, HVAC, water supply, and industrial piping applications. From a lifecycle perspective, selecting the right Coupling Clamp Grooved solution can help procurement professionals reduce installation and maintenance costs rather than focusing only on the initial unit price.

FAQ

What is the difference between a rigid and a flexible grooved coupling?

Similar to a welded joint, a rigid grooved coupling has tongue-and-groove surfaces that lock pipe pieces into axial alignment. A flexible version lets it bend slightly in any direction and move in a straight line, so it can adapt to thermal expansion and seismic drift. Choose the flexible type for connecting pumps, riser stacks in areas prone to earthquakes, and other places where pipes are likely to move.

How do I choose between EPDM and NBR gaskets?

EPDM seals can handle steam, water, and sewage up to 230°F. Gaskets made of nitrile (NBR) can handle oil-based media, hydraulic fluids, and gasoline products. When you use EPDM in hydrocarbon service, the gasket will swell and the seal will fail, so make sure the fluid is compatible before you specify.

Can grooved couplings work on thin-wall pipe?

Roll-grooved couplings are reliable on Schedule 10 and Schedule 5 pipe because they move the metal around instead of taking it away, which keeps the wall thickness. For cut-grooved connections to keep enough material after being machined, the walls must be Schedule 40 or thicker.

What causes leaks at a grooved joint?

Most leaks happen because the groove isn't deep enough, there is dirt on the gasket fitting surface, or the gasket gets pinched while the housing is being put together. Check the A-dimension, look for scratches on the sealing surface, and make sure the gasket fits evenly before applying the final torque to the bolts.

Partner With FLA Industrial for Your Grooved Coupling Clamp Needs

FLA Industrial & Trading Co., Ltd. has been making Coupling Clamp Grooved goods for almost 40 years and can offer products from 1" to 48" that are ISO9001, CE, and UL/FM certified. We are a reliable supplier of Coupling Clamp Grooved to markets in the U.S. and around the world. Our services include custom sizing, technical documentation within 24 to 48 hours, and epoxy-coated, painted, and hot-dip galvanized finishes. To get a price right away, email our purchasing team at sales@flaindustrial.com or go to flaindustry.com.

References

1. American Water Works Association. ANSI/AWWA C606: Grooved and Shouldered Joints. AWWA, 2022.

2. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

3. ASTM International. ASTM A536: Standard Specification for Ductile Iron Castings. ASTM, 2020.

4. ASTM International. ASTM F1476: Standard Specification for Performance of Gasketed Mechanical Couplings. ASTM, 2021.

5. American Society of Mechanical Engineers. ASME B31.9: Building Services Piping. ASME, 2020.

6. Underwriters Laboratories. UL 213: Rubber-Gasketed Fittings for Fire-Protection Service. UL, 2019.
