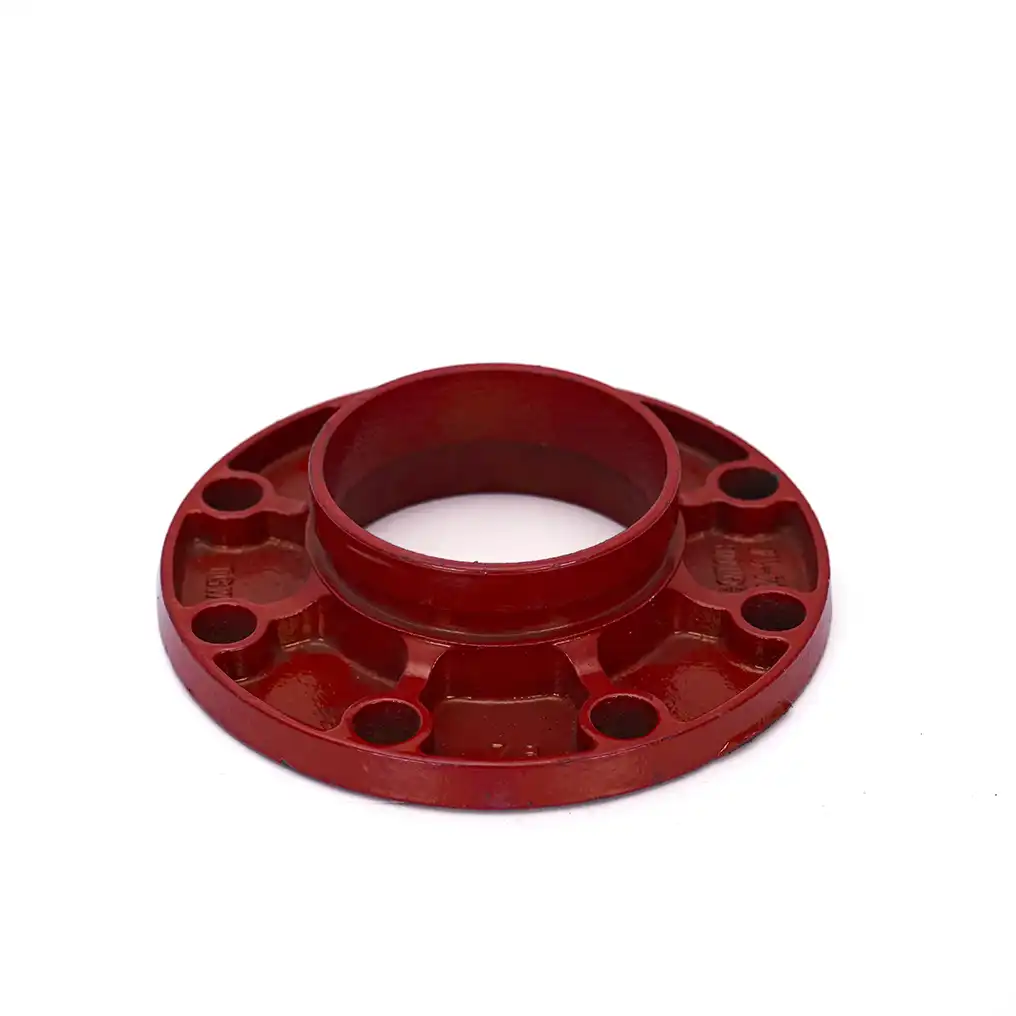

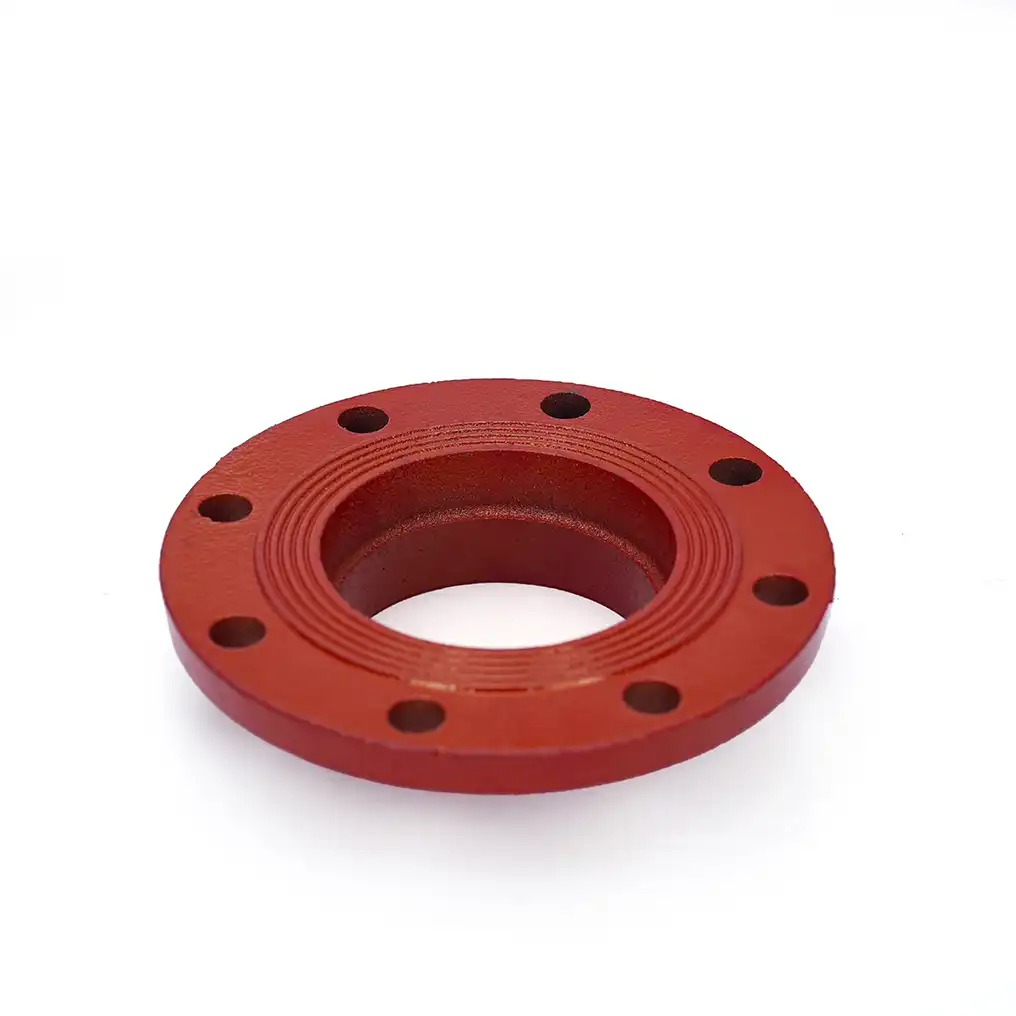

Flange By Groove Adapter Connects Different Piping Systems Efficiently

A flange by groove adapter is a precision-engineered piping component that bridges grooved pipe networks with flanged equipment in a single, compact fitting. Rather than welding or threading two incompatible systems together, this adapter provides a direct mechanical transition—one end accepts a grooved mechanical coupling while the opposite end bolts flush against a standard flange face. Manufactured from ductile iron or carbon steel with protective epoxy or galvanized coatings, it also handles diameter reductions, making it indispensable across fire protection, HVAC, water treatment, and industrial process piping installations throughout the United States and globally.

Specification

Type	Model (DN)	Pipe Outer Diameter
Flange By Groove Adapter	DN65	76mm
Flange By Groove Adapter	DN80	89mm
Flange By Groove Adapter	DN100	114mm
Flange By Groove Adapter	DN125	140mm
Flange By Groove Adapter	DN150	165mm
Flange By Groove Adapter	DN200	219mm

Understanding Groove-to-Flange Adapters: Functionality and Applications

How the Dual-Interface Design Works

The main engineering benefit of this fitting is that it has two different types of interfaces. The grooved spigot end meets the requirements of AWWA C606, so it can accept standard mechanical couplings without having to be welded. The other flange face is made to ANSI B16.1 Class 125 or Class 150 bolt-circle shapes. This makes sure that pumps, valves, and instruments can be used directly. A concentric or eccentric transition section between the two surfaces controls the smooth decrease in pipe diameter, stopping any chaotic flow or pressure drop at the joint.

Ductile iron used in a flange by groove adapter that meets ASTM A536 Grade 65-45-12 has a minimum tensile strength of 65,000 psi, providing the mechanical strength needed for demanding piping applications. This allows the flange by groove adapter to withstand cyclic pressure loads without breaking when properly designed and installed. A red epoxy anti-corrosion coating or hot-dip galvanization layer applied in accordance with ASTM A153 can provide long-term protection for a flange by groove adapter in wet or chemically harsh environments. For industrial and commercial piping systems, selecting a properly manufactured flange by groove adapter with suitable material strength and corrosion protection can help maintain reliable performance over its service life.

FLA Industry & Trading Co., Ltd. has sizes from DN65 (76 mm OD) to DN200 (219 mm OD), which are the most popular pipe sizes for business and industrial use. Before being sent out, each size is tested for hydrostatic pressure at 1.5× working pressure.

Key Industrial Applications

These groove-to-flange transition fittings are very important in many areas, including:

• Fire suppression pump rooms: Connecting grooved sprinkler networks to flanged pump suction and discharge ports absorbs pump vibration, reducing fatigue stress on downstream piping—a standard design practice per NFPA 13 guidelines.
• HVAC chiller and boiler retrofits: Where hot-work permits are unavailable, these adapters allow rapid integration of flanged butterfly or check valves into existing grooved hydronic loops without welding.
• Water and wastewater treatment: Flanged sludge valves connect to large-diameter grooved compressed air or slurry lines, with epoxy coatings resisting aggressive media.
• Industrial processing facilities: Flanged tanks, heat exchangers, and processing vessels integrate cleanly with grooved distribution headers.

All of these situations need a strong, certified link that can be taken apart in the future without having to cut the pipe. This is exactly why grooved-flange fittings are better than soldered ones: they are easier to maintain.

Groove Adapters vs. Traditional Flanged Connections: Making the Right Choice

Slip-on, welding-neck, and butt-weld flanges have been used in industry for decades, but they have some major limitations. Welded joints are permanent, require qualified welders, create heat-affected zones, and need a lot of checking after the weld is done. When there is a need to retrofit or build something quickly, these requirements directly lead to cost overruns.

With groove-to-flange fittings, there is no need to join at all on the grooved side. For installation, all you need is a mechanical coupler, a standard gasket on the face of the flange, and measured bolt pressure that is applied in a crisscross pattern. Site data from business HVAC projects regularly shows that these assemblies take 30–50% less time to install than welded flange assemblies. It's much easier to line up bolt holes when there is 360 degrees of rotational freedom during fit-up, which isn't possible with welded joints.

Pressure performance is about the same as the rest. The working pressure ratings for ductile iron groove adapters are UL-, FM-, and CE-approved and run from 300 psi to 750 psi based on the diameter. The range of ratings in that area includes most business HVAC, fire prevention, and industrial process uses in the US.

Installation and Maintenance Best Practices

Step-by-Step Installation Protocol

The long-term integrity of the seal for a flange by groove adapter depends heavily on proper installation. Before joining the pipe ends, check the groove dimensions against AWWA C606 requirements, ensuring that the groove width (A-dimension) and groove depth (C-dimension) remain within the specified limits. Before installing the mechanical connection, apply a thin layer of suitable lubricant to the gasket and sealing gap of the flange by groove adapter. On the flange side, install a standard rubber or composite gasket between the adapter face and the mating equipment flange. This gasket is not included with the flange by groove adapter itself. Tighten the flange bolts one at a time in a crossing pattern until they reach the specified torque for the applicable bolt grade, such as SAE J429 Grade 5. Avoid excessive tightening, as over-torquing the flange by groove adapter can damage or crack the flange ears. Proper installation of the flange by groove adapter is essential for maintaining a secure, pressure-tight connection.

Preventive Maintenance Schedule

Every six months, there should be a scheduled inspection that includes looking for signs of coating wear, making sure the bolts are tight, and checking the condition of the gaskets. Use a non-abrasive solution to clean the outside of the item to get rid of deposits that speed up rust below the layer. Use a compatible epoxy touch-up compound to cover any bare metal that has been damaged by mechanical means again. Because the grooved coupling can be taken apart without cutting the pipe, replacing a valve or pump during planned shutdowns takes hours instead of days. This saves money on operational costs over the life of an asset, which is five to ten years.

Procurement Guide: Sourcing Certified Groove-to-Flange Fittings

Evaluating Supplier Quality and Certifications

Quality control is what makes a groove-flange joint reliable or not. Before committing to a supplier, procurement teams should make sure that the following quality standards are met:

• Dimensional verification: Groove dimensions checked with calibrated go/no-go gauges against AWWA C606; flange bolt circles verified against ANSI B16.1 or ISO/DIN metric standards.
• Material certification: Metallographic nodularity analysis confirming >90% Type I/II graphite in ductile iron castings, preventing brittle fracture during bolt tightening.
• Coating thickness: Digital measurement confirming minimum 80–100 microns of epoxy or zinc, per applicable corrosion resistance standards.
• Hydrostatic proof testing: Random lot testing at 1.5× rated working pressure with zero-leakage acceptance criteria.

All of these checks are written down and done as part of FLA Industrial & Trading Co., Ltd.'s ISO 9001–certified quality management system. The product line also has UL listing for North American markets, FM approval for fire protection uses, and CE marking for European compliance. This set of certifications meets the needs of major U.S. contractors and distributors when they buy Products" target="_blank" style="color:blue" >products.

FLA has been manufacturing flange by groove adapter products for almost 40 years and has more than 1,000 product specifications in production. The company also maintains 2,000 tons of standard inventory, allowing commonly required flange by groove adapter models to be prepared for prompt shipment. Custom, non-standard sizes of flange by groove adapter products can be delivered within 7–15 days, while full technical documentation and a 3D design proof can be provided within 24–48 hours of a request. This combination of production experience, inventory availability, and technical support helps purchasing teams source the right flange by groove adapter efficiently for different piping applications.

Why B2B Procurement Teams Specify This Fitting

Across the United States, procurement engineers at construction companies, HVAC contractors, and MRO teams always choose groove-to-flange adapters over welded options because they have a lower total cost of ownership due to less installation labor, less downtime for maintenance, and longer service life backed by certified coatings. FLA has a wide range of products, from DN65 to DN200, with ANSI and metric flange drill patterns. The company also offers concentric or eccentric reducer configurations to fit almost any site layout.

The design of the fitting also lets it rotate 360 degrees during grooved coupling installation. This is helpful for aligning bolt holes on flanged equipment in mechanical rooms that are already crowded. Just that one feature gets rid of a usual fitting problem that welded flanges can't fix.

Conclusion

A flange by groove adapter solves one of the biggest problems in commercial and industrial piping: it allows two different connection systems to be joined without soldering, permanently modifying the piping, or compromising pressure integrity. These fittings are typically made from ASTM A536 ductile iron or carbon steel, with corrosion-resistant coatings and approvals to UL, FM, CE, and ISO 9001 requirements. A properly specified flange by groove adapter can provide reliable, long-term performance in applications such as fire pump rooms and wastewater treatment plants. For procurement teams comparing pipe fitting suppliers, selecting a manufacturer that produces each flange by groove adapter with accurate dimensions, documented quality-control procedures, and the required certifications is essential. By choosing a qualified supplier, buyers can ensure that the flange by groove adapter meets the performance and connection requirements of the intended piping system.

FAQ

Does the adapter require a gasket on the flange side?

Yes. A standard rubber or composite flange gasket is required between the adapter face and the mating equipment flange to ensure a leak-free seal. The adapter itself does not include this gasket.

Can it be used with both ANSI and PN-series flanges?

Yes, provided the specific SKU is drilled to the correct bolt-circle standard. ANSI 125/150 and PN10/16 patterns are rarely interchangeable, so specify your required drill pattern at the time of order.

Is this fitting suitable for steam service?

Generally, no. Standard ductile iron groove adapters and grooved elastomeric gaskets are rated for water, fire protection, and air systems up to approximately 230°F (110°C). Steam service typically requires specialized elastomers and pressure ratings outside this product's standard scope.

What pipe sizes are available?

FLA's current range covers DN65 (76 mm OD) through DN200 (219 mm OD). Custom sizes outside this range are available with a 7–15 day lead time.

What is the minimum order quantity?

No minimum order quantity applies. FLA handles orders from ten pieces to ten thousand with equal supply capability.

Partner with FLA Industrial for Your Next Piping Project

FLA Industrial & Trading Co., Ltd. sells certified Flange By Groove Adapter fittings to builders, wholesalers, and MRO teams in and outside of the US. With ISO 9001, UL, FM, and CE certifications, as well as nearly 40 years of manufacturing experience and 2,000 tons of ready stock, you can be sure that the quality we offer will meet your needs. You can visit flaindustry.com or email our technical team at sales@flaindustrial.com to get a quote, confirm the details, or talk about custom sizes for your project.

References

1. American Water Works Association (AWWA). AWWA C606: Grooved and Shouldered Joints. AWWA, 2015.

2. American Society of Mechanical Engineers (ASME). ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings. ASME, 2015.

3. American Society for Testing and Materials (ASTM). ASTM A536: Standard Specification for Ductile Iron Castings. ASTM International, 2014.

4. National Fire Protection Association (NFPA). NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

5. ASTM International. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. ASTM International, 2016.

6. International Organization for Standardization (ISO). ISO 9001: Quality Management Systems—Requirements. ISO, 2015.
