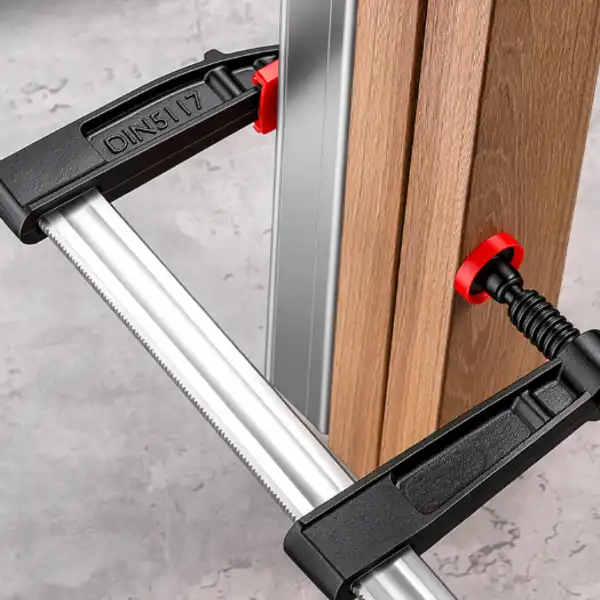

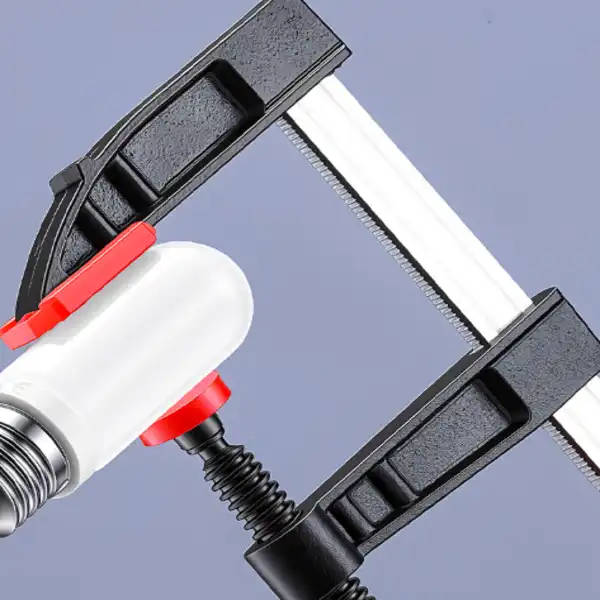

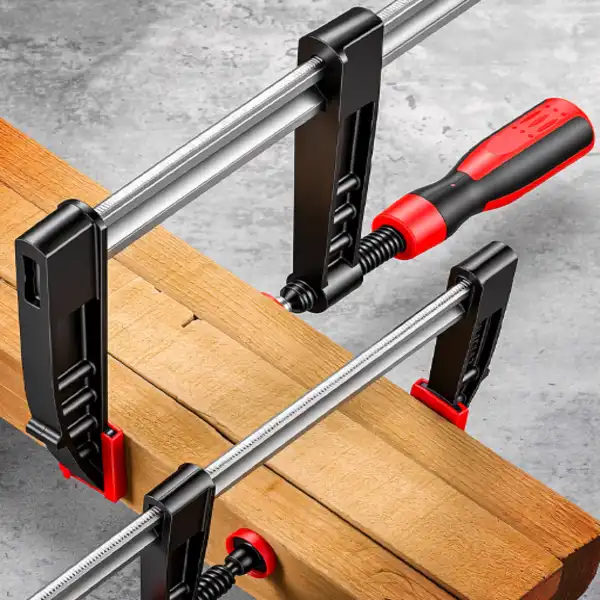

Heavy-Duty American F-Clamp Handles Large Workpieces in Industrial Assembly

When industrial assembly demands an uncompromising grip on oversized or irregular workpieces, the F-Clamps/heavy-duty-american-f-clamp">heavy-duty American F-clamp stands as the professional's tool of choice. Unlike standard clamping tools, this industrial-grade clamp is engineered with malleable cast iron jaws and a precision steel rail system capable of sustaining 600–1,200+ lbs of clamping force without structural deflection. From timber lamination and metal fabrication to concrete formwork and cabinet installation, it eliminates jaw racking, bar bowing, and sliding arm slippage—three failure modes that compromise assembly precision. Procurement teams, site engineers, and distributors across the U.S. consistently rely on it for both reliability and value.

Specification

Model	Overall Length (mm)	Shearing Capacity (mm)	Standard
6 Inch	150	Ordinary	American Style
10 Inch	250	Ordinary	American Style
12 Inch	300	Ordinary	American Style
18 Inch	450	Ordinary	American Style
24 Inch	600	Ordinary	American Style
30 Inch	750	Ordinary	American Style
36 Inch	900	Ordinary	American Style

Understanding Heavy-Duty American F-Clamps: Features and Benefits

An industrial bar clamp is not the same as a real heavy-duty clamping tool because it does not have the same level of material integrity, mechanical precision, or load tolerance. People in woodworking shops, manufacturing floors, and building sites know and trust the American F-clamp style because it was made to work where other clamps fail.

Malleable Cast Iron Construction and Steel Rail Architecture

The jaw castings are made of cast iron that can be shaped. This type of iron can take impact without breaking, which is a big plus compared to gray iron that breaks easily when stretched. The main bar is made from medium-carbon steel, usually 1045 grade. This gives it a high yield strength that keeps it from permanently bending when it's working at its rated load. The ACME-threaded screw rod transfers force effectively without thread binding, and the rail's six serrations per inch engage a hardened steel clutch plate to stop rear-sliding during operations with a lot of vibration, like milling or drilling.

Finish Options That Match Your Environment

For normal workshop use, FLA Industrial's Heavy-Duty American F-Clamp Products" target="_blank" style="color:blue" >products come with a painted finish. For environments with high humidity or chemical exposure, the Heavy-Duty American F-Clamp is available with a zinc-plated finish for enhanced corrosion protection. A neutral salt spray test (NSS) according to ISO 9227 can be used to verify the rust resistance of the plated versions. This helps ensure that the rail and spindle of each Heavy-Duty American F-Clamp remain suitable for demanding working conditions. With this two-finish option, purchasing teams can select the most appropriate protective coating for each Heavy-Duty American F-Clamp application without compromising structural performance.

These choices about how to build something have direct, measurable operational benefits: consistent clamping pressure over long hold times, little creep under static load, and a service life that makes it worth buying in bulk.

How to Use Heavy-Duty American F-Clamps Effectively in Your Operations

Any high-force clamp can be used more effectively if the right techniques are used. These steps keep activities safe and increase the life of tools used in industry settings.

Positioning, Adjustment, and Maintenance Protocol

Before you tighten, make sure the moving jaw is straight across from the workpiece. Off-angle clamping creates lateral torque that speeds up clutch wear and can lead to jaw racking, which is when the jaws become misaligned under load and change the squareness of the assembly. Gradually increase the gripping force; applying the maximum pressure all at once puts too much stress on the screw rod threads. For glue-ups in woodworking, keep the clamps no more than 12 inches apart to keep the panels from bowing. If you are welding, use heat-resistant wrap or copper-coated screws to keep the ACME threads safe from direct spatter.

It's simple and necessary to do routine maintenance for a Heavy-Duty American F-Clamp. Every so often, use a solvent and wire brush to clean the rail serrations and get rid of any grit, cement dust, or oil that is building up and stopping the clutch from engaging properly. Every 30 to 50 hours of use, oil the screw rod with machine oil. Check to see if the swivel pad has come off. In industrial settings, crimped or ball-joint pads last longer than snap-on ones. These steps stop the most common field failures and keep the clamps reliable for thousands of rounds.

Choosing the Right Heavy-Duty American F-Clamp: Size, Capacity, and Comparison

To choose the right clamp size, you need to make sure that the opening capacity and throat depth are the same size as the item. FLA Industrial's range includes seven standard sizes: 6, 10, 12, 18, 24, 30, and 36 inches (150 mm to 900 mm in length), which cover everything from small cabinet parts to wide structural panels and steel fabrications.

Size Selection and Clamp Type Comparison

The throat depth, or the distance from the rail to the jaw tip, tells you if the clamp goes all the way to the middle of the workpiece. Most heavy-duty F-clamps have throat depths between 2.5 and 5 inches. If the part needs to reach deeper, you can use a Pipe Clamp or a parallel jaw clamp along with the F-clamp. C-clamps have a higher localized force in small areas, but their sliding jaw range is too small for big panels. Quick-release clamps give up keeping power for speed, and they can't be used for tasks that need to keep high pressure on the clamp for a long time. Bar clamps can open about as wide as F-clamps, but they don't usually have the strengthened, malleable iron jaw castings that keep F-clamps from breaking when pressure is applied.

The ANSI B207.1 and DIN 5117 structural standards set the maximum load-bearing and failure thresholds. They are useful as starting points when comparing supplier specifications during the procurement process.

Procurement Strategies for Heavy-Duty American F-Clamps in B2B Markets

When buying industrial F-clamps strategically, you need to pay attention to the quality systems of the suppliers, the variety of SKUs, and the dependability of the logistics. When purchasing in bulk, purchasing managers benefit most from suppliers that use an ISO9001-certified manufacturing process. This is because it allows for clear documentation of the whole process, from checking the raw materials to checking the final assembly.

These Heavy-Duty American F-Clamp products are made by FLA Industrial & Trading Co., Ltd. in a controlled four-step process covering casting, forging, cutting, and assembly. Before being packed, each Heavy-Duty American F-Clamp unit is tested for clamping force, thread smoothness, and structural stability. FLA has been manufacturing hardware for almost 40 years and offers more than 1,000 product specifications. The company works with hardware distributors, building procurement teams, and OEM clients in the US, Germany, and Australia, including some Fortune Global 500 partners. For buyers seeking consistent quality and reliable performance, the Heavy-Duty American F-Clamp provides a practical solution backed by controlled manufacturing and inspection processes.

To get objective quality standards for large orders, procurement engineers can ask for documented static load test results (clamp kept at rated capacity for 24 hours, keeping ≥95% of original force) and Rockwell Hardness (HRC) data on the clutch plate. For big assembly jobs that need special fixturing, you can get custom configurations with things like deeper throats or different types of jaw pads.

Future Trends and Innovations in Heavy-Duty American F-Clamps

The capabilities of industrial bar clamps are always getting better thanks to progress in material science and manufacturing precision. The yield strength ceiling for rail stock is going up because alloy steel formulas with tighter carbon content limits are making it possible for smaller cross-sections that keep their rigidity while lowering clamp weight. Improvements in surface treatment, such as multi-layer zinc-nickel plating, are making corrosion resistance last much longer than with single-layer zinc coatings.

Industry 4.0 is starting to be used in clamping tools. Embedded load sensors send real-time clamping force data to systems that watch the assembly line. This lets quality engineers check that hold pressure stays the same across multiple clamp sets without having to check each one individually. Widespread use is still a while off, but forward-thinking suppliers are already looking into how to add smart fixtures. When purchasing managers build relationships with companies that are investing in these skills, they set up their businesses to use precision-controlled locking as soon as it hits the market.

Conclusion

The Heavy-Duty American F-Clamp fixes real production problems like bar bending, jaw racking, and arm slippage that lower the quality of assembly in construction, metal casting, and crafts. It can clamp workpieces from 6 inches to 36 inches with high force thanks to its bendable cast iron jaws, serrated steel rail, and ACME-threaded screw rod. These tools will work consistently for thousands of turns as long as you choose the right size, keep the clutch and screw rod in good shape, and buy them from a company that is ISO9001-certified. For business-to-business buyers, the F-clamp is a reliable long-term choice because it meets documented quality standards and comes in a variety of SKUs.

FAQ

What distinguishes a heavy-duty F-clamp from a standard model?

Stronger steel rails (usually ¼" × ¾" or bigger) and strengthened malleable iron castings that can hold 600–1,200 pounds of force are found in heavy-duty types. The standard ones often bend or slip around 300 pounds.

Can these clamps be used in welding environments?

Yes. The construction is made of steel and iron, so it can handle heat. Keep direct weld spatter away from the ACME threads to maintain their long-term adjustability.

Why does my F-clamp slip under high pressure?

If the rail serrations are worn, the clutch plate is smooth, or oil and grit build up in the serrations, the engagement won't work right. Usually, cleaning with fluid and a wire brush makes the grip work again.

How often should industrial F-clamps be inspected?

Every 30 to 50 hours of use, check the screw rod threads, rail serrations, and swivel pads. At the same time, grease the screw bar.

Can custom configurations be ordered for specialized assemblies?

Yes. For large or complex industrial assembly projects, you can get jaw pads made of different materials, throat depths that are longer, and opening capacities that are changed.

Source Your Next F-Clamp Order from FLA Industrial & Trading Co., Ltd.

FLA Industrial & Trading Co., Ltd. is a trustworthy company that procurement workers can work with to find a Heavy-Duty American F-Clamp provider. FLA has been making products for almost 40 years, is ISO9001 certified, and has a history of working with industry clients around the world. The quality of all seven common sizes is the same. You can email the sales team at sales@flaindustrial.com or look through the full product catalog at flaindustry.com to get samples, talk about pricing for bulk orders, or make a clamping solution that fits your needs.
