How Can Quick-Action C-Clamp Improve Production Efficiency?

A quick-action C-clamp improves production efficiency by eliminating the slow, repetitive thread-winding process inherent in conventional clamping tools. The rapid-slide mechanism allows operators to position the movable jaw instantly, reducing setup time by up to 70% per cycle. In high-volume woodworking and metal fabrication environments, this translates directly into shorter cycle times, lower labor costs, and fewer alignment errors. Built from ductile iron frames and precision steel screw rods, these clamps deliver consistent clamping force without sacrificing durability—making them a practical upgrade for any production floor serious about throughput.

Understanding Quick-Action C-Clamps and Their Core Features

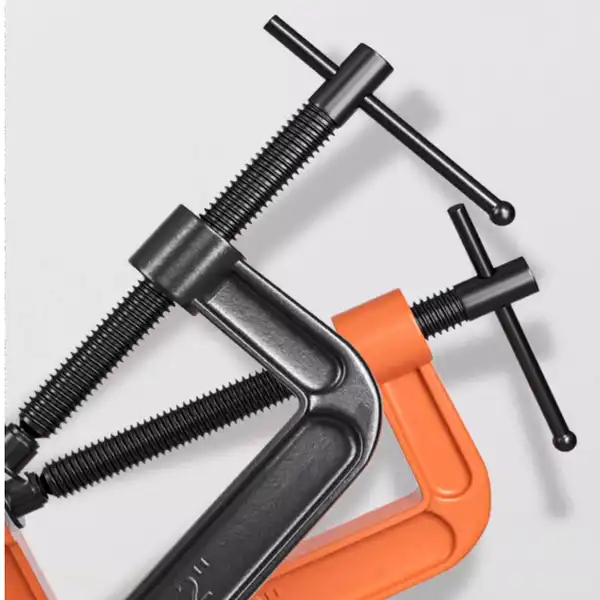

You need tools that can keep up with a production line before you can make it work better. A Quick-Action C-Clamp is a high-tech industrial fastener built around a half-nut trigger or gravity-clutch system. This system lets the threaded spindle move freely until it hits the workpiece. When it does, the threads re-engage for high-torque compression. This makes the tightening process go faster, from minutes to seconds.

Material and Build Quality

FLA's Quick-Action C-Clamps are made with frames made of ductile iron (spheroidal graphite iron) and steel screw rods that have been carefully machined. Ductile iron can stretch about 18% before breaking, while gray cast iron can only stretch about 0%. This makes it much more immune to impact and quick changes in load. The painted or powder-coated finish doesn't rust in wet or chemically active workplace settings. An ISO9001-certified quality control system makes sure that each unit goes through casting, machining, and several stages of checking.

Safety and Maintenance Essentials

The quick-release system works well for thousands of rounds as long as it is regularly serviced. Use compressed air to clean the trigger assembly often, and use a dry PTFE lube instead of thick grease, which collects rough dust. Do not use these clamps for moving things from above; the quick-release device can come loose when the object is shaken, which is against OSHA rules for rigging. Check the spindle tip for mushrooming. Induction-hardened tips with a rating of HRC 40–50 don't deform, but they should still be checked every so often when heavy loads are applied.

Common Production Challenges and How Quick-Action C-Clamps Address Them

The production process is slowed down by traditional C-clamps. That "dead time" builds up every time an operator screws a spindle from fully open to closing depth. They do this hundreds of times every day. Hand-applied torque that isn't consistent also causes changes in pressure, which can cause joints to be out of alignment when putting together furniture or weld distortion in fabrication shops.

Reducing Cycle Time and Labor Cost

When you switch to rapid-release clamps, the wheel motion time is cut by a huge amount. In a medium-sized furniture shop with 200 glue-up jobs per shift, cutting the time it takes to set up each clamp by just 30 seconds would save more than 1.5 hours of work every day. Over the course of a five-day week, that extra time adds up to almost a full shift. Mechanism cycle testing shows that re-engagement works reliably over 10,000 cycles or more, so the efficiency gain lasts instead of being temporary.

Eliminating Alignment Drift

When working with metal or wood, it can be annoying when the piece moves before the full clamping pressure locks the joint. A quick-action clamp's rapid-slide closure lets you position the workpiece with one hand, leaving the other hand free to hold it steady. Spindle alignment tolerances—maintained within less than one degree of being perpendicular to the anvil face—make sure that the clamping force is applied evenly. This stops the creep that leads to extra work and wasted materials.

For production managers who use cost-per-unit productivity as their main KPI, these benefits make the update a strong choice.

Comparative Analysis: Quick-Action C-Clamp vs. Alternative Clamping Solutions

Not every locking tool can be used for every job. Procurement professionals can make smart budget decisions by knowing when rapid-action clamps work better than other options and when they don't.

This is how key clamping methods stack up against the most important output standards:

• Quick-Action C-Clamp vs. Standard C-Clamp: The quick-action variant reduces setup time by up to 70%, making it superior for high-frequency operations. Standard C-clamps maintain a slight edge in maximum holding force due to their continuous, uninterrupted screw shaft, but the difference is negligible for most woodworking and light fabrication tasks.
• Quick-Action C-Clamp vs. Bar Clamp: Bar clamps excel at spanning wide panel glue-ups but lack the frame rigidity needed for precision metalwork. The C-clamp's enclosed frame absorbs lateral forces more effectively, making it the preferred choice in welding fixture and machining applications.
• Quick-Action C-Clamp vs. Toggle Clamp: Toggle clamps offer repeatable, hands-free clamping in dedicated jigs but are fixed in opening capacity. Quick-action C-clamps provide adjustable throat depth and jaw opening, giving them a versatility advantage in mixed-product workshops.

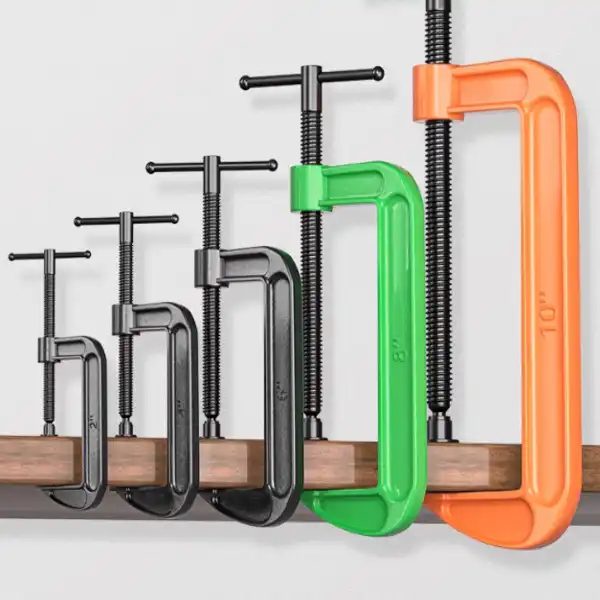

When buying tools in different SKUs to resell or to set up different production rooms, these differences are important. Picking the right type based on duty rating—light (600 lbs) vs. heavy industrial (2,000 lbs+)—makes sure the clamp fits the load needs of each job.

Procurement Guide: How to Select and Source Quick-Action C-Clamps for Your Business

Before you can choose the right clamp, you need to be clear on what you need it for. Most woodworking shops need swivel pads to work with surfaces with non-parallel grains without damaging them. Copper-plated or oxide-coated spindles that don't stick to weld spatter work well in places where metal is fabricated or welded. Heavy-duty versions that are approved for temporary structural fixturing are needed on construction sites.

Key Specification Checkpoints

Before placing an order with a Quick-Action C-Clamp supplier, make sure they perform the following tests: proof load testing to 150% of rated capacity, dimensional accuracy verification, and dye penetrant inspection (DPI) on ductile iron frames to find casting voids beneath the surface. Compliance with ASME B107.41M or DIN 5117 specifications adds a measurable layer of procurement confidence.

Sourcing for Bulk and Custom Orders

Distributors and sellers of hardware who buy in bulk gain from suppliers who keep a lot of stock on hand. FLA Industrial & Trading Co., Ltd. keeps 2,000 tons of stock on hand, which lets them ship regular amounts quickly. Within 7–15 days, custom setups like changed jaw profiles, different throat depths, or unique packages are finished. Within 24 to 48 hours of a request, quotes and technical data sheets are made available, which keeps buying timelines stable.

Optimizing Production Efficiency with Quick-Action C-Clamps: Practical Tips and Strategies

Adding new clamping gear without teaching the operators leads to mixed results. An organized rollout gets the best return on the money spent on purchase.

First, look at your current clamping operations and pick out the three setup tasks that happen most often. First, replace those stations with clamps that release quickly. Then, record the delta and measure cycle time before and after the changes. This information helps the case for a wider rollout within the company and gives procurement teams real numbers to share with plant managers.

As part of your lean production KPIs, include clamp efficiency. Keep track of downtime caused by clamps, rework rates due to alignment mistakes, and reports of operator fatigue. Continuous improvement (CI) processes that include stopping tool performance lead to long-term productivity gains instead of one-time boosts. Encourage feedback between machine workers and buying teams so that problems with ergonomics, wear patterns, and size preferences can be found early, before they cause costly production stops.

Conclusion

In addition to being faster versions of regular tools, Quick-Action C-Clamps are a big improvement to how production lines handle fixing, aligning, and moving things through. Durable ductile iron, precise machining, and a dependable rapid-slide mechanism fix the real problems that waste time and money for manufacturers every shift. Whether you run a shop that works with wood, metal, or supplies trade workers, these clamps will help you be more efficient in a way that can be measured and backed up by technical standards.

FAQ

What materials are used in professional-grade quick-action C-clamps?

Professional clamps have frames made of ductile iron that can withstand impact and steel screw rods that are precisely machined to work smoothly and hold loads.

How much clamping force can a quick-action C-clamp deliver?

For light-duty models, the clamping force is around 600 pounds, while for heavy-duty industrial models, it's over 2,000 pounds. The real force is based on the frame size, the diameter of the screw rod, and the design of the device.

Can these clamps be used in welding environments?

Yes, as long as the spindle has an oxide or copper-plated coating that keeps the weld spatter from sticking to it. If you don't do this, spatter can get stuck in the quick-release threads and stop the device from working over time.

How often should the quick-release mechanism be serviced?

Every time the gun is used a lot, clean the trigger assembly with compressed air. Regularly use dry graphite or PTFE lubricant to keep the engagement smooth. Heavy grease attracts rough particles, so stay away from it.

What certifications should I require when sourcing from a manufacturer?

For quality management system compliance, at the very least, you should need ISO9001 approval. Conformity to ASME B107.41M or DIN 5117 dimensions provides even more guarantee for load-bearing stability in tough situations.

Partner With FLA Industrial & Trading Co., Ltd. for Reliable Quick-Action C-Clamp Supply

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has partners in the Fortune Global 500 in the US, Germany, and Australia. We are a reliable company that makes Quick-Action C-Clamps. Our goods are ISO9001-certified; we have 2,000 tons of stock on hand, and we can deliver unique solutions in 7–15 days. To get a quote within 24 to 48 hours, email our team at sales@flaindustrial.com or go to flaindustry.com.
