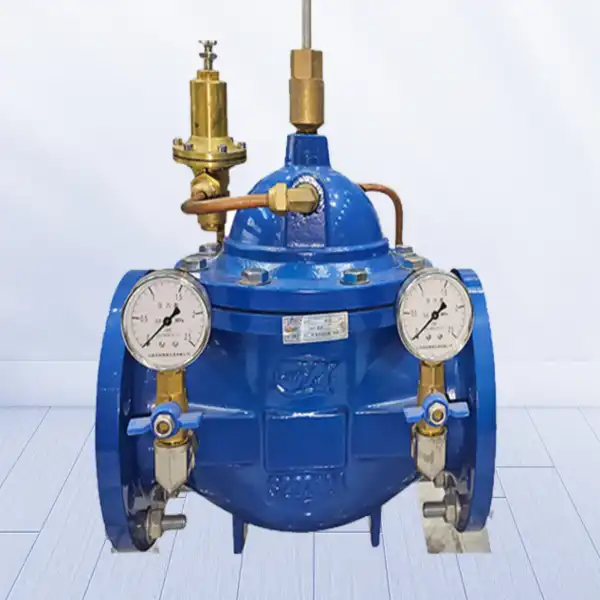

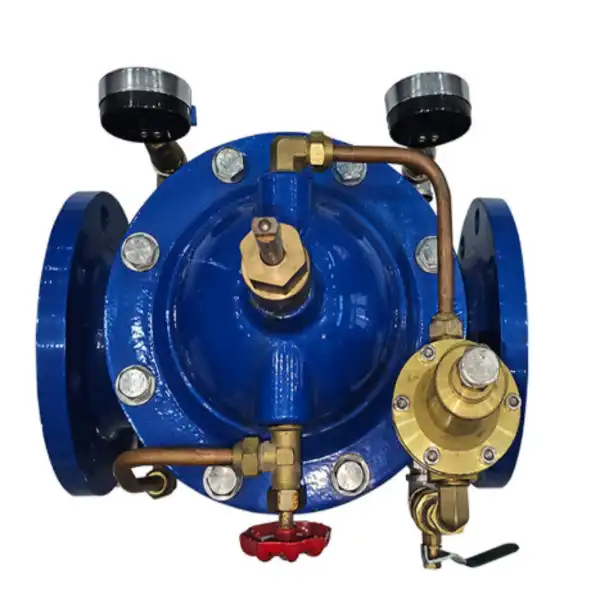

How Does a 32mm Pressure Reducing Valve Protect Industrial Water Systems?

When industrial water systems face fluctuating upstream pressure from municipal mains or pumping stations, a 32mm pressure reducing valve becomes the frontline defender against equipment damage and operational inefficiency. This precision-engineered component automatically reduces high, variable inlet pressure to a steady, controlled downstream pressure—regardless of flow rate changes or supply fluctuations. Acting as a hydraulic buffer, it prevents pressure surges that cause pipe bursts, equipment wear, and premature valve failure. For construction contractors, HVAC installers, and facility maintenance teams, understanding how this valve functions as a protective barrier means avoiding costly downtime and extending the service life of expensive water-dependent equipment.

Specification

Model (DN)	Type	Material Options	Pressure Range
DN50	National Standard Body	Brass/Cast Iron/Stainless Steel	0.1-1.6 MPa
DN65	National Standard Body	Brass/Cast Iron/Stainless Steel	0.1-1.6 MPa
DN80	National Standard Body	Brass/Cast Iron/Stainless Steel	0.1-1.6 MPa
DN100	National Standard Body	Brass/Cast Iron/Stainless Steel	0.1-1.6 MPa
DN125	National Standard Heavy Body	Brass/Cast Iron/Stainless Steel	0.1-1.6 MPa
DN150	National Standard Heavy Body	Brass/Cast Iron/Stainless Steel	0.1-1.6 MPa
DN200	Stainless Steel Accessories	Stainless Steel	0.1-1.6 MPa
DN250	Stainless Steel Accessories	Stainless Steel	0.1-1.6 MPa
DN300	Stainless Steel Accessories	Stainless Steel	0.1-1.6 MPa

Understanding the Role of a 32mm Pressure Reducing Valve in Industrial Systems

For industrial water systems to work safely and effectively, they need steady flow. But the pressure of the water coming in often changes a lot during the day, which creates risks that can shut down operations or damage equipment.

How Does Pressure Regulation Work?

A spring-loaded diaphragm device is at the heart of the technology used to control pressure. When high-pressure water enters the valve body, it flows past a seat that can be moved and is controlled by a spring. The diaphragm checks the pressure further downstream and changes the valve opening automatically. When the exit pressure goes above the setpoint, the diaphragm squeezes the spring, which partly closes the valve seat and stops flow. When demand goes up and exit pressure goes down, the spring opens the seat wider to keep the goal pressure. This constant self-adjustment happens right away, without any help or control from outside sources. On both the inlet and exit sides of the valve body, there are usually gauge connections that let you see the difference in pressure in real time. This is important information for diagnosing and fixing problems with the system.

Pressure Range and Flow Capacity Specifications

Modern pressure lowering valves made for DN32 pipes can handle pressures from 0.1 MPa to 1.6 MPa, which is 15 to 230 psi. The outlet pressure can be changed and is usually between 1.5 and 6.0 bar, but this depends on the needs of the application. For 32mm configurations, the flow coefficient (Kv value) is generally between 5.8 and 9.0 cubic meters per hour. This range is good for business and light industrial uses because it balances accurate pressure control with enough flow capacity. Because of these specs, 32mm valves are perfect for branch circuits in bigger installations, equipment protection points in factories, and dedicated zones in multi-story buildings where the flow needs are within the valve's capacity range.

Consequences of Unregulated Pressure

When water systems are used without proper pressure control, breakdowns are bound to happen. Too much pressure speeds up the wear on all of the system's seals, gaskets, and valve seats. Electronic controls and solenoid valves that are rated for normal working pressures break down too soon when they are hit with spikes that are higher than what they were designed to handle. When pressure changes quickly, a shock wave called "water hammer" is released. This wave can loosen pipe joints, break fittings, and make a damaging buzzing noise. In high-rise building fire safety systems, uncontrolled pressure on lower floors can go over the equipment's ratings, which can cause relief valves to leak constantly or fail severely in an emergency. When supply pressure changes more than what was planned, seal blowouts happen in process equipment like cooling jackets on injection molding machines or heat exchanges in chemical processing. The cost of unplanned repairs, lost production, and equipment that doesn't last as long as it should far outweighs the cost of installing the right infrastructure for pressure regulation.

Benefits and Applications of 32mm Pressure Reducing Valves in Industrial Settings

Precision pressure control has real benefits in a wide range of industrial settings, improving system reliability and lowering running costs.

Energy Conservation and Cost Savings

Keeping the pressure at the right level with a 32mm Pressure Reducing Valve has a direct effect on how much energy and water are used. When the pressure is higher than what the equipment needs, the extra energy is wasted, and the speed and turbulence in the pipes rise, which causes more friction losses. In a typical commercial building, dropping the pressure from 8 bar to 4 bar can cut water use by 20 to 30 percent just by getting rid of waste from leaks, dripping faucets, and overspray in cooling towers. Lower pressure also cuts the time that circulation system pumps have to run, which lowers the demand for electricity. Maintenance intervals are greatly increased when parts work within their designed pressure ranges instead of being stressed by overpressure conditions on a regular basis. When these things come together, they make for a strong return on investment, and payback times are often measured in months instead of years.

Enhanced Safety and Regulatory Compliance

Pressure control is becoming more and more important in commercial and industrial buildings because of safety codes and insurance requirements. Too much pressure could destroy pressurized parts or make spraying dangerous during system maintenance, but the valve stops these dangerous situations from happening. Fire safety systems need exact pressure control to make sure sprinkler heads work right, without misting (from too much pressure) or not covering enough (from too little pressure). NFPA requirements are met by valves that meet FM approval and UL certification standards. This satisfies inspectors and insurance companies while actually protecting people who live or work in the building.

Versatile Industrial Applications

Pressure-reducing valves are very useful in many industrial settings. In HVAC systems that cover more than one floor, valves control the pressure of the water that feeds boilers and cooling towers. This keeps the relief valve from opening and keeps expansion tanks from getting too hot. They keep the water supply stable for process cooling lines that serve CNC machines, laser cuts, and injection molding equipment. Stable cooling rates directly affect the quality of the Products" target="_blank" style="color:blue" >products that these machines make. These valves are used by municipal irrigation networks at the edges of zones to lower the stream pressure. This protects spray heads and drip lines and makes sure that water is distributed evenly, even when the ground level changes. Chemical processing plants need types of stainless steel that don't rust so they can handle the harsh fluids used in reactor cooling circuits and wash-down systems. The need in all of them is the same: to change variable, unpredictable input pressure into stable, reliable working pressure that equipment can safely handle all the time.

Installation, Maintenance, and Troubleshooting of 32mm Pressure Reducing Valves

The right way to install these safety devices and follow regular maintenance instructions will make sure they work well for decades without giving you any problems.

Pre-Installation Considerations and Setup

Before the wrench even hits the fitting, the job is already done. Make sure that the pipe size matches the valve connection. For example, a 32mm valve (DN32) usually needs a 1-1/4-inch threaded or flanged connection. Place the valve in horizontal pipe runs so that the adjustment spring faces up. This will let dirt flow through instead of sticking to the diaphragm. Place the valve after a Y-strainer or an integrated filter to keep debris from getting on the seat and stopping it from closing properly. Leave enough space above the adjustment cap so that you can change the pressure in the future without affecting the pipes next to it. Using the built-in gage holes, put pressure gages right upstream and downstream. These instruments become very useful for diagnosing problems. Make sure that the pipes further down the line can handle the highest flow rate possible at low pressure without making too much velocity noise. After installing the valve, let it sit there for a few hours before tightening the unions all the way. This is because thermal cycling during the first few hours of use can cause some minor settling.

Maintenance Best Practices

Routine inspection times for a 32mm Pressure Reducing Valve rely on the quality of the water and how long the system is used, but eye checks every three months catch most problems early. Check the gage readings to make sure that the outlet pressure stays at the setpoint even when demand changes. If you hear strange sounds like whistling or talking, it means that the flow is turbulent because seats are partly blocked or diaphragms are worn out. Check the gauge ports and threaded connections for weeping or mineral buildup that could mean slow leaks. When you do an annual breakdown check, you can look at the inside parts. The diaphragm should stay flexible without cracks or hardening, the spring tension should feel even, and the valve seat should have even contact patterns without erosion or pitting. Clean the body cavity and screen filter of any sediment that has built up. As a preventive measure, diaphragm parts should be replaced every three to five years, even if they look like they could still be used. This is because rubber compounds break down over time, no matter how good they look.

Common Issues and Solutions

When the outlet pressure slowly rises above the setpoint when there is no flow, this is called pressure creep. It usually means that the valve seat is partially clogged or damaged, which keeps the valve from closing all the way. Take the seat piece apart and either clean it or replace it. When the exit pressure goes above and below the setpoint, this is called pressure oscillation or hunting. It means that the spring tension is not set correctly or the valve is too small for the flow rate. Check the flow needs again, and if they are higher than expected, think about moving to the next valve size. If the body drain port keeps weeping, it means the diaphragm is failing and needs to be replaced right away to stop water damage and system contamination. Noise problems are usually caused by too fast of a flow rate—either the valve is too small, or the pipes further downstream create turbulence points. Taking care of these problems right away stops damage to tools further down the line and keeps the integrity of the system secure.

How to Choose the Right 32mm Pressure Reducing Valve for Your Industrial Needs?

Instead of going with general choices, choosing the right pressure control tools means matching technical specs to real-world working conditions and performance goals.

Material Selection for Durability and Compatibility

The main thing that determines where a valve can reliably work is its body material. Brass construction is very good at resisting rust in systems that handle drinkable water. It is also reasonably priced and has been shown to last a long time. Brass can be machined to exact specs for tight sealing. Dezincification-resistant (DZR) brass grades are made to fix the problem of selective leaching that happens with regular brass in some types of water. Cast iron is strong enough for big commercial projects where fire safety rules allow it, and cost-effectiveness is more important than weight-loss. Stainless steel 316 is the best material for harsh environments like chemical processing, systems that use very pure water, and installations near the coast where salt air speeds up corrosion. When choosing materials, it's important to think about the full system chemistry, which includes chlorine levels, changes in pH, and temperature ranges. Surface treatments, such as nickel plating or powder coating, add layers of protection that make things last longer in tough circumstances. A small up-front cost for high-quality products pays off in the long run through increased dependability and fewer replacements.

Understanding Valve Variants and Control Methods

Mechanical diaphragm valves are the most popular type for a good reason: they don't need any outside power, they work continuously without electronics that can break, and they offer reliable control through well-known hydraulic principles. Models that can be adjusted by hand have a threaded adjustment screw on top of the spring housing. This lets techs set the outlet pressure exactly using gauges that are already installed. Pilot-operated versions use the pressure downstream to change the main valve. This makes them more accurate when the pressure at the outlet changes a lot or the flow rates change a lot. For some uses, electronic control valves with motorized motors and pressure sensors are necessary because they allow for tracking and automatic adjustments from afar through building management systems. These high-tech units are a lot more expensive, but they help with managing sites that are very complicated. Instead of over-specifying features that will never be used, make sure that the level of control complexity matches the real working needs.

Evaluating Manufacturers and Certifications

Global names like Honeywell and Siemens have built their reputations on consistent quality and full expert support for products like a 32mm Pressure Reducing Valve. However, regional makers often offer similar performance at prices that are more competitive. When checking if something is suitable for a certain job, certification is more important than brand recognition. ISO9001 approval shows that quality management is carried out in a planned way throughout the manufacturing process. If something has a CE mark, it means it meets European safety standards. If it has a UL mark, it means it has been tested by a third party for North American markets. For sprinklers to work in commercial buildings, FM approval is needed because it specifically addresses the needs of the fire protection system. The terms of the warranty show how confident the maker is in the product. For example, full coverage for three to five years suggests a strong design and high-quality materials, while restricted warranties may mean that important parts were cut to save money. When designing a system or fixing a problem, quick technical support is very important. Manufacturers that offer engineering help, sizing tools, and easy-to-find new parts provide ongoing value after the initial purchase.

Procurement and Supply Chain Insights for 32mm Pressure Reducing Valves

By lowering costs, making sure of a reliable supply chain, and working together technically, strategic procurement approaches can turn buying common valves into a competitive advantage.

Sourcing Strategies for Reliability

Finding makers with strong technical skills and a history of on-time delivery is what makes a good buying experience different from a frustrating one. Check the factory's production ability. Companies that keep a lot of basic configurations in stock ship right away instead of giving you long lead times. Instead of relying on subcontractors, companies that run integrated foundries, machine shops, and assembly facilities keep an eye on quality at every stage of production. It doesn't matter how close you are geographically as much as how quickly you can communicate and get technical help. Chinese companies that have been making pipe fittings and pressure control devices for almost 40 years combine advanced manufacturing skills with cost structures that keep prices low without lowering quality. To make sure the manufacturing is done correctly, ask for material certifications, pressure test reports, and data from dimensional inspections. Before committing to large purchases, pilot orders let you make sure that the product meets your needs and that the packaging is secure and all the paperwork is complete.

Bulk Purchasing and Partnership Advantages

Making a volume promise can help you get better prices and make sure that your products get to the front of the supply line when capacity is low. Companies that keep more than 2,000 tons of different products in stock show that they care about their customers and are financially stable. By negotiating framework deals, you can set prices that are predictable for planning purposes while still having the freedom to call off inventory as projects move forward. Technical collaboration during product selection and system design adds value beyond just low prices. For example, experienced suppliers can find chances for standardization that make inventory less complicated and offer alternatives when certain parts aren't available. After-sales support, such as managing warranties, helping with technical problems, and providing emergency replacements, is what sets real partners apart from transactional sellers. The quality of the connection has a direct effect on working continuity when problems arise out of the blue and need to be fixed right away.

Real-World Return on Investment

A factory in the Midwest that put pressure-reducing valves in its process water system saw a 28% drop in the amount of water it used and the end of four annual equipment failures caused by high pressure that used to cost an average of $12,000 in repairs and lost production. When a commercial property management company made all of its valves of the same high quality, it cut the number of plumbing emergencies by 40% and pushed back the replacement cycle for water heaters and mixing valves by three years. These results show the cumulative advantages of good pressure control: direct cost savings on utilities, avoiding repair costs, longer machine life, and less downtime for operations. When the total cost of ownership is taken into account instead of just the original purchase price, special pressure control components always perform better economically.

FLA Industrial & Trading Co., Ltd. has been making high-quality pressure control systems for almost 40 years. They work with Fortune Global 500 partners and dealers in the US, Germany, and Australia, all of which are very demanding markets. Our pressure-lowering valves are made from brass, cast iron, and stainless steel. They have precision-machined parts and go through strict quality control to meet ISO9001, CE, UL, and FM standards. Our 2,000-ton inventory means we can quickly fulfill your order, whether you need ten or ten thousand valves. Our engineering help, which includes everything from initial design to installation problems, gives you peace of mind at every stage of the project. For resale success, we know that hardware sellers need stable quality and low prices, and for projects with tight deadlines, we know that contractors need a steady supply and expert support.

Conclusion

Protecting industrial water systems requires more than just reactive maintenance. It also requires proactive pressure management through pressure-reducing valves like a 32mm Pressure Reducing Valve that are properly specified and installed by a professional. It's important to find a good balance between 32mm configurations for residential applications and big industrial mains. This design protects equipment well, makes infrastructure last longer, and saves money on operations. From fire protection systems in high-rise buildings to process cooling in factories, these hydraulic guards keep working nonstop and reliably, stopping the pressure-related breakdowns that damage equipment and stop operations. Organizations can get the most out of their purchases while reducing risk by making smart choices about material compatibility, certification standards, and provider capabilities.

FAQ

What pressure range should I specify for a 32mm pressure reducing valve in a commercial building?

Setting the outlet pressure to between 2.5 and 4.0 bar (about 35 and 60 psi) is best for most business setups. This range gives enough pressure for fixtures and equipment while keeping plumbing parts from being overworked. The inlet rating should be high enough to handle your highest supply pressure plus a safety margin. Valves rated to 1.6 MPa can handle most municipal supplies with some room for pressure spikes.

How often should pressure reducing valves undergo maintenance inspection?

Visual inspections every three months that look at gauge readings, listen for strange noises, and check connections for leaks catch most problems early. Every year, the machine is taken apart so that the inside parts can be checked, such as the state of the diaphragm, the wear on the seats, and the buildup of grit. As a preventative measure, the diaphragm should be replaced every three to five years.

Can a single pressure reducing valve serve multiple equipment types with different pressure requirements?

One valve sets the exit pressure so that all equipment further downstream can use it. For applications that need different pressure zones, there needs to be a separate valve for each zone so that the pressure can be optimized separately. You could also put in one main valve that lowers the pressure to a middle level, and then add secondary valves where equipment needs even more lowering.

Partner with FLA Industrial & Trading Co., Ltd. for Pressure Control Excellence

When it comes to regulating pressure, technical problems need to be solved with the help of production know-how and a flexible relationship, and a 32mm Pressure Reducing Valve is a key part of this solution. FLA Industrial & Trading Co., Ltd. is a well-known company that makes pressure-reducing valves. They combine precise engineering with scalable production capacity to help with projects of all sizes, from prototypes to full-scale operation. Our technical team answers questions within 24 to 48 hours and speeds up the design process by giving you dimensional specifications, 3D models, and advice on how to use them. Custom configurations that meet specific pressure ranges, connection types, or material needs ship within 7 to 15 days from our advanced casting, machining, and surface treatment manufacturing facilities. Get in touch with our sales team at sales@flaindustrial.com to talk about your pressure control needs and find out how our wide range of products, low prices, and dedication to quality can give your projects the dependability they need. You can look through our full catalog of industrial water system parts that are designed to work well and last a long time at flaindustry.com.
