How Does a Pneumatic Bag Jack Lift Vehicles Safely in Limited Spaces?

A pneumatic bag jack operates by harnessing compressed air to inflate a reinforced rubber bellow, creating controlled lifting force that elevates vehicles within seconds. Unlike traditional hydraulic jacks that rely on pumping mechanisms and narrow contact points, this air-powered device distributes weight across a broader surface area, making it exceptionally effective in tight spaces where conventional lifting equipment struggles. The system incorporates built-in safety valves and non-return check valves that maintain stability even if air supply is interrupted, addressing critical safety concerns for professionals working beneath elevated loads in cramped workshops or roadside conditions.

Specification

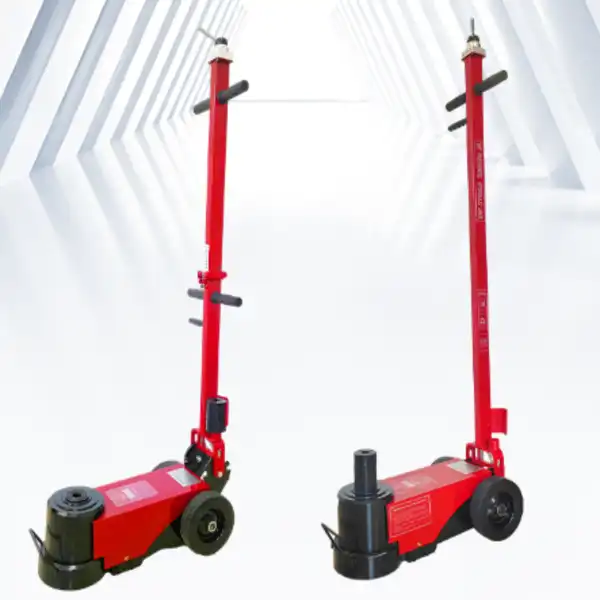

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2 MPa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2 MPa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2 MPa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2 MPa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2 MPa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2 MPa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2 MPa	205mm	380mm	175mm	73kg

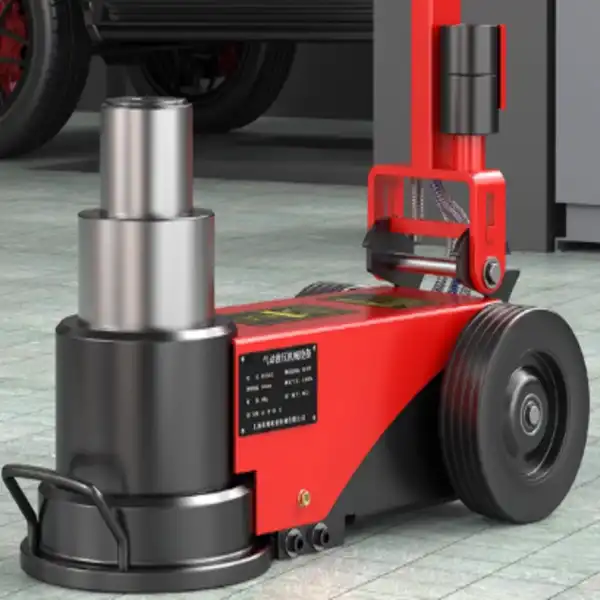

Understanding Pneumatic Bag Jacks and Their Safe Operation

Core Components and Working Principles

The basic structure of a Pneumatic Bag Jack is made up of several carefully designed parts that work together. At its core is a multi-layered cushion made of vulcanized rubber strengthened with steel mesh or nylon cord, which is similar to how tires are made. This design makes it possible for the bag to withstand pressures inside that are higher than 1.2 MPa while still being flexible while it is being used. The chrome plating on the inside of the cylinder reduces friction and makes it last longer. Seals made of fluororubber or nitrile rubber keep air out in settings that range from very cold to very hot.

The internal telescopic stabilizer, which is a guide cylinder that stops the unit from moving or wobbling during filling, is a key safety feature that sets professional-grade units apart. This part makes sure that the vertical lift is lined up correctly, which is very important when working on uneven surfaces or with loads that aren't in the middle. The Pneumatic Bag Jack interface works with regular shop compressors that run between 6 and 10 Bar (90 and 145 PSI), so you don't need any special high-pressure tools.

Operational Safety Protocols

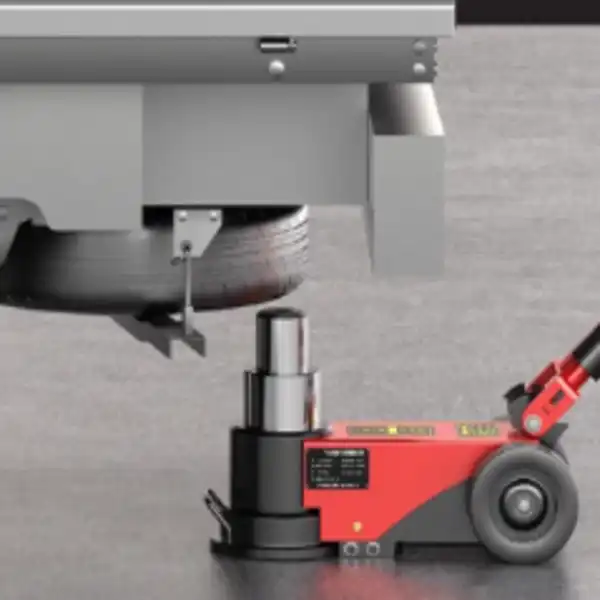

To use the jack correctly, first put it on stable ground and make sure the lifting surface touches the car's designated lift points. To keep the load from tipping, operators should always check that it stays in the middle of the rubber pad. The process of inflation takes about three to five seconds to reach its full height. This is much faster than hydraulic options, which usually need to be pumped by hand for more than a minute.

Safety rules say that Pneumatic Bag Jacks can only be used for lifting and not for supporting loads for a long time. When the car gets to the right height, mechanical jack stands must be put under the chassis right away. This method takes into account the possibility of small leaks or changes in air density caused by temperature that could lead to slow deflation over long periods of time.

Advantages and Applications of Pneumatic Bag Jacks in Limited Spaces

Superiority in Confined Environments

These lifting tools have a small minimum height of 135–150 mm, which lets them slide under cars in places where floor jacks can't. This low-profile design is very useful in places like auto body shops where damaged cars sit lower than standard ride height or in servicing bays with limited space above them. Weight is spread out well across the wide base of the filled airbag, which keeps the tool from sinking into soft surfaces like mud, sand, or loose gravel, which is what happens when narrow-wheeled hydraulic jacks fail totally.

The ability to move quickly is another clear advantage. High-volume tire shops and service centers say they are much more efficient now that mechanics can lift all four corners of a car in a fraction of the time it used to take with old equipment. This short cycle time directly leads to higher service turnaround rates and income per bay, which makes the investment especially appealing for companies that want to get things done quickly.

Real-World Industrial Applications

Pneumatic Bag Jacks are used on manufacturing assembly lines to move heavy parts around during production. The quick response time works well with lean production ideas and makes work flow more smoothly. Maintenance teams like being able to safely raise machines for maintenance and inspection work without having to deal with the mess that comes with hydraulic oil leaks, which can damage sensitive electronic parts or finished goods.

Another important use case is for emergency rescue operations. These tools are useful for first responders and body shops because they can fit into very small spaces under broken cars. Because it's pneumatic, it can be controlled and quickly deployed to make room for removing stuck parts or stabilizing vehicle frames while chassis straightening is done. When putting structure elements in place or adjusting big materials during temporary lifting operations, construction sites like how portable and clean the machine is.

Comparing Pneumatic Bag Jacks with Other Lifting Technologies

Performance Metrics Analysis

When compared to hydraulic floor jacks, Pneumatic Bag Jacks are much faster at lifting. They can fully extend in less than 5 seconds, while hand hydraulic pumps need 60 to 90 seconds. This difference in performance is especially noticeable when doing the same thing over and over again, because the saved time affects how efficiently the business runs. Since there is no hydraulic fluid, there is no need to check oil levels, replace seals, or clean up spills. This lowers the total cost of ownership over the life of the equipment.

Heavy-duty hydraulic systems can lift 20 tons or more, so they do have higher absolute lifting capacities. For lifting cars, Pneumatic Bag Jacks usually hold between 2.5 and 5 tons, but industrial types can hold up to 150 tons of heavy machines. The trade-off depends on the application. For example, speed and ease of use are important in automotive service environments, while maximum lifting force may be needed for heavy equipment maintenance.

Durability and Cost Considerations

How long something lasts depends a lot on how it was made. Units with frameworks made of carbon steel, alloy steel, or aluminum alloy and cylinders that are chrome-plated show better corrosion resistance and structural integrity in tough conditions. High-quality seals keep air out no matter what temperature ranges are present, whether they are in a workshop or a rescue situation outside.

Certifications in an industry prove that safety and efficiency standards are met. People who buy Products" target="_blank" style="color:blue" >products that have ISO 9001 quality management certification, CE product safety compliance, and relevant pressure equipment standards (PED/GB) can be sure that the manufacturing process meets international standards. ATEX approval for explosion-proof versions meets specific needs in dangerous places where sparks could cause harm. When purchasing managers look at different suppliers, they should give more weight to those that offer full proof of their credentials, warranties, and quick technical support.

Maintenance and Best Practices for Prolonged Pneumatic Bag Jack Efficiency

Routine Inspection Procedures

How long something lasts depends on how well operating teams keep up with repair. The Pneumatic Bag Jack should be looked at every day to see if it has any surface cracks, exposed reinforcement cords, or signs of dry rot. Sharp metal edges, welding sparks, or corrosive fluids can greatly shorten the life of equipment, so operators must be very careful when positioning it. If you take good care of your strengthened Pneumatic Bag Jacks, they should last between three and five years of heavy business use.

Internal valve stability is directly affected by the quality of the air flow. When there is moisture in compressed air lines, pneumatic parts rust, which makes them less reliable and could lead to early failure. This degradation can be stopped by adding in-line moisture filters to shop air systems. Operators should check the exhaust muffler and safety valve for functionality on a regular basis. They should also make sure that the pressure relief mechanisms work properly before each use cycle.

Troubleshooting Common Issues

Most of the time, operational problems are caused by air leaks. The first step in a systematic diagnosis is to find the source. This can be done by checking the hose connections, the non-return check valve, and the seal surfaces for wear. Replacement seals made of fluororubber or nitrile rubber stay the same specs over a wide range of temperatures and don't break down when exposed to oils and solvents that are common in vehicle settings.

Most of the time, problems with inflation are caused by not enough air pressure or volume. Most problems can be fixed by making sure that the shop compressors deliver the required 6–10 Bar at enough CFM. When you store things properly, they last a lot longer. Keeping units in climate-controlled spaces out of direct sunlight keeps the Pneumatic Bag Jack from breaking down too quickly and keeps metal parts from rusting from the air.

Training programs should stress the right way to place people, how to center loads, and how important it is to move lifted loads to artificial supports. These measures keep safety risks to a minimum while increasing return on investment by cutting down on downtime and making service times longer.

Procurement and Supplier Selection Guide for Pneumatic Bag Jacks

Evaluating Manufacturer Credentials

The first step in strategic sourcing for Pneumatic Bag Jacks is to find manufacturers whose production capabilities and quality systems can be checked. Suppliers who offer factory tours, process documentation, and open communication about how products are made are reliable. Carriers with large amounts of stock, like those with 2,000 tons on hand, can guaranty fast delivery for standard requirements and have the means to handle large orders without any problems.

Customization makes suppliers stand out because it lets them meet specific operational needs. Being able to deliver custom-shaped parts or specs that aren't standard within 7 to 15 days shows that the manufacturing process is flexible and that the engineering support is quick to respond. To see how committed a seller is to the success of the project, procurement professionals should ask for specific timelines that include initial design ideas, prototype development, and reports on production progress.

Optimizing Purchase Terms and Specifications

When negotiating for bulk purchases, you should talk about unit prices, volume discounts, delivery logistics, and payment terms that work with your company's cash flow. When you buy from established manufacturing areas like China, you can get better prices, especially if you work with experienced exporters who know the rules and needs of the U.S. market for paperwork.

The requirements for the Pneumatic Bag Jack must exactly match the needs of the business. It's important to carefully match technical specs like minimum and maximum height, lifting capacity, operating pressure range, and physical dimensions with possible use cases. Case studies and customer reviews from related businesses can tell you a lot about how something works in the real world, beyond what the manufacturer says it will do.

Support after the sale is an important factor in choosing a product. Long-term happiness with purchasing choices depends on how well the warranty covers everything, how easy it is to get replacement parts, and how quickly expert support can be provided. Partnering up with suppliers who offer ongoing engineering advice is a great way to support operational excellence and initiatives for continuous improvement.

Conclusion

In conclusion, Pneumatic Bag Jack lifting technology solves some of the most important problems that professionals who work in small spaces have to deal with. Because they can be set up quickly, spread out loads evenly, and work cleanly, these tools are essential for use in emergency response, manufacturing, auto repair, and manufacturing. Purchasing managers can make choices that balance performance needs with budget concerns when they understand operating principles, maintenance needs, and buying strategies. Following safety rules and maintenance procedures correctly will make sure that the equipment works well for as long as it's supposed to. This will pay off in the form of higher productivity and safer working conditions.

FAQ

Does the lifting device require specialized air compression equipment?

Standard shop air sources that work at 6 to 10 Bar (90 to 145 PSI) are strong enough to do the job. Most garage compressors meet these requirements, but the quality of the air is important—make sure the supply is dry to avoid valve corrosion in the Pneumatic Bag Jack that lowers reliability.

What happens if the air hose disconnects during lifting operations?

At the intake, professional units have shut-off valves or non-return check valves. When the supply line is cut off, air stays trapped inside the bag, keeping the load in place until the exhaust device is manually opened.

Can these tools handle off-center vehicle loads safely?

The internal telescopic stabilizer reduces wobbling a lot, but loading that is very off-center can be dangerous. For safety's sake, operators should put loads in the middle of the rubber pad. When it comes to small hills, the airbag's flexibility makes it better than hard bottle jacks.

How long before the rubber bag requires replacement?

With the right care, like staying away from sharp edges, welding sparks, and corrosive fluids, it can last up to three to five years in heavy commercial settings. Deep surface cracks or visible reinforcement wires are signs that the material is worn out and needs to be replaced.

Is it acceptable to use air jacks for prolonged vehicle support?

These things are only used for lifting; they are not support stands. As soon as you reach the desired height, put the jack stands under the chassis. Changes in temperature and small leaks can cause deflation over time, which can be very dangerous.
