Light-Duty F-Clamp Buying Guide: Key Factors for Workshops and Manufacturing Use

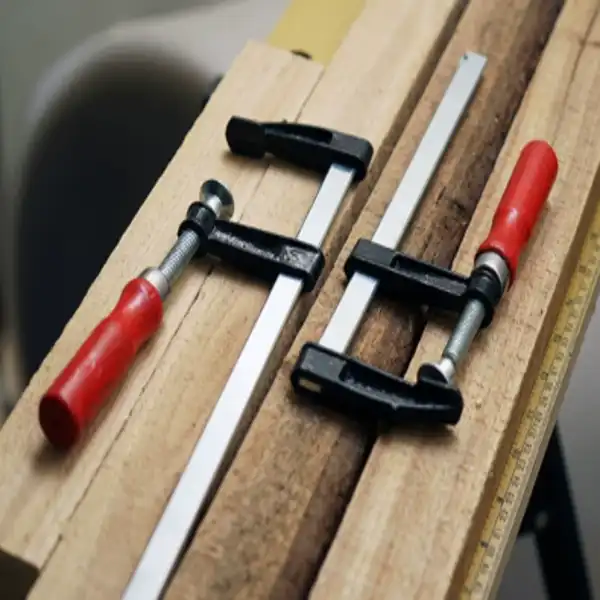

Choosing the right clamping tool directly affects the quality of your finished work. A F-Clamps/light-duty-f-clamp">light-duty F-clamp is a sliding-jaw bar clamp engineered for controlled clamping forces—typically between 600N and 1,500N—making it the go-to choice for woodworking, cabinet assembly, and light fabrication. Unlike heavy-duty variants, these clamps balance grip strength with low weight and precise pressure control, preventing surface damage on delicate materials. This guide walks procurement managers, plant engineers, and wholesale buyers through every key factor: materials, size selection, usage techniques, maintenance, and supplier evaluation, so every purchasing decision delivers lasting value on the shop floor.

Specifications

Specification	Total Length (mm)	Total Width (mm)	Clamping Length (mm)	Clamping Width (mm)
6 Inch	248	110	160	60
12 Inch	395	110	308	60
18 Inch	550	110	460	60
24 Inch	700	110	615	60
30 Inch	850	110	765	60
36 Inch	1000	110	915	60

Understanding Light-Duty F-Clamps: Features and Applications

What Sets Them Apart from Heavy-Duty Clamps?

It's much heavier and can crush softwoods or crack laminates when a standard bar clamp made for structural welding is used against them. That problem can be fixed with a light-duty sliding-jaw clamp, which sets the spindle pressure in a range that holds joints firmly without damaging the surface. The slim jaw shape also fits into small spaces where a bigger screw mechanism can't, which is why it's an important part of production lines for cabinets and furniture.

Core Materials and Their Effect on Performance

FLA Industrial & Trading Co., Ltd. makes F-clamps with steel rails, precision-machined screw rods, and jaws made of cast iron that can be shaped. Cast iron that can be shaped doesn't change shape when loaded and unloaded many times, and steel rails that have been hardened to about HRC 30–35 engage the clutch mechanism firmly to stop backward slippage. The finish you choose is also important. A painting finish works well in dry workshops, while a zinc-plated finish protects against rust in damp or outdoor settings.

Size Guide and Design Variations

Fla's bar clamps come in six different sizes. Let me give you a quick reference:

Size	Total Length	Clamping Length	Clamping Width
6 in	248 mm	160 mm	60 mm
12 in	395 mm	308 mm	60 mm
18 in	550 mm	460 mm	60 mm
24 in	700 mm	615 mm	60 mm
30 in	850 mm	765 mm	60 mm
36 in	1,000 mm	915 mm	60 mm

The 60 mm jaw hole on all sizes spreads pressure out evenly, which makes it less likely that the part will warp during glue-ups or assembly.

How to Choose the Best Light-Duty F-Clamp for Your Needs?

Key Selection Criteria for Procurement Teams

Before buying in bulk, procurement managers should be clear about their needs in four areas: clamping capacity (does the rated force work for your application?), throat depth (deeper throats make the cantilever bend more, lowering the effective force), rail material quality (hardened serrations stop clutch slip?), and surface finish (painted vs. zinc-plated based on shop humidity?) for Light-Duty F-Clamp. On the same rail gauge, a 50 mm throat depth transfers force more efficiently than a 120 mm throat. This is a detail that has a direct effect on the consistency of production.

Light-Duty F-Clamps vs. C-Clamps and Heavy-Duty Bar Clamps

The point-load force of C-clamps is high, but they need two hands to move, which slows down assembly lines. Heavy-duty bar clamps can hold structural loads, but they are heavy, which makes the person using them tired after doing the same thing over and over. The Light-Duty F-Clamp is in the middle of these two choices. Its one-handed sliding adjustment makes work faster, and its calibrated force range keeps joints from accidentally being too tight. This balance cuts down on both repair and repetitive strain injuries in woodworking shops that do hundreds of clamping rounds every day.

Evaluating Suppliers for B2B Purchasing

When buying from a manufacturer or supplier of Light-Duty F-Clamps, make sure they have ISO 9001 certification as a basic sign of quality. Make sure the seller does tests on the rail's deflection (it shouldn't change shape after the load is released) and the spindle's torque (the grips should be able to handle at least 15–20 N·m without breaking). FLA Industrial & Trading Co., Ltd. is certified by ISO 9001 and uses casting, forging, and precise cutting on all of its Products" target="_blank" style="color:blue" >products. Each one is inspected individually before it is packed.

Practical Guide: How to Use and Maintain Light-Duty F-Clamps Efficiently

Step-by-Step Usage for Safe, Effective Clamping

Place the fixed jaw against one side of the piece of work, then move the movable jaw to touch the other side. Tighten the screw rod by hand before adding the final torque. Protective pads should always be put between the jaw and a smooth surface. Never put more weight on the clamp than it can hold. Applying more pressure when resistance is felt could cause the rail to permanently bend, which would weaken the structure and require the unit to be thrown away right away.

Environmental and Safety Considerations

If the jaw pads are thermoplastic, keep the clamps away from direct welding arcs. The heat from the arc will cause the pads to change shape. In humid workshops, check the rail finish every so often. A zinc-plated finish meets the salt-spray standards set by ASTM B117 (at least 24–48 hours), which means it protects against rust in damp places. Clamps should be stored upright or on a rack to keep the jaws from getting out of line and damaging the rails over time.

Maintenance Routines That Extend Service Life

After every use, clean the rail serrations with a dry wire brush. Glue residue and sawdust that get stuck in the serrations make the clutch slip when the load is put on it. Instead of wet grease, which attracts dirt, use a dry PTFE-based lube on the holes of the screw rod. Check the swivel pad once a month for cracks or separation. A pad that tears under shear force leaves the mouth metal exposed and could cause damage to the surface. Replace any Light-Duty F-Clamp with a permanently bent rail right away. Trying to fix a rail that has already bent causes metal fatigue and a high risk of failure all at once.

Top Light-Duty F-Clamps in the Market: Reviews and Purchasing Advice

Evaluating Budget-Friendly Options Without Sacrificing Quality

There are a lot of sliding-jaw clamps on the market at prices that most people can afford. Instead of just looking at price, you should consider how hard the rails are, how well the jaws are made, and how long the finish will last. A clamp that keeps 95% of its clamping force over a 24-hour static load period—as shown by proper QC testing—is a much better deal than a cheaper one that comes loose overnight during glue-ups and needs more work, which costs more than the price difference.

Features Worth Prioritizing for Precision Work

A narrow beam profile lets several clamps sit next to each other on rails that are less than 50 mm wide without any mechanical problems. This is useful for face-frame assembly in cabinetry or soundboard clamping in the instrument manufacturing industry. On production lines where workers clamp things dozens of times an hour, a comfortable handle that eases wrist strain is important. The FLA screw rod is precisely machined so that it threads smoothly through the sliding head. This lets you move things quickly and easily, which is helpful during large-scale assembly changes.

Bulk Purchasing Strategy for Distributors and Contractors

When building buying teams and hardware dealers buy directly from a recognized maker, they save money. Direct sourcing gets rid of the markups that come from middlemen, makes sure that SKU specifications are the same across all shipments, and lets customers ask for custom finishes or sizes. FLA Industrial & Trading Co., Ltd. keeps 2,000 tons of stock on hand, accepts orders of any size without a minimum order quantity, and ships standard products quickly to keep project schedules on track.

Conclusion

To choose the best bar clamp for your workshop or production line, you need to make sure that the material quality, size, and maximum force are all right for the job. A clamp that works the same way over thousands of cycles is made up of a rail made of sharpened steel, jaws made of malleable cast iron, and a screw rod that was carefully machined. Check to see if the rail is ISO 9001 certified, look at the results of the hardness and deflection tests, and pick a finish that will work in your space. If you need a single 6-inch clamp for fine details or a full range of sizes for a furniture production line, make sure you start with a technically sound Light-Duty F-Clamp product. This will protect your work and keep your team productive.

FAQ

What size F-clamp works best for standard woodworking projects?

For most glue-ups and edge-joining tasks, a 12-inch or 18-inch bar clamp covers the majority of panel widths. Larger boards or cabinet face frames may require 24-inch or 30-inch models. Matching clamping length to workpiece width prevents jaw overhang, which can introduce uneven pressure and joint gaps.

Can a light-duty bar clamp handle metal fabrication tasks?

Standard light-duty bar clamps are designed for woodworking, assembly, and light tack operations. They are not suitable for arc welding environments where thermoplastic pads will deform. For metal fabrication involving welding arcs, drop-forged heavy-duty clamps with copper-plated spindles are the appropriate choice.

How often should clamps be inspected or replaced?

Inspect rail serrations, screw rod threads, and jaw pads every 90 days under regular workshop use. Replace any unit immediately if the rail shows permanent bending, if the clutch slips under rated load, or if the swivel pad detaches. A clamp that fails a static 24-hour load test—losing more than 5% of its initial clamping force—should be removed from service.

Why does my clamp feel loose after an overnight glue-up?

This typically results from wood creep or glue absorption reducing joint volume rather than the clamp itself loosening. However, if the sliding jaw has actually moved, worn rail serrations or a degraded clutch plate are the likely cause. Cleaning the serrations and inspecting clutch hardness usually resolves the issue.

Source Your Next F-Clamp Order from FLA Industrial & Trading Co., Ltd.

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has customers in the US, Germany, and Australia, some of whom are Fortune Global 500 partners. As a direct provider of Light-Duty F-Clamps, we offer ISO 9001-certified products, custom sizing with shipping in as little as 7–15 days, and quick expert help 24–48 hours a day. You can look through our whole collection at flaindustry.com or email our sales team at sales@flaindustrial.com to get a price or talk about buying in bulk.
