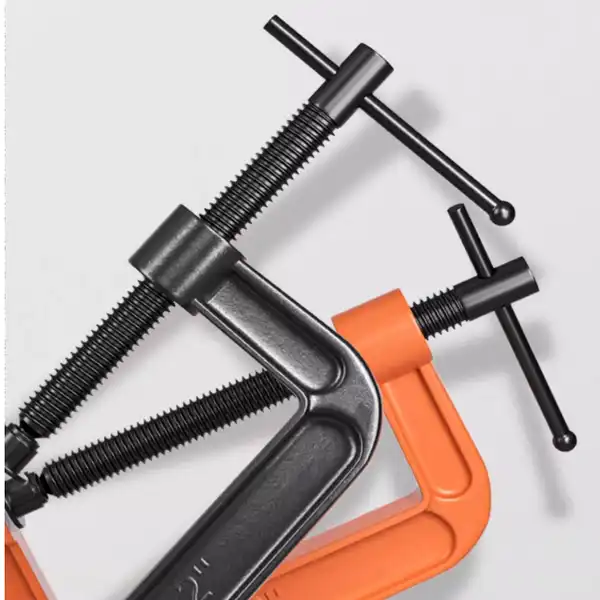

Quick-Action C-Clamp for Rapid Workholding in Production Lines

When production speed and workpiece security both matter, a Quick-Action C-Clamp delivers exactly what industrial teams need. Unlike traditional screw clamps that demand repetitive handle rotation, this rapid-slide clamping tool lets operators position and lock workpieces in seconds. Built from ductile iron frames paired with precision steel screw rods, these clamps handle everything from furniture glue-ups to heavy-duty metal fabrication. For procurement teams sourcing at scale, understanding what separates a dependable rapid-action clamp from an ordinary one is the first step toward smarter purchasing decisions.

Specifications

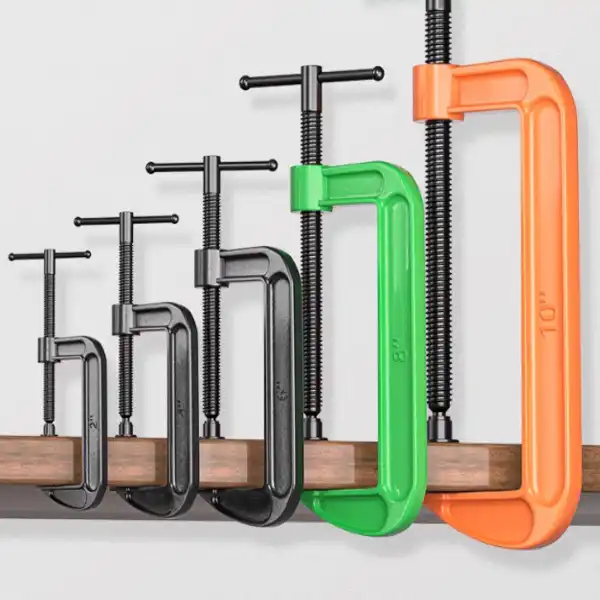

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding the Quick-Action C-Clamp: Features and Benefits

What Makes It Different from a Standard C-Clamp?

The most important thing that makes a Quick-Action C-Clamp unique is its half-nut trigger or gravity-clutch system. This lets the threaded spindle slide easily through the frame hub, which lets you quickly set the jaw. By giving the handle a short turn, the operator can apply compression once the jaw touches the workpiece. The mechanism then re-engages the threads. Studies on industrial ergonomics show over and over that rotating your wrists while clamping can make your muscles and bones tired. The rapid-slide design cuts that motion down a lot, which means that it takes up to 70% less time to set up than regular models.

Key Technical Specifications to Know

For long-term efficiency, material and build quality are very important. Before they go shopping, buying engineers should look over these main requirements:

• Frame Material: Ductile iron, also known as spheroidal graphite iron, is better than gray cast iron at both tensile strength and impact resistance, so it can handle heavy loads in factories for long periods of time.
• Screw Rod: The steel screw rod is precisely cut to ensure smooth power transfer even when the machine is under a lot of pressure.
• Finish Options: Surfaces that are painted or powder-coated won't rust in wet or chemically active workshop environments.
• Clamping Force Range: Depending on the frame size, industrial-grade models can give between 600 lbs (light-duty) and over 2,000 lbs of clamping force.
• Certification: Manufacturing that is ISO9001-certified guaranties regular process control and accuracy of measurements.

These standards immediately lead to fewer broken tools, lower costs for replacements, and more stable production output between shifts.

Comparing Quick-Action C-Clamps with Other Workholding Solutions

Not all clamping options are good for all uses. Traditional screw C-clamps are still used a lot in shops, but they are slow to change, which slows down high-frequency operations. While bar clamps and F-Clamps have a wide throat depth and can be used to put together panels, they don't have the rigid frame structure that makes a C-style clamp reliable under shear loads.

The Quick-Action C-Clamp is unique because it blends the strength of a fixed-frame design with the speed of a sliding-arm tool for moving things around. It is hard to get that mix with other types of clamps for welding fixtures, metal production jigs, and woodworking glue-ups where the adhesive needs to stay open for a short time. When procurement teams look at different types of clamps, they should make sure that the right tool is chosen for the job. The required frame rigidity, the number of clamping operations per shift, and the material of the workpiece all play a role in the final choice.

How to Use and Maintain Quick-Action C-Clamps Safely and Effectively?

Safe Operating Practices

Before adding torque, you should always check the clamp's estimated capacity. If the recommended load is exceeded, the half-nut system may skip, or in the worst cases, the frame may break. The spindle axis should be parallel to the surface of the workpiece at all times. Deviations of more than one degree reduce the contact area and raise the risk of sliding. When setting up a fixture near sharp metal edges, it's best to wear protective gloves.

Maintenance Routine That Extends Service Life

Quick-Action C-Clamps work effectively for thousands of rounds as long as they are regularly maintained. Here is a useful schedule for maintenance:

• After each use: Use a dry cloth to wipe the screw rod and jaw contact surfaces clean. This will get rid of metal chips, sawdust, and tape residue.
• Weekly: Grease the quick-release trigger device with a light PTFE-based or dry graphite oil. Heavy greases draw rough particles and speed up wear, so stay away from them.
• Monthly: Check the spindle tip for mushrooming that could be caused by over-torquing. Look for signs of wear and tear in the spring strain in the half-nut joint.

If you follow this routine, the mechanical service life will be much longer than the 10,000-cycle fatigue benchmark that quality manufacturers use for batch testing.

Procurement Considerations for B2B Clients: Buying Quick-Action C-Clamps in Bulk

It takes more than comparing unit costs to find industrial clamps like the Quick-Action C-Clamp in large quantities. For building procurement heads, MRO teams, and hardware sellers, the quality control system of the supplier is just as important as the product itself. Proof load testing records are important to look at. Every production batch should be tested to at least 150% of its stated capacity to make sure the frame is solid and the mechanism stays stable under stress.

Buyers should also evaluate:

• SKU range and availability: Suppliers who cover a wide range of sizes and have enough inventory get rid of the delays that cause projects to run behind schedule.
• Lead times: Standard sizes should ship within days, and custom designs should be finished in 7–15 working days.
• Documentation: ISO9001 certification, material test reports, and dimensional inspection records help with quality audits and making sure that import rules are followed.
• After-sales support: Technical help during integration and quick quote turnaround (ideally within 24–48 hours) make the buying process much smoother.

A supplier with almost 40 years of experience making things and partnerships with Fortune Global 500 companies can be trusted for large-scale procurement programs.

Applications and Case Studies: Maximizing Efficiency with Quick-Action C-Clamps in Production

Industrial Woodworking and Furniture Manufacturing

When making furniture, glue-up tasks need to be done quickly, and a Quick-Action C-Clamp is ideal for this. Different types of adhesive have different open times, which means that several clamps need to be put in place and secured before squeeze-out can start. Traditional screw clamps make it hard to set up several pieces in that time, but Quick-Action C-Clamps make it possible for one person to do it. Quality models with swivel pads also keep finished wood surfaces from getting jaw marks, which is important for furniture makers who sell to high-end customers.

Metal Fabrication and Welding Fixtures

With Quick-Action C-Clamps, welding shops that load and unload jigs hundreds of times per shift can save measurable cycle time. Powder-coating or painting the frame gives it a basic level of rust protection in places where coolants and metal debris are present. When using high-heat welding stations, workers should make sure that there are spindle finish choices (like oxide coating) that can keep spatter from sticking, which can slow down the release mechanism over time.

Construction and On-Site Assembly

Site supervisors like tools that work the same way every time and don't need to be calibrated before and after each use. A Quick-Action C-Clamp's rigid ductile iron frame can handle the mechanical stress of temporary structural connections and formwork assembly without deforming. This is a direct safety requirement for building uses in compliance-driven markets like the US.

Conclusion

Quick-Action C-Clamps have gone from being nice to have to being necessary for getting work done in the building, woodworking, and manufacturing industries. A good Quick-Action C-Clamp made from ductile iron and precision steel, approved to ISO9001 standards, and bought from a company that tests each batch thoroughly adds value at every stage, from the production floor to the purchasing record. The most important thing for long-term performance and cost savings is still matching the right clamp specification to the right application.

FAQ

What clamping force can I expect from an industrial-grade rapid-action C-clamp?

Industrial models with ductile iron frames and steel screw rods can usually handle between 600 lbs and over 2,000 lbs of weight for heavy fabrication work. Always check the maximum capacity for the frame size you are looking for.

Can these clamps handle both woodworking and metalworking?

Yes. The swivel pad design works with wood surfaces that aren't all parallel, and the ductile iron frame gives metal production parts the rigidity they need. Choose the finish (painting or powder coating) based on how often chemicals or water will be in your workshop.

How do I verify supplier authenticity before placing a bulk order?

Ask for proof load testing records, material test reports, and ISO9001 certification documents for the batch. Manufacturers with a good reputation give dimensional testing data and back up independent reports.

Why does the quick-release mechanism sometimes slip under pressure?

Slippage usually means that the half-nut threads are worn or that dirt is blocking the full thread contact. Check the system for grit buildup and repair any spring parts that are worn out. Do not put more weight on the Quick-Action C-Clamp than it can handle.

Are these clamps suitable for overhead lifting or rigging?

No, quick-release mechanisms can come apart by accident when they are hit or vibrated, which is against OSHA rules for rigging. These tools are only meant to hold and fix things in place.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Quick-Action C-Clamp Supply

With nearly 40 years of manufacturing experience, ISO9001 certification, and 2,000 tons of ready inventory, FLA Industrial & Trading Co., Ltd. is a trusted Quick-Action C-Clamp maker for procurement teams all over the U.S. We send quotes within 24 to 48 hours and can support specific setups for unique uses. To get mass prices, product specs, and samples, email our team at sales@flaindustrial.com or go to flaindustry.com.
