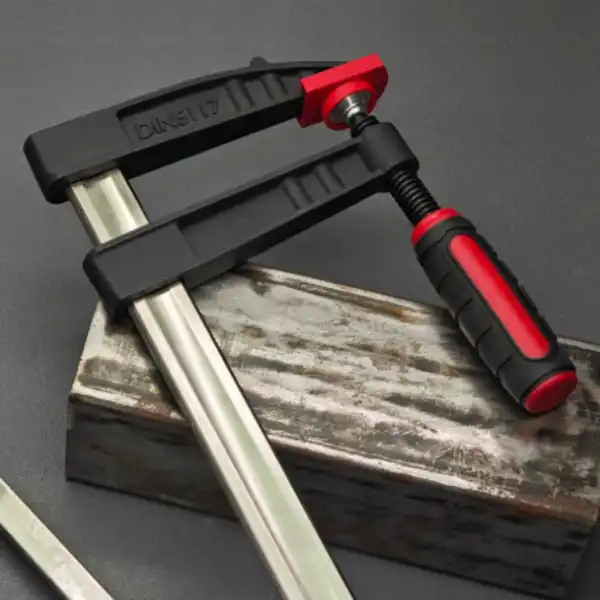

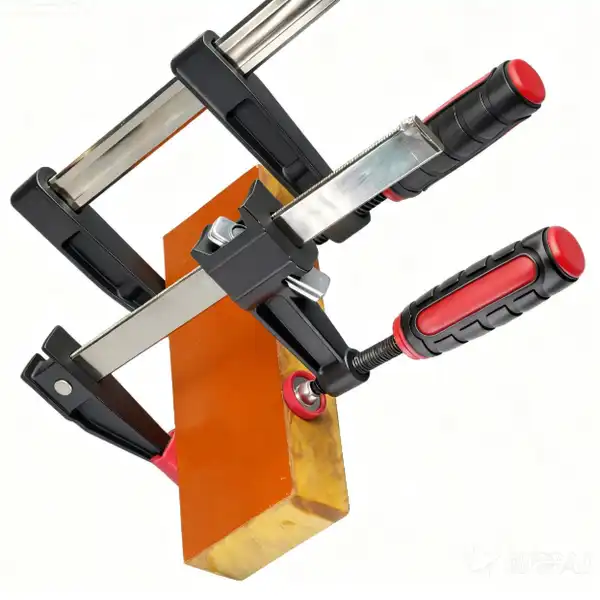

Ratchet F-Clamp Offers Fast and Secure Clamping for Woodworking and Assembly

When time matters on the production floor, choosing the right clamping tool becomes critical to maintaining workflow efficiency. The F-Clamps/ratchet-f-clamp">ratchet F-clamp stands out as a versatile solution combining rapid positioning with dependable holding power, serving woodworking shops, construction sites, and manufacturing facilities worldwide. Unlike conventional screw-driven clamps that demand continuous adjustment and two-handed operation, this tool employs an innovative ratcheting mechanism that delivers consistent pressure with minimal physical effort. Built from malleable cast iron rails and precision-engineered steel screw rods, these clamps provide the structural integrity professionals need while simplifying repetitive clamping tasks through their quick-release functionality.

Specification

Model	Overall Length (mm)	Shearing Capacity (mm)	Plier Handle Length (mm)
Track Ratchet F-Clamp 120×60	160	110	150
Track Ratchet F-Clamp 160×60	210	160	150
Track Ratchet F-Clamp 200×60	250	200	150
Track Ratchet F-Clamp 300×60	350	300	150

Understanding Ratchet F-Clamps: Features, Uses, and Benefits

For modern factories to work, they need tools that are both fast and accurate. Ratchet-based clamping systems meet this need by having a trigger-operated mechanism that lets workers clamp down workpieces in seconds instead of minutes.

Core Operating Principles

The main benefit comes from the two-action design. The flexible jaw is moved along a sharpened steel bar to get it close to where it needs to be. Then, the ratchet trigger is pressed to apply controlled pressure. Traditional threaded models require you to twist them over and over again, but this model doesn't. This makes it easier on the hands during long production runs. Since the friction-plate stopping system keeps the force constant during glue-up or assembly processes, pressure creep that can weaken joints is avoided.

Primary Application Environments

These tools are very useful for cabinet makers when putting together face frames and gluing up panels. Craftsmen can position parts while applying clamping pressure with one hand, which solves what professionals in the field call the "third hand problem." Construction contractors use them to hold things temporarily during drywall installation and trim work, when traditional clamps can't be used because they need to be held overhead. They are used as positioning aids in metalworking shops during tack welding. The heat resistance depends on the base material; painted finishes can handle moderate temperatures, while zinc-plated finishes are better at protecting against corrosion in damp places.

The throat depths can be changed from 50 mm to 300 mm, which is useful for furniture production lines that need to do everything from putting together drawers to building big carcasses. The opening range of 100mm to 1000mm gives you options for a wide range of project sizes. With these dimensional choices, procurement teams can stick to a single family of tools instead of keeping a bunch of different clamps on hand. This makes it easier to keep track of supplies and train operators.

Material Composition and Performance Characteristics

Tools made for professionals are built better than tools made for consumers. Cast iron that can be shaped gives tough jobs the backbone strength they need, not deforming under loads of up to 2000N. Precision threading is done on the steel screw rod to make sure it moves smoothly and doesn't get stuck when making quick adjustments. Painted finishes work well in controlled environments like workshops, while zinc-plated finishes keep things from rusting in outdoor construction sites or places near the coast where salt air speeds up corrosion.

The weight distribution is important for the comfort of the operator. Models weighing between 0.8 kg and 4.5 kg strike a balance between structural strength and ease of handling. This keeps arms from getting tired during days of high production volume.

How to Choose the Right Ratchet F-Clamp for Your Procurement Needs?

Instead of just choosing the biggest capacity, strategic purchasing choices start with figuring out how things will actually be used.

Assessing Workload Requirements

Managers of procurement for a Ratchet F-Clamp should look at the usual job sizes in their companies. For most jobs, 150mm throat levels are enough for woodworking shops that make cabinet doors and small pieces of furniture. However, architectural millwork shops that make big panels need 250mm or deeper reach. The hole size needs to be big enough to fit not only the width of the piece being assembled, but also any safety cauls or distribution blocks that are used.

The amount of clamping force needed for each job is very different. For softwood joinery, maximum pressure is rarely needed because too much force crushes fibers and causes glue to squeeze out, which makes finishing difficult. Higher force ratings are better for making sure proper contact and stability in metal fabrication and wood projects. By matching the tool's specs to the properties of the material, both under-clamping failures and damage from too much pressure can be avoided.

Comparing Alternative Clamping Technologies

Traditional bar clamps have extended rails that let them open to any size, but they need to be tightened by hand all the time. Quick-release models let you move things around quickly, but they don't always have the fine pressure control that's needed for delicate assemblies. C-clamps can concentrate force in small areas, but they have trouble working on uneven surfaces. The ratchet-based method is in the middle because it combines speed of setting with gradual pressure application.

Industrial buyers should look at how cycle time changes things. Ratchet mechanisms are very useful in manufacturing settings where workers repeatedly clamp and release. Traditional designs may be better for custom fabrication shops that work on a wide range of one-off projects because they are more flexible. Figuring out how much work will be saved over a range of production levels can help you justify buying specialized tools.

Vendor Selection Criteria

In addition to product specifications, procurement teams must also look at the skills of the suppliers. Transparency in the manufacturing process shows dedication to quality. Defects can happen in the casting, forging, machining, and assembly steps if they are not properly managed. ISO9001 certification shows that quality is managed in a planned way, rather than being checked on a batch-by-batch basis. This gives customers confidence that the quality will be the same for large orders.

For certain uses, the ability to customize is important. When an operation needs throat depths that aren't standard, jaw configurations that aren't standard, or a certain finish, it needs suppliers that can help with engineering and make production flexible. When project deadlines get tight, technical responsiveness is very important. Vendors that offer 24- 48-hour quote turnaround and design verification services through 3D modeling avoid costly delays.

Strategies for buying in bulk go beyond unit pricing. To make accurate budget predictions, you need to look at the total landed costs, which include shipping, import taxes for sellers from other countries, and payment terms. Building partnerships with makers that stock replacement parts will help keep operations running smoothly when normal wear and tear forces component replacement.

Safe and Effective Use of Ratchet F-Clamps in Industrial Applications

The right way to use tools protects both the user and the object from damage and extends their life.

Pressure Application Best Practices

Because ratchet devices on a Ratchet F-Clamp work in steps, users can be fooled into tightening too much. With the right clamping, materials stay in place without deforming. Look for a little glue squeeze-out along the joints. If there are too many beads, that means the glue is under too much pressure. When clamping across wide panels, putting multiple clamps on different top and bottom surfaces keeps the panels from bowing.

Metal contact marks can't get to finished surfaces because of jaw pads. Standard configurations come with fixed pads, but adding cork or felt layers helps operations that work with thin veneers or pre-finished parts. Pressure concentration is affected by how the contact area is spread out. For example, smaller pads focus force on stubborn joints, while larger surfaces spread load across weak materials.

Maintenance Protocols

Routine care keeps things working well and stops them from breaking down too soon. The steel bar should be wiped down at the end of each shift to get rid of sawdust, metal bits, and glue residue. When debris builds up, it gets in the way of the friction mechanism and makes it slip when the load is applied. Spraying dry lubricants like PTFE on the internal pivot points keeps the trigger working smoothly without collecting dirt as grease-based Products" target="_blank" style="color:blue" >products would.

On a regular basis, the bar should be inspected for rounded serrations. This type of wear means the friction plates can't contact properly anymore. Cracks should be looked for in the ratchet trigger case, especially where composite materials meet metal parts. Screw threads should be cleaned every so often to keep them moving smoothly.

Longevity is affected by how you store things. Hanging clamps keep bars from warping by being under pressure for a long time. Climate-controlled spaces keep painting surfaces from rusting because of humidity. When working in a dusty area, tools should be kept in closed cabinets instead of open racks, where flying particles can collect on the mechanisms.

Real-World Performance Examples

A Pennsylvania furniture company cut the time it took to put together cabinets by 34% when they switched from traditional screw models to ratchet clamp models. Craftsmen could correctly place parts before applying pressure because they could do it with one hand. This stopped the alignment drift that happened during slow tightening processes. Quality measurements showed that repair for twisted face frames went down at the same rate.

Commercial builders say it's especially useful when installing soffits and doing complicated trim work. Being able to temporarily suspend materials above while fastening them lets a single operator do tasks that used to need helpers. This ease in using workers directly leads to lower project costs and more flexible schedules.

Optimizing Procurement: How to Buy Ratchet F-Clamps Efficiently?

Strategic buying finds a balance between short-term and long-term business needs.

Identifying Reputable Supply Channels

Industrial distributors offer rapid access, but they usually only carry a few model lines that are focused on things that sell quickly. Direct relationships with manufacturers give you a wider range of options, including custom configurations. However, small businesses may not be able to meet the minimum order quantities. Setting up major supplier deals for standard requirements and keeping distributor accounts open for emergency replacements are both good ways to do things.

Verification of certification for a Ratchet F-Clamp protects against low-quality products. Asking for ISO9001 paperwork and information about the manufacturing process can help you find suppliers who are committed to quality systems. Even though they take a lot of time and effort, production facility audits give the most trust for big purchases where tool failures cause a lot of problems with operations.

Cost Structure Analysis

Unit pricing is only one part of the total cost of acquisition. Shipping costs for heavy steel tools can have a big effect on budgets, especially when buying from other countries. Looking for ways to combine shipments and learning Incoterms makes it clear who is responsible for paying for shipping costs and import taxes.

Different sellers offer very different bulk discount systems. Some offer linear percentage discounts based on minimum order quantities, while others offer better economics through mixed-model orders that meet value-based minimums. Procurement teams should make scenarios that include expected storage capacity limits and usage rates.

Terms of payment affect how cash flows are managed. Standard net-30 terms work for most businesses, but longer terms or progress billing for big custom orders give them financial freedom during times when they need to buy a lot of new equipment.

After-Sales Support Considerations

The value of the initial investment goes up because replacement parts are easy to find. When a single mechanism breaks, suppliers who keep parts in stock for types that are no longer being made keep tools from being retired too soon. Access to technical support helps figure out what's wrong with performance problems; responsive providers can tell the difference between problems with operator skill and manufacturing flaws and offer the right solutions.

The scope of your warranty should match how much you use it. Standard one-year protections are good for light-duty uses, but businesses that work multiple shifts can benefit from longer coverage or relationships with suppliers that let them use usage history to replace parts before they break.

Future Trends and Innovations in Ratchet F-Clamp Technology

Ongoing development fixes problems that have been around for a long time and adapts to changing manufacturing environments.

Material Science Advancements

Strength-to-weight ratios keep getting better in composite tech. Reinforced polymer formulas now match the stiffness of cast iron at a much lower mass, which makes long-term use less tiring for operators. Carbon fiber reinforcement in jaw bodies keeps their shape even when temperatures change, which is helpful for operations that don't happen in climate-controlled rooms.

New developments in surface treatment for a Ratchet F-Clamp make rust protection even better than zinc plating alone. Ceramic coatings offer better safety in sea settings and chemical processing plants, where regular finishes wear down quickly. These better finishes cost more up front, but they save money over time because they don't need to be serviced as often.

Ergonomic Design Evolution

Biomechanical studies into grip ease and force application efficiency are showing up more and more in handle geometry. When you squeeze your hands together for a long time, contoured profiles spread out the pressure on the palm surfaces. Trigger systems now include leverage multiplication, which lets you use less hand strength to apply the same clamping force. This is an important change as the workforce becomes more diverse and older workers become more common.

Quick-conversion features let you quickly switch between clamping and spreading functions, so you don't have to stop working to change tools. With push-button jaw reversal, you don't have to remove the fasteners as you did with older designs. This saves seconds per adjustment, which add up to big productivity gains over large production volumes.

Smart Manufacturing Integration

Sensing-equipped clamps are the next big thing. Embedded load cells give real-time pressure feedback, which stops joints from being under-clamped, which weakens them, and over-tightened, which damages them. Data logging makes quality documentation possible for regulated industries that need to check the assembly of products.

Connecting wirelessly lets you connect to production execution tools. Production managers can keep an eye on clamping operations from afar, finding slow spots and making the best use of workflow distribution. Predictive maintenance algorithms look at how parts are used to plan when to replace them before they break and stop operations.

These improvements in technology have effects on how we buy things. Early adopters get a competitive edge through better quality and higher efficiency, but they have to deal with higher costs at first and possible problems integrating the new technology. If you take a conservative approach, you wait for technology to get better and prices to go down, but you risk falling behind your competitors in terms of capability and productivity.

Conclusion

For woodworking, building, and assembly tasks, choosing the right fixing tools has a big effect on how quickly and well the products are made. Ratchet F-Clamps provide the quick positioning and steady pressure that modern production environments need. They cut down on cycle times while keeping the accuracy that traditional uses need. Strategic procurement doesn't just look at short-term needs; it also thinks about long-term factors like supplier technical support, customization options, and maintenance needs. As material science and smart manufacturing integration get better, these tools will keep changing to meet the needs of operations that are getting more complex. Procurement pros who know about both current capabilities and new trends set their companies up for a long-term competitive edge by making sure that their investments in tools are well-used.

FAQ

What distinguishes ratchet F-clamps from standard bar clamps?

The most important difference is how the pressure is applied. Standard bar clamps have threaded rods that need to be continuously rotated to change the clamping force. This means that they can only be used with two hands and can be hard to line up because the parts move around while they're being tightened. Ratchet F-Clamps use friction systems that are controlled by a trigger. This lets you place them quickly and then apply increasing pressure, which makes them easy to use with one hand. This design cuts down on setup time by a large amount in settings with a lot of repeated work, while keeping the holding strength the same.

How should I maintain ratchet clamps in dusty workshop environments?

Wipe down the steel bar after each shift to keep it clean and stop sawdust from building up and messing up the friction mechanism. On internal hinge points, use dry lubricants like PTFE spray instead of grease-based ones that get dirty. When not in use, clamps should be kept in closed cabinets to keep flying particles to a minimum. Check the serrations every three months for wear patterns that show less grip, and replace the bars before they slip and fail during important operations.

Can these clamps handle metalworking and welding applications?

For light metalworking jobs like placing pieces during drilling or planning work, standard models with painted finishes or composite parts work well. When you weld, you get heat and spatter that hurt painted surfaces and melt polymer jaw pads. There are specialized all-steel designs for welding settings, but they don't have the mechanical benefits or lighter weight of composite designs. When choosing the right specifications for metal fabrication settings, you should look at the actual temperature exposure and contact duration.

Partner with FLA Industrial & Trading Co., Ltd. for Professional Clamping Solutions

Getting better at making things doesn't just mean buying new tools; it also means finding a manufacturing partner who knows what the industry needs and can consistently deliver quality. FLA Industrial & Trading Co., Ltd. has been making metal tools and Woodworking Clamps for almost 40 years. This has made us a reliable seller of Ratchet F-Clamps for both Fortune Global 500 companies and small businesses that are just starting out. Our manufacturing methods are ISO9001-certified and include casting, forging, drilling, and assembly. These steps make sure that every clamp meets strict performance standards. We keep track of more than 1,000 product specs and can make changes for non-standard throat depths, opening sizes, and finish needs. Our engineering team offers technical help, such as checking 3D designs and giving advice on specifications. Quote replies are sent within 24 to 48 hours. We offer reliable solutions at reasonable prices, whether your business needs standard painted finishes for working with wood indoors or zinc-plated corrosion protection for construction sites. Get in touch with us at sales@flaindustrial.com to talk about your unique clamping needs and find out how our production skills help companies in the US, Germany, and Australia make high-quality tools that last.
