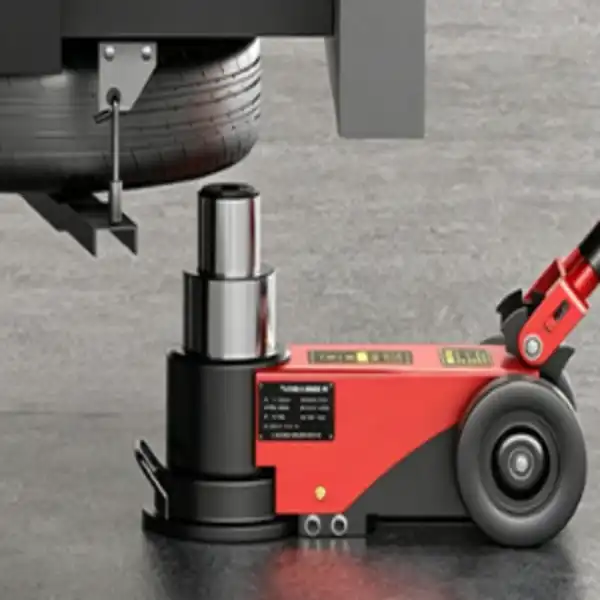

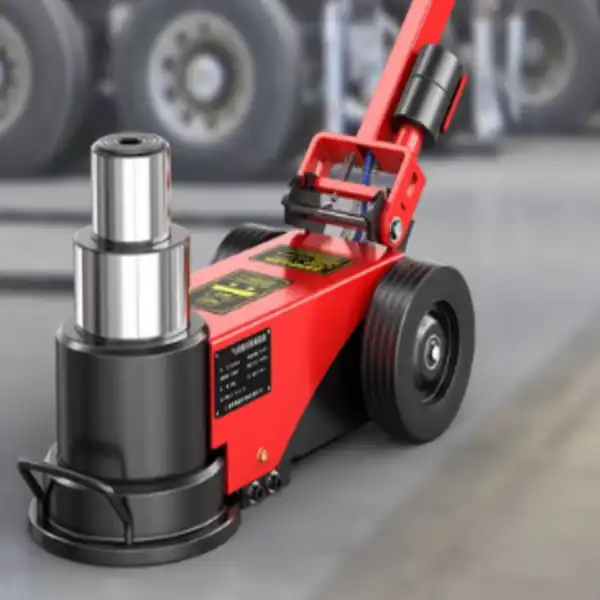

Small Pneumatic Jack for Automated Fixture Adjustment and Positioning

A small pneumatic jack is a compact, air-powered actuator engineered to deliver precise fixture adjustment and positioning within automated manufacturing environments. By converting compressed air into controlled linear motion, these devices enable consistent lifting, pressing, and alignment tasks with minimal operator input. Whether integrated into assembly lines, woodworking fixtures, or industrial maintenance setups, a pneumatic air jack offers the speed and repeatability that modern production demands. At FLA Industrial & Trading Co., Ltd., we supply certified pneumatic jacks built from carbon steel, alloy steel, and aluminum alloy — designed to perform reliably across high-frequency industrial cycles.

Specifications

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Small Pneumatic Jacks in Automated Fixture Adjustment

Accurate actuators are what make automated fastening systems hold, move, and place workpieces without any mistakes made by people. This job is done by a Small Pneumatic Jack, which turns air pressure (usually between 0.4 and 0.8 MPa) into smooth, repeatable linear motion. The main process is simple: compressed air comes in through a normal hose, pushes the piston against the inside of the chrome-plated cylinder, and controls the stroke movement in milliseconds.

Types of Pneumatic Jacks and Their Automation Roles

Three types are most common in workplace settings. Single-acting models can be used for simple clamping or pressing tasks because they use air pressure to extend and a spring to retract. Double-acting models use air pressure in both directions, which gives you better control over both parts of the stroke. This makes them perfect for complex fixture spinning. Specialized variants, such as ATEX-certified models that can't explode, are used in places where there are flammable materials or dust. Each type uses fluororubber or nitrile rubber seals to maintain pressure integrity across a wide operating temperature range of -20°C to +80°C. Compared to hydraulic actuators, pneumatic jacks react faster than hydraulic motors and don't need to be managed by fluids. They are lighter, better at working in dirty settings, and easier to connect to existing compressed air systems than electric actuators. This is a real benefit for procurement managers who are looking at the total cost of ownership.

Key Advantages of Using Small Pneumatic Jacks for Automated Fixtures

Production engineers say that moving from manual or hydraulic positioning to pneumatic activation with a Small Pneumatic Jack cuts down on cycle time and makes it easier to do the same thing over and over again. The physics are easy to understand: air compresses and expands almost instantly, so there is no need for a warm-up time or hydraulic fluid preparation before the stroke starts. Here are the core advantages that make Small Pneumatic Jacks the best choice for automated fixture systems:

• Rapid cycle performance: A well-kept pneumatic jack can fully extend in less than five seconds. This is useful for high-throughput assembly lines where positioning delays add up to real losses in production. This responsiveness is very helpful for facilities that work multiple shifts.
• Lower maintenance burden: Because these units don't have any hydraulic oil in them, there aren't any fluid leaks, oil filter replacements, or contamination risks to parts further down the line. Seals made of fluororubber or nitrile rubber don't break down when exposed to common industrial chemicals, so repair times aren't too long.
• Integrated safety architecture: All of our products have an exhaust muffler and a safety valve built right in. The safety valve stops damage from happening when the pressure is too high, and the muffler lowers the noise level in a workshop, which is very helpful for operators who work long shifts.

These benefits directly address the problems that plant managers in woodworking, building, and electrical repair have when they need tools that work well every day without needing to be serviced all the time. Pneumatic pumps are a good investment in many industries because they are fast, clean, and have built-in safety features.

How to Select the Ideal Small Pneumatic Jack for Your Automated Fixtures?

To choose the right Small Pneumatic Jack, you must first make sure that the rated capacity and stroke length of the device match the load and travel distance of the fixture. If you undersize a jack, the joint will wear out faster, and if you oversize it, you'll waste energy and make the system bigger than it needs to be.

Matching Capacity to Application

Check the heaviest piece of work that can be clamped or pressed with a Small Pneumatic Jack, along with the dynamic forces that are being created. Standards for small-class configurations say that they can handle loads of 2.5 to 3 tons. For fixtures that need to be moved in small steps instead of fully extended, make sure the jack can be controlled in the middle of its stroke by adjusting the pressure.

Environmental and Cycle Durability Factors

The operating setting is very important. Mills that make furniture and do woodworking send sawdust and wood resin into the air, which can clog intake filters. Jacks may be exposed to wet weather during HVAC and plumbing installs. In these situations, bodies made of aluminum alloy with an anodized surface treatment will not rust. On the other hand, bodies made of carbon steel or alloy steel that have been spray-painted or coated will work better in dryer industrial settings. Check that the jack has been through life-cycle testing that goes beyond 5,000 actuation cycles for high-frequency automated fixtures. Before being sent out, every unit at FLA Industrial & Trading Co., Ltd. goes through leak testing, pressure testing, and life testing. This gives procurement managers proof that the units always work the same way.

Certifications and Supplier Qualification

In order to meet U.S. procurement standards, a product or service must at least have ISO 9001 approval. For dangerous places, you can't go without ATEX approval. Our Products" target="_blank" style="color:blue" >products have been certified by ISO 9001, CE, and ATEX, and they meet pressure standards such as PED and GB. Customers who buy in bulk and OEM partners benefit from our ability to customize. We can change the mounting configurations, stroke lengths, and material grades to match the blueprints for each fixture.

Operating and Maintaining Small Pneumatic Jacks for Optimal Performance

When work is done right, service life is greatly increased. To keep the piston rod from being stressed on the side, mount the Small Pneumatic Jack so that it is not parallel to the load line. Before the first cycle of operation, make sure the line pressure is between 0.4 and 0.8 MPa and that the air hose is securely connected to the standard interface fitting. Daily use doesn't require any special training, but before each shift, workers should look over the exhaust muffler and safety button. Any audible air leak near the cylinder body is a sign of a failing seal that needs immediate attention. Ignoring it speeds up internal wear and can make precision fixtures not position correctly. A useful maintenance list for automated fixture settings includes checking the connections and fittings on air hoses once a week, checking the state of seals monthly by trying their ability to retain pressure, and checking the inside of chrome-plated cylinders every three months for damage or scoring. Instead of waiting for problems to happen, replacing seals before they happen costs a lot less than replacing the whole cylinder. If you ask, our engineering team can give you full technical paperwork and replacement seal specs.

Future Trends and Innovations in Pneumatic Jacks for Automation

IoT sensor kits are being added to the pneumatic control market to track the stroke position, cycle count, and internal pressure in real time. This information is used by predictive maintenance programs, which help building managers plan maintenance before problems happen instead of having to fix them after the fact. Stocking IoT-compatible Small Pneumatic Jacks puts hardware distributors ahead of the curve when it comes to building out their smart tool catalogs. New discoveries in material science are making aluminum alloy jack bodies lighter without lowering their load capacity. This is a big deal for robotics installers and mobile fastening platforms, since weight directly affects how the system works. Valve designs that use less energy also use less compressed air per cycle, which helps makers meet measured sustainability goals. Procurement strategists who are keeping an eye on these developments can now work out good deals with OEMs before demand drives prices up.

Conclusion

If you choose the right Small Pneumatic Jack, it will change the way an automated fixture works, cutting down on cycle time, improving repeatability of positioning, and lowering the cost of maintenance over its lifetime. In many fields, like building, electrical installation, and HVAC, pneumatic actuation is clearly better than hydraulic or manual options for getting the job done. The important thing is to choose a unit that was built to quality standards that can be checked and came from a company with clear testing procedures and helpful technical support. For almost 40 years, FLA Industrial & Trading Co., Ltd. has been doing just that.

FAQ

What lifting capacity do Small Pneumatic Jacks typically provide?

Most small-class hydraulic jacks can hold between 2.5 and 3 tons. Each body material and cylinder hole diameter has a different capacity. Always check the dynamic load requirements of your fixture, not just the weight of the piece that is being held still.

How often should seals be inspected in automated fixture applications?

If you work in a high-cycle workplace with multiple shifts every day, you should check the seals every month. Fluororubber seals can handle harsh chemicals better than nitrile rubber, which makes them better for places where there are lubricants or cleaners.

Can pneumatic jacks be used for long-term static load support?

No, Small Pneumatic Jacks are designed to move and lift things in an active way. A mechanical lock or a separate support stand must be used with the jack to hold a steady load for a long time. This is a standard safety rule in industrial fixture design.

What air supply does a pneumatic jack require?

Any regular workshop compressor that continuously delivers between 0.4 and 0.8 MPa is good enough. It's not necessary to have a high CFM output because the amount of air needed for each action cycle is pretty small compared to most pneumatic tools.

Are customized stroke lengths available for OEM fixture integration?

Yes. For OEM uses, the length of the stroke, the way the parts are mounted, and the type of material used can all be changed. Before full production starts, our engineering team confirms the 3D plan and tests the prototype.

Partner With FLA Industrial for Your Pneumatic Jack Requirements

Every Small Pneumatic Jack that FLA Industrial & Trading Co., Ltd. sells is made with almost 40 years of experience. As a reliable manufacturer of pneumatic jacks for the U.S. market and Fortune Global 500 companies, we offer ISO 9001- and CE-certified units that can be fully customized to meet the needs of OEMs. We also offer bulk pricing benefits and respond to technical questions within 24 to 48 hours. To get a price right away, email our team at sales@flaindustrial.com or look through our full collection of products at flaindustry.com.
