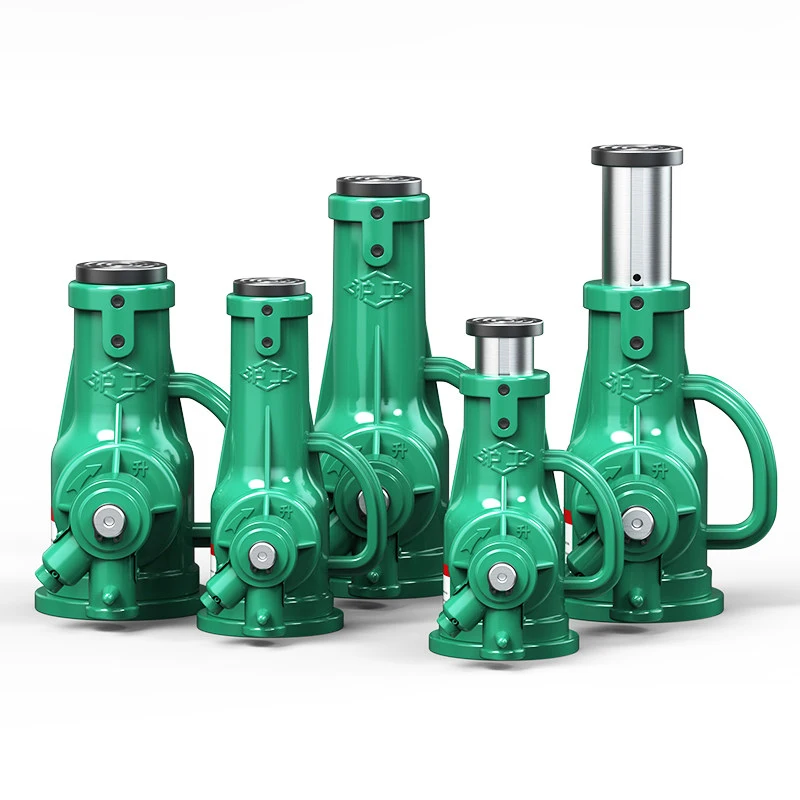

Product Name: Screw Jack
Material: Alloy Steel / Carbon Steel / Cast Steel / Stainless Steel (The lead screw is usually tempered or quenched, nuts can be made of bronze or engineering plastics)
Usage: Precise lifting, positioning, synchronized lifting, long-term load support
Appearance: Spray-painted, Corrosion-resistant Coating, Can come with a Dust Cover and Lubrication Interface
Origin: China (One of the main manufacturing locations)
Manufacturing Process: Turning / Grinding / Milling / Heat Treatment, Assembly, Testing
Certifications: ISO9001, CE, Relevant Industry Standards (DIN/AGMA/EN)

Industrial Screw Jack for Heavy-Load Lifting: Trapezoidal and Ball Screw Series

FLA Industrial & Trading Co., Ltd. supplies lifting equipment for heavy engineering projects. Their Industrial Screw Jack converts rotary motion into linear motion. A worm gear set and a trapezoidal or ball lead screw carry out that job. Lifting, positioning, and load support all come out precise. Load capacity spans 2.5 kN to 3500 kN. Gear ratios sit between 5:1 and 32:1. Ball screw versions hit linear speeds up to 300 mm/s. Send us your load details. Add travel and environment details as well. That is how a quote request gets started. Within 24 to 48 hours the team comes back with a quote. You get the unit weight too, plus a 3D design.

What Is a Screw Jack Actuator?

Screw jacks are electromechanical actuators. Rotation goes in, movement comes out. That movement may be a push. It may be a pull. Lifting a load or lowering one works the same way. A worm gear set drives either a trapezoidal (Acme) lead screw or a ball screw assembly.

A hydraulic cylinder can leak fluid. This product does not use fluid, so there is nothing to leak. On trapezoidal models, thread friction can also hold a load with no power.

Key Features

  • Self-locking: Thread friction stops trapezoidal models from back-driving. Ball screw versions do not self-lock. Holding a position with those takes a brake motor.
  • Synchronization: Mechanical shafting lets you tie several lifting points together. They then move as one unit.
  • Housing: Made of GG25 grey cast iron, or GGG40 ductile iron.
  • Protection options: A dust cover can be added. There is also a lubrication interface. Bellows boots and high-temperature seals are available as well.
  • Travel limits: Mechanical stop nuts work as a fail-safe. To cut power before impact, add external limit switches or proximity sensors.

Specifications

Model (t) Top Cover (mm) Bottom Cover (mm) Minimum Height (mm) Lifting Height (mm) Weight (kg)
3.2 49 93 220 110 17.4
5 49 93 250 130 21.5
8 49 104 260 140 22.3
10 59 104 280 150 27.2
16 64 118 320 180 21.1
20 64 128 325 180 23.1
25 64 128 275 130 20.9
32 69 142 395 200 37.2
50 88 186 452 250 36.1
100 125 238 452 200 71.3
D10 59 104 200 75 22.4
D20 64 128 225 90 19.3
D32 69 142 320 150 33.4
D50 88 186 330 150 28.9

Some parameters are missing from the list above. Dimensions and unit weight for a given model are examples. This page does not state them. Ask for them with your inquiry.

product-1-1

Materials and Manufacturing Process

The worm shaft turns a bronze worm wheel. Usually the lead screw is tempered or quenched. Production starts with turning. Grinding and milling come next. Heat treatment follows. Assembly and testing wrap it up.

Going outdoors? An Industrial Screw Jack can come with epoxy paint or stainless steel parts.

product-1-1

Quality Control and Certifications

Critical inspection items include:

  • Axial backlash test: Dial indicators read the gap between the screw and nut threads. Then that value is checked against ISO 2768 tolerances.
  • No-load and full-load run tests: The run includes a noise check. Vibration is recorded as well. During the run, gearbox temperature rise is watched. Worm gear efficiency and lubrication are confirmed during that same run.
  • Static overload test: The housing and screw carry a load of 1.5 times the rated capacity. Under that load, the structure still holds up.
  • Hardness verification: Worm shaft hardness is checked on the Rockwell C (HRC) scale. The bronze wheel gets a Brinell hardness test. Both checks help protect wear life.

FLA lists ISO 9001 quality management and CE product safety certification for most Products" target="_blank" style="color:blue" >products. Which certificates cover your model? Confirm before you order.

product-1-1

Industrial Screw Jack Applications

Steel mill roller adjustment. Rollers on these mills need a set gap. In high heat and heavy dust, the jack holds that gap. Seals rated for high temperatures and bellows boots stop abrasive scale from reaching the screw threads.

Solar tracking systems (CSP/PV). Large arrays tilt to follow the sun, and the jack does the tilting. Wind loads meet their match in its stiffness. For outdoor exposure, epoxy paint or stainless steel parts work well.

Theatrical stage lifts. Here, motion has to be smooth and in sync. On orchestra pits and stages, several jacks are tied together mechanically to do the lifting. Anti-drop safety nuts are an option you can add. For your project, check the local rules on personnel safety.

Each this product in these systems is specified for its own load, environment, and travel.

Industrial Screw Jack

Ordering Checklist

Include these details in your inquiry: rated load, travel length, working environment, number of lifting points, and synchronization needs. With them, we can match the right Industrial Screw Jack to your duty.

Ball screw models suit higher speed, up to 300 mm/s, but need a brake motor to hold position. Trapezoidal models suit long-term load holding because they self-lock. We confirm material, performance, and dimensional accuracy before production starts.

Customization, Support, and Lead Time

FLA makes special-shaped parts to order. Non-standard sizes and special structures are also part of our output. Machinery makers and building material firms use them. Other industries use them too.

  • Early stage: The mold for custom parts gets built here. 3D design and checks happen at this step too. That is how the product form is confirmed.
  • Mid stage: Layout adjustment and confirmation of material, performance, and dimensional accuracy.
  • Late stage: Production progress feedback matched to delivery progress.

Standard orders pull from a stock of 2,000 tons. Shipping for custom and special-shaped parts can take as little as 7 to 15 days.

FAQ

Q: What sets the duty cycle?

A: Worm gears rub together, and heat is the limit. Standard machine screw jacks run at about 20% to 30% duty cycle. Choose bevel gear or ball screw options for continuous operation.

Q: What stops the screw from moving too far?

A: Mechanical stop nuts are built in as a fail-safe. Power should also get cut before impact. External limit switches do that job. Proximity sensors work too.

Q: Can one motor drive several jacks?

A: Yes. One motor can run several units in sync mechanically. Shafts, couplings, and miter gearboxes make that link. Two units work, and so do 4, 6, or more.

Q: Which should I pick for my case, a translating screw or a rotating one?

A: Pick translating when nothing guides the load. It fits too when the load hangs off the screw end. Room above and below tight? Then choose rotating.

Contact Us

Send your load, travel length, and application details to sales@flaindustrial.com. Our team will recommend a suitable Industrial Screw Jack for your project.
