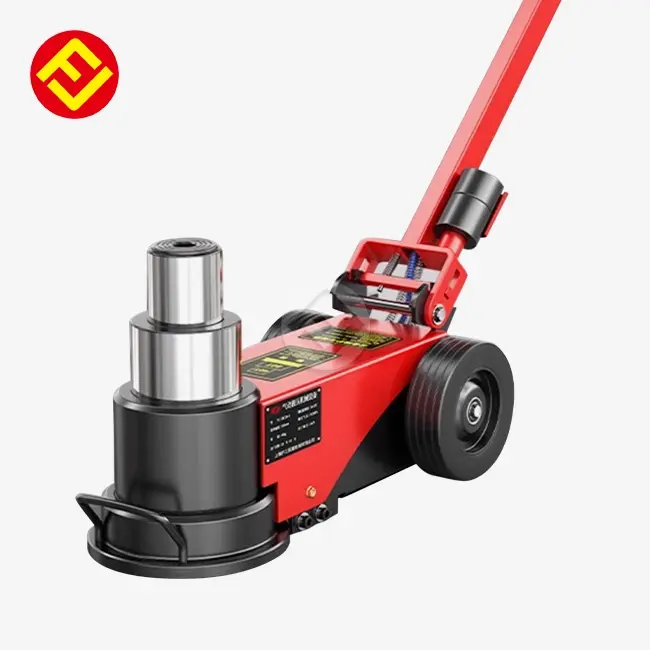

Pneumatic Lift Jack
Material: Carbon Steel / Alloy Steel / Aluminum Alloy (Seals are made from Fluororubber or Nitrile Rubber, Cylinder interior is often chrome-plated)
Usage: Quick lifting and positioning, high-frequency repetitive tasks, rescue operations and assembly lines (not for long-term static support, requires mechanical lock)
Appearance: Spray-painted or Anodized, with Air Hose Interface, Exhaust Muffler, and Safety Valve
Origin: China (One of the main manufacturing locations)
Manufacturing Process: Turning / Casting / Welding, Leak Testing, Assembly, Pressure Testing, and Life Testing
Certifications: ISO9001, CE, ATEX (for explosion-proof), Relevant Pressure and Safety Standards (PED/GB)
Pneumatic Lift Jack - Professional Heavy-Duty Lifting Solutions
Product Introduction
When you require solid and effective lifting gear for your mechanical operations, our pneumatic lift jack conveys extraordinary execution you can check on. This air-powered lifting gadget combines progressed building with viable plan, making it your perfect accomplice for speedy lifting and exact situating errands. Not at all like conventional water powered jacks, our product works utilizing compressed discuss, advertising speedier reaction times and cleaner operation in requesting work situations. Whether you're working in car repair, overwhelming apparatus support, or mechanical gathering lines, this apparatus gives the control and exactness you require to get the work done securely and efficiently.
Product Specification
| Type | Product Model | Lifting Capacity | Working Pressure | Minimum Height | Lifting Height | Stroke | Net Weight |
|---|---|---|---|---|---|---|---|
| Straight Rod | National Standard 50T | 50T/25T | 0.8-1.2mpa | 195mm | 430mm | 235mm | 46kg |
| Straight Rod | National Standard 80T | 80T/40T | 0.8-1.2mpa | 195mm | 370mm | 175mm | 60kg |
| Straight Rod | National Standard 120T | 120T/60T | 0.8-1.2mpa | 205mm | 385mm | 180mm | 90kg |
| Straight Rod | National Standard 150T | 150T/75T | 0.8-1.2mpa | 205mm | 400mm | 195mm | 100kg |
| Folding Rod | National Standard 50T | 50T/25T | 0.8-1.2mpa | 195mm | 430mm | 235mm | 46kg |
| Folding Rod | National Standard 80T | 80T/40T | 0.8-1.2mpa | 195mm | 370mm | 175mm | 60kg |
| Folding Rod | National Standard 100T | 100T/50T | 0.8-1.2mpa | 205mm | 380mm | 175mm | 73kg |
Note: Due to continuous upgrading and optimization of product technology, there may be errors in product appearance and parameters. Please refer to the actual product. Our contact email address is sales@flaindustrial.com.
Usage Scenarios
You'll discover our air-powered jacks culminate for numerous applications:
Automotive & Vehicle Support: Rapidly lift overwhelming vehicles, trucks, and buses for tire changes, brake repairs, and undercarriage inspections.
Industrial Fabricating: Bolster get together line operations where monotonous lifting errands require speed and consistency.
Railway Support: Perfect for lifting railroad cars and trains amid schedule upkeep and repairs.
Construction Locales: Productively position overwhelming auxiliary components and apparatus with exactness control.
Rescue Operations: Give dependable lifting constrain in crisis circumstances where speed and security are critical.
Warehousing & Coordinations: Help in stacking and emptying overwhelming hardware with negligible physical effort.
Product Features
You'll discover our air-powered jacks culminate for numerous applications:
Automotive & Vehicle Support: Rapidly lift overwhelming vehicles, trucks, and buses for tire changes, brake repairs, and undercarriage inspections.
Industrial Fabricating: Bolster get together line operations where monotonous lifting errands require speed and consistency.
Railway Support: Perfect for lifting railroad cars and trains amid schedule upkeep and repairs.
Construction Locales: Productively position overwhelming auxiliary components and apparatus with exactness control.
Rescue Operations: Give dependable lifting constrain in crisis circumstances where speed and security are critical.
Warehousing & Coordinations: Help in stacking and emptying overwhelming hardware with negligible physical effort.
Quality Control
At FLA Mechanical & Exchanging Co., Ltd., we execute thorough quality control all through each generation stage:
Material Assessment: We confirm all crude materials meet our strict details some time recently fabricating begins.
Precision Fabricating: Our turning, casting, and welding forms take after correct resistances to guarantee reliable performance.
Comprehensive Testing: Each pneumatic lift jack experiences spill testing, weight testing, and life cycle testing some time recently taking off our facility.
ISO Certified Forms: Our ISO9001 quality administration framework ensures standardized generation control and persistent improvement.
Safety Compliance: All units meet CE item security certification necessities and significant weight gear measures (PED/GB).
Final Assessment: Each item gets careful examination to confirm it meets our quality guidelines and your expectations.
Why Choose Us?
Customization Skill: Our center quality lies in making custom special-shaped parts. If standard models do not fit your needs, we'll plan and deliver precisely what you require.
Lightning-Fast Conveyance: With 2,000 tons of stock, we transport standard items promptly. Custom orders? We total them in fair 7-15 days.
Instant Reaction: Require estimating, weight affirmation, or 3D plans? We react inside 24-48 hours, keeping your ventures moving forward.
Technical Bolster: From form improvement and 3D plan confirmation to generation advance upgrades, we back you all through the whole process.
No Arrange Limits: Whether you require one unit or one thousand, our high-volume supply capabilities handle any arrange size.
Proven Quality: Our items carry ISO9001 and CE certifications, demonstrating our commitment to worldwide quality standards.
Industry Encounter: A long time of serving apparatus, building materials, and mechanical divisions deliver us profound understanding of your challenges.
Certifications
Our commitment to quality and safety is backed by recognized certifications:
- ISO9001 Quality Management System Certification
- CE Product Safety Certification
- Compliance with Pressure Equipment Directive (PED) and GB Standards
These certifications ensure every product meets strict international requirements for performance, safety, and reliability.
FAQ
Q: What's the difference between straight rod and folding rod models?
A: Straight rod models provide maximum stability for standard applications. Folding rod versions offer compact storage and easier transport while maintaining full lifting capacity.
Q: Can I use this jack for long-term load support?
A: No. Our air jacks are designed for lifting and positioning tasks. For extended support, always use mechanical locks or jack stands after lifting.
Q: What air compressor size do I need?
A: A compressor delivering 0.8-1.2mpa (approximately 116-174 PSI) with adequate CFM rating will operate our jacks efficiently. Contact Us for specific recommendations.
Q: Do you offer custom lifting capacities or dimensions?
A: Absolutely! Custom special-shaped parts are our specialty. Share your requirements, and we'll develop a solution within 7-15 days.
Q: How do I maintain my pneumatic jack?
A: Regularly inspect seals, keep air supply clean and dry, check for damage, and store in a dry environment. We provide detailed maintenance guidelines with every purchase.
Q: What's included with my purchase?
A: Each unit includes the jack, air hose interface, exhaust muffler, safety valve, and operation manual. Additional accessories available upon request.
Contact Us
Ready to enhance your lifting operations? Our pneumatic lift jack's team at FLA Industrial & Trading Co., Ltd. is here to help.
Email: sales@flaindustrial.com
Whether you need standard models or custom solutions, we'll respond within 24-48 hours with pricing, specifications, and technical guidance. Let's discuss how our pneumatic jacks can improve your productivity and safety today.
FLA Industrial & Trading Co., Ltd. - Your Trusted Partner for Professional Lifting Solutions
