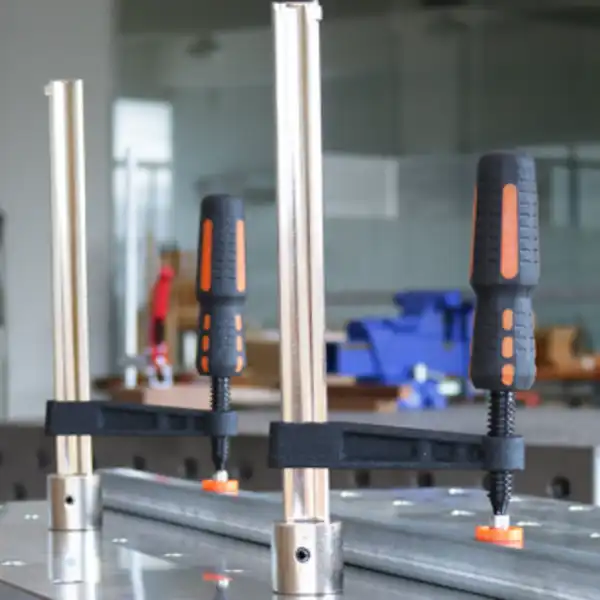

16mm Welding Table Clamps Improve Fixture Stability in Metal Fabrication

When fixture instability disrupts your welding workflow, the consequences extend beyond misaligned joints — they cost you time, materials, and repeatability. F-Clamps/16mm-welding-table-clamps">16mm welding table clamps are engineered specifically to eliminate that instability. Fitting into the standardized 16mm bore holes of modular fixturing tables, these clamps secure workpieces with consistent clamping force during TIG, MIG, and structural welding operations. Built from carbon steel and malleable cast iron, and finished with zinc plating or paint for corrosion resistance, they deliver the precision and durability that fabrication professionals demand across workshops, job sites, and production floors.

Specifications

Item Code	Head Diameter (mm)	Rail (mm)
160×60-B	Φ16	13.5×6.5
160×60-B	Φ19 (3/4")	13.5×6.5
160×60-B	Φ20	13.5×6.5
200×120-E	Φ16	22×10.5
200×120-E	Φ19 (3/4")	22×10.5
200×120-E	Φ20	22×10.5
300×120-G	Φ28	27×13

Understanding 16mm Welding Table Clamps and Their Role in Metal Fabrication

What Makes the 16mm Standard So Significant

The fixturing standard "System 16" refers to a modular table ecosystem where clamps, stops, and supports fit into 16mm diameter holes that are usually set up in a 50x50mm grid. This standardization makes it possible to position workpieces in multiple directions over and over again without having to make shims or custom jigs. The 16mm bore can handle higher radial loads than smaller table forms. This is useful when making structural brackets, frame parts, or precision weldments where workpiece drift during heat expansion is not acceptable.

These fittings have great tensile strength without being flimsy because they are made of carbon steel and cast iron that can be shaped. Unlike pressed steel options, cast parts don't deform under long-term pressing loads, so they stay the same size over thousands of rounds.

Several kinds of 16mm Welding Table Clamps work with this setup. Vertical hold-down 16mm Welding Table Clamps push down on plates to lock them tightly against the table surface, while horizontal 16mm Welding Table Clamps hold parts securely from the side during tack welding. Combination 16mm Welding Table Clamps can hold workpieces in more than one way, which is useful when working with complicated shapes. Because each type fits into the same 16mm hole, these 16mm Welding Table Clamps can all be used with the same set of fixtures. This flexibility is especially useful in environments where manufacturers work with many different types of materials and need reliable 16mm Welding Table Clamps for varied fabrication tasks.

How 16mm Welding Table Clamps Enhance Fixture Stability

Material Integrity and Thermal Performance

In welding, the stability of the fixture is not just mechanical; it is also thermal. When the spark temperature in the area goes above 6,000°C, the block around it gets bigger. If the clamps don't have enough holding force, the weld roots can move very slightly, which causes angular distortion and residual stress. Carbon steel clamps that are zinc-plated or painted keep their structure strong near areas that get hot. This stops thread stripping and surface wear that happen with unfinished hardware.

Axial load performance is very important in this case. A clamp that keeps its holding force—that is, one that doesn't creep or slip—ensures that the workpiece stays in place during the whole welding process, not just when it's first tightened.

Precision Positioning and Adjustability

These clamps have a changeable spindle system that lets you quickly move the X, Y, and Z axes without taking the whole setup apart. Fabricators say they can cut down on setup time when moving between parts with similar dimensions. This is because the clamp can handle different workpiece thicknesses by simply adjusting the spindle instead of replacing hardware. This leads to fewer breaks, less waste, and tighter limits for size differences between runs of production.

How to Choose the Right Welding Table Clamps

There's more to choosing the right clamp than just meeting the bore width. Before agreeing to a specification, procurement engineers and shop managers should think about these main things:

• Clamping force relative to application weight: For light-gauge stainless or aluminum work, a standard hold-down clamp with moderate spindle force is sufficient. For structural steel fabrication involving heavier beams and plates, higher-capacity clamps with reinforced spindles are necessary to prevent displacement during multi-pass welding.
• Head diameter and rail compatibility: FLA Industrial offers head diameters of Φ16, Φ19 (3/4"), Φ20, and Φ28 mm across three item configurations — 160×60-B, 200×120-E, and 300×120-G — with rail dimensions ranging from 13.5×6.5mm to 27×13mm. Matching the rail dimension to your table slot profile prevents wobble that undermines positional accuracy.
• Surface finish durability: Zinc-plated finishes offer reliable corrosion resistance in general workshop environments. For facilities with chemical exposure or high humidity, a painted finish adds an additional barrier. Either option significantly extends service life over bare steel.
• 12mm vs. 16mm trade-offs: A 12mm bore clamp generates less radial support and suits lighter-duty applications. The 16mm format provides meaningfully greater rigidity, making it the preferred choice wherever distortion control and fixture repeatability are priorities.

All of these factors help buyers make smart purchasing decisions that match their spending on 16mm Welding Table Clamps with the amount of work they need to perform. When selecting 16mm Welding Table Clamps, buyers should carefully consider bore-to-slot compatibility, clamping capacity, and fixture requirements to avoid unnecessary costs. Ignoring even one of these factors, especially bore-to-slot compatibility, can lead to expensive repairs or premature failure of 16mm Welding Table Clamps. By evaluating the specifications and application requirements of 16mm Welding Table Clamps before purchase, procurement teams can reduce the risk of clamp failure and achieve better long-term value from their tooling investment.

Maintenance Tips and Safety Guidelines

How long these tools work at their best is directly related to how often they are serviced. A planned maintenance schedule keeps your team safe and protects your investment.

• Thread cleaning and lubrication: After each welding session, clear spatter from spindle threads using a wire brush, then apply a light machine oil or anti-spatter spray. Neglected threads seize gradually, forcing excessive torque that strips the mechanism or damages the table bore.
• Bore and rail inspection: Check for dimensional distortion in the clamp shaft and rail profile. A clamp shaft that has deformed beyond tolerance will no longer achieve an H7 fit within the table bore, causing perceptible wobble under load. Retire distorted components — continuing to use them introduces measurement error into every subsequent setup.
• Tightening torque discipline: Over-tightening damages both the workpiece surface and the clamp's internal mechanism. Apply firm, controlled torque until resistance is felt, then stop. Consistent technique reduces wear on threaded components and extends service intervals.

For safety reasons, you should never run welding current through the swivel device or threaded wheel of a clamp. When high current flows through these junctions, it creates micro-arcing that joins internal parts together, stopping the clamp from working. Always connect grounding clamps straight to the workpiece or table.

Procurement Insights: Sourcing Quality Welding Table Clamps

Evaluating Suppliers and Certifications

Quality credentials that can be checked are the first step to reliable sourcing. ISO9001 approval shows that a company has a written quality control system that includes choosing the right raw materials, inspecting the work as it's being done, and checking the finished product. The FLA Industrial & Trading Co., Ltd. is certified by ISO9001, and before it is shipped, each production batch is checked for size accuracy, load-bearing, and surface coating.

CE approval is more proof that a product meets European safety and environmental standards. This is a big plus for procurement teams that have to source manufacturing operations in more than one regulatory area.

OEM Options and Bulk Purchasing Strategy

Facilities with non-standard table layouts or specific needs for fixtures need to be able to make custom configurations. Custom special-shaped parts made by FLA Industrial can be made to fit specific hole sizes, spindle lengths, or rail shapes. Custom orders ship within 7–15 days. Standard stockpile is more than 2,000 tons, which lets you get large amounts of goods right away without having to pay extra for wait time.

When looking at 16mm Welding Table Clamps suppliers, give more weight to those who answer technical questions within 48 hours, including those that include 3D design files and load specs. This responsiveness shows that the business can handle procurement cycles that move quickly.

Conclusion

Stable fixtures are the key to consistently good welds. The 16mm Welding Table Clamps are made from carbon steel and cast iron that can be shaped. They are finished to prevent corrosion and are made using ISO9001-certified methods. They provide the holding force, accuracy in measurements, and heat stability that serious manufacturing needs. Three choices—picking the right clamp size, keeping it in good shape, and getting it from a reputable maker—make the difference between reliable production and having to do the same work over and over again. These clamps are a well-known, standard-backed investment in long-term output quality for procurement teams and shop managers looking for reliable fixturing solutions.

FAQ

Why does the 16mm bore size outperform thinner clamp formats in heavy fabrication?

The 16mm bore gives the clamp shaft and table hole more radial contact area, which spreads the load more equally. This lowers stress in one area of the table surface and stops the shaft from wobbling, which makes positional accuracy worse during multiple passes of welding.

Are these clamps compatible with tables of different grid spacings?

The clamps can be used on any table with holes that are 16 mm in diameter. It doesn't matter if the grid spacing is 50x50mm or something else; the clamp will still work. However, the number of fixtures you can use and how easily you can move them will depend on where the holes are placed.

How often should these clamps be inspected and serviced?

In places where a lot of things are made, check the spindle threads and shaft dimensions every 200 to 300 hours of use. For general workshop use, an eye check once a month and lubricating the threads keeps them working well.

Can these clamps be used on System 28 tables with bushings?

It is technically possible to use 16mm clamps on System 28 tables with reduction bushings for light-duty tasks, but it is not a good idea for building structures. The gripping force is a lot less than what comes with System 28 tools.

What signals that a clamp should be replaced rather than serviced?

Thread stripping that can be seen, shaft deformation that goes beyond the H7 tolerance, cracked casting bodies, or spindle mechanisms that don't hold under moderate load are all clear signs that the part needs to be replaced. Using broken clamps for longer increases the chance of errors and risks to safety.

Partner With FLA Industrial for Reliable Welding Table Clamps

FLA Industrial & Trading Co., Ltd. is a manufacturer with almost 40 years of experience. They sell 16mm Welding Table Clamps that are ISO9001-certified and made for precise fixturing in tough manufacturing settings. Our team replies within 24–48 hours with full technical specs, whether you need standard configurations or solutions that are made to fit your exact needs. Every sale includes buying in bulk, getting it quickly, and getting committed help. To get a price right away, email our team at sales@flaindustrial.com or go to flaindustry.com.
