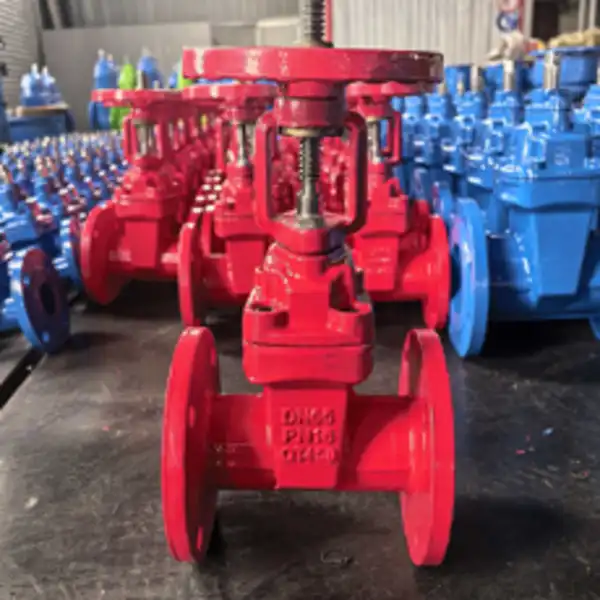

How Does Fire Protection Flanged Valve Improve Building Protection?

A fire protection flanged valve improves building protection by providing reliable, controllable isolation of water flow within fire suppression pipelines. When a fire emergency strikes, these valves allow maintenance teams to isolate specific zones without shutting down the entire system, preserving water pressure where it matters most. Engineered from ductile iron, cast iron, or carbon steel and certified to UL and FM standards, flanged fire valves deliver structural integrity under pressures ranging from 150 to 600 PSI. Their bolted flange connections resist blowout risks that threaded joints often present in larger pipe diameters, making them the backbone of any credible building fire safety strategy.

Specifications

Model (DN)	Valve Body Type and Rod Weight (kg)	Valve Body Length
DN40	National Standard Medium Body Steel Rod, 5.5 kg	Approx. 14.3 cm
DN40	National Standard Large Body Steel Rod, 7.5 kg	Approx. 16 cm
DN50	National Standard Body Steel Rod, 6.5 kg	Approx. 17.3 cm
DN50	National Standard Medium Body Steel Rod, 7.5 kg	Approx. 17.5 cm
DN50	National Standard Large Body Steel Rod, 9 kg	Approx. 17.2 cm
DN65	National Standard Body Steel Rod, 7.5 kg	Approx. 18.5 cm
DN65	National Standard Medium Body Steel Rod, 8.5 kg	Approx. 18.6 cm
DN65	National Standard Large Body Steel Rod, 10.5 kg	Approx. 18.5 cm
DN80	National Standard Body Steel Rod, 9 kg	Approx. 20 cm
DN80	National Standard Medium Body Steel Rod, 10.5 kg	Approx. 20 cm
DN80	National Standard Large Body Steel Rod, 12 kg	Approx. 19.7 cm
DN100	National Standard Body Steel Rod, 10 kg	Approx. 21.5 cm
DN100	National Standard Medium Body Steel Rod, 12.5 kg	Approx. 22.5 cm
DN100	National Standard Large Body Steel Rod, 17.5 kg	Approx. 22 cm
DN125	National Standard Body Steel Rod, 19 kg	Approx. 24.5 cm
DN125	National Standard Medium Body Steel Rod, 21 kg	Approx. 25 cm
DN125	National Standard Large Body Steel Rod, 24 kg	Approx. 25 cm
DN150	National Standard Body Steel Rod, 20 kg	Approx. 26 cm
DN150	National Standard Medium Body Steel Rod, 23 kg	Approx. 26.2 cm
DN150	National Standard Large Body Steel Rod, 29 kg	Approx. 26.3 cm
DN200	8-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	12-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	8-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	12-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	8-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN200	12-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN250	National Standard Medium Body Steel Rod, 70 kg	Approx. 32.5 cm
DN250	National Standard Large Body Steel Rod, 80 kg	Approx. 32.5 cm
DN300	National Standard Medium Body Steel Rod, 85 kg	Approx. 35 cm
DN300	National Standard Large Body Steel Rod, 111.5 kg	Approx. 35 cm
DN350	National Standard Large Body Steel Rod, 150 kg	Approx. 37.5 cm
DN400	National Standard Large Body Steel Rod, 175 kg	Approx. 40.5 cm
DN450	National Standard Large Body Steel Rod, approx. 251.5 kg	Approx. 430 cm
DN500	National Standard Large Body Steel Rod, approx. 340 kg	Approx. 45.5 cm
DN600	National Standard Large Body Steel Rod, approx. 450 kg	Approx. 50.7 cm

Understanding Fire Protection Flanged Valves

A Fire Protection Flanged Valve is more than just a way to turn off a flow of fluid. It is a life-safety part that is carefully made to fit together perfectly. Its flanged end connections, which meet ANSI B16.1 or EN 1092-2 standards, bolt firmly to pipe flanges that match. This makes a part that can handle constant hydraulic pressure without leaking. The body of the valve has a coating that protects against corrosion and tuberculation, which is a common way for fire water systems to break down over time.

How Flanged Connections Outperform Other Joint Types

When the width is more than 2 inches, threaded joints get fatigue cracks over time. Grooved couplings are fast, but they have weak spots when there is a surge of pressure. High-rise wet riser systems need structural face-to-face depth that wafer-style butterfly valves don't have. Flanged joints, on the other hand, spread the clamping force evenly across the whole bolt circle. This makes them the best choice for setups like fire pump discharge headers and base-of-risers where pressure jumps happen often.

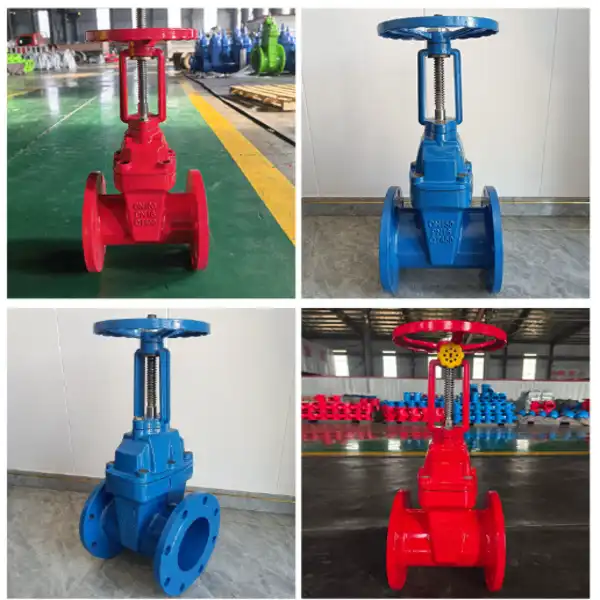

OS&Y vs. NRS: Two Critical Design Variants

The OS&Y (Outside Screw and Yoke) gate valve and the NRS (Non-Rising Stem) gate valve are the two most common types. When the valve opens, the OS&Y stems stretch, which lets emergency workers see right away what's going on. This is required by NFPA 13 for controlled water supply lines. NRS valves are put in places that are underground or don't have a lot of room. They are usually paired with a wall post indicator plate so that the status can be checked from afar.

How Fire Protection Flanged Valves Enhance Building Safety

In the United States, building codes like NFPA 25 and IFC Chapter 9 say that Fire Protection Flanged Valves must always be fully functional. Zone-by-zone control is possible with a flanged isolation valve, so if one pipe fails, it doesn't affect the whole suppression network. This zonal design is very important in places like petrochemical plants, high-rise office buildings with ESFR sprinkler systems, and industrial stores where fire water ring mains need to stay pressurized all the time.

Real-World Performance Under Pressure

When Early Suppression Fast Response sprinklers are used in large logistics centers, the flanged OS&Y valves on the suction and discharge sides of fire pumps must be able to handle both vibration and high-volume surges at the same time. Field data from FM Global's loss prevention study shows that properly chosen and kept gate valves cut down on system unavailability events by a meaningful amount compared to valve types that were not properly chosen. The full-bore design doesn't block flow, so the hydraulic calculations built into the sprinkler layout are kept.

Durability in Harsh Environments

Valve exposure to chloride-filled air and chemical vapors happens in petrochemical refineries and on marine platforms. The anti-corrosion layer that is put on each valve body—which was proven to work by using high-voltage monitors to find pinholes as small as a few microns over the holidays—keeps metal from breaking down too quickly. Stainless steel stems and EPDM-encapsulated durable wedges make it even more likely that a valve that has been sitting still for years will still be able to open and close without sticking in an emergency.

Choosing the Right Fire Protection Flanged Valve for Your Building

Three things must be matched in order to choose the right Fire Protection Flanged Valve: the pressure rating, the flange standard, and the material grade. Buildings with less than ten stories usually need at least 175 PSI working pressure. High-rise buildings with multiple-stage fire pumps may need 300 PSI or higher ratings. If you put a PN16 valve on an ANSI 125 pipe system that isn't the right size, the bolt circles won't work together. A gasket can't fix this problem, and it's an expensive and dangerous mistake.

Here are the core selection criteria that procurement engineers consistently rely on:

• Material grade: Ductile iron to ASTM A536 Grade 65-45-12 has better tensile strength and impact resistance than regular gray cast iron. This makes it the best body material for high-demand places like factories and public buildings.
• Pressure and size range: Valves with sizes ranging from 2" to 12" (DN50 to DN300) can fit most business and industrial risers. Specialized pump systems can use custom pressure ratings of up to 600 PSI.
• Flange standard alignment: The face-to-face dimensions must match the existing pipework and be in line with ANSI B16.10. When ANSI and DIN bolt designs are mixed without slotted universal flanges, expensive adapters and schedule delays are needed.
• Operating method: Most sprinkler zone valves can be operated by handwheel; electric or pneumatic actuators work well for systems that need to be watched from afar in utility and HVAC settings.

By checking these criteria in a planned way, the most common design mistakes that cause installation rework and compliance failures are wiped out.

Procurement and Supply Chain Considerations

When buying Fire Protection Flanged Valves in a business-to-business setting, you need more than just low unit prices. Before putting in a buy order, procurement managers should make sure that the item has a UL listing mark, an FM approval class number, an ISO 9001 quality management certificate, and a CE statement of conformity. There should be records in every shipment that connect the physical valve to its hydrostatic shell test result (usually done at 2× to 4× rated working pressure) and seat leakage test data that shows it seals without bubbles according to FM 1120 standards.

When you buy in bulk from a company that can cast, machine, assemble, and finish the parts themselves, the supply chain is shorter, and there are fewer quality handoff risks. Customizing dimensions like non-standard face-to-face lengths, special flange drilling patterns, or changed pressure ratings is also possible without having to use outside fabricators. It's just as important for MRO teams that are in charge of ongoing facility maintenance cycles to have verified after-sales support, such as technical documentation, spare parts availability, and quick engineering consultation.

Best Practices for Installation and Maintenance

A big part of Fire Protection Flanged Valve problems that happen too soon are caused by poor fitting. Before the bolt is tightened, the sides of the flanges must be straight and lined up. An angle difference of as little as 2mm across a 6" flange can cause the valve body to crack when it is under pressure. The service fluid and pressure class must match the gasket that is chosen. To spread the load evenly across the gasket, bolts need to be tightened in a cross-pattern order.

Maintenance Schedule Per NFPA 25

NFPA 25 says that watched valves must be checked at least once a year and fully cycled (opened and closed under pressure) at least once a week or once a month, based on the method of supervision. Cycling once a year stops stem rust and checks the soundness of the wedge. If the packing gland leaks around the stem after installation, loosening some of the gland nuts should fix it. If the stem bends because of rough handling, however, the whole unit should be replaced.

Conclusion

One of the most important safety purchases a building can make is a Fire Protection Flanged Valve that is properly installed and kept up. These parts do a job that no other valve type can do as well in terms of structural confidence. They do things like zone isolation in high-rise wet risers and corrosion resistance in outdoor industrial fire loops. If you buy from a maker that backs up every unit with confirmed certifications and hydrostatic test data, and make sure that the pressure number, material, and flange standard are all right for the system, you can lower the risk over its entire life and be more sure that you are following the rules.

FAQ

What distinguishes a fire protection flanged valve from a standard industrial valve?

There are two types of certifications that fire-rated flanged valves don't have: UL Listing (UL 262) and FM Approval (FM Class 1120/1130). They also have OS&Y or NRS stem designs that are required by NFPA 13 and NFPA 25 for clear status signaling and monitoring of tampering.

How often should these valves be inspected?

NFPA 25 requires visible checks to be done once a week or once a month, based on the state of supervision. Once a year, a full open/close cycle must be done to avoid seizing and ensure wedge integrity.

Can these valves be used for potable water supply lines?

Fire service-specific fire safety valves are on the list. For low-lead compliance, dual-use in potable water systems needs NSF-61/372 certification. Before putting in a combined service, you should always make sure that the exact SKU has that extra entry.

What customization options are available?

Manufacturers can offer non-standard sizes (beyond DN50–DN300), different face-to-face dimensions, special pressure ratings of up to 600 PSI, and different ways of operating, such as electric or pneumatic actuators.

Partner with FLA Industrial & Trading Co., Ltd. for Certified Fire Protection Flanged Valve Solutions

FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing experience to every flanged valve we produce. As a trusted fire protection flanged valve manufacturer, we supply UL-listed, FM-approved, ISO 9001-certified valves in cast iron, ductile iron, and carbon steel across sizes 2" to 12". Custom specifications, 3D design confirmation, and 24–48-hour technical response keep your procurement moving. Contact our engineering team today at sales@flaindustrial.com or visit flaindustry.com to request a catalog or competitive quote.

References

1. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. 2022.

2. National Fire Protection Association. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. 2023.

3. FM Global. Property Loss Prevention Data Sheet 2-0: Installation and Maintenance of Private Fire Service Mains. 2021.

4. Underwriters Laboratories. UL 262: Standard for Gate Valves for Fire-Protection Service. 2019.

5. American Society of Mechanical Engineers. ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings. 2020.

6. American Water Works Association. AWWA C550: Protective Interior Coatings for Valves and Hydrants. 2017.
