Agricultural Machinery Counterweights: How to Match Weight and Fit

When a tractor tips forward during front-end loader work or loses rear traction while plowing heavy clay, the root cause is almost always improper ballasting. An agricultural machinery counterweight is a precision ballast component engineered to redistribute axle loads, stabilize the center of gravity, and transfer engine torque into usable ground force. Getting the weight and fit right is not guesswork — it requires matching specific load values, mounting configurations, and material grades to your exact machine and field conditions. This guide walks you through everything you need to know.

Specification

Product Name	Weight Specification	Design Type
Agricultural Machinery Counterweight	20kg	Narrow Slot
Agricultural Machinery Counterweight	20kg	Wide Slot
Agricultural Machinery Counterweight	20kg	Square
Agricultural Machinery Counterweight	40kg	Old Model
Agricultural Machinery Counterweight	40kg	New Model
Agricultural Machinery Counterweight	45kg	Standard
Agricultural Machinery Counterweight	50kg	Arc-shaped

Understanding Agricultural Machinery Counterweights: Purpose and Benefits

What a Counterweight Actually Does

The center of gravity of a tractor or harvester is moved by a ballast weight or counterweight. This lets all of the axles carry the load they were formed to carry. Trucks with a lot of torque often have wheel slip rates above 15% if they don't have the right ballast. This wastes fuel, compacts the ground, and shortens the tire life. You should aim for about 40% front weight and 60% back weight for draft work. This will keep the grip on the tires the same and make the engine less stressed.

Types Available on the Market

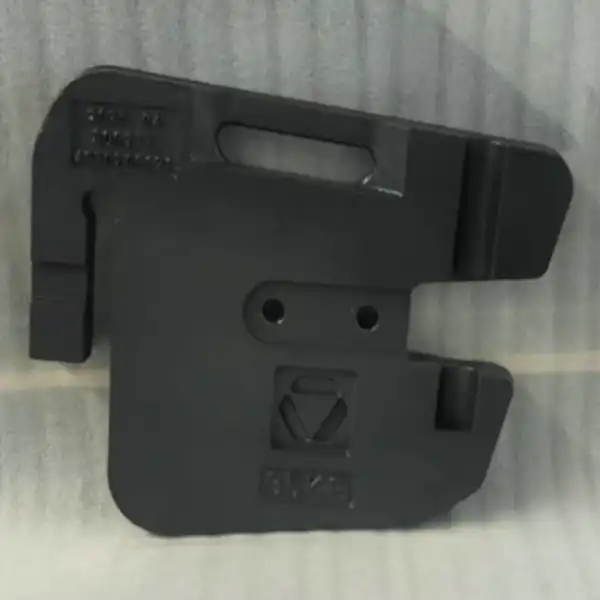

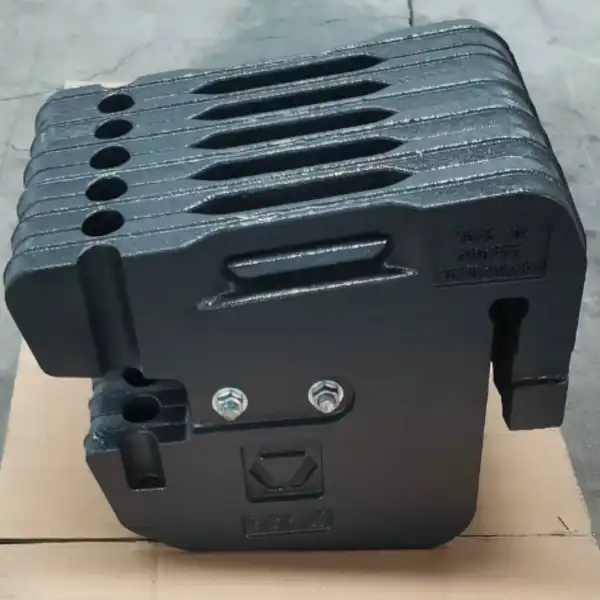

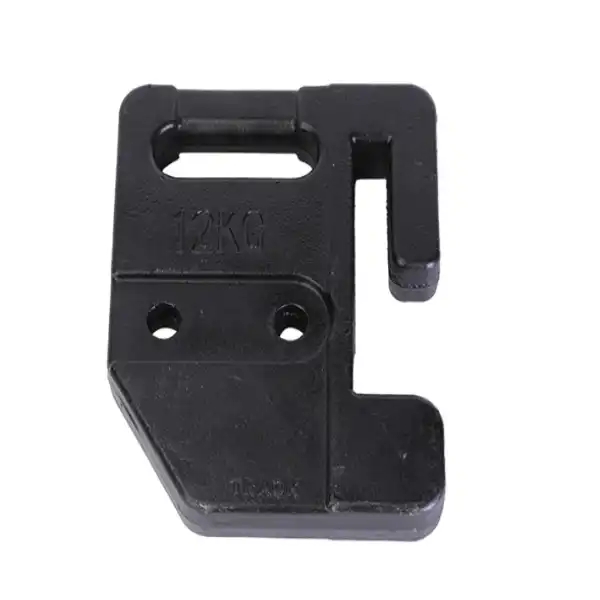

There are three main types of weights used in farming: suitcase weights (front-bracket plates that can be stacked and weigh 42 or 88 pounds each), wheel weights (weights that are bolted directly to the wheel for rear traction), and 3-point hitch ballast boxes (frames in the back that are filled with cast iron blocks or concrete). For regular tasks with steady loads on the tools, fixed weights work best. On the other hand, portable systems let workers switch between light and heavy tasks as needed during the day.

Why Material Grade Matters?

Gray cast iron, graded HT200 or HT250 under ISO 185, is the standard for how heavy suitcases and wheels can be. This is the same as ASTM A48 Class 30/35. With a density of about 7.2 g/cm³, it's possible to make small shapes that still leave enough ground room. It's also much better than concrete or mild steel plate at dampening vibrations. Ductile iron is used when something needs to be able to hold its shape against field shocks and has a tensile strength of more than 400 MPa.

How to Correctly Match Counterweights to Your Agricultural Machinery?

Step 1 — Identify Your Machine's Ballast Target

Start with the ship's load chart. 45 to 55 kg per engine horsepower is the norm for heavy draft work. For a 150-hp tractor to be in the middle at 50 kg/hp, it needs to weigh about 7,500 kg altogether. The ballasting gap is the difference between how much the tractor weighs on its own and how much the work tools weigh. There are axle load tables in the user guides for John Deere, Kubota, and AGCO. This is the main list of papers you will use as guides.

Step 2 — Match Mounting Compatibility

The shape of the mounting is different for each brand and model line. There is a difference in the way the front bracket holes are made on a John Deere 6R and a Kubota M7. Before you order a lot, make sure you know the bolt circle diameter, hook notch width, and bracket clearance of the machine you want to repair. Go/No-Go gauges and Coordinate Measuring Machine (CMM) inspections are used by professional suppliers to make sure that dimensions are met before shipping. This lowers the number of items that need to be returned for fitment on-site.

Step 3 — Account for Terrain and Operation Type

Your weight goes forward a lot when you gather corn with a wide header on ground that slopes. You need to add an Agricultural Machinery Counterweight to the rear steering axle to keep the back wheels on the ground so you can turn. We need back support for front-end loaders to do hay work so the front axle doesn't get too heavy and damage the frame. You need back wheel weights to improve grip when plowing heavy clay without putting too much stress on the transmission case. If you're going to use ballast, make sure it's right for the job, not just the machine.

Comparing Counterweight Options: Materials, Types, and Performance

Grey Cast Iron vs. Steel vs. Concrete

It is still best to use cast iron for solid ballast parts because it is dense, doesn't move, and can be made into difficult shapes. Other types of weights are bigger and heavier than steel plate weights. This makes them better for systems that can be changed and have mass added or taken away often. Although concrete-filled ballast boxes use less material, they need a lot more of them to get the same mass. This can make it harder to move and raise the center of gravity, which are both bad things.

Fixed vs. Adjustable Systems

Fixed weights, like bolted suitcase stacks or cast wheel weights, make sure that the load is spread out evenly and can't move while the machine is running. Adjustable or modular systems make it easy for operators to quickly add or remove plates. This helps when one tractor does both light spraying and heavy plowing as part of a mixed fleet. You have to pay more for changeable bracket systems than for simple set stacks at first.

OEM vs. Aftermarket Counterweights

OEM weights from companies like CNH or AGCO promise that they will work with the dimensions, but they may cost more and take longer to get. Aftermarket counterweights that are made to ISO 185 and ISO 4298 dimensions and have weight tolerances of ±2% or better are just as good as the originals but cost less, especially when ordered in bulk for a mixed fleet.

Procurement Considerations for Agricultural Machinery Counterweights

Evaluating Supplier Quality Control

A reputable company that makes tractor counterweights should be able to give you written quality control guidelines. Spectrophotometer chemical analysis should show that the phosphorus content is less than 0.15% (high phosphorus levels cause cold-shortness cracks), acoustic NDT results should show that there is no internal porosity, and weight certificates should show that each batch falls within tolerance. For good coats, the ASTM B117 test should be passed after at least 500 hours. This means they won't rust when they come in contact with fertilizer and water.

Custom and Bulk Order Advantages

Custom casting is a good choice for teams that use non-standard trucks or tools. If a maker knows how to 3D scan and reverse engineer, they can use an engineering plan or sample to make a copy of any mounting arrangement. The price per unit goes down when you buy in bulk, and it's easier for buyers who sell to the U.S. market when they can ship from one place.

To make sure they know what the main benefits of a balance are before placing an order, buyers should check with any supplier:

We used high-quality cast iron and steel to build it. A spectrometer test confirmed the grade of the materials by checking the density and making sure the structure would hold up against field shock loads.

Custom weight and attachment arrangements—the mold design was changed to fit certain bracket shapes for Kubota, John Deere, Case IH, and other major platforms. A CMM check proved this.

A two-step process was used to protect the Agricultural Machinery Counterweight against corrosion: shot blasting to Sa 2.5, then an E-coat primer and a polyurethane finish. The finish passed ASTM B117's 500-hour salt spray tests. Accurate weight tolerances are kept to ±2%. This stops both fraud involving castings that are too light and the risk of axle overloading that comes from castings that are too heavy.

• High-grade cast iron and steel construction — material grade verified by spectrometer analysis, ensuring density consistency and resistance to fracture under field shock loads.
• Custom weight and mounting configurations — mold design adapted to specific bracket patterns for John Deere, Kubota, Case IH, and other major platforms, verified by CMM inspection.
• Multi-stage anti-corrosion treatment — shot blasting to Sa 2.5, followed by E-coat primer and polyurethane topcoat, passing 500+ hour salt spray testing per ASTM B117.
• Accurate weight tolerances held to ±2% — preventing both underweight fraud and the axle overload risks caused by castings that are heavier than specified.

These quality standards directly lower the number of rejections that happen on-site, disputes over equipment warranties, and unplanned downtime. There is a lot of money that procurement managers lose when they sell to construction companies, agricultural dealers, or big farms because of these things.

Maintenance, Safety, and Best Practices for Agricultural Counterweights

Routine Inspection Protocols

Check the screws and brackets every 250 hours of use or at the start of a new season. Bit by bit, shocks can loosen screws, and a front bag weight that falls off can become very dangerous. Look for cracks or rust in the layer, especially where the bolt holes are, and water tends to gather. Use a zinc-rich primer that works with the coating right away to touch up any bare metal.

Safe Handling and Installation

Each suitcase weighs around 42 to 110 pounds most of the time. Lifting hooks and automatic help should always be used. Never try to lift something by hand that one person can't safely do. You should wear steel-toed boots and gloves at work. To get the bolts tight enough according to the manufacturer's instructions, you should use a torque wrench that has been calibrated. If you don't, bracket fatigue cracks can form on the frame of the tractor.

Identifying Imbalance and When to Resize

When the rear implements are being used, the front end should lift all the time, but if it does, the rear wheels should spin on hard ground, which should give them good grip, or the machine should feel strange when turning on hillsides. With the tool's weight and the ground's state in mind, you should double-check your axle load numbers if these things happen. Adding a small amount of weight, like one packing plate, can fix small balancing issues. If the imbalance is big, the ballast might need to be moved around a lot.

Conclusion

It is very technical to find the right ballast size and weight for your machine using an Agricultural Machinery Counterweight. This can have real effects on safety and output. Gray cast iron is still the best choice for most farming tasks, and the mounting contact needs to be made to exact measurements. When you buy from a manufacturer that controls the material grade, casting tolerance, and surface treatment from production to shipment, you can be sure that your investment is safe and that the machinery keeps running at the level of performance that was intended for it. This is true whether you are ordering one replacement or a lot of them.

FAQ

How do I calculate the exact counterweight I need?

Start with the amount of ballast to horsepower that the maker suggests. For heavy draft work, this is usually between 45 and 55 kg/hp. Take the total weight you want to reach and take away the working weight of the machine and the weight of the tools. What's different is how much mass you need. On a snowy day, you should split this evenly between the front and back axles to get the 40/60 split.

Are adjustable counterweights worth the extra cost?

Trucks that only do one thing and always have the same load on their implements will last longer with fixed stacks. For machines that do both light and heavy work on a daily basis, being able to add or remove plates without tools saves money on fuel and tire wear in just one or two seasons.

When should I use a professional installer?

If the front bracket system needs to be drilled into the frame or if this is your first time setting up back wheel weights on a machine with more than 150 hp, you should have a professional do it. When heavy parts are mounted incorrectly, they can damage the frame of the tractor or make commercial farms liable.

Partner With FLA Industrial & Trading Co., Ltd. for Your Next Order

You're getting something from a company that has been making things for almost 40 years when you buy an Agricultural Machinery Counterweight from them. FLA works with partners in the Fortune Global 500 and has more than 1,000 product standards. They make Agricultural Machinery Counterweights that people in the U.S., Germany, and Australia trust and buy from them. Following ISO 185 guidelines, each casting has several layers of anti-corrosion coatings, a unique way of being fixed, and a weight limit that has been checked. You can go to flaindustry.com or email sales@flaindustrial.com to get a quote.
