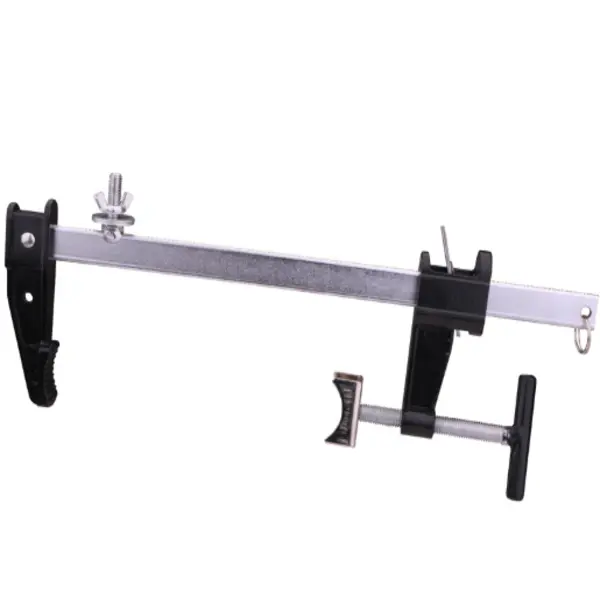

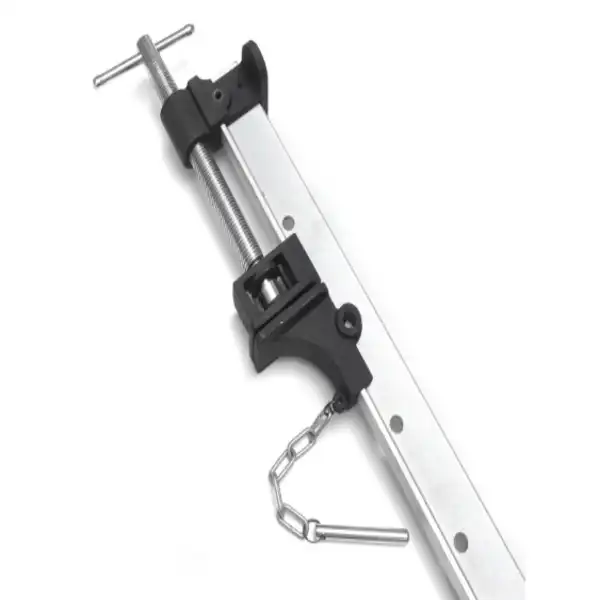

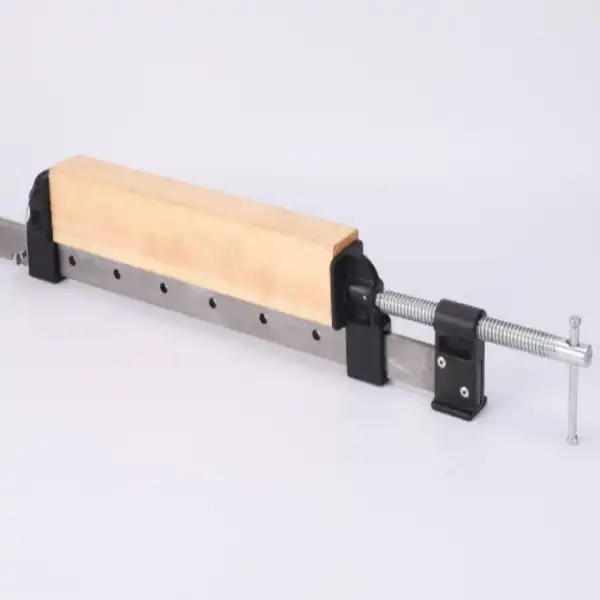

Heavy-Duty T-Clamps for Structural Assembly: Fit, Load, and Durability

It's important to choose the right clamping tool for safety, accuracy, and the success of the project when building something that can't fail. In order to hold heavy loads in construction, metalworking, and woodworking, a T-Clamp/heavy-duty-t-clamp">heavy-duty T-clamp is made of cast steel. Its T-frame shape, which is different from regular bar clamps, spreads pressure evenly and lets it reach deep into workpieces with throat depths of up to 300mm. FLA Industrial & Trading Co., Ltd. makes these clamps from ISO9001-certified carbon steel and alloy steel. Their sizes range from 48" to 72", and they are used for tough industrial and building assembly work.

Specification

Specification Model	Maximum Clamping Distance (mm)	Throat Depth (mm)	Total Length (mm)
Heavy Duty T-Clamp 48"	1210	200	1210
Heavy Duty T-Clamp 60"	1520	300	1520
Heavy Duty T-Clamp 72"	1830	300	1830

Understanding Heavy-Duty T-Clamps: Design, Materials, and Load Capacity

What Separates Heavy-Duty T-Clamps from Standard Clamps?

For light assembly, most clamps work fine, but for building things, you need more. Cast carbon steel or alloy steel makes up the frame of a Heavy-Duty T-Clamp. This means it can hold heavy tension loads without breaking or wearing out. The shape of the body, which is like a T, makes the pressing force fair across the contact area. This keeps the piece from changing shape when it is pressed down. Because of the shape, it is safe to use for welding fixings, making things out of steel, and building strong structures that won't move or fall.

Material Grades and Surface Protection

CO2 or alloy steel is used to make the bases of FLA's T-clamps. This type of steel is strong when stretched and doesn't break easily. If you powder-coat or spray-finish the surface, it will be safe from rust, chemical damage, and everyday use on the job site. Building sites and shops that work with metal always have water and cutting tools, so this is important. You can stick powder coating right to the steel base, and the finish lasts longer than paint. Also, it doesn't make the tool tougher.

Load Ratings and Industry Testing Benchmarks

The clamping force is found by looking at the screw thread pitch and the cross-section of the frame. When people buy clamps to put together structures, they should make sure that the load ratings are backed up by performance tests and not just theoretical ratings. When FLA ships an order, they test each unit's binding force to make sure it's the right size and works well. When you get ISO9001 approval, everything that goes into making something is controlled, from getting the raw materials to checking it one last time. This makes sure that the quality of each batch is the same.

How to Select the Right T-Clamp for Your Structural Assembly Needs?

Matching Size Specifications to Your Application

FLA makes three standard sizes: the 48" (1210mm clamping distance, 200mm throat depth), the 60" (1520mm throat depth), and the 72" (1830mm throat depth). Make sure you measure the whole piece and that the throat depth lets you reach the edge when you make your choice. A 60" or 72" model works best for large steel frame assemblies and building forms, while a 48" model works best for metalworking and woodworking tools that aren't too big or too small. Every time you clamp something, make sure that the throat depth and maximum closing distance are right for its shape.

Comparing T-Clamps Against Alternative Clamping Solutions

Before you buy something, it's good to know when a T-clamp is better than other types. There is no doubt about this comparison:

• T-Clamp vs. g-clamp: g-clamps have a narrower throat and less rigid frames. T-clamps are better for structural steel work because they can reach further and apply more consistent pressure to wider pieces of steel.
• T-Clamp vs. F-Clamp (Bar Clamp): F-clamps can be adjusted over a wide range, but at their longest length, they lose some of their gripping force. T-clamps have a set frame that keeps the maximum gripping force even when the span is fully extended.
• T-Clamp vs. V-Band Clamp: V-band clamps connect two plates along an axial axis, but they can't be switched out for T-clamps, which hold workpieces in place during assembly processes by applying radial compression.

Things get out of alignment when you choose the wrong type of clamp, and you have to pay to fix them. The Heavy-Duty T-Clamp design always gives the holding strength needed for putting together metal plates, wooden frames, or building parts.

Custom vs. Off-the-Shelf Options

In the event that standard sizes don't work for your assembly needs, FLA can make frames with non-standard dimensions and designs. From 7 to 15 days, custom OEM solutions can be sent out. This is helpful for production workers who need to make sure that parts fit properly. With "off-the-shelf" models, you can ship them right away from stock. This is helpful for builders and distributors who need to replace quickly and don't want to wait for lead times.

Installation and Maintenance Best Practices for Maximum Performance

Step-by-Step Installation for Secure Clamping

Misalignment, uneven load transfer, and structural failure can be avoided by installing things correctly. For the best results, do these things in order:

1. Place the T-clamp jaw squarely on the surface of the workpiece. Contact at an angle causes stress to be distributed unevenly, so avoid it.
2. If you are using more than one clamp on the same assembly, tighten the screw slowly and in stages.
3. Before applying full clamping force, check the alignment by looking at it. Change things early, not after.
4. Make sure the clamp pad covers the whole surface of the material, especially if the stock is bent or not straight.

The most common installation mistake on fabrication sites is skipping the alignment check. This is also one of the easiest mistakes to avoid.

Maintenance Routines That Extend Tool Life

Regular repair directly lowers the number of times something needs to be replaced and the total cost of ownership. Some important routines are:

• Once a week, check the screw thread for damage, corrosion, or wear. Unexpectedly, damaged threads lower the binding force.
• Clean the jaw and screw of any metal shavings, weld spatter, or other debris after each use. These particles make contact surfaces wear out faster.
• Lubrication: Use a light machine oil or an anti-galling compound to coat the screw thread every so often. This keeps things from freezing up, especially in places with a lot of heat, like welding shops.
• To protect the powder-coated surface, clamps should be kept in a dry place away from direct water contact.

Any industrial-grade clamp will last for years if it is maintained regularly.

Troubleshooting Common Problems

Slippage during assembly usually means that either the clamping force is not strong enough or the screw thread is worn. If there is misalignment in a welded joint, it means that different clamps are not being tightened equally. If the screw won't turn when the load is normal, grease it and check the thread for galling or distortion. With cast steel construction, material wear in the frame is rare, but if you see cracks near the throat, you should change the clamp right away—do not keep using one that is physically weakened.

Procurement Strategies: Price, Suppliers, and Bulk Orders

Sourcing from Established Manufacturers

When buying a lot of industrial clamps, licenses and records of past production from the seller are more important than just the price in the catalog. FLA Industrial & Trading Co., Ltd. has been making Heavy-Duty T-Clamp Products" target="_blank" style="color:blue" >products for almost 40 years and is ISO9001 certified, which means that their quality management system is checked by outside auditors. FLA's products are trusted by Fortune Global 500 companies, and they sell them in the U.S., Germany, and Australia.

Bulk Procurement Benefits and Lead Times

FLA keeps 2,000 tons of standard parts in stock, so wholesalers and builders don't have to worry about meeting a minimum order requirement. Standard models are sent out right away. It takes 7–15 days to finish custom configurations. When you buy in bulk, you can usually get better per-unit prices, and when you buy directly from the manufacturer, you skip the markups that make prices go up for people who buy a lot.

Evaluating Supplier Reliability

Before you place a large order, make sure you get ISO certificates, recent test reports from a third party, and client references. A reputable Heavy-Duty T-Clamp provider will give you all the technical information you need, such as dimensional limits, load test results, and surface finish standards. Technical questions are answered by FLA within 24 to 48 hours, and 3D drawings for unique setups can be sent upon request.

Case Studies: T-Clamps in Real Structural Assembly Scenarios

Construction Site Formwork Application

An industrial building contractor needed clamps that could hold steel formwork pieces in place while they were being poured with concrete over and over again. With FLA's 72" T-clamps, the site team was able to align panels consistently across large pour sections. This cut down on the time it took to reset the forms between pours. With the deep throat depth, the clamps could be used far from the edges of the panel, which wasn't possible with regular C-clamps.

Metal Fabrication Workshop

It was during MIG welding that a structural steel maker moved to alloy steel T-clamps because the frame would bend with lighter clamps. FLA's forged design kept the joints in place during the welding process, so there was less need for repair due to changes in the joint gap. The powder-coated finish also held up in the shop, where it was constantly exposed to weld spatter and grinding dust.

Woodworking Assembly Line

A company that makes furniture and big cabinet frames put 60" T-clamps in their glue-up stations. The longer clamping distance covered the whole width of the panel, and the comfortable screw mechanism made it easy for workers to quickly attach and remove clamps during a busy production schedule without getting tired.

Conclusion

Choosing the right structural clamp affects the accuracy of the assembly, the safety of the workers, and the long-term cost of the tool. Heavy-Duty T-Clamps made from forged carbon or alloy steel, with the right surface protection and manufacturing that is backed by ISO9001, provide procurement teams and site engineers with a dependable holding solution that can be used over and over again in construction, metalworking, and woodworking. FLA Industrial & Trading Co., Ltd. has three standard sizes, fast delivery, and options that can be made to fit the exact needs of your project. Because they are made of high-quality materials, come in a range of sizes, and are consistently made, these clamps are a good choice for hard structural work.

FAQ

How do I correctly size a T-clamp for structural assembly?

Measure the full clamping span of the workpiece and compare it to the clamp's maximum clamping distance. Also verify the throat depth covers your required reach from the workpiece edge. FLA's 48", 60", and 72" models cover clamping distances from 1210mm to 1830mm, with throat depths of 200mm and 300mm respectively. Select the model where your measurements fall within the rated range.

Can these clamps be reused across multiple projects?

Yes. Forged steel T-clamps are designed for repeated industrial use. After each project, inspect the screw thread and jaw surfaces for wear, clean debris from contact areas, and lubricate the thread. Avoid using a clamp with visible frame damage or stripped threads, as these reduce holding reliability.

What is the difference between carbon steel and alloy steel versions?

Carbon steel provides strong holding force and suits general-purpose fabrication and construction. Alloy steel incorporates additional elements that increase tensile strength and resistance to fatigue, making it appropriate for higher-load or high-cycle applications. Both options from FLA carry the same ISO9001 quality standard and surface finish protection.

How do I prevent thread galling during repeated tightening?

Apply a light machine oil or molybdenum disulfide compound to the screw thread before installation. This reduces friction between the thread surfaces and prevents seizing, particularly in heated environments such as welding stations.

Partner With FLA Industrial for Your Next Bulk Order

FLA Industrial & Trading Co., Ltd. sells tried-and-true structure clamping tools that are backed by almost 40 years of experience making them. As a reliable Heavy-Duty T-Clamp manufacturer, FLA offers three common size choices, output that is ISO9001-certified, and the ability to make custom parts. FLA's team replies within 24–48 hours, whether you need stock delivered right away or a custom OEM setup. You can email us at sales@flaindustrial.com or go to flaindustry.com right now to get specifications, samples, or a bulk quote.
