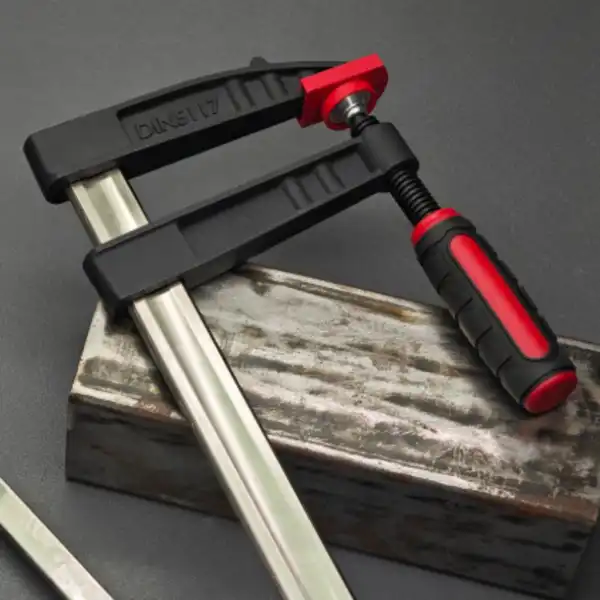

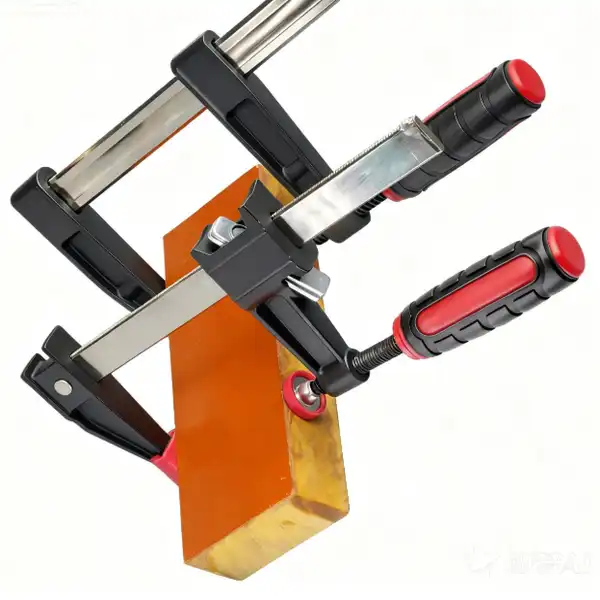

Ratchet F-Clamp for Precision Assembly in Furniture Manufacturing

When it comes to precision assembly in furniture manufacturing, the F-Clamps/ratchet-f-clamp">ratchet F-clamp stands as one of the most dependable holding tools available. Unlike conventional screw clamps that demand two-handed operation and slow manual tightening, a ratchet F-clamp uses a trigger-operated linear mechanism combined with a friction-plate braking system. This allows the movable jaw to slide freely along the steel rail for rapid positioning, then lock firmly with a single-handed squeeze. For production engineers and plant managers running high-volume cabinet or joinery lines, this translates directly into faster cycle times, fewer misalignment errors, and measurably lower operator fatigue during extended shifts.

Specification

Model	Overall Length (mm)	Shearing Capacity (mm)	Plier Handle Length (mm)
Track Ratchet F-Clamp 120×60	160	110	150
Track Ratchet F-Clamp 160×60	210	160	150
Track Ratchet F-Clamp 200×60	250	200	150
Track Ratchet F-Clamp 300×60	350	300	150

Understanding Ratchet F-Clamps and Their Role in Furniture Manufacturing

How the Ratchet Mechanism Works

Ratchet F-Clamps are completely different from standard bar clamps or C-clamps in how they are built. The structure is held together by a bendable cast iron rail and a precisely made steel screw rod. The trigger mechanism engages induction-hardened serrations along the bar, making a ratcheting lock that keeps the pressure steady without having to be adjusted all the time. This design directly solves what craftsmen call the "third hand problem"—the constant inability to hold a piece of work in place and clamp it down at the same time.

Advantages Over Conventional Clamping Tools

When making furniture, glue open times are usually limited to 5 to 15 minutes, based on the type of glue used. When screw-based clamps are tightened, they take up a lot of that window space. A Ratchet F-Clamp cuts down on the time it takes to set up the clamps, which lets workers hold more than one part within the working window of the adhesive. Non-marring TPR jaw pads keep veneered surfaces, glossy panels, and wooden parts safe from damage when they are compressed. This is very important when making cabinets, because the quality of the surface directly affects the value of the finished product.

Choosing the Right Ratchet F-Clamp for Your Manufacturing Needs

To choose the right clamping tool, you have to make sure that the technical specs of the clamp match the conditions of production. The most important factors are the clamping force grade, the throat width, and the opening capacity compared to the size of the workpiece.

Before they source, buying teams should look at these core design parameters:

• Clamping Force: The Ratchet F-Clamps from FLA can hold up to 2000N. For heavy-duty woodworking glue-ups and frame assemblies, the joint usually needs to be under constant pressure for the whole curing process. Make sure that the rated force meets or exceeds the load standards for your setup.
• Throat Depth: Standard configurations range from 50mm to 300mm, but custom sizes can be made upon request. When the throat depth is deeper, the jaw doesn't touch the edge of the workpiece when wider panel stock and box frame assemblies are being put together.
• Opening Capacity: Standard sizes go from 100mm to 1000mm. For cabinet body assembly, openings need to be bigger than 600mm, which most standard clamps can't do without a special bar extension.
• Finish Specification: You can choose between a painted or zinc-plated finish. When used in wet workshops or places that use water-based glues and finishes, zinc plating is better at resisting rust.

When carefully matched to production scenarios, these parameters get rid of the common procurement mistake of buying clamps based only on price, which often leads to tools breaking down early and unplanned downtime.

Material and Construction Quality

Ratchet F-Clamps from FLA are made from steel screw rods and cast iron tracks that can be shaped. They are put together using ISO9001-certified quality control procedures that include casting, forging, machining, and assembly steps. There is a clear benefit to malleable cast iron over regular gray cast iron: it can handle impact loads without breaking, which is very important when clamps need to be moved around a lot on a busy factory floor.

Enhancing Precision Assembly Efficiency with Ratchet F-Clamps

In furniture assembly lines, production problems often start at the clamping stage. As a result, output rates drop, and error rates rise when workers spend too much time fixing screw clamps or realigning pieces that moved during slow tightening. A well-designed Ratchet F-Clamp stops both types of failure at the same time.

A mid-sized cabinet maker with three assembly stations said that switching from traditional bar clamps to ratchet-style holding tools across their glue-up line cut the time it took to put together each unit by 22%. The amount of wrist tiredness reported by operators also went down, which cut down on mistakes caused by rushing or not fully closing during the last hour of production shifts.

When the clamps are placed correctly, these gains are amplified. When you put the clamp jaw perpendicular to the joint line, the pressure is spread out evenly across the glue surface. This stops the "starved joint" flaw that happens when pressure builds up in one place. Using opposing clamp pairs across the diagonal of a panel in frame assemblies stops racking forces and keeps the panel square during curing.

Repeatability and Quality Consistency

A production-grade Ratchet F-Clamp is different from a general-purpose one in terms of how well it works every time. The ratchet mechanism locks at consistent contact points along the serrated bar. This means that when workers apply the same trigger force to different units, the clamping pressure is almost the same. This uniformity is very helpful in CNC-supplied furniture lines where measurements must be exact and joint gaps must stay within a few thousandths of a millimeter.

Maintenance and Safety Guidelines for Ratchet F-Clamps

Regular maintenance directly increases the useful life of any Ratchet F-Clamp that uses friction. The part that wears out the fastest is the steel bar with the sharpened edges. Glue residue, sawdust, and machine oil on the bar surface keep the friction plates from locking properly, which is the main reason why people complain about slippage in the field.

Recommended maintenance practices include:

• Bar Cleaning: After each shift, wipe the steel bar down with a cloth dampened with solvent to get rid of any buildup of glue and dirt.
• Lubrication Protocol: Only put dry PTFE spray or graphite powder on the internal trigger pivot points. Don't put liquid grease on the bar because it makes it easier to slip.
• Inspection Cycle: Every 500 operating cycles, check the condition of the friction plate and how sharp the serrations are. If the clamp has rounded serrations, it means it's no longer useful and needs to be changed before the joint fails.
• Storage: Hang clamps upright or lay them flat so that the bar doesn't bend when it's stacked. When bars are warped, they misalign the mouth and put uneven pressure on it.

For safety reasons, operators should never use more force than the clamping force is rated for, check the jaw pad's integrity before each use, and make sure the bar locks fully before letting go of the workpiece manually.

Procurement Insights: Where and How to Source Ratchet F-Clamps at Scale?

Hardware wholesalers and wholesale buyers can get precision Ratchet F-Clamps at low prices without sacrificing quality if they deal directly with ISO-certified makers instead of going through middlemen in the market. Direct relationships with suppliers are usually the only way to get volume discounts, custom SKU configurations, and private-label packaging options.

FLA Industrial & Trading Co., Ltd. has been in business for almost 40 years and has supplied over 1,000 different types of Products" target="_blank" style="color:blue" >products to customers in the US, Germany, Australia, and other important markets. Some of FLA's confirmed customers are Fortune Global 500 companies, which shows that the quality of their products meets strict international purchasing standards. Through FLA's engineering consultation process, which includes 3D design verification and performance testing before delivery, you can get throat depths that aren't standard, opening capacities that aren't standard, and mounting features that aren't standard.

When purchasing teams check how reliable a seller is, FLA's ISO9001 certification shows that quality management rules cover every step of the production process, from checking the raw materials to testing the finished assembly.

Conclusion

A correctly specified Ratchet F-Clamp makes it easier to put together furniture by setting up faster, maintaining uniform joint pressure, reducing operator fatigue, and lowering the number of mistakes that happen. When you combine flexible cast iron construction, precision steel hardware, and a reliable ratchet mechanism, you get results that regular clamping tools can't match. This is true whether you're making a lot of cabinets, custom woodwork, or frames. The best long-term returns come from buying things based on how well they meet specifications instead of just how much they cost per unit.

FAQ

What causes a ratchet clamp to slip under maximum load?

Most of the time, contamination on the steel bar is to blame for slippage at full load. The friction plates can't cleanly engage the serrations when there is glue residue, oil, or fine sawdust on them. Use a cleaner to clean the bar and check the sharpness of the serrations. End-of-service life is shown by rounded serrations.

Can these clamps handle both wood and metal assembly applications?

Yes, Ratchet F-Clamps from FLA are used for projects like woodworking, installing cabinets, and general putting things together. But because they are exposed to heat and spatter, normal types with composite parts are not good for welding. For help with a specific application, talk to FLA's engineering team.

How often should friction components be inspected in high-volume production?

In settings with constant production and multiple shifts, check the serrations and friction plates on bars every 500 operating cycles. Replace worn-out parts before they break. Waiting until they fail in plain sight increases the risk of quality problems and unplanned downtime.

What finish is recommended for humid workshop environments?

Zinc-plated finishes are better at resisting corrosion than painted finishes. They are also the best choice for buildings that use water-based finishes or adhesives or that work in places with a lot of humidity.

Source Your Next Bulk Order of Ratchet F-Clamps with FLA Industrial

Ratchet F-Clamps from FLA Industrial & Trading Co., Ltd. are ISO9001-certified and are sold all over North America by hardware stores, furniture makers, and building buying teams. As a direct manufacturer of Ratchet F-Clamps with almost 40 years of experience, we can meet your unique needs, offer competitive bulk prices, and answer technical questions within 24 to 48 hours. You can email our team at sales@flaindustrial.com or go to flaindustry.com to get a price that fits your needs.
