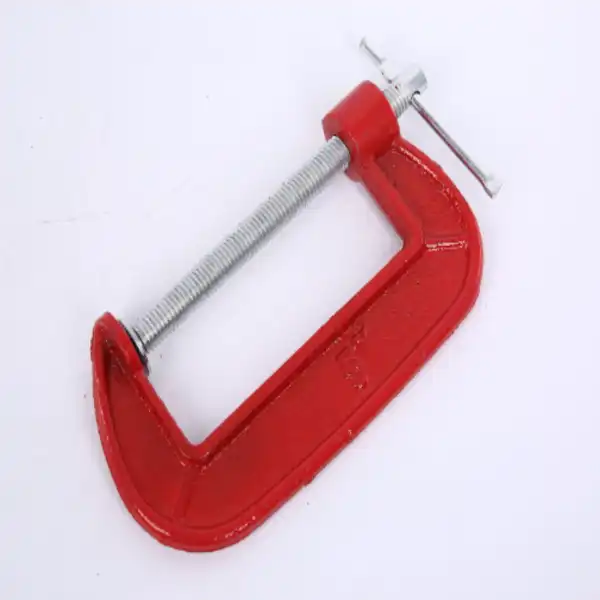

European Style C-Clamp for Welding Fixtures and Metal Fabrication

When professionals in welding fixtures and metal fabrication need a clamping solution that delivers precision without compromise, the European Style C-Clamp consistently rises to the top of the shortlist. Engineered with a deep-throat frame geometry and a reinforced ribbed structure, this clamp type achieves high holding force while maintaining an ergonomic weight profile. Unlike heavier American-style counterparts, the European design distributes clamping stress evenly across the frame, reducing workpiece distortion during critical fabrication stages. At FLA Industrial & Trading Co., Ltd., our malleable cast iron C-clamps with steel screw rods are manufactured under ISO9001 standards, available in nine sizes from 1 inch to 12 inches, serving woodworking, metal fabrication, and structural assembly applications worldwide.

Specification

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75 × 45 × 12
2 Inch	33	58	115 × 53 × 18
3 Inch	65	86	170 × 95 × 25
4 Inch	70	110	204 × 106 × 28
5 Inch	80	140	245 × 115 × 28
6 Inch	85	160	275 × 120 × 28
8 Inch	105	220	330 × 150 × 30
10 Inch	105	260	375 × 155 × 30
12 Inch	115	310	440 × 170 × 33

Understanding European Style C-Clamps: Features, Materials, and Specifications

What Sets the European Design Apart?

The European Style C-Clamp has a structural edge that starts with its deep-throat shape. Standard shallow-throat clamps can't compare to this extended throat depth because it lets users reach further from the edge of an item. When a lower-grade clamp is loaded, the "frame springing" effect happens. The ribbed or I-beam frame cross-section spreads the compression stress across the whole body, stopping this from happening.

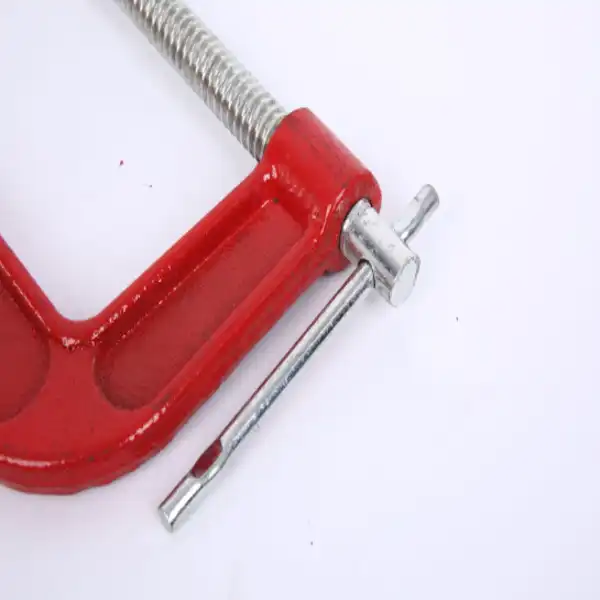

Our clamps are made of malleable cast iron and a steel screw rod that has been carefully polished. Malleable cast iron has good static stiffness and impact resistance, which makes it a good choice for heavy-duty industrial use. The steel screw rod has fine threads that allow for smooth, step-by-step changes in pressure, which is very important when working with delicate metal assemblies or joinery.

Paint or powder coating is used to finish each clamp before it ships. Powder coating, in particular, is very resistant to corrosion in damp workshop settings. The adhesion and thickness of the coating are checked continuously at our facility to make sure they meet our high standards for finish quality.

Comparing European Style C-Clamps with Other Clamping Solutions

Design, Force, and Application Differences

A lot of the time, procurement teams compare heavy-duty American clamps, quick-release clamps, and bar clamps to European Style C-Clamps. Understanding the differences between each type keeps you from making costly mistakes when matching the right tool to the right job.

The main differences between the most popular types of clamps are broken down below:

• European vs. American Style: The crushing strength of American heavy-duty clamps comes from their large size. European Style C-Clamp models have the same or more clamping power because the rib shape and metals used are engineered. This makes the tool lighter, better at reaching, and less tiring for the user to use for long periods of time.
• European vs. Quick-Release Clamps: Quick-release clamps put speed of use ahead of keeping strength. The screw-drive mechanism of a C-clamp gives you better control and keeping accuracy when you need to keep a fixture stable under long-term pressure during precision welding or glue-up.
• European vs. Bar Clamps: Bar clamps are great for holding large pieces of work together, but they don't have the focused clamping force or throat depth needed for close-to-edge applications. C-clamps apply focused pressure to a single point, which is very important for aligning welding fixtures.

When choosing clamping tools for use in factories, these differences are very important. When buying clamps for a metal fabrication shop, the purchasing manager will discover that European Style C-Clamp models consistently offer a mix of reach, force, and longevity that general-purpose clamps rarely match.

How to Use and Maintain European Style C-Clamps in Industrial Settings?

Best Practices for Longevity and Fixture Integrity

Using the right method will make the European Style C-Clamp last longer and keep the workpiece's sides from warping. When you put pressure on something, make sure the swivel pad is flat against the surface of the workpiece and slowly tighten it. Never apply full torque all at once, as this can cause tiny distortions in thin metal parts or wood grain compression.

Routine upkeep is easy to do and very important. Here are the main maintenance tasks that every shop should plan to do:

• Thread lubrication: Every 30 to 60 days of use, put some light machine oil on the threads of the screw rod. Dry threads make it harder to apply torque and speed up the wear of threads over time.
• Swivel pad inspection: Before each heavy-load application, check the pad retention collar for lateral play on the swivel pad. A good clamp has a crimped swivel pad design. If the pad starts to come loose, it means the clamp is worn and needs to be fixed right away.
• Frame inspection: After high-torque cycles, look for tiny cracks in the frame body, especially where the throat meets the frame. Malleable cast iron doesn't break easily, but obvious stress lines mean it needs to be replaced.
• Finish maintenance: Touch up coated areas that show bare metal to stop rust from spreading in places with a lot of humidity.

All of these things will cut down on unexpected downtime, keep the accuracy of the dimensions even after many clamping cycles, and make each tool in your collection last longer.

Selecting the Right European Style C-Clamp: A Decision-Making Guide for Procurement Teams

Key Criteria for Bulk and Project-Specific Sourcing

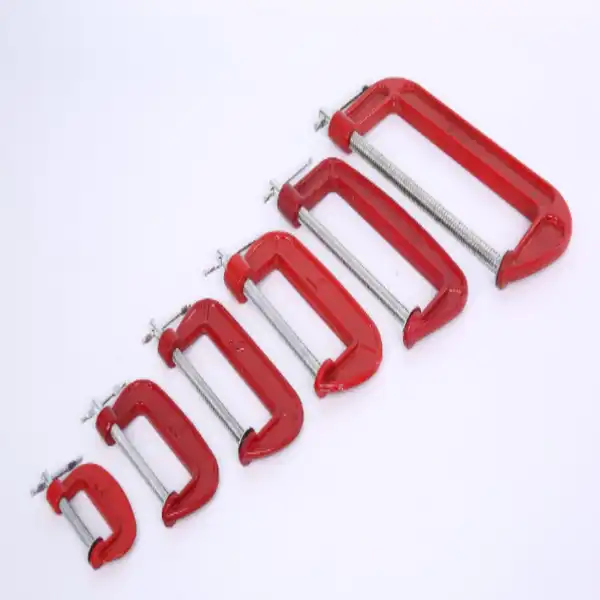

To choose the right European Style C-Clamp size and specification, you need to make sure that the jaw opening capacity and throat depth match the size of the workpiece you are making. Our range has nine sizes, ranging from 1 inch to 12 inches, so it can be used for everything from small cabinetry to heavy structural assembly.

Before committing to a seller, buying teams should look at more than just size:

• Load capacity verification: Make sure that the stated clamping power meets the needs of your application. Random samples from each production run are used to test the load capacity of our clamps to make sure that the rated capacity is always met or exceeded.
• Certification compliance: ISO9001 approval at the workplace level makes sure that quality is supervised all the time, not just at the product level. This is important when sourcing in large quantities, because batch consistency can't be compromised.
• Customization capability: Standard sizes work for most jobs, but sometimes custom parts need different throat depths or jaw shapes. We make custom-shaped parts in-house, from the first drawing to the final production. It usually takes 7–15 days to ship a special order.
• Finish selection: Powder coating is better at resisting rust than regular paint finishes. Powder-coated finish is worth the small extra cost for workshops that are exposed to high humidity or for keeping outside.

When you buy directly from a manufacturer that does all of its own production, you don't have to pay markups to middlemen. You can also talk to the manufacturer directly about technical issues, which is very helpful when dealing with OEM specifications or large orders.

Procurement Insights: Buying European Style C-Clamps for Your Business

Supply Chain Considerations for U.S. Distributors and Industrial Buyers

In the U.S. market, hardware distributors and tool wholesalers make choices about where to buy European Style C-Clamps based on three things: price consistency, availability of SKU range, and how quick suppliers are. FLA Industrial & Trading Co., Ltd. keeps 2,000 tons of stock on hand, which lets them quickly fill standard orders without having to wait in line for production. This is important for distributors who have to deal with regular demand spikes or buying rounds that are set by projects.

Bulk purchasing agreements usually have tiered pricing structures, and we can handle orders of any size, from small amounts to test a category to full container loads for regular customers. We talk directly with our sales team about payment terms and warranty conditions so that they work with the financial planning cycles of all of our buyers.

It's important for both building workers and MRO buying teams that Products" target="_blank" style="color:blue" >products are always available in all sizes. Our promise of a technical response within 24 to 48 hours means that any questions about specifications, requests for dimensional drawings, or requests for 3D models will be answered quickly, so your project deadlines will not be missed.

Conclusion

In conclusion, the European Style C-Clamp is an advanced clamping solution that has been tested in the field and proven to work better in welding fixtures, metal fabrication, and precise woodworking. Its deep-throat design, malleable cast iron construction, and finely threaded steel screw rod solve the main problems of fastener stability, operator comfort, and long-term longevity. Buying teams that are looking at clamping tools in large quantities will find that the manufacturing is ISO9001-certified, there are nine standard sizes, and they can get them directly from the factory. This makes this product category a reliable purchase for a wide range of industry uses.

FAQ

What materials are used in European Style C-Clamps?

The frame body of our European Style C-Clamps is made of malleable cast iron, and the screw rod is made of steel that has been precisely machined. The malleable cast iron is very rigid and doesn't break easily when hit, and the steel screw rod makes sure that the threads stay engaged even when clamping loads are applied for a long time.

How does a European-style clamp outperform traditional C-clamps in welding fixtures?

The deeper throat lets you clamp the piece farther from the edge of the workpiece, which is very important for holding together complicated weld kits. The ribbed frame design spreads stress out evenly, which lowers the frame deflection that can mess up the positioning of precise fixtures.

Can these clamps be customized for specific industrial applications?

Yes. We make custom configurations in-house, which can include changing the size and depth of the throat. Custom orders usually ship between 7 and 15 days, and our technical team is there to help from the time the design is approved until the final product is made.

What certifications support the quality of these clamps?

The factory where we make things follows the ISO9001 quality management standards. A lot of our goods also have the CE mark, which means they meet European safety and performance standards.

Are there minimum order quantities for bulk procurement?

Any size sale is fine with us, from tests of one unit to full containers. There are no limits on the size or number of orders.

Partner with FLA Industrial & Trading Co., Ltd. for Your C-Clamp Supply Needs

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and is a trusted European Style C-Clamp supplier for businesses in the U.S. and around the world. We are a stable long-term supply partner because our production is ISO9001-certified, we keep a 2,000-ton inventory on hand, and we can customize products right here in our own factory. You can email our team at sales@flaindustrial.com or go to flaindustry.com to ask for examples, look over specs, or talk about terms for buying in bulk.
