What Should Buyers Check When Selecting a Fire Protection Flanged Valve?

When selecting a fire protection flanged valve, buyers should verify material grade, pressure rating, flange standard compatibility, and certification marks such as UL and FM. The valve body should carry an anti-corrosion coating rated for the installation environment, and the stem design should provide visible open/closed indication. Dimensional conformance to ANSI B16.10 or ASME B16.1 ensures proper fit within existing pipeline networks. Equally important, procurement teams must confirm that each fire protection flanged valve has passed hydrostatic shell testing and seat leakage testing before accepting shipment.

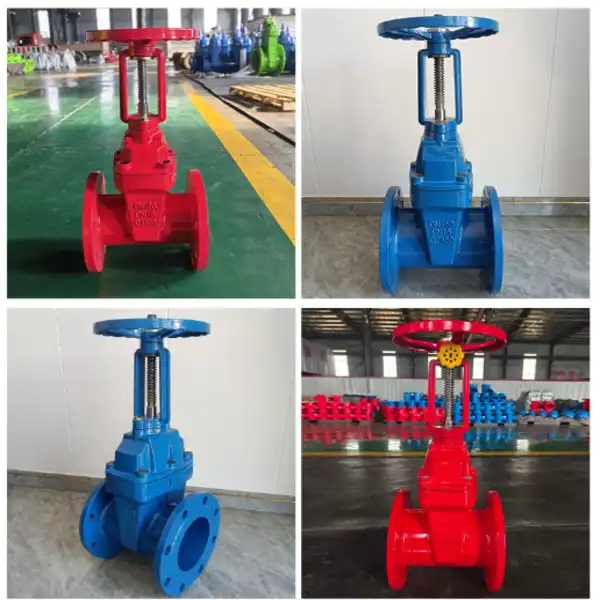

 Specifications

Model (DN)	Valve Body Type and Rod Weight (kg)	Valve Body Length
DN40	National Standard Medium Body Steel Rod, 5.5 kg	Approx. 14.3 cm
DN40	National Standard Large Body Steel Rod, 7.5 kg	Approx. 16 cm
DN50	National Standard Body Steel Rod, 6.5 kg	Approx. 17.3 cm
DN50	National Standard Medium Body Steel Rod, 7.5 kg	Approx. 17.5 cm
DN50	National Standard Large Body Steel Rod, 9 kg	Approx. 17.2 cm
DN65	National Standard Body Steel Rod, 7.5 kg	Approx. 18.5 cm
DN65	National Standard Medium Body Steel Rod, 8.5 kg	Approx. 18.6 cm
DN65	National Standard Large Body Steel Rod, 10.5 kg	Approx. 18.5 cm
DN80	National Standard Body Steel Rod, 9 kg	Approx. 20 cm
DN80	National Standard Medium Body Steel Rod, 10.5 kg	Approx. 20 cm
DN80	National Standard Large Body Steel Rod, 12 kg	Approx. 19.7 cm
DN100	National Standard Body Steel Rod, 10 kg	Approx. 21.5 cm
DN100	National Standard Medium Body Steel Rod, 12.5 kg	Approx. 22.5 cm
DN100	National Standard Large Body Steel Rod, 17.5 kg	Approx. 22 cm
DN125	National Standard Body Steel Rod, 19 kg	Approx. 24.5 cm
DN125	National Standard Medium Body Steel Rod, 21 kg	Approx. 25 cm
DN125	National Standard Large Body Steel Rod, 24 kg	Approx. 25 cm
DN150	National Standard Body Steel Rod, 20 kg	Approx. 26 cm
DN150	National Standard Medium Body Steel Rod, 23 kg	Approx. 26.2 cm
DN150	National Standard Large Body Steel Rod, 29 kg	Approx. 26.3 cm
DN200	8-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	12-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	8-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	12-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	8-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN200	12-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN250	National Standard Medium Body Steel Rod, 70 kg	Approx. 32.5 cm
DN250	National Standard Large Body Steel Rod, 80 kg	Approx. 32.5 cm
DN300	National Standard Medium Body Steel Rod, 85 kg	Approx. 35 cm
DN300	National Standard Large Body Steel Rod, 111.5 kg	Approx. 35 cm
DN350	National Standard Large Body Steel Rod, 150 kg	Approx. 37.5 cm
DN400	National Standard Large Body Steel Rod, 175 kg	Approx. 40.5 cm
DN450	National Standard Large Body Steel Rod, approx. 251.5 kg	Approx. 430 cm
DN500	National Standard Large Body Steel Rod, approx. 340 kg	Approx. 45.5 cm
DN600	National Standard Large Body Steel Rod, approx. 450 kg	Approx. 50.7 cm

Understanding Fire Protection Flanged Valves: Fundamentals Every Buyer Should Know

A normal industrial valve is not the same as a Fire Protection Flanged Valve for fire service. It needs to stay the same for months or years and then work fully and right away in an emergency—no doubt is okay.

Valve Types and Their Role in Fire Suppression Systems

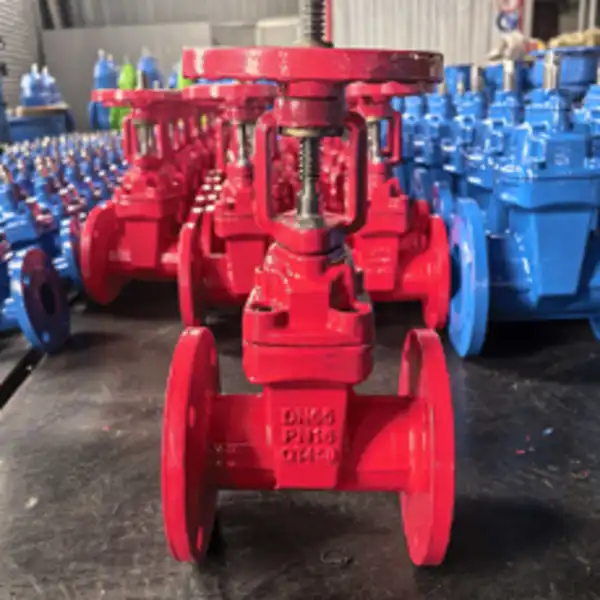

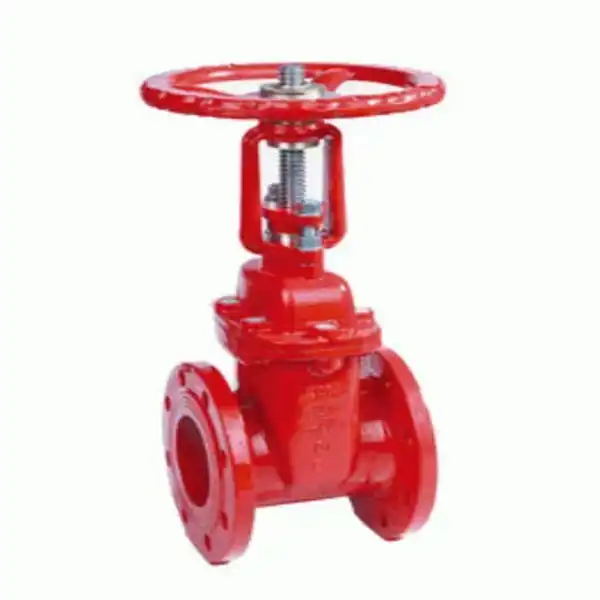

Outside Screw and Yoke (OS&Y) gate valves, butterfly valves with safety switches, and ball valves with flanged ends are the three most popular types that buyers see. When it comes to wet riser and spray supply lines, OS&Y gate valves are the standard. This is because the rising stem makes it clear to emergency workers whether the valve is open or closed without having to touch it. Butterfly valves with control switches work well in mechanical rooms that don't have a lot of room, while flanged ball valves work well with branch lines that are smaller in diameter.

Materials and Applicable Standards

As of now, most of the iron that is made is ductile iron that meets ASTM A536 Grade 65-45-12. This is because it is stronger than gray cast iron in seismic and surge-pressure events and can withstand more impact. Carbon steel bodies are used for industrial loops with higher pressures. Fusion Bonded Epoxy (FBE) coatings are applied to both the inside and outside of surfaces according to AWWA C550. These coatings are usually thicker than 250 microns, which stops tuberculation in systems with standing water.

NFPA 13 and NFPA 25 set the rules for how systems should be designed and how often they should be inspected. UL 262 covers gate valves, and FM Class 1120 and 1130 approves control valves. When looking for things to use in the U.S., buyers should demand more than just certificates. This is because FM and UL marks are cast into the body during production.

Key Selection Criteria When Choosing a Fire Protection Flanged Valve

When choosing a valve like a Fire Protection Flanged Valve for a system, you need to think about four things at once: the pressure rating, the dimensional standard, the material compatibility, and the total cost of ownership.

Pressure Rating and Flange Standard Alignment

Fire service working levels are usually 175 PSI, 250 PSI, or 300 PSI, based on the height of the building and how the pump is set up. When buying things, people often make the mistake of putting PN16 valves in with ANSI Class 125/150 pipework. The pressure values for both standards are about the same, but the bolt-circle sizes are different. If the valve doesn't come with "universal" flanges that are angled, mismatched standards mean that expensive adapter spools have to be bought and projects are delayed. Before you place an order, you should always make sure that the existing pipework meets ANSI B16.1, DIN, or JIS standards.

Material Compatibility and Coating Integrity

In most fire water systems, corrosion causes valves to fail before they should faster than mechanical wear. When water stays in a transportation loop for weeks at a time, it forms an acidic environment. When buyers ask for holiday test reports, inspectors run a high-voltage probe along the FBE lining to find pinholes that can't be seen with the naked eye. Even a very small covering gap speeds up interior pitting, which weakens the wedge seal over time.

Before signing off on a valve specification, procurement teams should check these core performance benchmarks:

• Hydrostatic shell test: A 300 PSI valve must be able to handle up to 875 PSI (two to four times its normal working pressure) without any leaks or structural changes.
• Seat leakage test: While the seat leaking test is being done at full pressure, the flexible wedge has to achieve a zero-bubble seal according to FM 1120, even if there is small debris in the waterway.
• Cycle durability: Random production samples are put under pressure for more than 500 open/close cycles to make sure the stem nut is solid and the rubber covering doesn't come off the wedge.
• Dimensional accuracy: The diameter of the flange bolt circle is compared to templates in ANSI B16.1 or PN10/16. A difference of 2 mm can stop bolts from aligning in rigid fire pipe networks.
• Coating thickness: The FBE dry film thickness is measured and written down; numbers below 250 microns mean that the coating doesn't meet the requirements of AWWA C550.

All of these standards show that a valve will work effectively, both when it is first installed and when it is needed years later in an emergency.

Comparing Fire Protection Flanged Valves to Other Valve Types

Threaded connections work for branch lines with a diameter of less than 2 inches, but they put torque stress on the joint when they are put together and can become loose from vibrations after years of pump use, while a Fire Protection Flanged Valve offers a more robust solution. Grooved (Victaulic-style) couplings are easier to install and can adapt to changes in temperature, but they cost more per joint because they need more hardware. For main supply lines and riser bases, flanged connections are still the norm. This is because bolted joints evenly distribute load around the pipe's circumference, can handle the hydrostatic pressure created by multi-stage fire pumps in tall buildings, and let the valve be taken out for inspection or replacement without having to cut the pipe.

From a hydraulic point of view, an open full-bore OS&Y gate valve doesn't really stop any flow. This is very important in ESFR (Early Suppression Fast Response) sprinkler systems that need a lot of water at precise K-factor outputs. When hydraulic engineers design a system, they have to take into account the measurable head loss that a reduced-port butterfly valve causes.

Procurement Tips: How to Source the Best Fire Protection Flanged Valve?

For life-safety parts, you can't skip the supplier trustworthiness check. Buyers should ask for copies of the most recent UL listing and FM approval certificates, as well as mill test reports for body casts and hydraulic test records from a third party. Make sure the certificate talks about the exact type of the product being bought and not just a general family of Products" target="_blank" style="color:blue" >products.

For Fire Protection Flanged Valves with diameters of DN200 or more, lead times from certified manufacturers are usually between four and eight weeks. This should be planned into the project schedule by the procurement manager, and the MOQ requirements should be made clear early on, especially for custom shapes or pressure values that aren't standard. It is important to look at the warranty terms to make sure they cover failures of the internal covering and the stem seal, as these are the two most common repair problems that are reported in the field.

According to NFPA 25, Fire Protection Flanged Valves need to be inspected visually once a week or once a month, based on the supervisory method. They also need to be fully active cycled once a year to keep the stem from seizing. When deciding where to put a valve, think about how easy it will be to check it. For example, OS&Y stems need to have enough space above the handwheel for a wrench.

Real-World Applications: Where These Valves Prove Their Value?

When it comes to commercial high-rise wet riser systems, Fire Protection Flanged Valves let maintenance crews lower the pressure on just one floor zone without having to drain the whole riser. In big warehouses with ESFR sprinkler systems, OS&Y valves on the suction and discharge sides of fire pumps must be able to handle constant pump vibration while still letting full-bore flow through. In petrochemical plant fire main loops, the flanged design's ability to be bolted apart cuts turnaround time by a huge amount compared to welded options. This is a very important benefit when the fire water ring main needs to stay active during repair windows.

Conclusion

It takes more than matching a valve's size to a picture to choose the right one like a Fire Protection Flanged Valve for a fire control pipeline. A valve's reliability over many years is based on its material grade, flange standard, approval marks, coating integrity, and test paperwork. If buyers check these factors before making a purchase, they can avoid expensive repairs, problems with compliance, and, most importantly, systems that don't work well during a real fire. Valve selection goes from being a risk to being a confidence when you work with a manufacturer that keeps clear QC records and quick technical support.

FAQ

What is the difference between OS&Y and NRS valves in fire service?

When the valve opens, the OS&Y (Outside Screw and Yoke) stems rise, making it clear whether the valve is open or closed right away. This is needed for fire water supply lines. NRS (Non-Rising Stem) valves are used when there isn't much space or when the installation is underground and there is a wall post sign. This is because the stem stays flat no matter where the valve is placed.

Can a PN16 flanged valve work on an ANSI 125 piping system?

In most cases, no. The bolt-circle diameters are different between standards, but the pressure ratings are the same. If the valve doesn't come with angled universal flanges, it costs more and could have leak points to put a PN16 Fire Protection Flanged Valve on an ANSI 125 system.

How often should fire control valves be inspected?

Based on the supervision method, NFPA 25 needs an eye check once a week or once a month, and full operating cycling (opening and closing all the way) once a year to make sure the wedge is in the right place and stop stem seizure from corrosion or mineral buildup.

Is a fire protection flanged valve suitable for potable water use?

Fire valves have UL and FM labels that are only for the fire service. For lead-free compliance, dual use for potable water needs NSF-61/372 certification. Before selecting dual-service uses, buyers should make sure that a certain SKU has both fire and potable water certifications.

Partner With a Trusted Fire Protection Flanged Valve Manufacturer

Every valve that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. We are a verified supplier of Fire Protection Flanged Valves with ISO 9001, CE, UL, and FM certifications. Our sizes range from DN50 to DN300, and we can make custom pressure ratings for all of them. Our team gets back to you about quotes, examples, and specs within 24 to 48 hours. You can email our sales team at sales@flaindustrial.com or go to flaindustry.com to look through our full collection and get a price right away.
