Stainless Steel Rope Clip for Marine Cable and Rigging Applications

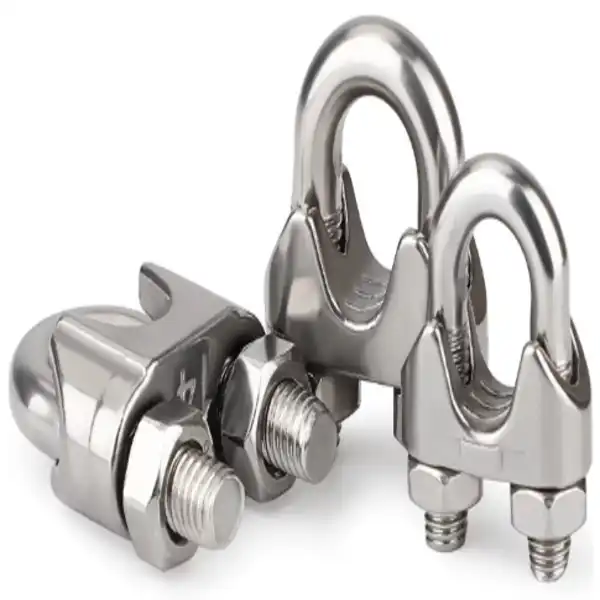

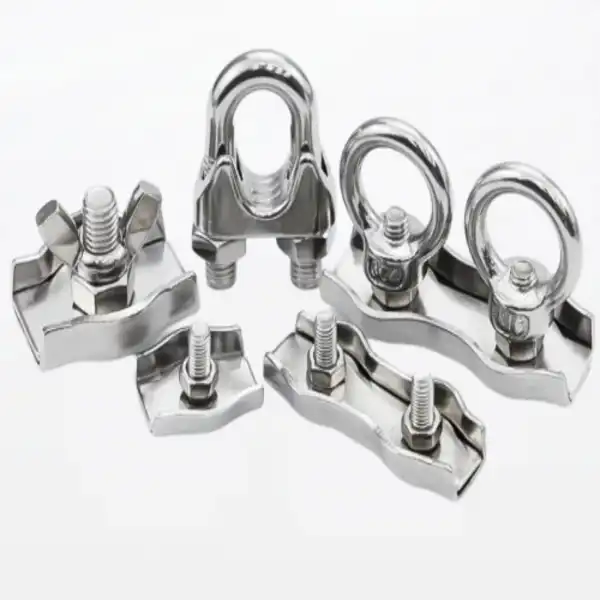

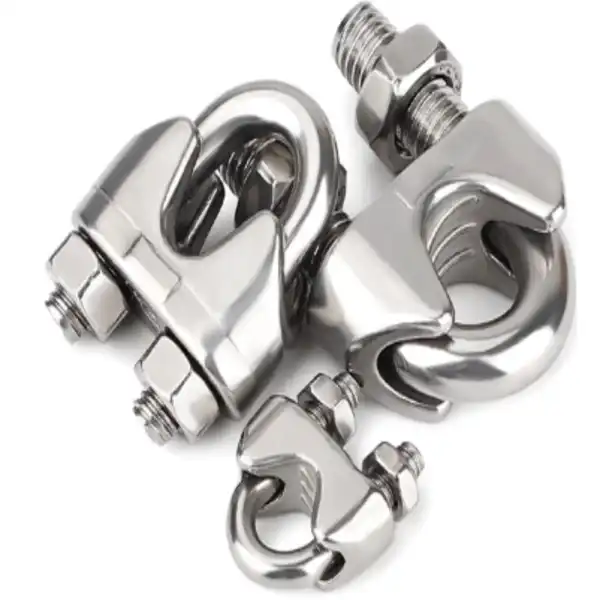

A stainless steel rope clip is a precision-engineered mechanical fitting designed to terminate, connect, or form load-bearing eyes on wire ropes. Constructed from AISI 304 or AISI 316 stainless steel, each clip comprises a U-bolt, a forged saddle, and two hexagonal nuts that clamp the dead end of a rope against the live end, delivering a holding efficiency of approximately 80–90% of the rope's rated breaking strength. In marine cable and rigging applications—where saltwater exposure and dynamic loading are relentless—these wire rope fasteners deliver the corrosion resistance, structural integrity, and dimensional accuracy that galvanized alternatives simply cannot sustain long-term.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips: Types, Uses, and Benefits

Components and Mechanical Function

There are three parts to every wire rope clamp: a U-bolt that goes around the rope, a saddle that holds the live end, and two hex nuts that tighten the clamp. The inner groove radius of the saddle is machined to fit a certain rope diameter. This makes sure that the load is spread out evenly instead of putting stress on one spot. This shape makes it possible for the unit to hold its weight without the wire strands getting bent. DIN 741 is a standard that is often used in the rigging industry. It says that each Stainless Steel Rope Clip must have tight enough tolerances in size to keep the rope from slipping under constant dynamic loads.

Grade 304 vs. Grade 316: Choosing the Right Alloy

Even though both types are austenitic stainless steel, they react very differently to rust in salt water. Grade 304 has 18% chromium and 8% nickel, which means it can be used outside in inland areas. Grade 316 adds 2–3% molybdenum, which makes it much more resistant to chloride pitting and crevice corrosion, which are the two main ways that saltwater gear fails. To be safe as an expert, you should always choose 316 Stainless Steel Rope Clips for installations near the water or on a boat. Grade 304 is still a good, cheap option for building scaffolding, architectural wire railings, and indoor overhead crane systems that don't get much chloride contact.

Key Benefits That Drive Procurement Decisions

When purchasing managers choose Stainless Steel Rope Clips over coated carbon steel, they always list three performance benefits:

• Sustained corrosion resistance: The chromium oxide passivation layer fixes itself at the microscopic level, so it keeps protecting even after the surface is worn down. Salt spray testing according to ASTM B117 (72-hour neutral salt spray) shows that properly passivated 316 specimens don't develop red rust, which is a sign that galvanized coatings usually fail after zinc runs out.
• Mechanical load reliability: Precision casting and forging get rid of the porosity problems that happen with lower-quality castings, keeping the yield strength needed to maintain a 4:1 or 5:1 safety factor under cyclic rigging loads.
• Low lifecycle maintenance burden: Unlike zinc fittings, which need to be re-coated every so often, stainless fasteners only need to be inspected and rinsed in fresh water on a regular basis to last for decades.

These benefits directly lead to less downtime, a lower total cost of ownership, and better safety compliance. Both buying managers and site engineers value these results.

How to Select the Best Stainless Steel Rope Clip for Marine Use?

It's not enough to just make sure the rope width matches to find the right Stainless Steel Rope Clip. In harsh naval settings, many buying criteria come together, and missing even one can make the whole rigging system less safe.

The diameter of the wire rope determines the clip size, which is usually between M2 and M32. The manufacturer's load rating must be equal to or greater than the calculated working load plus the necessary safety factor. The environment determines the choice of alloy: grade 316 is best for use offshore, along the coast, and on ships; grade 304 is best for use in sheltered or non-marine industrial settings. Different applications have different compliance requirements. For example, overhead lifting needs clearly marked and rated Working Load Limit (WLL) marks, while different structure codes may apply to architectural cable railings.

The total cost is more important than the unit price when deciding whether to buy steel or zinc clips in bulk. Galvanized clips are cheaper at first, but they usually need to be replaced every three to five years in saltwater because the zinc layer wears away. If you take good care of Stainless Steel Rope Clips, they will usually last 15 years or more. This makes the cost-per-year measure that procurement engineers use for lifecycle planning much more accurate.

Professional Installation and Usage Tips for Stainless Steel Rope Clips

If a Stainless Steel Rope Clip assembly hits its stated capacity, it is directly related to how well it fits. Standards like the U.S. Federal Specification FF-T-791b and industry guidelines say that the saddle should always be on the live (load-bearing) end of the rope and never on the dead end. Reversing this direction is a common field mistake that can cut holding power by up to 40%.

Values for torque are not made up on the spot; each clip size has a torque range for the hex nuts that is set by the maker. Over-torquing can break the U-bolt shank, while under-torquing lets the rope slip. As soon as the rope strands start to bed in, usually after the first 10% of the expected working load is applied, tighten the nuts again to the specified torque.

There are three best ways to keep naval gear like a Stainless Steel Rope Clip in good shape over time. After being in salt water, rinse clips with clean water to get rid of chloride crystals that form in the thread holes. If the assembly is safety-critical, use dye penetrant testing to look for tiny cracks in the thread roots and saddle grooves. Use a molybdenum disulfide or nickel-based anti-seize product on U-bolt threads before tightening them. Stainless steel threads can galling (cold welding), and this one step stops thread seizure that can't be undone during retensioning.

Supplier Overview: Finding the Right Stainless Steel Rope Clip Manufacturer

For B2B buyers who need to buy a lot, the criteria for qualifying suppliers are just as important as the product specifications. Manufacturers you can trust show that they have ISO 9001 quality management certification, CE marking to make sure they comply with European market rules, and tracked material certification that confirms the alloy's composition. Positive Material Identification (PMI) using XRF spectrometry is the most reliable way to check if a batch is really 316 grade. This is an important check because grade substitution is common in commodity hardware markets.

It is necessary to test samples before agreeing to a production order. Ask for pull tests on loops that have been put together and dimensional inspection records that include the U-bolt thread pitch, saddle groove radius, and total tolerance compliance. Request that sources give you examples from similar industrial or marine projects, and talk to them about warranty terms that cover material flaws.

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and all of its metal Products" target="_blank" style="color:blue" >products are certified by ISO 9001 and CE. FLA has more than 2,000 tons of stock and a lead time of 7–15 days for custom specifications. It can handle both standard bulk orders and non-standard OEM needs, which makes it a reliable Stainless Steel Rope Clip supplier for distributors, contractors, and industrial procurement teams in the U.S. and beyond.

Case Studies and Applications: Real-World Uses in Marine Rigging

Grade 316 Stainless Steel Rope Clips are now the standard in three tough application areas where rust failure could cost a lot of money or put people in danger.

These fasteners hold yacht lifelines, mast stays, and dockside mooring configurations in place in marine and offshore rigging. Tests with salt spray and years of use in the field show that 316 clips keep their full holding power after years of being exposed to saltwater all the time, which would destroy galvanized hardware in just one season. Shipbuilders often ask for them to be used for safety barriers and systems that keep goods in place because they are guaranteed to be reusable and keep their shape under load.

Stainless steel wire rope fasteners are used in cable fence balustrades, suspended lighting systems, and tensioned wall parts in architecture and building. Their shiny, bright finish meets visual standards and can stand up to smog, rain, and UV light without losing its integrity. They are preferred by procurement teams for commercial building projects because a single specification covers both performance and appearance standards for the structure.

These clips keep submerged pump cables and aerator safety lines safe in places where hydrogen sulfide or chlorine is still present, like in chemical and wastewater treatment plants. The molybdenum content in grade 316 gives it chemical resistance that keeps it from suddenly breaking down like galvanized or grade 304 steel would in these situations.

Conclusion

Stainless Steel Rope Clips are still one of the safest and least expensive ways to end a wire rope in marine, building, and commercial settings. If you choose the right grade (304 for dry or indoor use, 316 for sea and chemical environments), put it correctly, and keep it in good shape, the assembly will work at its full capacity for the whole time it's in use. When purchasing managers make choices about bulk purchases, working with a qualified, experienced maker gets rid of the differences in material and size that pose a risk to important rigging systems.

FAQ

Are stainless steel rope clips suitable for all marine cable types?

Stainless Steel Rope Clips can be used with standard 7x7 and 7x19 wire ropes that have diameters between M2 and M32. To keep the recommended holding power, always make sure that the saddle groove radius fits the rope width given by the maker.

What is the practical difference between grade 304 and 316 in seawater?

Grade 316 has molybdenum in it, which stops chloride-induced pitting, which is the main way that steel rusts in salt water. Grade 304 is good for places that are remote or protected. It is the professional standard to use 316 for any installation on the coast, offshore, or on a ship.

How often should wire rope clips be inspected?

Every three to six months, check the clips when they are in busy naval service. Check the threads and the areas where the saddle touches the workpiece. Also, look for surface darkening or tiny cracks. After the first load cycle and after any major shock load event, tighten again to the specified torque.

Can I reuse stainless rope clips after removing them?

Stainless clips can be used again as long as the threads are still good and the saddle groove doesn't show any signs of wear or deformation. Use anti-seize powder on threads before putting things back together to keep them from galling.

Do these clips meet overhead lifting standards?

For moving things from above, only clips that are clearly marked with a Working Load Limit (WLL) are safe to use. Before specifying clips for crane or hoist rigging, make sure the WLL markings and any standards that apply are correct.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Stainless Steel Rope Clips

Procurement professionals who need a reliable Stainless Steel Rope Clip maker with confirmed certifications and a large production capacity will find one in FLA Industrial & Trading Co., Ltd. FLA has been making hardware for almost 40 years, is ISO 9001 and CE certified, and promises a response time of 24 to 48 hours. They offer consistent quality at low bulk prices. Contact our team at sales@flaindustrial.com or flaindustry.com right away to get samples or a unique price.

References

1. Wire Rope Users Manual — Wire Rope Technical Board, 2018.

2. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019.

3. DIN 741: Wire Rope Clips — Deutsches Institut für Normung, 2016.

4. Stainless Steel: The Role of Nickel — Nickel Institute, 2020.

5. Marine Fastener Corrosion and Material Selection Guide — NACE International (now AMPP), 2017.

6. Rigging Hardware Standards and Safe Use Practices — Occupational Safety and Health Administration (OSHA), U.S. Department of Labor, 2021.
