Bolted Dead End Clamps for Overhead Lines: Tension and Conductor Compatibility

Selecting the right bolted dead end clamp directly determines whether an overhead line holds steady for decades or becomes a liability. These mechanical anchors terminate conductors—ACSR, AAC, and AAAC—at poles, angle towers, and crossing spans by converting line tension into a controlled grip through high-torque bolt pressure. Unlike compression fittings that permanently deform the conductor, a bolted strain clamp remains adjustable, allowing crews to re-tension lines after storm damage or creep without cutting the wire. This guide walks procurement managers, engineers, and distributors through tension ratings, conductor compatibility, installation torque, and supplier evaluation.

Specification

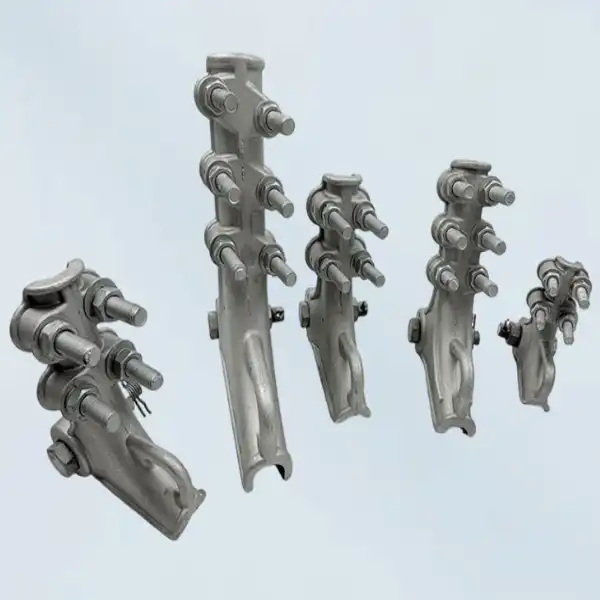

Product Name	Applicable Range	Material Options	Finish	Manufacturing Process
NLL-1 Strain Clamp	35-50 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-2 Strain Clamp	70-95 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-3 Strain Clamp	120-150 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-4 Strain Clamp	185-240 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining

Understanding Bolted Dead End Clamps: Functionality and Applications

How Does the Clamping Mechanism Work?

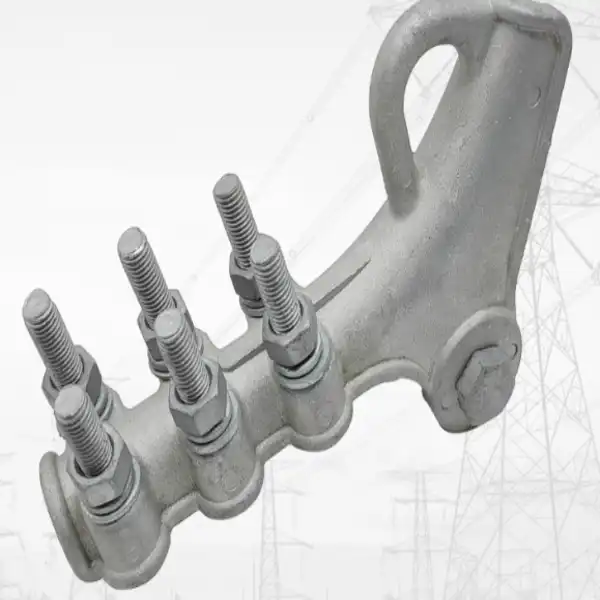

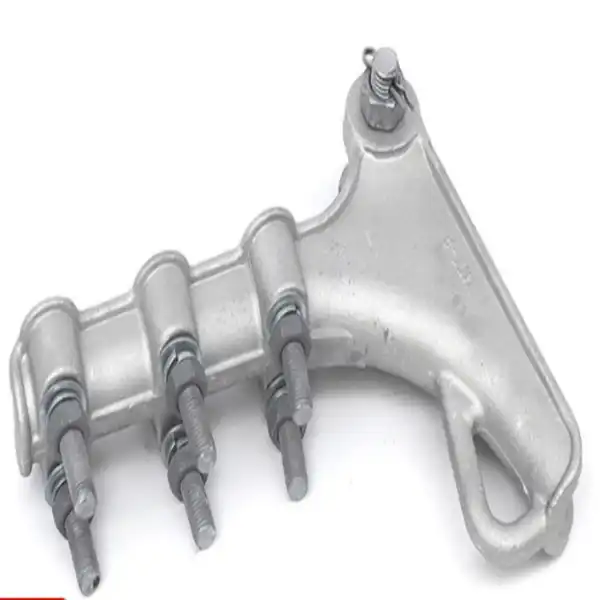

This is a Bolted Dead End Clamp. It has a grooved body, a goalkeeper plate that matches, and a set of bolts with spring washers. When the bolts are tightened, the goalkeeper presses the conductor into the grooved body. This creates friction that pulls on the insulator string or pole hardware. The bell-mouthed cable exit spreads the bending stress out slowly, which keeps the strands from wearing out at the clamp edge. With this mechanical method, you don't need hydraulic binding tools in rough terrain.

Conductor Types Supported

The groove shape of the clamp decides which conductors will work with it. Standard types can handle a wide range of wire sizes, from small aluminum conductors to 795 kcmil ACSR Drake. This is possible with a "range-taking" design that lets one SKU fit more than one wire size. If you have an aluminum body clamp, you can use AAC (All Aluminum Conductor) or AAAC (All Aluminum Alloy Conductor). ACSR (Aluminum Conductor Steel Reinforced) needs a slot depth that can handle the extra strength of the steel core. Keep in mind that aluminum-body clamps should never touch bare copper conductors. If they do, galvanic corrosion will quickly destroy the aluminum body.

Typical Installation Scenarios

In electrical networks, there are three main types of nodes that use bolted strain clamps. First, on 11kV–33kV networks, distribution dead-ends terminate lines at angle poles and transformers. Their reversible bolt design lets live-line installation with hot sticks, which keeps the grid running while maintenance is done. Second, when crossing long spans of rivers and canyons, conductors are subject to wind gallop and heavy ice loads. Higher torque application stops slippage under dynamic loads. Third, the reversibility of the bolt design makes substation gantry connections better because engineers can change layouts without having to replace insulator strings.

Tension and Conductor Compatibility: Critical Factors for Performance

Load Ratings and Safety Margins

The Bolted Dead End Clamp must hold at least 95% of the conductor's Rated Breaking Strength (RBS) without slipping, which is what ANSI C119.4 and IEC 61284 say is necessary. Teams in charge of buying things should ask for a slip-strength test report. For this, a sample should be put on a tension machine and loaded to 95% RBS before it can move. Specifying below this level increases the chance of line drops too much.

Material Selection for Different Environments

What kind of material it is decides how well it resists rust over time. Hardware used to hold lines in place above ground is mostly made of the following materials:

• The body is made of an aluminium alloy (A356-T6 or 356.0), which is light, works with aluminium wires, and doesn't rust. For normal transportation and delivery tasks, this is the best choice. This alloy requirement is met by FLA's aluminum-body clamps.
• The body is made of ductile iron and is finished with hot-dip galvanising. The higher mass stops aeolian vibrations mechanically. It can be used for long gearbox spans with high tension where vibration fatigue is a known problem.
• Hot-dip galvanised steel hardware (ASTM A153): Bolt, nut, and washer sets must have a zinc covering that is at least 86 microns thick to keep the threads from seizing and the rust from showing up after a long time of use.

To protect the property, the material needs to fit in with the local area. In coastal and industrial areas with chlorides in the air, the zinc coating needs to be checked. In mountain areas with a lot of ice, having more ductile iron bodies can help.

Certification and Compliance Standards

Buying teams can't be held responsible when compliance is checked. Products" target="_blank" style="color:blue" >products that have the ISO 9001 mark on them show that they follow a written method for managing quality in every production run. The clamp has been approved by IEC 61284, which means it meets the standards for electrical and mechanical performance for international gearboxes. Conductors used in U.S. power grids have to meet the strict standards set by ANSI C119.4. For sure, always ask for test papers that are tied to a specific lot number. Don't trust what a brochure says.

Installation and Maintenance Guide for Bolted Dead End Clamps

Step-by-Step Installation

Before you turn the first bolt, you should do things the right way. Wire-brush the circuit well to get rid of the layer of aluminium oxide that is on the surface. Once that is done, put an electrical oxide-inhibitor grease along the whole length of the contact. Next, place the custodian and the conductor in the body gap. Then, hand-tighten each bolt in a different order to spread the load out equally. Finally, the force must be at least 75 ft-lbs for 5/8" bolts and 40 ft-lbs for 1/2" bolts. Use a torque wrench that has been calibrated. There is a fine line between too tight and too loose. If you tighten it too much, the aluminium strands will cold flow, which will make the grip less firm over time.

Maintenance Intervals and Wear Indicators

Every year in normal areas, you should look at the Bolted Dead End Clamp. Every six months in dirty or coastal areas, you should do the same. There are several clear signs that the clamp is broken: arc marks on the goalie, white rust streaks below the bolt heads (which means zinc loss), and any movement of the conductor that can be measured in the gap. When it's time for maintenance, the bolts, nuts, and spring washers need to be replaced because the initial torque-down makes the threads wear out, which makes the galvanisation less strong. There are many times that the aluminium body and goalie can be used again, as long as they are not cracked or bent.

Environmental Protection Measures

Things last longer in difficult situations when they are covered. When you hot-dip galvanise ductile iron, you cover it with zinc, which rusts more quickly than the iron itself. Because they don't rust, stainless steel bolt sets are better in places where there is a lot of salt spray. The hot-dip galvanising methods used by FLA Industrial & Trading Co., Ltd. meet standard zinc thickness requirements. For cases that need more strength, you can also get a finish made of raw aluminium.

Comparing Market Solutions: Selecting the Best Bolted Dead End Clamp

There is a lot of hardware for overhead lines that procurement managers have to choose from. Instead of brand preference, the table below shows the most important evaluation criteria. This is because the right specification is more important than the label.

International companies with a long history, like Preformed Line Products (PLP), Burndy, and AFL, all have strong positions in certain area markets. A lot of people know that PLP can make helical dead-end products on transmission lines. Burndy spends a lot of time on compression connectors. AFL is mostly about fiber optic hardware. Each one is better for a smaller range of uses than a full-range overhead hardware supplier.

This is not how FLA Industrial & Trading Co., Ltd. sees it. FLA has been making electrical line tools, hardware, and clamps for almost 40 years and has over 1,000 product specifications and a 2,000-ton inventory. Standard items are sent out quickly, and special, non-standard parts are finished in 7–15 days. Direct factory price gets rid of the fee that distributors add, which is important for budgets that need to buy in bulk. Every shipment comes with ISO 9001 and IEC approval, and if you need help with 3D modeling or installation instructions, you can ask for help from a specialized expert team. If a purchasing manager is looking for a Bolted Dead End Clamp supplier for ongoing distribution or project supply, FLA's range, lead times, and technical support are all on par with well-known brands.

Conclusion

Picking the right overhead line dead-end clamp, such as a Bolted Dead End Clamp, cuts down on line failures, lowers the cost of maintenance, and keeps compliance paperwork clean. The most important things to think about are the tension rating against the conductor RBS, the compatibility of the material with the type of conductor, the zinc coating thickness for the operating environment, and the accuracy of the installation torque. FLA Industrial & Trading Co., Ltd. makes clamps out of ductile iron and aluminum alloy that are certified to ISO 9001 and IEC standards. The clamps can be hot-dip galvanized or left in their natural aluminum finish. It doesn't matter if you need a single SKU for a distribution project or a range of sizes for wholesale distribution—the infrastructure and specifications are there to support your choice.

FAQ

Can a bolted strain clamp be reused after removal?

The aluminum body and keeper can generally be reused if they show no stress fractures, arc marks, or deformation. Replace all bolts, nuts, and spring washers at reinstallation, as galvanization may be compromised and threads fatigued from the initial torque.

Why is a spring washer included in the bolt assembly?

Aluminum conductors expand and contract significantly with temperature cycling. A Belleville or split-lock washer maintains constant clamping pressure, compensating for conductor thermal expansion and natural cold flow over time, preventing gradual bolt loosening.

Is this clamp compatible with copper conductors?

Standard aluminum-body clamps are not compatible with copper conductors. Galvanic corrosion accelerates rapidly when aluminum contacts copper. Specify bronze-alloy or tin-plated clamps for copper line terminations.

What causes premature clamp failure in the field?

The most common causes are insufficient installation torque (allowing slippage under load), failure to remove the aluminum oxide layer before installation, and using galvanized hardware in high-chloride coastal zones without periodic replacement.

How do I verify galvanization quality before purchase?

Request magnetic thickness test reports confirming zinc coating averages above 86 microns per ASTM A153. Ask for lot-specific certificates, not generic catalog specifications.

Request a Quote from FLA Industrial & Trading Co., Ltd.

Overhead line gear from FLA Industrial & Trading Co., Ltd. has been sold to utility builders and wholesalers in the US, Germany, and Australia for almost 40 years. As a reliable Bolted Dead End Clamp manufacturer, we offer products that are ISO 9001 and IEC certified, a ready-to-ship inventory of 2,000 tons, and custom specifications in 7–15 days. For specification sheets and prices on large orders, please email our expert team at sales@flaindustrial.com or visit flaindustry.com.
