Elevator Guide Rail Clamps: Installation Accuracy and Compatibility Checks

Elevator guide rail clamps are the structural anchors that hold T-profile guide rails securely against hoistway walls, directly determining whether an elevator runs smoothly, quietly, and safely. Getting the installation accuracy right and confirming compatibility before a single bolt is tightened can mean the difference between a system that performs flawlessly for decades and one that develops costly vibration, misalignment, or even safety-gear failures. This guide walks through the full picture — from understanding what these components actually do to buying them confidently for your next project.

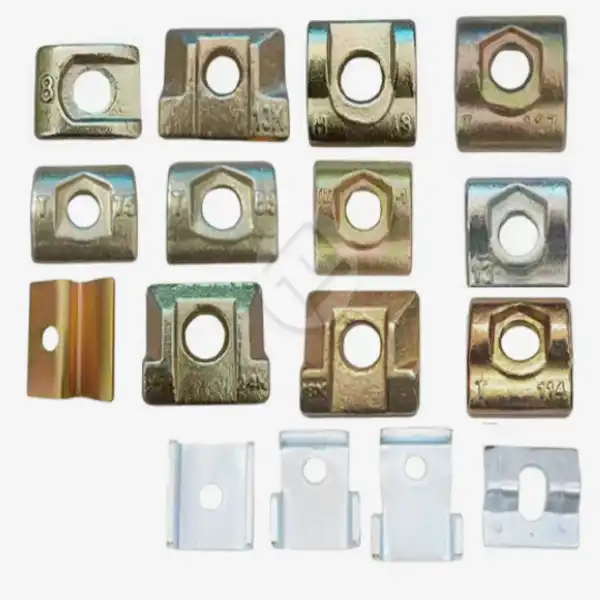

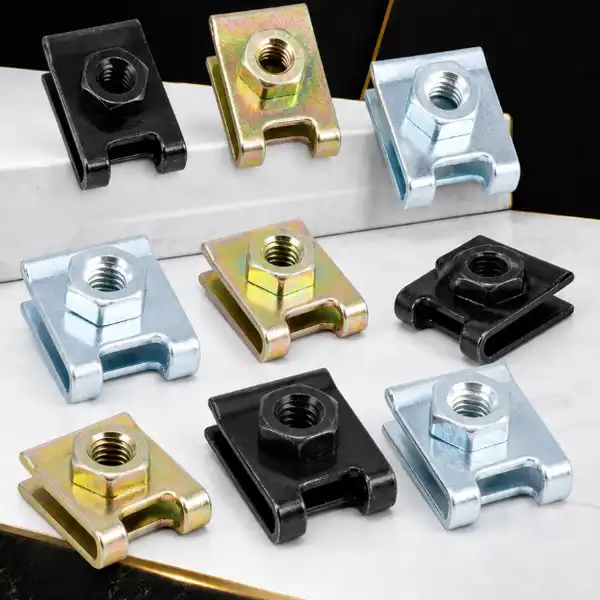

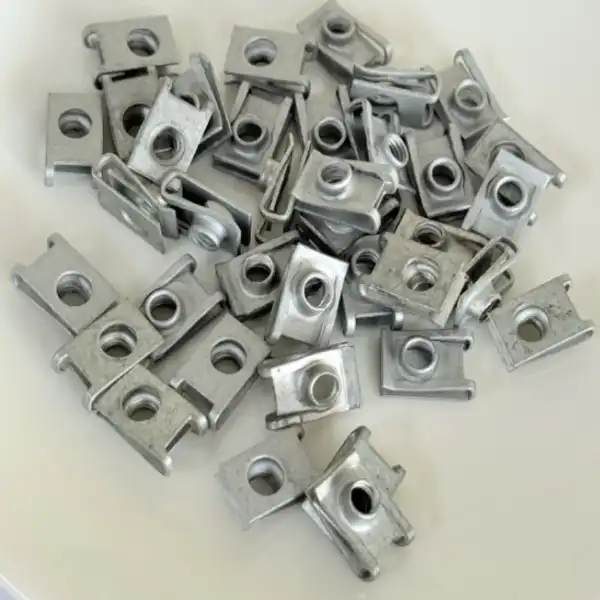

Specification

Product Specification	Nominal Thread (M)	Nominal Length (mm)
8K	8	12-40
13K	13	12-40
18K	18	16-50
24K	24	16-50
8K (12-40 Screw/Flat/Washer) Complete Set	8K (12-40 Screw)	(12-40 Screw)
13K (12-40 Screw/Flat/Washer) Complete Set	13K (12-40 Screw)	(12-40 Screw)
18K (16-50 Screw/Flat/Washer) Complete Set	18K (16-50 Screw)	(16-50 Screw)
24K (16-50 Screw/Flat/Washer) Complete Set	24K (16-50 Screw)	(16-50 Screw)

Understanding Elevator Guide Rail Clamps: Features, Types, and Functions

What Do They Do at a Mechanical Level?

A guide rail clamp links the solid parts of the building to the moving parts of the elevator. To make a good ride, the rails must always be straight and vertical. However, they must also be able to move vertically in a controlled way when steel rails naturally expand and settle. If you don't have this two-in-one purpose, the rails might buckle when the temperature changes, which would make the cabin and building frame shake.

Fixed vs. Sliding Clamps

With fixed clamps, the rail stays in place safely, and they work well for low-rise or hydraulic systems with a trip height of less than 40-50%. Another name for sliding clamps is spring clips. They have a spring-steel or elastomeric part that lets the rail "breathe" up and down. This has to be done in high-rise buildings where the heat expansion of steel rails is a real issue. Putting set clamps in a tall shaft is a common fitting mistake that can go wrong and cause big problems.

Material and Standard Benchmarks

FLA Heavy-duty cast iron or steel is used to make Industrial's rail clamps. Tight tolerances on their sizes are achieved through processes like casting, machining, and forging. You can paint or hot-dip galvanize the surface. For damp or coastal shafts, galvanizing is better at blocking salt spray. ISO 9001 and EN 81 have approved the goods. EN 81-20/50 and ASME A17.1 are the two main safety codes that say how heavy and big these parts can be. What the seller gives you should have both of these codes on it.

Ensuring Installation Accuracy: Step-by-Step Guide and Best Practices

Pre-Installation Compatibility Checks

Three things should be checked before putting any clamp on the bracket: the jaw of the clamp should match the exact flange thickness of the guide rail (a jaw sized for a 16 mm flange T127 rail won't safely grip a 10 mm flange T89 rail); the bolt grade should be at least 8.8 to handle the torque; and the spacing between the hoistway brackets should match how the clamp is designed to distribute the load. The T89, T75, and H18 rail types from FLA Industrial come in different shapes and sizes for 8K, 13K, 18K, and 24K specs. When you only buy from one company, it's easy to make sure that the clamp fits the profile.

Torque and Alignment During Assembly

This is a common mistake that installers make when it comes to power specs for Elevator Guide Rail Clamps. Torque of 60 to 80 Nm is needed for most rail clamps that use M12 bolts. If you tighten a moving clamp too much, it turns into a permanent clamp and can't help with thermal problems anymore. Use a measured torque tool and the torque guide that came with the wrench. Once the screws are tight, use a laser alignment tool or a precision plumb line to make sure the rails are straight. EN 81 says that rails can only move by 1 mm for every meter of trip height.

Verification Before Commissioning

Before the system goes live, one last check should be made to see if the lateral rail moves when weight is put on it, if the bolt threads are tight, and if the surface coats are damaged from being handled during installation. Make sure you keep track of each check. This information is added to the elevator's certification file and can be seen by insurance auditors and building inspectors.

Compatibility Considerations: Matching Clamps to Elevators and Operational Requirements

Material Selection by Environment

Most inside shafts in homes and businesses use hot-dip galvanized cast steel clamps. A thicker layer of Dacromet or one made of stainless steel stops corrosion lines that are bad for the structure and the way it looks in coastal, marine, or high-humidity areas. For example, panoramic glass-shaft elevators close to the ocean. FLA Industrial's hot-dip galvanized finish can stand up to neutral salt spray for 48 to 96 hours. This means it is safe for most business jobs in the U.S.

Matching Clamps to Major Elevator Brands

Some OTIS, Schindler, and KONE systems for homes and mid-rise businesses can use standard-sized clamps without any changes. When Mitsubishi and Hyundai high-speed systems and freight lifts are custom-built, they often need jaw widths or bracket hole shapes that aren't standard. That's when clamps that were made just for you are the best choice. Within 24 to 48 hours, FLA Industrial's engineering team can send you 3D design sketches to look over. This cuts down on the back-and-forth that makes it take longer to buy unique projects.

Freight and High-Speed Considerations

There are many types of loads that train hubs have to handle when heavy-duty goods lifts are used. To do this, you need wide-contact stiff clamps on T127 or T140 tracks that are cast instead of pressed. This way, the gauge doesn't get bigger when there are several tonnes of horizontal stress. A high-speed passenger lift going faster than 4 m/s in a building taller than 100 meters must have one fixed point at the base and sliding clamps in key spots.

Maintenance and Safety: Ensuring Long-Term Performance and Compliance

Routine Inspection Protocol

Every six months, check the rail clamps for rust, damaged coatings, or sheared bolts. Once a year, feel the rails to see if they are moving side to side. And every 24 months, or after an earthquake, make sure the full torque is still there. Maybe something is wrong if the rail has shiny wear spots near the clamp, the spring clips are flattened all the way through, or the bolt heads are rusty.

Lubrication and Corrosion Prevention

There shouldn't be any grease on the rail surface inside the clamp zone of Elevator Guide Rail Clamps. If there is grease, it will trap water and speed up the ageing process. It's not necessary to oil guide rail clamps. Every time the check cycle is done, a thin layer of a substance that stops corrosion should be put on the exposed bolt threads on damp shafts. The clamp will last longer this way, and it will still work the same way.

Compliance and Documentation

Both EN 81-20/50 and ASME A17.1 say that all safety-important lift parts, like rail clamps, need to be in the system's technical file and have traceable permission. Manufacturers who have been approved by ISO 9001 offer these kinds of paperwork sets right away. Keep procurement teams safe by having supplier certifications, batch records, and torque logs on hand during checks. This also speeds up the process of re-certification after major maintenance events.

Procurement Guidance: How to Select and Purchase Elevator Guide Rail Clamps?

Key Decision Criteria

When good purchasing managers buy rail clamps, they always check for four things: bolt-grade documentation, supplier certification (ISO 9001 and EN 81 are good places to start), Go/No-Go gauge inspection records that show how accurate the measurements are, and salt-spray test data that show how well the coating works on the surface. This paper might not be given to you when you ask for it, which is called a procurement risk.

These are the main things that help you decide:

• Verification of Certification: Before making an order, make sure that the paperwork is in line with ISO 9001 and EN 81. For safety-critical parts, these are not options.
• FLA Industrial has 8K, 13K, 18K, and 24K sizes with full sets (screws, flat washers, and hardware) for T89, T75, and H18 rail types, so you don't have to buy fasteners individually.
• Lead Times and MOQ Flexibility: 2,000 tons of stock at FLA Industrial makes it easy to ship standard things quickly. It takes 7–15 days to make custom setups. There are no minimum order sizes, so maintenance teams that need to order small amounts can do so, as can contractors who need to order a lot of supplies for a big project.
• After-Sales Support: The supplier's speed with which they can answer technical questions within 24 to 48 hours has a direct effect on the project timeline, especially when problems arise during installation.

You don't have to look for fasteners separately because FLA Industrial has 8K, 13K, 18K, and 24K sizes that come with full sets of screws, flat washers, and hardware for T89, T75, and H18 rail types.

Conclusion

It's not easy to find the right Elevator Guide Rail Clamps and put them on correctly the first time. Not having them affects safety, comfort, and the long-term costs of upkeep. Manufacturers must use cast steel or cast iron clamps that have been tested and shown to meet EN 81 standards in order to keep lift systems up to code. And finally, the clamps need to be perfectly matched to the rails' shape. The right amount of force needs to be used, and the systems need to be checked often. People who buy, build, or sell things all work with sellers who give them all the proof papers they need and quick expert help. This takes away the most common sources of risk in the process.

FAQ

How do I verify that a clamp is compatible with a specific rail profile?

Make sure the size of the clamp jaws matches the exact thickness of the rail's T- or H-profile flanges. A clamp made for a T89 rail won't be able to firmly hold a T75 rail. Before placing an order, you should always ask for the supplier's measurement picture and check it against the train manufacturer's flange standard.

What is the correct maintenance interval for rail clamps?

A visual check for damage and corrosion every six months, a check for lateral movement every twelve months, and a full torque check every twenty-four months is a good schedule for most installations. After a big earthquake or building project, you should inspect right away, no matter what your normal schedule is.

When should I choose a sliding clamp over a fixed clamp?

Slide clamps should be used in any placement where the trip height is more than 40 to 50 meters or where the shaft's temperature changes a lot. For short-travel, low-speed, or hydraulic lift systems, fixed clamps are the only way to go.

Are forged clamps better than pressed steel clamps for freight applications?

Yes. Steel clamps that are made or cast are more rigid and better at stopping vibrations than steel clamps that are punched or pressed. For low-duty, home uses, pressed steel clamps are a cheap option, but they aren't good for big eccentric loads.

Partner with FLA Industrial for Your Next Elevator Project

A company called FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years. They offer approved guide rail clamp options that partners in the U.S. and around the world trust. We can make straight Elevator Guide Rail Clamps that are approved by ISO 9001 and EN 81 and are made of cast steel and cast iron. You can paint or hot-dip galvanize these items, and they come in sizes from 8K to 24K. For custom setups, 3D models can be sent in 24 to 48 hours. Send us an email at sales@flaindustrial.com or visit flaindustry.com right away to get a price.

References

1. International Organization for Standardization. ISO 9001:2015 — Quality Management Systems: Requirements. ISO, 2015.

2. American Society of Mechanical Engineers. ASME A17.1/CSA B44: Safety Code for Elevators and Escalators. ASME, 2022.

3. European Committee for Standardization. EN 81-20: Safety Rules for the Construction and Installation of Lifts — Part 20: Passenger and Goods Passenger Lifts. CEN, 2020.

4. Strakosch, George R., and Robert S. Caporale. The Vertical Transportation Handbook. 4th ed., Wiley, 2010.

5. Peters, John L. "Guide Rail Design and Thermal Expansion in High-Rise Elevator Systems." Elevator World, vol. 69, no. 4, 2021.

6. National Elevator Industry, Inc. NEII-1: Building Transportation Standards and Guidelines. NEII, 2019.
