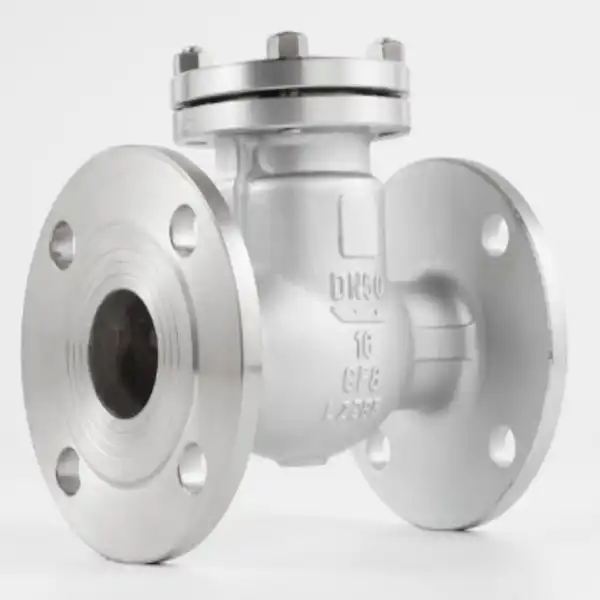

Can a Cast Steel Steam Check Valve Protect Steam Equipment from Reverse Flow?

Yes — a cast steel steam check valve can absolutely protect steam equipment from reverse flow. These valves work automatically, using an internal disc that opens under forward flow pressure and closes the moment flow stops or reverses. Built from carbon steel or stainless steel bodies rated under ASTM A216 WCB standards, they handle steam temperatures up to 425°C and pressure classes from 150 to 2500. In power plants, boiler systems, and process heating lines, this mechanism directly prevents water hammer, pump damage, and turbine blade impingement caused by condensate backflow.

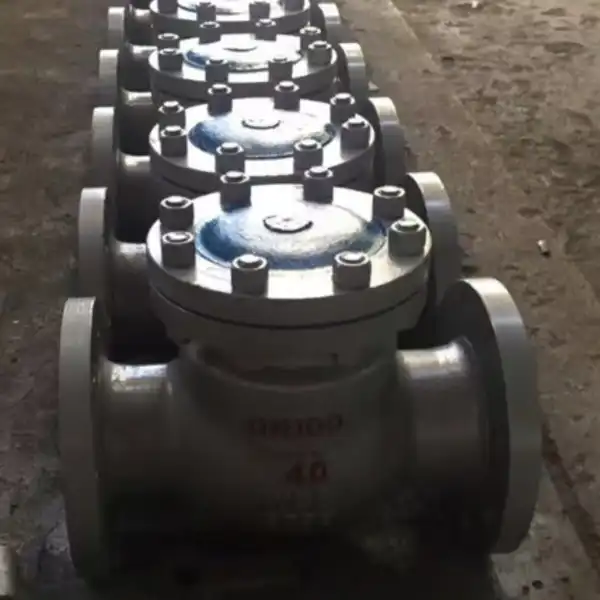

Specifications

Model (DN)	Type	Connection	Pressure Rating	Temperature Range
DN50	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN50	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN50	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN65	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN65	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN65	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN80	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN80	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN80	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN100	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN100	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN100	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN150	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN150	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN150	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN200	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN200	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN200	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN250	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN250	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN250	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN300	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN300	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN300	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C

Introduction: Why Reverse Flow Is a Real Threat to Steam Systems?

Failures in the Steam system rarely show up. Water hammer is a damaging pressure surge that can be caused by one missed backflow event. It can crack pipe joints, damage pump internals, and put turbine blades in great danger. The Hydraulic Institute says that water hammer events are one of the main reasons why industrial pipe systems have pumps break down too soon.

When pressure differences change suddenly, like when a pump stops working, a load is turned off, or the line pressure changes quickly, reverse flow can happen. Water and steam rush backward through the line because there is no artificial barrier there. The effect is stressed equipment, unexpected downtime, and repairs that cost a lot of money.

This mechanical barrier is a backflow prevention valve in your steam line that was properly chosen and installed. This book tells project engineers and B2B buying managers how these valves work, what to look for, and how to pick the best one for your needs.

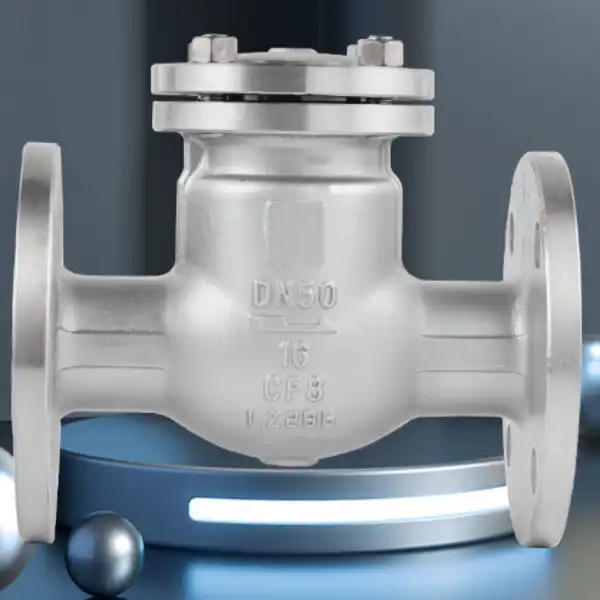

Understanding Cast Steel Steam Check Valves and Their Role in Reverse Flow Protection

How the Internal Disc Mechanism Works?

In normal situations, the disk inside the valve body sits against a seat. The disk opens when the steam flows in the right direction. When the flow speed slows down or turns around, the disk closes under the force of gravity or a spring, stopping movement backward. The process is completely automatic, so no electricity or human input is needed.

Types of Check Valves for Steam Service

Three main configurations are used for different types of steam work. Swing check valves keep the flow steady on straight lines with low pressure drop. Lift check valves, also called piston check valves, are used in high-cycle situations and steep setups where the flow goes up. Anti-slam features in tilting disk designs lower mechanical stress during closure, making them perfect for lines where pressure changes often.

Why Cast Steel Outperforms Other Body Materials?

At temperatures that would make cast iron or bronze weak, carbon steel (ASTM A216 WCB) doesn't creep or turn into graphite. If the steam temperature is more than 538°C, alloy steel types WC6 or WC9 must be used. Stellite 6 hard-facing is usually used on the sealing surfaces. It has a hardness of 37–40 HRC and can prevent wire-drawing erosion, which is a frequent way for high-speed steam lines to break.

Benefits of Using Cast Steel Steam Check Valves in Steam Equipment Protection

Thermal Stress Resistance Over Long Service Cycles

Thermal growth and shrinkage happen all the time in steam lines. Cast Steel Steam Check Valve frames can handle this spinning without cracking or warping, so their dimensions stay the same for thousands of hours of use. On the other hand, cast iron breaks easily when it is heated quickly, which is a big problem in places where there is a lot of steam pressure.

Minimizing Water Hammer and Reverse Flow Damage

This type of valve is better at protecting the core in live steam systems in these ways:

• Automatic closure response: The disc responds immediately to flow reversal, cutting off reverse pressure before it builds into a damaging surge. This protects downstream pumps, boilers, and heat exchangers without operator intervention.
• Anti-slam disc options: Tilting disc designs slow the closure speed slightly, absorbing the kinetic energy of returning fluid and preventing the sharp pressure spike that causes pipe joint failure and instrumentation damage.
• Hard-faced sealing surfaces: Stellite-faced seats withstand the erosion-corrosion that steam's lack of lubricity causes, extending service life well beyond that of standard soft-seat alternatives.

Because of these benefits, your steam delivery network is less likely to have unplanned shutdowns and need expensive equipment repairs.

Long Service Life and Lower Maintenance Burden

When installed correctly, a well-made cast steel steam valve doesn't need much attention. As required by API 598, each valve is tested hydrostatically at 1.5× rated pressure and for seat closure at 1.1× rated pressure to make sure it can work in real life before it leaves the factory. This pre-delivery check cuts down on failures in the field and makes maintenance schedules more reliable.

Selecting the Right Cast Steel Steam Check Valve: Key Criteria for Procurement Managers

Pressure Rating and Size Range

The pressure class of the valve (150, 300, 600, 900, 1500, or 2500) should match the highest pressure that can be used in your system. The minimum flow speed, not just the pipe width, should be used to choose the right size. A valve that is too big works with a disk that is only partly open, which causes buzzing and faster wear. FLA's product line includes sizes from DN50 to DN300, which lets buying teams choose valves that are exactly what the system needs.

Material Compatibility and Certification Verification

Check to see if the body material, trim, and seals will work with the temperature and chemicals of your steam. When buying teams buy things from other countries, they should look for ISO 9001 recognition as a basic sign of quality. FLA's Cast Steel Steam Check Valves are certified by both ISO 9001 and CE. They are made by casting, precision CNC machining, assembly, and a protective coating. At each step of the process, quality checks are recorded and kept.

Supplier Reliability and Bulk Sourcing Options

Lead times, OEM capabilities, and consistent Cast Steel Steam Check Valve SKU availability are all very important for project procurement. Check to see if your provider can give you Certified Material Test Reports (CMTR), results from radiological testing (RT), and proof that the dimensions meet ASME B16.10 face-to-face standards. In deadly service steam applications, these papers are required by law and can't be left out.

Installation, Operation, and Maintenance Best Practices

Correct Orientation and Flow Direction

When installing a swing check valve, the hinge pin must be flat on the ground and the flow must be going up on vertical runs. Lift check valves are reliable whether they are facing upwards or horizontally. Before starting up, you should always make sure that the arrow on the valve body lines up with the direction of flow that you want.

Routine Inspection Intervals

Check the state of the disks and the sealing surfaces at least once during the repair cycle. Check the seat face for wire-drawing marks, disk wear, or worn springs in designs that use springs. Finding seat erosion early on stops seat leakage from getting worse and turning into full reverse flow incidents.

Troubleshooting Common Issues

Chattering, which is when the disk opens and closes quickly when there isn't much flow, means that either the valve is too big or the line speed is too slow. Compare the new size calculations to the old ones using real flow rates. If the valve won't close, check the disk or seat for dirt or scale buildup and clean it using the right solvent or mechanical method as directed by the maker.

Real-World Applications and Case Studies

Power Generation: Turbine Extraction Line Protection

In thermal power plants, condensate can't get back into the engine when the load is turned off because of check valves on the lines that take out the steam. Putting water into a rotor that is spinning can break the blades in seconds. ASME and API guidelines say that installing tilting disk or swing check valves with the right rating on these lines is a standard way to keep them safe.

Industrial Boiler Feedwater Systems

At the outlet points of high-pressure feedwater pumps, a backflow prevention valve stops the pressurized steam-water mixture from the boiler from pushing backward into the pump when the boiler is turned off or the pump fails. This stops damage from reverse rotation and stops the pressure shock that would otherwise break the pump's internals.

Petrochemical Steam Distribution Headers

These valves keep the flow steady across complicated trace-heating pipes in refinery steam distribution networks. If there are properly rated check valves at each branch link, a process upset in one unit can't lower the pressure in the central steam main. This keeps the temperature consistent throughout the whole facility.

Conclusion

In real life, reverse flow in steam systems breaks real things, like pump cases that burst and turbine blades that get damaged. That risk is eliminated by a Cast Steel Steam Check Valve that is properly designed and placed. It stops backflow automatically and mechanically reliably. Choosing the right type, size, and pressure class for your system, along with testing that meets standards, is what makes the difference between an installation that lasts and one that needs to be fixed over and over again. Investing in quality during the procurement stage pays off in the long run with less downtime and longer equipment life for the whole system.

FAQ

Can I use a swing check valve on a vertical steam line?

A swing check valve can handle vertical installation only when flow moves upward. For downward flow or high-cycle vertical runs, a spring-loaded lift check valve is the appropriate choice — it reseats promptly when flow stops, regardless of orientation.

How does cast steel differ from stainless steel in steam service?

Carbon steel grades like WCB are preferred for standard steam temperatures due to their higher thermal stability and lower cost. Stainless steel offers better corrosion resistance but can be prone to stress corrosion cracking in certain steam chemistries and typically costs more for equivalent pressure ratings.

What inspection interval do you recommend?

For most steam applications, inspect valve internals during each scheduled outage or at minimum once per year. High-cycle lines or superheated steam service may require more frequent checks — every six months is a reasonable target for critical protection points.

What causes chattering, and how do I fix it?

Chattering results from operating an oversized valve below its minimum flow velocity. The solution is to resize the valve based on actual line velocity, or switch to a tilting disc design that maintains disc stability at lower flow rates.

Are these valves compliant with international standards?

FLA's cast steel steam check valves meet ISO 9001 quality management standards and carry CE certification. Design compliance with ASME B16.34 and dimensional compliance with ASME B16.10 are standard for steam-rated Products" target="_blank" style="color:blue" >products in this class.

Partner With FLA Industrial & Trading Co., Ltd. for Your Steam Valve Needs

Every Cast Steel Steam Check Valve that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. Our products are certified by both ISO 9001 and CE, and they can handle steam temperatures up to 425°C and sizes from DN50 to DN300. They also support flanged and threaded connections. Our team is ready to help you whether you need large supplies, OEM support, or expert advice. To get a quote from a reliable Cast Steel Steam Check Valve supplier, email us at sales@flaindustrial.com or go to flaindustry.com right now.

References

1. American Society of Mechanical Engineers. ASME B16.34: Valves — Flanged, Threaded, and Welding End. ASME, 2017.

2. American Petroleum Institute. API 598: Valve Inspection and Testing. API, 2016.

3. American Petroleum Institute. API 6D: Specification for Pipeline and Piping Valves. API, 2021.

4. Hydraulic Institute. Pump System Improvement Guidebook. Hydraulic Institute, 2021.

5. British Standards Institution. BS 1868: Steel Check Valves for the Petroleum, Petrochemical and Allied Industries. BSI, 2000.

6. Nayyar, Mohinder L. Piping Handbook. 7th ed., McGraw-Hill, 2000.
