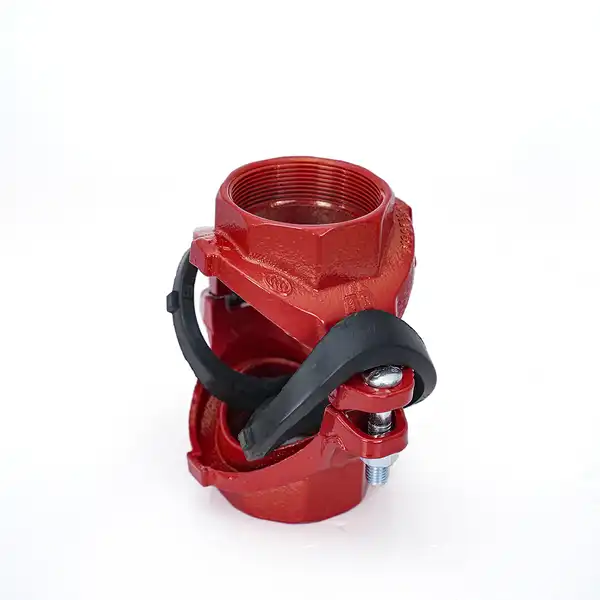

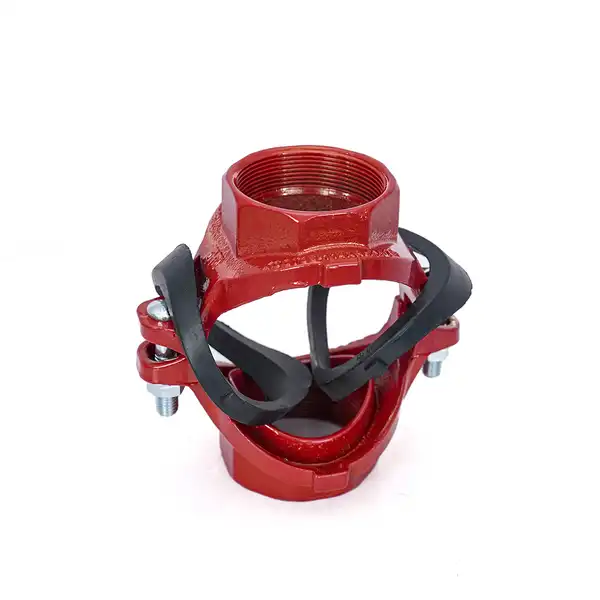

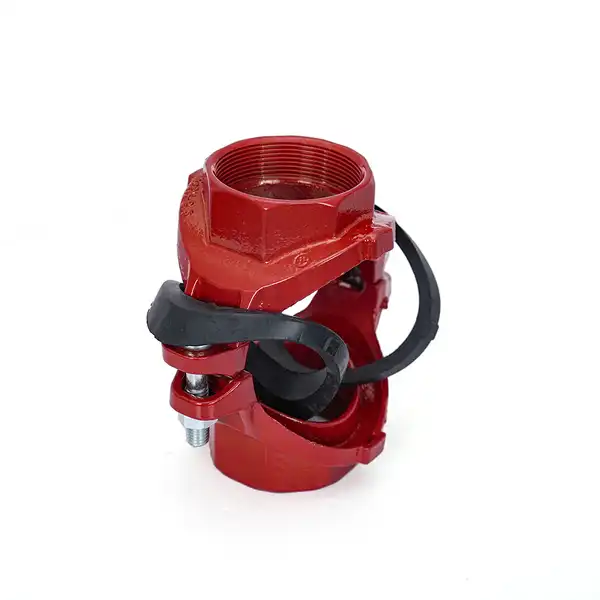

Grooved Mechanical Cross for Multi-Direction Branching in Fire Protection Piping

A Grooved Mechanical Cross is a four-way pipe fitting engineered to distribute fluid flow in multiple directions within grooved piping systems. In fire protection piping, this fitting connects sprinkler branch lines, feed mains, and cross mains at a single junction point — without welding. Cast from ductile iron conforming to ASTM A536, it engages mechanical couplings and elastomeric gaskets to form a leak-tight, self-restrained joint. For procurement professionals and construction engineers sourcing fire protection components in the U.S. market, this guide covers everything from technical specifications to selection criteria and installation best practices.

Specification

Type	Series	Material	Finish	Working Pressure	Connection Type
Grooved Mechanical Cross	76 Series	Ductile Iron	Red Painted / Epoxy Coated	Per Industry Standards	Grooved Coupling
Grooved Mechanical Cross	89 Series	Ductile Iron	Red Painted / Epoxy Coated	Per Industry Standards	Grooved Coupling
Grooved Mechanical Cross	114 Series	Ductile Iron	Red Painted / Epoxy Coated	Per Industry Standards	Grooved Coupling
Grooved Mechanical Cross	165 Series	Ductile Iron	Red Painted / Epoxy Coated	Per Industry Standards	Grooved Coupling
Grooved Mechanical Cross	219 Series	Ductile Iron	Red Painted / Epoxy Coated	Per Industry Standards	Grooved Coupling

Understanding Grooved Mechanical Crosses in Fire Protection Systems

Before specifying any pipe fitting for a fire sprinkler system, it pays to understand exactly how a four-way grooved fitting functions and why it performs differently from older joining methods.

What Is a Grooved Mechanical Cross?

A grooved cross features four outlets with precision-machined grooves on each end. These grooves receive the housing segments of a grooved coupling, which compresses an elastomeric gasket against the pipe O.D. to form a pressure-rated seal. The result is a rigid or flexible joint — depending on coupling selection — that handles both axial and angular pipe movement.

Material and Pressure Standards

High-quality crosses are cast from Ductile Iron Grade 65-45-12 per ASTM A536, which delivers a minimum tensile strength of 65,000 psi. Groove dimensions follow ANSI/AWWA C606, ensuring direct compatibility with Victaulic-style couplings. Working pressure ratings typically range from 300 psi to 750 psi, making these fittings well within the requirements of NFPA 13 fire sprinkler systems.

Why Fire Protection Systems Rely on This Fitting?

Fire protection piping demands joints that hold under sudden pressure surges when a fire pump activates. The grooved cross handles these hydraulic shocks without fatigue cracking — a documented weakness of threaded black iron pipe in grid systems. According to NFPA 13 (2022 edition), grooved mechanical fittings must carry UL listing and FM approval for use in fire sprinkler systems, confirming their standing as a code-compliant solution.

Comparing Grooved Mechanical Crosses with Alternative Solutions

Choosing between connection methods affects labor hours, long-term leak risk, and code compliance. Here is how the grooved cross stacks up against the main alternatives.

Grooved vs. Welded Crosses

Welded crosses eliminate mechanical joints but require certified welders, hot work permits, and extended cool-down time before hydrostatic testing. In occupied buildings or warehouses with flammable stock, this presents a real safety concern. The grooved cross removes all hot work from the equation — a significant advantage for retrofits and fast-track construction schedules.

Grooved vs. Flanged and Threaded Connections

Flanged joints handle high pressure well but add weight, require gasket alignment, and take considerably more time to bolt up. Threaded crosses work on small-diameter pipe but lose pressure integrity as wall thickness decreases on larger schedules. The Grooved Mechanical Cross sits between these extremes: lighter than a flanged assembly, stronger than a threaded joint on 2-inch and larger pipe, and faster than both.

When a Coupling Alone Is Not Enough?

A standard coupling connects two pipes in a straight run. When a system needs to branch water in four directions simultaneously — for example, at the intersection of a cross main and two branch lines in a gridded sprinkler layout — only a four-way fitting like the grooved cross manages that geometry cleanly. Replacing a cross with multiple tees and couplings adds joints, leak points, and labor hours.

Core Product Advantages of Our Grooved Mechanical Cross

Our Grooved Mechanical Cross is made to meet the unique needs of fire safety projects in businesses and factories. Here are the main benefits of this fitting that procurement teams always list:

• Quick Installation Design: The grooved connection system eliminates welding requirements entirely. You align the pipes, seat the gasket, and secure the coupling housing for an instant, code-compliant connection. Field crews report installation times up to 50% shorter compared to welded assemblies on the same system layout.
• Superior Durability: Ductile iron construction delivers an excellent strength-to-weight ratio. The material withstands impact loading and pressure fluctuations common in industrial fire mains, resisting brittle fracture under conditions that would crack gray iron.
• Corrosion Protection: An epoxy resin coating combined with a red painted finish provides dual-layer protection against moisture, mild chemical exposure, and handling damage. This combination extends service life significantly compared to single-coat alkyd enamel finishes used in standard-grade fittings.
• Precision Engineering: Advanced casting and machining processes hold groove dimensions — the A-dimension for gasket seating, B-dimension for groove width, and C-dimension for groove diameter — within strict AWWA C606 tolerances. Every fitting leaves the production line dimensionally verified for reliable gasket sealing.

These benefits directly deal with the two things that make fire protection piping expensive: the labor needed to install it and the upkeep that it needs over time. The cost of the whole job goes down when parts are put in faster and don't leak for longer.

Installation Guide and Maintenance Best Practices

When you set up the system correctly, you protect your pressure rating and make sure it is NFPA 13-compliant from the start.

Step-by-Step Installation Overview

Square-cut the pipe, smooth out the cut end, and roll-groove or cut-groove it to AWWA C606 standards. Use the manufacturer's recommended oil to coat the elastomeric seal, then place it on the pipe and slide the cross onto the end of the pipe. Place the coupling housing pieces over the gasket and tighten the bolts to the torque value recommended by the coupling maker. For rigid couplings, this is usually pad-to-pad metal contact.

Common Installation Errors to Avoid

Using oil-based lubricants on EPDM gaskets (which makes them swell and fail the seal) and not tightening the bolts on Grooved Mechanical Cross coupling housings enough (which lets the gasket blow out during pressure testing) are the most common mistakes made in the field. Before putting something together, you should always make sure that the groove dimensions match the coupling series.

Routine Maintenance Schedule

Every year, check grooved joints that can be reached for gasket expansion, coupler bolt rust, and coating damage. In systems with strong water chemistry, inspections should be done every six months instead of every three months. Before the next fire pump test run, replace any connection that has a cracked casing or hardware that has been corroded.

Selecting the Right Grooved Cross for Your Fire Protection Needs

Pressure Rating and Size Compatibility

The working pressure number of the fitting should be the same as the hydraulic design pressure for your system plus a safety cushion. Schedule 10 pipe grooves are valid, but the system pressure rating defaults to the thinner-walled pipe, not the fitting. Make sure that the pipe schedule makes a groove that meets AWWA C606.

Certifications to Require

Fittings with UL/FM markings must be used with any UL 864-listed or FM-approved fire protection system. Ask for mill test results that show the chemistry of ASTM A536 Grade 65-45-12, including nodularity >90% to prove that the iron is ductile. If asked, records of batch hydrostatic tests done at 1.5 bar working pressure should be made available.

Procurement Logistics for Bulk Orders

When distributors and general contractors place large orders, they should check lead times against project schedules as soon as possible. Ask suppliers about how the fittings should be packed. They should come in boxes or on pallets with individual protection to keep the groove edges from getting damaged during shipping, which can damage the surfaces where the gaskets sit.

Conclusion

The grooved mechanical cross offers a practical and code-compliant solution for multi-direction branching in fire protection piping. Its ductile iron body, precision-machined grooves, and dual-layer corrosion coating address the core concerns of procurement engineers, site supervisors, and distributors: installation speed, joint integrity, and long-term service life. Whether you are specifying fittings for a new commercial sprinkler system or sourcing inventory for resale, understanding these technical and procurement details puts you in a stronger position to make the right call.

FAQ

Can a grooved cross be used outside fire protection systems?

Yes. The same fitting works in commercial HVAC chilled water loops, industrial process piping, and mine dewatering lines. The fitting's suitability depends on fluid type, pressure, and temperature — verify that the elastomeric gasket grade matches your service conditions.

Is a grooved cross safer than a welded cross?

Both meet code requirements when properly specified. The grooved version removes hot work from the installation process, which lowers fire and injury risk on active job sites. Post-installation, both perform comparably when correctly maintained.

How long do bulk orders typically take to deliver?

Lead times vary by order size and supplier. Standard SKU sizes in stock typically ship within one to two weeks. Custom sizes or large-volume orders may require four to six weeks. Confirm lead times in writing before finalizing your project schedule.

Does the fitting require special tools?

No special tools beyond a standard torque wrench and groove-gauging tools are required. Groove dimensions should be verified with go/no-go gauges before coupling assembly.

What gasket material is standard?

EPDM gaskets are standard for water service, including fire protection systems. Silicone and Nitrile grades are available for hot water or hydrocarbon service.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Project

Yes. The same Grooved Mechanical Cross fitting can be used in mine dewatering lines, business HVAC chilled water loops, and industrial process pipes. The type of fluid, the pressure, and the temperature can all affect how well the fitting works. Make sure that the grade of the rubber seal you choose is right for your service conditions. Email us at sales@flaindustrial.com or go to flaindustry.com right now.

References

1. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

2. American Water Works Association. ANSI/AWWA C606: Grooved and Shouldered Joints. AWWA, 2022.

3. ASTM International. ASTM A536: Standard Specification for Ductile Iron Castings. ASTM, 2023.

4. Factory Mutual Global. FM Approvals Standard 1920: Grooved-End Fittings for Fire Protection. FM Global, 2021.

5. Underwriters Laboratories. UL 213: Standard for Rubber Gasketed Fittings for Fire-Protection Service. UL, 2021.

6. Nayyar, Mohinder L. Piping Handbook, 7th ed. McGraw-Hill, 2000.
