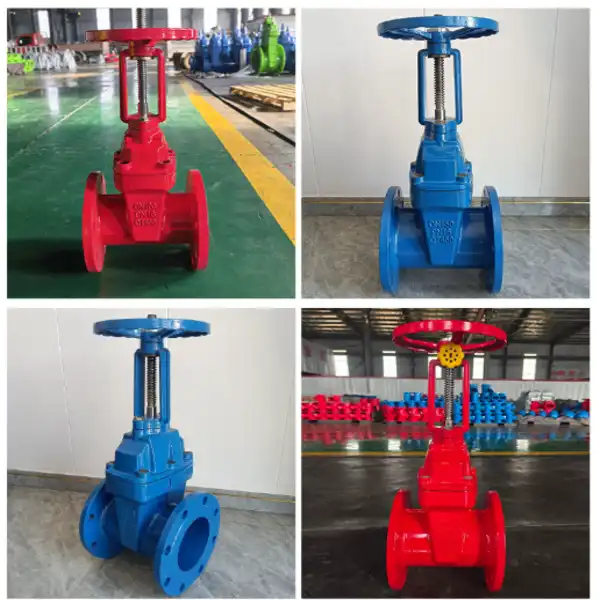

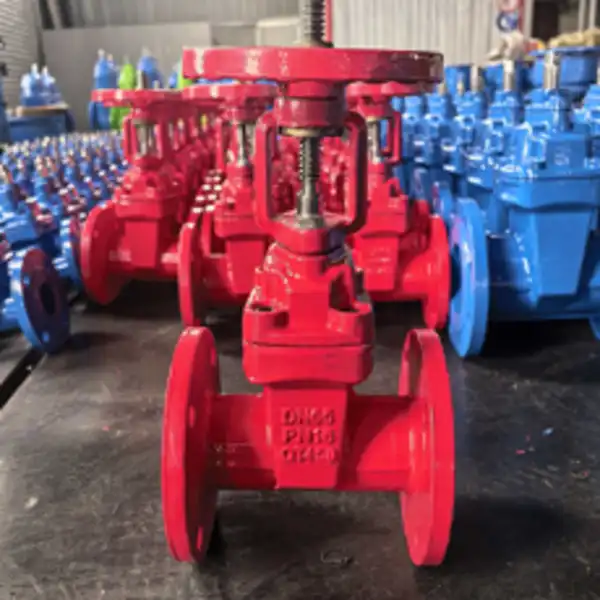

Fire Protection Flanged Valve for Commercial Sprinkler and Industrial Fire Systems

A fire protection flanged valve is a specialized isolation and flow-control component engineered exclusively for fire suppression pipelines. Unlike standard industrial valves, these Products" target="_blank" style="color:blue" >products must meet strict UL and FM approval requirements to operate in sprinkler and hydrant systems. They feature bolted flange connections—typically conforming to ANSI Class 125/150 or PN10/16—that maintain structural integrity under high system pressure. At FLA Industrial & Trading Co., Ltd., we manufacture these valves in cast iron, ductile iron, and carbon steel, covering sizes from 2" to 12" (DN50–DN300) with pressure ratings between 150 and 600 PSI.

Specifications

Model (DN)	Valve Body Type and Rod Weight (kg)	Valve Body Length
DN40	National Standard Medium Body Steel Rod, 5.5 kg	Approx. 14.3 cm
DN40	National Standard Large Body Steel Rod, 7.5 kg	Approx. 16 cm
DN50	National Standard Body Steel Rod, 6.5 kg	Approx. 17.3 cm
DN50	National Standard Medium Body Steel Rod, 7.5 kg	Approx. 17.5 cm
DN50	National Standard Large Body Steel Rod, 9 kg	Approx. 17.2 cm
DN65	National Standard Body Steel Rod, 7.5 kg	Approx. 18.5 cm
DN65	National Standard Medium Body Steel Rod, 8.5 kg	Approx. 18.6 cm
DN65	National Standard Large Body Steel Rod, 10.5 kg	Approx. 18.5 cm
DN80	National Standard Body Steel Rod, 9 kg	Approx. 20 cm
DN80	National Standard Medium Body Steel Rod, 10.5 kg	Approx. 20 cm
DN80	National Standard Large Body Steel Rod, 12 kg	Approx. 19.7 cm
DN100	National Standard Body Steel Rod, 10 kg	Approx. 21.5 cm
DN100	National Standard Medium Body Steel Rod, 12.5 kg	Approx. 22.5 cm
DN100	National Standard Large Body Steel Rod, 17.5 kg	Approx. 22 cm
DN125	National Standard Body Steel Rod, 19 kg	Approx. 24.5 cm
DN125	National Standard Medium Body Steel Rod, 21 kg	Approx. 25 cm
DN125	National Standard Large Body Steel Rod, 24 kg	Approx. 25 cm
DN150	National Standard Body Steel Rod, 20 kg	Approx. 26 cm
DN150	National Standard Medium Body Steel Rod, 23 kg	Approx. 26.2 cm
DN150	National Standard Large Body Steel Rod, 29 kg	Approx. 26.3 cm
DN200	8-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	12-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	8-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	12-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	8-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN200	12-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN250	National Standard Medium Body Steel Rod, 70 kg	Approx. 32.5 cm
DN250	National Standard Large Body Steel Rod, 80 kg	Approx. 32.5 cm
DN300	National Standard Medium Body Steel Rod, 85 kg	Approx. 35 cm
DN300	National Standard Large Body Steel Rod, 111.5 kg	Approx. 35 cm
DN350	National Standard Large Body Steel Rod, 150 kg	Approx. 37.5 cm
DN400	National Standard Large Body Steel Rod, 175 kg	Approx. 40.5 cm
DN450	National Standard Large Body Steel Rod, approx. 251.5 kg	Approx. 430 cm
DN500	National Standard Large Body Steel Rod, approx. 340 kg	Approx. 45.5 cm
DN600	National Standard Large Body Steel Rod, approx. 450 kg	Approx. 50.7 cm

Understanding Fire Protection Flanged Valves

Before choosing a valve for your system, it's helpful to know what the difference is between fire-rated flanged valves and other types, and why that difference is important for life-safety uses.

What They Are and How They Work?

Safety from fire Flanged valves control the flow of water through pipes used to put out fires. The valve must open or close fully and right away when the system turns on. The flanged body, which is held together on both sides by bolts, can handle surge pressure much better than threaded fittings at bigger sizes, which greatly lowers the risk of blowout.

Common Types and Their Applications

Each of the four main types has a specific job to do. Outside Screw and Yoke (OS&Y) gate valves have a stem position that can be seen, so you can tell at a glance whether the valve is open or closed. This is necessary for fire water supply mains. Butterfly valves with tamper switches work well in wet-pipe systems that don't have a lot of room. Check valves stop backflow on pump discharge lines, while ball valves are good for isolating branch lines.

Material Selection for Durability

The standard body material in the business is ductile iron that meets ASTM A536 Grade 65-45-12. It is stronger and less likely to break when it hits something than gray cast iron. In high-pressure industrial loops with a lot of mechanical stress, carbon steel is the best choice. An anti-corrosion covering is put on all FLA valves to make them last longer, whether they are used inside or outside.

Fire Protection Flanged Valve Specifications and Standards

If you make sure the specs are correct before you place your order, you can avoid delays and expensive rework. This is what experts and buying teams need to make sure of before they place an order.

Flange Standards and Dimensional Compliance

FLA Fire Protection Flanged Valves meet the face-to-face dimensions requirements of ANSI B16.1, ANSI B16.10, DIN, and JIS. ANSI Class 125 and PN16 have different bolt hole designs, so making sure you know what plumbing standard you're working with before you place your order will keep the bolt circles from not matching. During the replacement work, the face-to-face dimension must also match the footprint of the old valve.

Pressure Ratings and Size Range

It is recommended that working pressures of 175 PSI, 250 PSI, and 300 PSI be used for most business and industrial fire systems. Our catalog has Fire Protection Flanged Valve sizes from 2" to 12" (DN50 to DN300), and we can make custom pressure rates up to 600 PSI for high-rise wet riser systems or industrial fire loop uses where higher-rated parts are needed for multi-stage fire pump output.

Key Performance Metrics

The flow coefficient (Cv) tells us how much hydraulic head loss there is across the valve. This has a direct effect on the hydraulic calculations for the sprinkler system. A design for a full-bore gate valve creates almost no obstruction, keeping the pressure at the spray heads the same. Response time and seat leaking rate—tested to a zero-bubble standard according to FM 1120—are both very important for fire service compliance.

Comparing Fire Protection Flanged Valves With Other Valve Types

Procurement decisions often come down to a direct comparison between flanged, threaded, welded, and grooved-end connections. Each has a place, but the differences in performance and long-term cost are significant.

Flanged vs. Threaded Connections

Threaded connections work acceptably in smaller diameters below 2 inches, but at 4 inches and above, thread fatigue and vibration loosen joints over time, creating leak points. Flanged connections distribute clamping force evenly around the pipe circumference through bolted mating, making them the standard choice for fire pump suction and discharge connections as well as riser base isolation.

Flanged vs. Grooved and Welded Alternatives

Grooved-end couplings (associated with brands like Victaulic) offer faster installation and some vibration dampening, which is useful near pump sets. However, flanged valves outperform grooved connections in applications requiring maximum sealing integrity under sustained pressure, particularly in petrochemical fire loops or high-rise risers.

Welded connections create permanent joints with very low leak risk, but replacing a defective valve in a welded system requires cutting the pipe—a costly and time-consuming process. Flanged valves bolt on and off, making maintenance and replacement significantly faster.

Here are the core connection-type comparisons for fire protection applications:

• Flanged: Best sealing integrity for 2"–12" diameters; bolt-and-flange design allows quick removal; ideal for pump headers, riser bases, and industrial fire mains.
• Grooved: Faster field assembly; accommodates pipe movement; preferred near vibrating equipment but requires periodic gasket inspection.
• Threaded: Cost-effective below 2"; not recommended for high-pressure fire mains; prone to loosening under vibration.
• Welded: Permanent and leak-resistant; unsuitable where future maintenance access is needed.

These differences translate directly into total cost of ownership. Flanged valves carry a higher initial cost than threaded fittings, but their serviceability and seal reliability reduce long-term maintenance expenses in critical fire protection infrastructure.

Fire Protection Flanged Valve Installation, Maintenance, and Best Practices

Even the best valve fails prematurely without correct installation and scheduled servicing. The following guidance reflects NFPA 25 requirements and common field practices.

Correct Installation Procedure

Align the flanges of the Fire Protection Flanged Valve squarely before tightening bolts to avoid gasket distortion. Tighten bolts in a cross pattern to distribute compression evenly. Verify the valve flow direction arrow matches the intended flow path. OS&Y gate valves should be installed with the stem in a horizontal or upright position to prevent water from pooling in the packing gland.

Scheduled Inspection and Maintenance

NFPA 25 requires visual inspection of fire protection valves weekly or monthly depending on whether the system is supervised. Annual full cycling—opening and closing the valve completely under pressure—prevents the stem and wedge from seizing due to mineral deposits or corrosion. Lubricate stem threads annually. Check the packing gland for weeping water and tighten gland nuts slightly if a minor leak appears after installation.

Troubleshooting Common Issues

A leaking stem after installation usually results from packing gland loosening during transit or vibration. Partial tightening of the gland nuts resolves most cases. If the stem is bent from improper handling, the valve requires full replacement. Coating damage that exposes bare metal accelerates corrosion in stagnant-water fire systems; inspect exterior coating annually and reapply where holidays are detected.

Procurement Guide and Supplier Selection for Fire Protection Flanged Valves

It's not just about price when choosing a source for fire safety systems' separation valves. Certification, being able to track products, and getting help after the sale are all very important.

Identifying Certified Suppliers

Fire Protection Flanged Valves that have physical casting lines that say they are UL Listed (UL 262) and FM Approved (FM Class 1120/1130) should only be bought. The supplier's quality management systems are checked by ISO 9001 certification. When an export project gets a CE mark, it means that it meets European safety standards. All four certifications—ISO 9001, CE, UL, and FM—are held by FLA Industrial & Trading Co., Ltd., and full compliance paperwork is sent with every package.

Evaluating Lead Times and Bulk Purchasing

Reliable lead times are just as important as good product quality for construction projects and large distribution orders. Check to see if the supplier has finished products in standard sizes in stock or if they make things to order. When you buy standard sizes in bulk, especially 4", 6", and 8" OS&Y gate valves, the cost per unit goes down and operations are made easier. FLA answers to requests for price and specifications within 24 to 48 hours, which helps projects get done faster.

Customization and Technical Support

Some projects need face-to-face measurements that aren't standard, pressure values that aren't standard, or the ability to use both electric and pneumatic actuators. Dimensional mistakes are less likely to happen in tight installations if the supplier can provide 3D models that can be checked before production. FLA can customize materials, make products in non-standard sizes, and provide full technical support from design advice to installation guidance. This makes us a useful partner for difficult fire protection projects.

Conclusion

Fire protection flanged valves are non-negotiable safety components in commercial sprinkler and industrial fire suppression systems. Selecting the correct material, pressure rating, and flange standard—backed by UL and FM certification—determines whether your fire system performs when it matters most. Proper installation and scheduled maintenance per NFPA 25 extend service life and keep systems compliant. Partnering with a certified, experienced manufacturer with strong after-sales support protects both your project timeline and your end users. FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing experience to every valve we produce.

FAQ

What is the difference between OS&Y and NRS flanged valves?

OS&Y (Outside Screw and Yoke) stems rise visibly as the valve opens, giving immediate confirmation of valve status—mandatory for fire water supply mains. NRS (Non-Rising Stem) valves are used where vertical space is restricted or in underground installations. Both types are available with flanged connections.

Can a PN16 flanged valve replace an ANSI 125 valve?

Generally, no. Although working pressures are similar, the bolt hole patterns differ. Unless the valve uses slotted universal flanges, mismatched standards require adapters. Always match the flange drilling standard to your existing pipework.

How often should fire protection valves be inspected?

NFPA 25 requires visual inspection weekly or monthly depending on supervision status. Full operational cycling should occur annually to prevent seizing and verify wedge position.

Are these valves suitable for potable water?

Fire protection valves are listed specifically for fire service. Dual use for potable water requires NSF-61/372 certification. Confirm the specific SKU carries this listing before specifying it for combined systems.

What sizes are available?

FLA offers sizes from 2" to 12" (DN50–DN300) as standard. Non-standard dimensions are available on request with production lead times confirmed at order placement.

Partner With FLA Industrial & Trading Co., Ltd. for Your Next Fire Protection Project

The OS&Y stems of the Fire Protection Flanged Valve rise up when the valve opens, making it clear right away what the valve's state is—this is required for fire water supply mains. Non-Rising Stem (NRS) valves are used in places with limited vertical space or in installations that are buried. You can get both types with flanged fittings. Email us at sales@flaindustrial.com or go to flaindustry.com right now.

References

1. National Fire Protection Association. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. 2023.

2. American Society of Mechanical Engineers. ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings. 2020.

3. Underwriters Laboratories. UL 262: Standard for Gate Valves for Fire-Protection Service. 2022.

4. Factory Mutual Global. FM Approval Standard 1120: Fire Protection Valves, Actuators and Trim. 2021.

5. American Water Works Association. AWWA C550: Protective Interior Coatings for Valves and Hydrants. 2017.

6. International Organization for Standardization. ISO 9001: Quality Management Systems—Requirements. 2015.
