Can a Customized C-Clamp Match Unique Workholding Requirements in OEM Production?

Yes — a customized C-clamp can absolutely match unique workholding requirements in OEM production. Standard clamps are designed for general use, but OEM environments often involve irregular geometries, variable clamping forces, and strict dimensional tolerances that off-the-shelf tools simply cannot address. A purpose-engineered C-clamp, built from cast iron or steel with application-specific finishes and spindle configurations, gives production teams the holding accuracy they need. At FLA Industrial & Trading Co., Ltd., we have spent nearly 40 years engineering clamps that meet these exact demands across woodworking, metalworking, and industrial assembly lines.

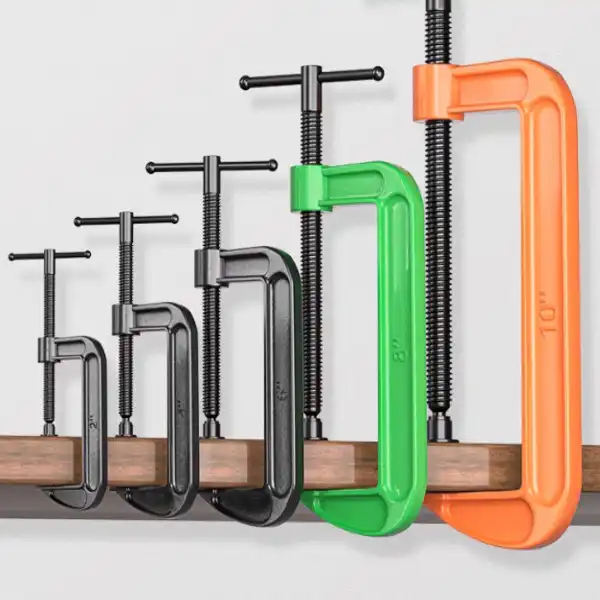

Specification

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding Customized C-Clamps in OEM Production

What Sets a Custom Clamp Apart from a Standard One?

A regular C-clamp has a set throat depth, a normal spindle thread pitch, and a frame that works with any tool. A custom clamping solution, on the other hand, is made from scratch using CAD modeling and Finite Element Analysis (FEA) to fit your workpiece's shape and load profile. This means that the frame structure, throat reach, and swivel pad layout are all based on what you need for production, not what is on the shelf.

Materials That Define Performance

The choice of material has a direct effect on how well a clamp works under load and in certain conditions. Drop-forged steel (AISI 1045) has a tensile strength of more than 65,000 PSI, which means it can be used for heavy-duty press and weld fittings. ASTM A536 Grade 65-45-12 heat-treated ductile iron is great for reducing vibrations in wooden parts. 304/316 stainless steel is the best choice for places that get wet or have chemicals that eat away at metal. Each type of material changes how the clamp deals with long-term wear, stress, and fatigue.

Finish Options and Their Functional Role

A C-clamp's finish is more than just for looks. Powder treatment keeps the frame's surface from rusting in damp workshop settings. Electroplating makes the outside layer harder so it doesn't wear away when it's handled over and over again. Painted finishes let you color-code tools by clamp size or department, which makes it easier to keep track of tools on busy production floors. FLA offers all three types of finishes, which are all applied after casting and machining to maintain the parts' dimensions.

Why OEMs Benefit from Tailored Clamping Solutions?

Common Failures with Off-the-Shelf Clamps

Three problems that production engineers often say standard clamps cause on OEM lines are inconsistent clamping pressure that lets parts move, throat depths that are too shallow for deep-reach bonding operations, and rigid pads that damage smooth or soft surfaces. Each of these failures causes extra work, waste, or downtime, which adds up to a lot of money over the course of a large production run.

Real-World Applications Where Custom Designs Deliver Results

To make sure that pressure is spread evenly across glued panel joints without leaving marks, furniture companies need Customized C-Clamp with bigger swivel pads. To keep arc pitting from happening, metalworking shops that do spot welding need copper-beryllium pads and shielded needles. To keep their composite panels from delaminating, manufacturers who use carbon fiber or aluminum substrates need pads with polyurethane caps and precisely controlled spindle torque. A normal clamp would either damage the part or not hold it securely in any of these situations.

Compatibility with Automated and High-Volume Workflows

More and more, modern OEM production lines use automatic or partially automated processes. A choke is created by a clamp that needs to be adjusted by hand too much. For better mechanical advantage in metalworking, finer spindle thread pitches are used, while coarser multi-start threads allow for fast cycling in assembly. This lets operators match the clamping tool's reaction speed to the production line's beat. This flexibility cuts down on cycle time and makes sure that flow stays the same between shifts.

How to Choose the Right C-Clamp for Your Production Line?

Assess Load Capacity and Throat Depth First

Find out the highest working load and throat depth you need for your purpose before you choose a clamping tool. An extended throat with an I-beam cross-section gives the frame the moment of inertia it needs to resist twisting under eccentric loads for deep-reach structural bonding or wide panel assemblies. FEA simulations done during the design phase make sure that the chosen geometry will hold up under the load you specify without permanently changing shape.

Pad Type Determines Surface Outcome

The swivel pad is where the clamp and your item will touch, so the way it's made is very important. Here are the different types of core pads that can be used in production:

• Non-marring polyurethane caps are ideal for finished wood surfaces and anodized aluminum where surface integrity is critical.
• Large-diameter floating steel pads distribute PSI across a wider area, reducing point-load damage on softer substrates.
• V-groove pads stabilize cylindrical or round stock during machining or welding operations.
• Brass pads are softer than most steel workpieces, preventing indentation on polished metal surfaces.

If you choose the right pad type from the start, you can avoid a common cause of production rejects. You can choose these options when you place your order, and they will be built right into the clamp.

Verify Supplier Certifications and Lead Time Commitments

If a supplier has ISO 9001 certification, it means that their quality management system meets international standards from the time they receive raw materials to the time they inspect the finished product. In addition to certificates, you should also ask for written lead times and proof of load test records. Customized C-Clamp solutions are made by FLA Industrial & Trading Co., Ltd. within 7–15 days, and pricing and technical answers are given within 24–48 hours of a request. The company is ISO9001 certified, and every batch is checked by a CMM to make sure it is the right size.

Procurement Insights: Ordering Custom Clamps for OEM Production

Defining Specifications Before You Place an Order

A clear technical brief is the first step in good procurement. Before you call a maker, you should be clear about the throat depth, opening capacity, spindle thread size, frame material, pad type, and finish you need. Giving a 2D drawing or 3D model speeds up the quote process and lowers the chance of misunderstanding. MOQs for new molds usually start at 500 to 1,000 units. For custom clamps that are machined or manufactured, numbers as small as 50 units are possible, based on how complicated they are.

Bulk Ordering and Value-Added Services

When people buy in bulk, they can negotiate for branded packaging, custom color finishes, and private-label markings. These options make the Products" target="_blank" style="color:blue" >products more valuable for hardware distributors and tool resellers. FLA keeps 2,000 tons of standard specs in stock, which helps distributors deal with regular demand spikes by allowing fast delivery. During the order stage, you can set up custom coating requirements, such as hot-dip galvanization for areas where rust is a problem.

After-Sales Support and Supply Chain Reliability

Your purchase investment is safe if you have a reliable after-sales plan. Make sure that your supplier offers a warranty, replacement options for items that don't meet the required dimensions, and quick technical support. FLA offers full-process support, which includes verifying 3D designs, making molds, and helping with post-delivery inspections. This lowers supply chain risk for procurement engineers who are in charge of managing relationships with multiple vendors.

Ensuring Safety and Maximizing Performance on the Floor

Correct Installation Prevents Clamp Failure

If you place a clamp at the wrong angle or tighten it too much, it will break eventually, and most of the time, it will break at the worst possible time. It is important for operators to keep the spindle straight and parallel to the workpiece. They should also apply torque slowly and never use a cheater bar to extend the handle for extra force. To keep the torque-to-load conversion stable, the spindle threads should be kept clean and lightly oiled.

Routine Inspection Extends Service Life

Before each clamp is used, it should be checked for cracks in the back curve of the frame, worn threads on the spindle, and worn pads. During production, Magnetic Particle Inspection (MPI) is used to find tiny cracks in the C-frame bend radius. However, visual and physical checks done by the user are still the best way to make sure there are no problems in the field. Specialty finishes like powder coat or electroplate should be checked for chips that could let bare metal rust.

Operator Training Reduces Errors

A well-designed clamp only works as well as the person who uses it. A short operator orientation that goes over estimated load limits, the right pad pick for each type of workpiece, and the right way to apply torque is helpful in production facilities. Putting standard operating procedures on each workstation cuts down on the number of times they are broken and makes sure that the clamping results are the same for all operators and shifts.

Conclusion

Not only are customized C-clamps a cool accessory, but they are also necessary for production in OEM settings where regular tools fail all the time. Every part of a custom clamp design affects production quality and output, from the choice of material and frame shape to the layout of the pads and the finish that is required. When you buy something based on clear technical needs and a seller whose manufacturing skills have been checked, you get a clamping solution that works the same way throughout the whole production run. FLA Industrial & Trading Co., Ltd. brings almost 40 years of experience making things to every unique order. They make sure that every clamp they send you meets all of your workholding needs.

FAQ

What is the typical lead time for a fully custom C-clamp order?

The standard lead time for custom C-clamps at FLA Industrial & Trading Co., Ltd. is 7–15 days. For orders requiring new molds or dies, additional time may apply. Pricing and technical feedback are provided within 24–48 hours of your initial inquiry.

What MOQ applies to custom clamp orders requiring new tooling?

For forged clamps requiring new dies, MOQs typically start at 500–1,000 units to cover tooling costs. Machined or fabricated custom clamps are available in smaller batches starting from approximately 50 units, though per-unit costs are higher at lower volumes.

Can custom clamps include company branding or private-label packaging?

Yes. FLA offers value-added services including branded packaging, custom color finishes, and private-label markings. These options are particularly useful for hardware distributors and tool wholesalers building their own product lines.

How do I select the correct throat depth for my application?

Throat depth should match the maximum reach required to access the clamping point on your workpiece. For deep-reach bonding or wide panels, an extended I-beam frame design verified through FEA simulation is recommended to prevent frame deflection under load.

Are custom clamps certified to any international quality standard?

All FLA custom C-clamps are manufactured under an ISO 9001-certified quality management system. Each batch undergoes proof load testing at 125–150% of the working load limit, material verification by Optical Emission Spectrometry, and dimensional validation using a Coordinate Measuring Machine.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Custom Clamp Order

You should not settle for a binding solution for your OEM production line; it should be built to your exact specs. FLA Industrial & Trading Co., Ltd. is a reputable Customized C-Clamp manufacturer that has been in business for almost 40 years. They offer ISO9001-certified clamps in steel and cast iron, and you can choose the finish, pad type, and spindle configuration. To get a free price and information on large orders, please email our team at sales@flaindustrial.com or visit flaindustry.com.

References

1. Boothroyd, G., Dewhurst, P., & Knight, W. A. — Product Design for Manufacture and Assembly, CRC Press, 2010.

2. Kalpakjian, S., & Schmid, S. R. — Manufacturing Engineering and Technology, Pearson, 2014.

3. American Society of Mechanical Engineers — ASME B30.20: Below-the-Hook Lifting Devices, ASME, 2021.

4. ASM International — ASM Handbook, Volume 1: Properties and Selection — Irons, Steels, and High-Performance Alloys, ASM International, 2018.

5. ASTM International — ASTM A536: Standard Specification for Ductile Iron Castings, ASTM International, 2019.

6. Todd, R. H., Allen, D. K., & Alting, L. — Manufacturing Processes Reference Guide, Industrial Press, 1994.
