Can a Mechanical Tee Grooved Outlet Simplify Branch Pipe Installation on Job Sites?

Yes, a mechanical tee grooved outlet can genuinely simplify branch pipe installation on job sites. This specialized ductile iron fitting clamps around an existing pipe run, creating a secure branch connection without cutting the main pipe into sections or performing any welding. For procurement managers, site engineers, and distributors working under tight schedules, this means fewer permit delays, lower labor costs, and faster project turnaround. In my experience reviewing piping solutions for industrial and construction applications, grooved outlet fittings consistently deliver measurable time savings compared to conventional methods.

Specification

Main Pipe Size	Outlet Size	Main Pipe OD (mm)	Outlet OD (mm)
DN50	DN25	60	33
DN65	DN25/DN32/DN40/DN50	76	33/42/48/60
DN80	DN25/DN32/DN40/DN50	89	33/42/48/60
DN100	DN25/DN32/DN40/DN50/DN65/DN80	114	33/42/48/60/76/89
DN125	DN25/DN32/DN40/DN50/DN65/DN80	140	33/42/48/60/76/89
DN150	DN25/DN32/DN40/DN50/DN65/DN80	165	33/42/48/60/76/89
DN200	DN25/DN32/DN40/DN50/DN65/DN80	219	33/42/48/60/76/89

Understanding Mechanical Tee Grooved Outlets

What Is a Grooved Outlet Fitting?

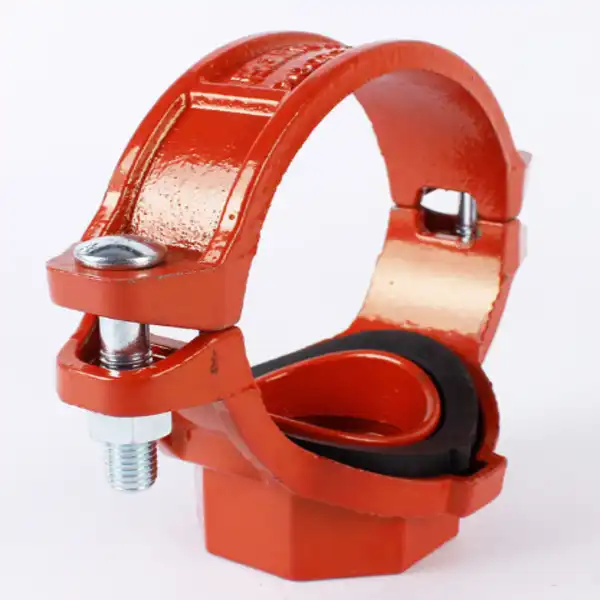

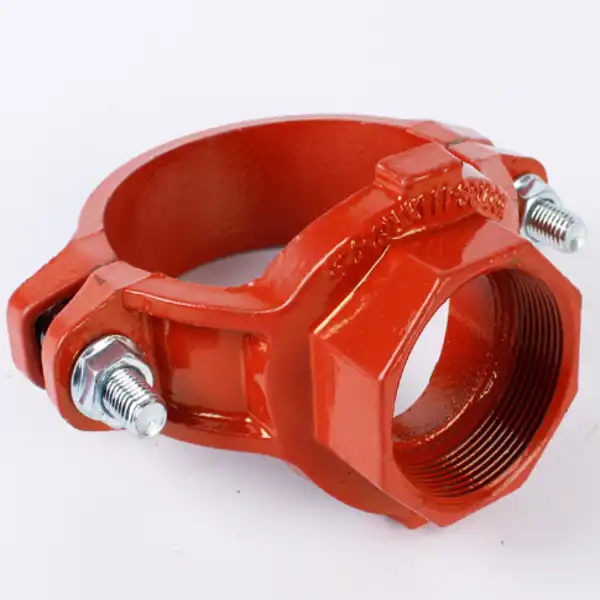

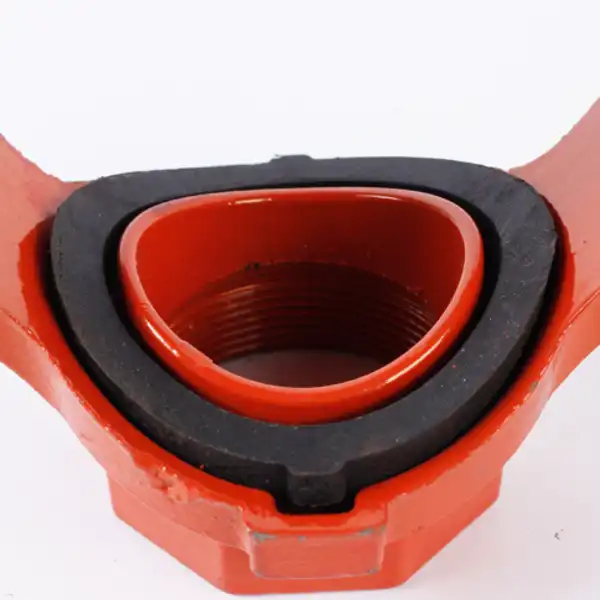

The minimum tensile strength of a grooved tee outlet is 65,000 psi. It is a saddle-type pipe fitting made from Ductile Iron ASTM A536 Grade 65-45-12. It has two halves that connect to the main pipe with bolts. An EPDM or Nitrile gasket that reacts to pressure seals over a hole that has already been cut in the pipe wall. The branch outlet's grooved end fits standard grooved fittings, making a rigid, leak-free branch connection that doesn't require any hot work.

Standard Sizes and Pressure Ratings

Depending on the pipe schedule and fitting size, these fittings can handle branch sizes from ¾ inch to 8 inches. They can also handle working pressures of up to 500 psi. For fire safety purposes, UL and FM listings are available. Before placing an order, procurement teams should always compare the fitting's pressure class to the system's operating requirements. Picking the wrong pressure rating is one of the most common specification mistakes made in the field.

Material Options and Surface Treatment

Corrosion Class C3 epoxy powder paint or Hot-Dip Galvanized finish according to ASTM A153 is standard on housings that will be used in harsh outdoor or industrial settings. You can choose from Grade 'E' EPDM gaskets for water service (rated –30°F to 230°F) and Grade 'T' Nitrile gaskets for oil-based media. The fitting's service life in your particular pipe system is directly related to the housing material, coating, and gasket type you choose.

Challenges in Branch Pipe Installation on Job Sites

The Hidden Costs of Welded Tees

To weld a branch connection, you need qualified welders, hot work permits, fire watchers, and a check after the weld is done. Just finding a certified welder can add two to five days to the time it takes to finish a commercial construction project. Welding in small spaces or occupied buildings is not only expensive, but it also creates smoke, heat, and a fire risk, all of which require extra steps to be taken in accordance with OSHA 1926 Subpart J and NFPA 51B.

Threaded and Flanged Connection Limitations

Most of the time, threaded branch exits can only be used with lower pressure classes and smaller pipe sizes. Even though flange connections work well, they require precise alignment of the bolt holes, replacement of the gaskets every time the assembly is taken apart, and a lot more work than a Mechanical Tee Grooved Outlet. Both ways make it hard to make changes to the system in the future without draining and partly disassembling the pipes, which costs more and takes more time for maintenance teams.

Scheduling and Budget Overruns

With traditional methods, it's harder to get what you need because you have to order manufactured reducing tees in exact measurements ahead of time. When there is a change of site, fittings have to be reordered and delivered. These delays throw off project plans and often cause piping work to go over budget. Contractors and procurement heads know this to be true from experience in the field.

How Mechanical Tee Grooved Outlets Simplify Installation?

Each of these problems is directly solved by grooved exit technology. For installation, you only need basic hand tools, a hole saw with the right diameter, and a torque wrench. You don't need any welding equipment, an open flame, or any special certifications. Here are the main reasons why this fitting is useful on job sites:

• No Welding Required: Installation happens quickly without hot work permits or specialized welding equipment. This removes scheduling bottlenecks and reduces both project timelines and labor costs by a measurable margin. Independent studies on grooved piping systems indicate that installation speed is three to four times faster than welded alternatives.
• Corrosion Resistance: The multi-layer protective coating — either epoxy powder coat or hot-dip galvanization — prevents rust and extends service life in both indoor and outdoor environments. The coating performs consistently in wet mechanical rooms, outdoor utility corridors, and industrial process areas.
• Easy Maintenance: Disassembly and reassembly happen without damaging the fitting or the host pipe. A maintenance crew can replace a gasket, inspect the connection, or reconfigure a branch line without cutting pipe or ordering a replacement fitting. This design makes future system modifications and repairs significantly less disruptive.

Resistance to Corrosion: Either epoxy powder coat or hot-dip galvanization is used as a multi-layer protection covering. This stops rust and increases the service life in both indoor and outdoor settings. The coating always does its job in wet engine rooms, service hallways outside, and industrial process areas.

Easy to maintain: taking it apart and putting it back together again doesn't damage the fitting or the host pipe. A repair crew can change a gasket, check the connection, or rearrange a branch line without having to cut the pipe or buy a new fitting. This design makes changes and repairs to the system much less disruptive in the future.

Comparing Mechanical Tee Grooved Outlets to Other Outlet Types

Grooved vs. Welded Reducing Tees

A welded reducing tee needs a pipe piece to be taken out, approved welding to be done, and pressure testing to be done after the welding is done. A grooved outlet saddle tee can be put on top of the existing pipe so that the main run is not interrupted. In exchange, there is a slightly higher hydraulic friction loss at the branch, which is something that design engineers usually take into account when they size the system. This small hydraulic issue is not important for repair and growth projects because the grooved exit is faster.

Grooved vs. Threaded and Flange Outlets

Threaded saddle outlets work well for low-pressure, small-diameter tasks, but they are more likely to leak over time because the threads wear down. Flange outlets can handle high pressure, but they need to be perfectly aligned, and the bolts need to be retorqued on a frequent basis. The Mechanical Tee Grooved Outlet is a good compromise because it can handle pressures up to 500 psi, can work with slightly misaligned pipes, and offers seismic flexibility that neither threaded nor bolted-flange connections can.

Brand Considerations in the Market

A lot of grooved piping specifications talk about Victaulic, Tyco, and Anvil. Each brand keeps a strong collection of UL/FM certifications and a large network of distributors all over the United States. When buying for price-sensitive projects or large amounts of stock for distribution, procurement teams should also look at manufacturers that offer the same dimensional compatibility and certified pressure ratings at a lower cost per unit. This is especially important for projects with hundreds of fittings.

Procurement Considerations for Mechanical Tee Grooved Outlets

Key Specification Checkpoints

Before purchasing, verify these four parameters: pipe outside diameter (OD), required branch size, system working pressure, and fluid media type. Gasket material selection depends entirely on the fluid — EPDM for water and dilute chemicals, Nitrile for petroleum-based fluids. Mismatched gasket compounds are a leading cause of premature seal failure in grooved systems.

Quality Control Indicators

Reputable manufacturers subject each production batch to hydrostatic pressure testing at 1.5 times the rated working pressure. Buyers should also request dimensional certification confirming bolt-pad gap and outlet 'C' dimension compliance, which ensures interchangeability with standard grooved couplings. Coating thickness for hot-dip galvanized finishes should exceed 85 microns per ASTM A153 requirements.

Sourcing Strategy for Distributors and Contractors

Distributors stocking grooved piping Products" target="_blank" style="color:blue" >products benefit from suppliers who offer diverse SKU ranges, consistent lead times, and documented quality management systems. For construction contractors, establishing a supplier relationship with reliable inventory availability reduces the risk of project delays caused by back-ordered fittings. Evaluating suppliers by their quality certifications, production capacity, and responsiveness to custom size requirements helps protect procurement budgets over the long term.

Conclusion

A Mechanical Tee Grooved Outlet gets rid of the three biggest problems with installing branch pipes: the need for hot work, the need for skilled workers, and the difficulty of making changes to the system in the future. This type of fitting is useful for fire protection, HVAC, and industrial process pipe projects because it can handle pressures up to 500 psi, is approved to resist corrosion, and can be installed three to four times faster than welded options. When procurement teams compare grooved outlets to standard methods, they always find that grooved outlets have lower total fixed costs and less project risk.

FAQ

Can a grooved outlet tee be installed while the system is under pressure?

No, you don't have to weld. But the pipe needs to be completely empty and drained before the exit hole is cut. It is very dangerous to try to put something in while under pressure.

What torque is required during installation?

The torque numbers depend on the size of the joint but are usually between 30 and 200 ft-lbs. Always use a calibrated torque wrench to make sure you don't damage the gasket by over-tightening it or let it leak by under-tightening it.

How does this fitting compare to a welded tee on pressure performance?

An approved grooved outlet can handle working pressures of up to 500 psi, which is more than enough for most HVAC, fire safety, and process pipe needs. Welded tees may be able to handle more pressure in uses with very large diameters, but grooved outlets work just as well in normal commercial and industrial systems.

Can grooved saddle outlets be used on plastic pipe?

Standard ductile iron notched openings are made to fit iron pipe size (IPS) steel pipe. If you put them on PVC or HDPE pipe without using intermediate gear, the pipe wall could get crushed. Check with the manufacturer to see if the plastic pipe will work with it.

What does the locating collar do?

The collar is put inside the hole that was cut in the pipe wall. It keeps the fitting from moving axially or rotating when the system pressure is high, so the branch stays in place for as long as the connection lasts.
