How Does Grooved Cross Simplify Industrial Piping Installation?

A grooved cross fitting simplifies industrial piping installation by replacing time-consuming welding, threading, and flanging with a mechanical coupling system that snaps into place along pre-cut or roll-grooved pipe ends. This four-way ductile iron fitting allows crews to branch or merge pipelines in multiple directions without hot work, reducing installation time by up to 50% compared to traditional methods. Whether you are managing a commercial fire suppression network, an HVAC loop, or an industrial fluid distribution system, the grooved cross delivers leak-resistant, structurally sound connections that support faster project completion and lower labor costs.

Specifications

Type	Model	Outer Diameter (mm)
Grooved Cross	DN65	76
Grooved Cross	DN80	89
Grooved Cross	DN100	108
Grooved Cross	DN100	114
Grooved Cross	DN125	140
Grooved Cross	DN150	159
Grooved Cross	DN150	165
Grooved Cross	DN200	219
Grooved Cross	DN250	273
Grooved Cross	DN300	325

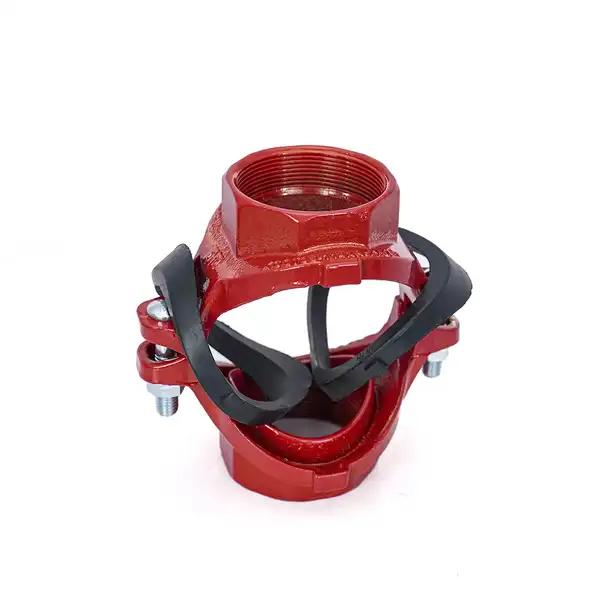

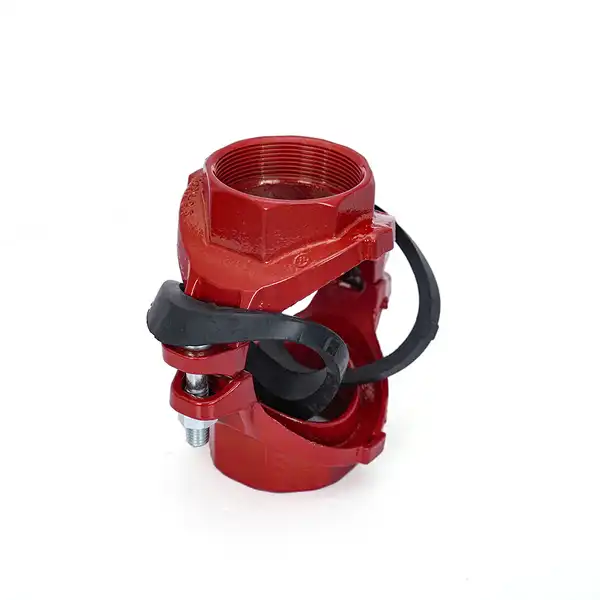

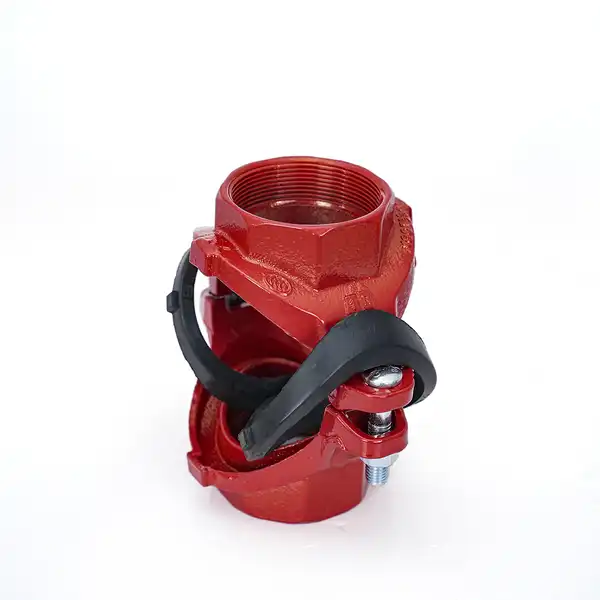

Understanding Grooved Cross Fittings and Their Functionality

What Makes a Grooved Cross Different from Conventional Fittings?

A Grooved Cross is a pipe fitting with four holes, and each hole is at a right angle to the others. The grooved end profile, which can be rolled out or cut into the pipe, fits with a mechanical coupling housing and an elastomeric gasket to make a joint that can withstand pressure and stay in place. With this system, you don't need pipe dies, welding flames, or flange bolts.

Ductile iron is the most popular material because it has both high tensile strength and good impact resistance. In dynamic load environments, it works better than standard gray cast iron. Grooved Cross fittings from FLA Industrial & Trading Co., Ltd. are made using precision casting and CNC cutting. They come in sizes from DN65 (76 mm OD) to DN300 (325 mm OD), and can be painted or epoxy-coated to protect them from rust.

These fittings are used in many places where accuracy and dependability are very important, like fire sprinkler headers, chilled water HVAC loops, city water distribution networks, and industrial process pipes.

Challenges in Traditional Cross Fitting Installations and How Grooved Crosses Solve Them

Why Welded and Flanged Cross Connections Create Costly Delays

For traditional welded or flanged cross fittings to work, they need certified welders, controlled hot-work permits, cool-down periods, and an inspection after the weld. When these requirements are put into place on active construction sites or in buildings that are already occupied, they directly lead to longer schedules and higher safety risks. Flanged alternatives lower some risks, but they also come with their own problems, like making sure the bolt circles are lined up perfectly, replacing the gaskets when they need to be, and carrying more weight, which puts stress on the structure's supports.

These trouble spots can be fixed at every stage with grooved mechanical fittings. Putting the gasket over the pipe ends, sliding the coupling housing segments into place, and tightening two bolts to the manufacturer's torque specification are all things that can be done by a two-person crew in minutes. Industry field data from grooved piping system studies show that mechanical grooved joints regularly cut on-site labor hours by 40–50% compared to similar welded joints. This number goes up a lot for big industrial projects.

The ability to take things apart is also very useful. Instead of cutting through welded steel when a system needs to be fixed or changed, teams take out two nuts. This flexibility keeps project schedules safe and lowers the cost of future additions.

Key Comparative Advantages of Grooved Cross Fittings

When purchasing managers compare grooved pipe fittings to welded, threaded, or flanged options, they will find several differences that can be measured and recorded. When choosing between different suppliers, Grooved Cross fittings stand out because of the following main benefits:

• Faster installation cycle: The coupling-based assembly method eliminates hot work and threading operations, compressing multi-day welding schedules into single-shift completions. This directly reduces labor billing on fixed-price contracts.
• Seismic and thermal flexibility: When paired with flexible grooved couplings, the fitting accommodates angular deflection and axial movement, making it compliant with seismic zone requirements for building piping systems — a critical specification in California and other high-seismic U.S. markets.
• Simplified maintenance access: Any four-way junction can be dismantled and reassembled without cutting tools, granting MRO teams rapid access during scheduled maintenance or emergency repairs.
• Dual finish options: Painted finishes suit standard indoor environments; epoxy-coated variants provide enhanced resistance in corrosive or high-humidity conditions common in HVAC mechanical rooms and chemical process plants.
• ISO 9001 and CE certified quality: Every batch undergoes hydrostatic pressure testing, dimensional verification, and surface coating inspection before shipment, backed by globally recognized certifications.

These benefits directly lead to lower total costs over the life of pipe systems. When purchasing engineers look at more than just the unit price, they find that grooved mechanical fittings are a better value over the life of the system. This is because they take into account the costs of installation labor, maintenance downtime, and system modifications.

Installation Guide for Grooved Cross Fittings: Step-by-Step Process

Preparing Pipe Ends and Selecting Compatible Components

Before putting the coupling together, make sure that the groove sizes on each pipe end match the standard diameter specifications given by the coupling maker. Check the rubber seal for cracks or other damage. Make sure that the material of the coupling body works with the flowing medium and the pressure range that it will be used in.

Assembling the Coupling on the Fitting

The gasket lips should be oiled with the suggested silicone-based substance. The gasket should then be placed over the pipe end so it fills the space between the pipe and the Grooved Cross port. Place both housing pieces around the seal and make sure the housing keys fit all the way into the grooves. Switch between hand-tightening the bolts and then using a torque wrench to reach the number recommended by the coupling maker, but never to the fitting itself. Make sure that the housing pads are firmly touching the metal, which means that the seal is fully compressed.

Post-Installation Inspection and Routine Maintenance

Walk around the system after it has been inflated and check each joint for leaks or movement. If the fittings are painted and the area is damp, they should be checked every year or as directed by the project engineer. When a part needs to be replaced, simply release the pressure on the line segment, take out the two coupling bolts, and replace the fitting or gasket. This is a much faster method than welding.

Procurement Considerations for Industrial Buyers

Evaluating Suppliers Based on Certification, Stock, and Lead Times

It takes more than comparing catalog prices to find the right Grooved Cross supplier. People who want to buy something should make sure that the company has up-to-date ISO 9001 certification and that their Products" target="_blank" style="color:blue" >products have the CE marking to show that they meet international safety standards. Confirmed licenses keep buying teams from being held responsible during project audits and insurance reviews.

Having enough stock on hand is a realistic concern. FLA Industrial & Trading Co., Ltd. keeps more than 2,000 tons of stock in regular size ranges. This lets them ship quickly without having to wait for production runs. For non-standard configurations or fittings with unique shapes, a customization lead time of 7–15 days helps with project planning without putting the schedule at risk. The engineering team provides all the necessary paperwork, such as dimensional sketches, pressure test certificates, and material certifications, to meet the needs of the employer and the government. For full details, buyers can email the team at sales@flaindustrial.com or go to flaindustry.com.

Conclusion

Grooved Cross fittings have completely changed how engineers and builders split four-way pipes. They cut down on installation times and maintenance windows that welded systems can't match because they don't need hot work, specialized threading equipment, or precise flange alignment. The ductile iron, precise machining, and dual-finish corrosion protection on these fittings make sure they work reliably in fire protection, HVAC, water distribution, and industrial process applications. For procurement teams, wholesalers, and workers all over the US, the easiest way to make sure projects run smoothly and costs stay low is to work with a certified Grooved Cross maker who keeps a lot of stock on hand.

FAQ

Can a grooved cross accommodate seismic movement?

This meets the standards for seismic pipes in U.S. building codes that are very sensitive to earthquakes.

Is this fitting compatible with both Schedule 10 and Schedule 40 pipe?

Yes, ductile iron grooved fittings can work with both roll-grooved and cut-grooved steel pipe in both schedules as long as the groove sizes match the connection requirements.

What pressure ratings apply to fire protection applications?

The ductile iron Grooved Cross fittings made by FLA are strong enough to handle the pressures that are common in both wet and dry sprinkler systems. Talk to the project engineer about the exact pressure class requirements and ask the supplier for the test certificate that goes with them.

How does the grooved joint affect maintenance costs?

Because each coupling only needs two bolts to be taken apart, maintenance or part replacement takes a lot less time than with welded joints. This lowers the cost of planned breaks over the life of the machine.

Does epoxy coating improve performance in HVAC mechanical rooms?

Yes, epoxy-coated fittings can handle the moisture and mild chemicals that are common in mechanical rooms. This means that they last longer between services and don't wear down as quickly as painted finishes do in high-humidity areas.

Partner with FLA Industrial for Your Grooved Cross Supply

FLA Industrial & Trading Co., Ltd. has been making Grooved Crosses for almost 40 years and has more than 2,000 tons of ISO 9001- and CE-certified ductile iron pipe fittings ready to ship right away. Our tech team gets back to you within 24–48 hours, whether you need normal stocking sizes or custom shapes. To get specifications, samples, or a custom quote, email us at sales@flaindustrial.com or check out our full product line at flaindustry.com.
