Can a Grooved Reducer Simplify Pipe Size Changes in Commercial Fire Protection Systems?
2026-10-16 10:20:22
Yes — a grooved reducer can significantly simplify pipe size changes in commercial fire protection systems. By using mechanical grooved coupling technology, these ductile iron fittings connect pipes of different diameters without welding or threading. This means faster installation, lower labor costs, and reduced leak risk on the job site. Compared to traditional flanged or welded transitions, a grooved reducer offers a modular, tool-friendly connection that meets UL/FM certification standards, making it a practical choice for contractors, procurement engineers, and fire protection system designers working on commercial projects.
Specifications
| Name | Specification | Specification |
|---|---|---|
| Grooved Reducer | DN65×25S (76×33S) | DN250×25S (273×33S) |
| Grooved Reducer | DN65×32S (76×42S) | DN250×32S (273×42S) |
| Grooved Reducer | DN65×40S (76×48S) | DN250×40S (273×48S) |
| Grooved Reducer | DN65×50S (76×60S) | DN250×60S (273×60S) |
| Grooved Reducer | DN80×25S (89×33S) | DN250×65S (273×76S) |
| Grooved Reducer | DN80×32S (89×42S) | DN250×80S (273×89S) |
| Grooved Reducer | DN80×40S (89×48S) | DN80×65G (89×76G) |
| Grooved Reducer | DN80×50S (89×60S) | DN100×50G (114×60G) |
| Grooved Reducer | DN80×65S (89×76S) | DN100×65G (114×76G) |
| Grooved Reducer | DN100×25S (114×33S) | DN100×80G (114×89G) |
| Grooved Reducer | DN100×32S (114×42S) | DN100×100G (114×108G) |
| Grooved Reducer | DN100×40S (114×48S) | DN125×65G (140×76G) |
| Grooved Reducer | DN100×50S (114×60S) | DN125×80G (140×89G) |
| Grooved Reducer | DN100×65S (114×76S) | DN125×100G (140×114G) |
| Grooved Reducer | DN100×80S (114×89S) | DN150×65G (165×76G) |
| Grooved Reducer | DN125×25S (140×33S) | DN150×80G (165×89G) |
| Grooved Reducer | DN125×32S (140×42S) | DN150×100G (165×114G) |
| Grooved Reducer | DN125×40S (140×48S) | DN150×125G (165×140G) |
| Grooved Reducer | DN125×50S (140×60S) | DN150×150GG (165×159G) |
| Grooved Reducer | DN125×65S (140×76S) | DN200×65G (219×76G) |
| Grooved Reducer | DN125×80S (140×89S) | DN200×80G (219×89G) |
| Grooved Reducer | DN150×25S (165×33S) | DN200×100G (219×108G) |
| Grooved Reducer | DN150×32S (165×42S) | DN200×100G (219×114G) |
| Grooved Reducer | DN150×40S (165×48S) | DN200×125G (219×140G) |
| Grooved Reducer | DN150×50S (165×60S) | DN200×150GG (219×159G) |
| Grooved Reducer | DN150×65S (165×76S) | DN200×150G (219×165G) |
| Grooved Reducer | DN150×80S (165×89S) | DN250×65G (273×76G) |
| Grooved Reducer | DN150×100S (165×114S) | DN250×80G (273×89G) |
| Grooved Reducer | DN200×25S (219×33S) | DN250×100G (273×114G) |
| Grooved Reducer | DN200×32S (219×42S) | DN250×125G (273×140G) |
| Grooved Reducer | DN200×40S (219×48S) | DN250×150G (273×165G) |
| Grooved Reducer | DN200×50S (219×60S) | DN250×200G (273×219G) |
| Grooved Reducer | DN200×65S (219×76S) | DN300×80G (325×89G) |
Understanding Grooved Reducers in Fire Protection Systems
What Is a Grooved Reducer?

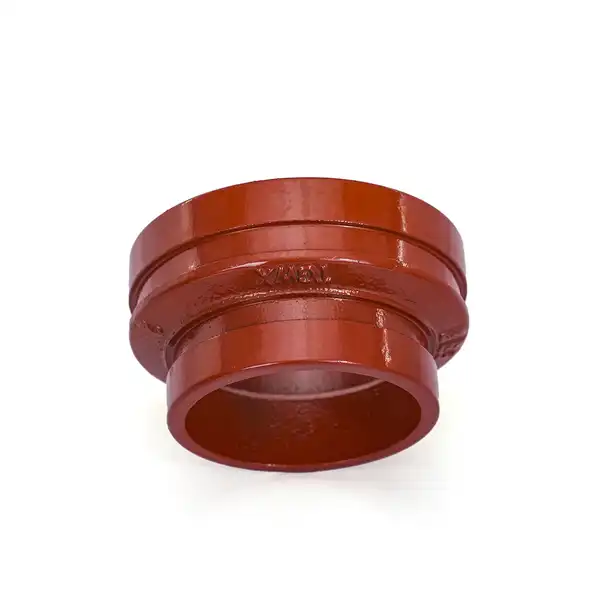

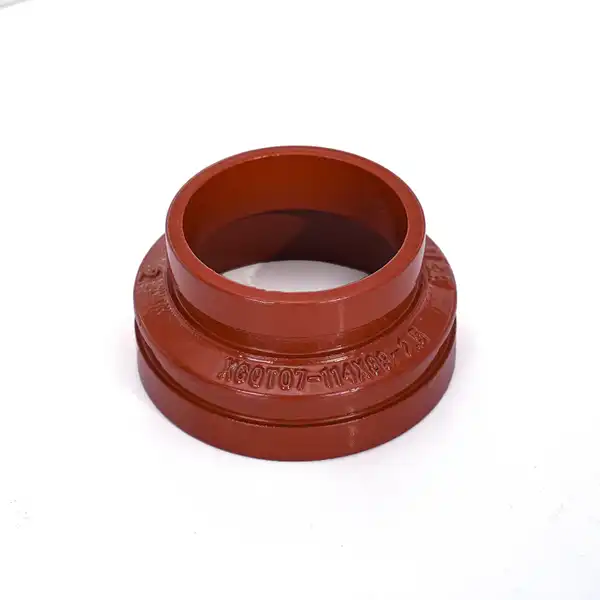

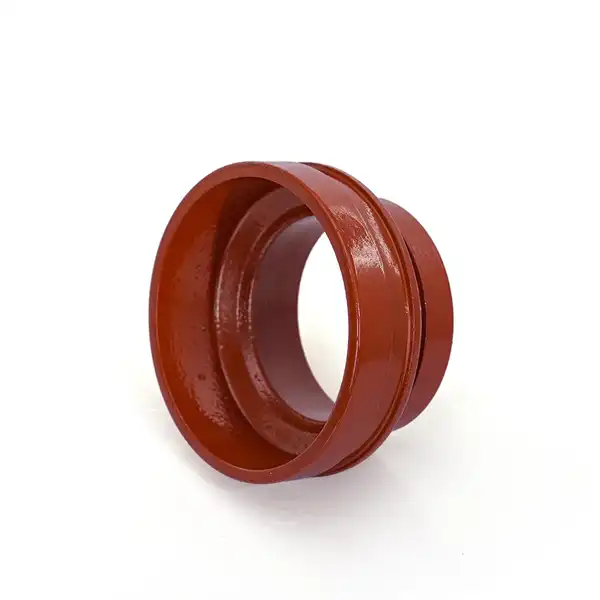

A Grooved Reducer is a mechanical pipe fitting that uses a grooved coupling method to connect two lines that are not the same width. At each end of the fitting, there is a precisely machined groove that fits a coupling housing and an elastomeric gasket. This creates a pressure-tight seal that doesn't need heat or glue. This design follows the dimensions set by ANSI/AWWA C606, which means that it will work with a wide range of pipe rates and makers.
Types Available: Concentric and Eccentric
There are two main types of reducers: concentric and eccentric. In concentric reducers, the centerlines of both pipes line up, and on the other hand, one flat side stays level. Concentric types work best for pipe runs that go up and down, while eccentric models keep air from getting caught in straight lines. This is important for wet-pipe sprinkler systems, where trapped air can lead to uneven pressure or corrosion over time.
Materials and Compatibility
FLA's pipe diameter transition fittings are made from ductile iron that meets high tensile strength standards. They are then painted or coated with epoxy resin to protect them from corrosion. These fittings join steel and carbon steel pipes together. They are often used in standpipe systems, fire station supply lines, and sprinkler networks. The sizes run from DN65 to DN300, which is big enough to cover most business fire safety layouts.
Challenges of Traditional Pipe Size Changes and How Grooved Reducers Address Them
Why Welded and Flanged Transitions Fall Short?
Welded reducers need certified hot work permits, fire watch staff, and an inspection after the weld, which adds days to the time it takes to install. There are more parts, more power is needed, and the footprint is bigger for flanged joints. Both ways add to the cost of work and create weak spots where things could go wrong if gaskets compress differently or welds get stress cracks from thermal cycles.
How Grooved Coupling Technology Solves These Problems?
No hot work is needed at all with Grooved Reducer mechanical systems. Studies on installing grooved pipes show that they can be done up to two times faster than flanging and save at least 50% of the time needed for welding. When the pressure inside the system goes up, the pressure-responsive EPDM gasket design actually makes the seal tighter. This means that performance is better in situations where fire safety systems are needed the most.
A Real-World Perspective
In the Midwest of the United States, Grooved Reducers and couplings were used instead of welded pipe transitions in a 12-story sprinkler system. The mechanical worker said that the number of hours spent on installation had gone down by 40% and that there were no fix calls back during the pressure testing. Maintenance crews also pointed out that future removal for system changes could be done without cutting pipes, which is helpful for building owners who want to make changes over a long period of time.
Key Considerations When Selecting Grooved Reducers for Fire Protection Systems
Pressure Ratings and Hydraulic Performance
Most fire safety devices work with a working pressure of between 175 PSI and 300 PSI. For most business uses, grooved ductile iron fittings with a 300 PSI rating will work. Engineers have to figure out the pressure drop across the shift when they size a reducer to make sure that the spray heads further downstream still get enough flow. NFPA 13 has rules for hydraulic calculations that procurement teams should use when designing a system.
Dimensional Accuracy and Installation Fit
The groove must have the right depth and width. When the part is made, CNC machining keeps the tolerances very tight so that the coupling body fits properly and the gasket closes evenly. If the groove isn't machined well, the coupling may move when pressure is applied, which can lead to leaks. FLA tests every production batch with hydraulic pressure to make sure the structure is sound before shipping.
Certification Requirements: UL and FM Approvals
Fire safety officials in the United States accept two main types of certification: UL listing and FM approval. UL tests goods against clear safety standards, while FM Global checks their suitability for preventing property loss. When builders choose fittings that have both certificates, like FLA's Grooved Reducers do, they can meet the needs of the local authority having jurisdiction (AHJ) and pass inspection quickly.
Procurement Insights for Grooved Reducers in Commercial Fire Protection
Evaluating Suppliers Beyond Price
When purchasing mechanical pipe fittings in bulk, purchasing managers should look at three things besides the unit price: the size of the inventory, the trustworthiness of the lead time, and the certification paperwork. A seller like FLA Industrial & Trading Co., Ltd. that keeps Grooved Reducer stock on hand can ship standard sizes within days, which lowers the risk to the project schedule compared to suppliers who have to wait a long time for goods to be made overseas.
Here are some of the most important things that purchasing teams always look for in a Grooved Reducer supplier:
- Certification coverage: UL/FM approval for North American fire protection compliance, plus ISO9001 for quality management traceability.
- Size range completeness: Stocking DN65 through DN300 ensures a single source covers most commercial building layouts.
- Customization capacity: Suppliers able to produce special-shaped parts from CAD drawings reduce sourcing complexity on non-standard projects.
- Technical response speed: A 24–48 hour turnaround on quote requests, weight calculations, and design feedback keeps procurement timelines on track.
These factors separate trustworthy long-term suppliers from one-time buyers. Over time, both buying risk and overall project cost go down when you work with a provider that has a lot of stock and can help with engineering.
Balancing Upfront Cost Against Lifecycle Savings
In some size ranges, grooved fittings cost more per unit than threaded fittings. Over the life of a system, however, the less work that needs to be done during installation, less upkeep, and the faster removal for future changes save money that can be seen. When commercial building owners are in charge of infrastructure that will last for decades, the grooved approach always comes out on top in terms of total cost of ownership.
Why Grooved Reducers Are the Preferred Choice for Modern Fire Protection Systems?
Installation Speed and Adaptability
Because grooved mechanical connections don't need skilled welders or hot work permits, they can be easily installed by a wider range of mechanical workers. Because grooved systems are modular, they can also have their pipe diameters changed or their systems expanded in the future without having to cut anything. This is an advantage that building owners and facility managers are mentioning more and more in their project documents.
Performance Under Variable Conditions
Rigid soldered joints can't handle small changes in angle or heat expansion and contraction. But flexible grooved couplings can. In places where earthquakes happen often, this movement tolerance lowers the amount of stress at link points. The EPDM gasket material works consistently in temperatures ranging from -30°F to +230°F, which means it can be used in almost any building.
Future Direction in Fire Protection Infrastructure
In NFPA 13-compliant systems, ductile iron grooved fittings are becoming more popular because they allow for faster inspections, can be tracked through ISO9001 quality systems, and work with smart monitoring technologies that are being added to modern building management platforms.
Conclusion
Grooved reducers offer a technically sound, cost-effective answer to pipe diameter transitions in commercial fire protection systems. Their mechanical coupling design removes the need for welding, speeds up installation, and holds up under the pressure ratings and certification standards that U.S. fire codes require. For procurement teams, contractors, and system engineers, specifying UL/FM-approved ductile iron grooved fittings from a certified manufacturer is a straightforward way to improve both project efficiency and long-term system reliability.
FAQ
Are grooved reducers approved for NFPA 13 fire sprinkler systems?
Yes. When manufactured with UL listing and FM approval, grooved reducers meet the product approval requirements referenced in NFPA 13. Always confirm the specific fitting's certification documentation matches the AHJ's requirements before installation.
What pipe materials are compatible with grooved reducers?
Standard grooved reducers work with steel, carbon steel, and stainless steel pipe. Compatibility depends on pipe wall thickness and groove dimensions conforming to ANSI/AWWA C606 or manufacturer specifications.
Can grooved fittings handle the pressure levels in commercial fire systems?
Ductile iron grooved fittings rated to 300 PSI cover most commercial sprinkler and standpipe applications. Higher-pressure systems may require heavy-duty rated couplings — always verify working pressure ratings against the system design.
How do I verify a supplier's certifications?
Request UL product listing documentation and FM Approval Guide references directly from the supplier. Legitimate manufacturers like FLA Industrial & Trading Co., Ltd. provide full certification paperwork with each order.
What is the difference between concentric and eccentric grooved reducers?
Concentric reducers align both pipe centerlines and suit vertical installations. Eccentric reducers keep one side flat, preventing air pockets in horizontal runs — an important design detail for wet-pipe fire suppression systems.
Partner With FLA Industrial & Trading Co., Ltd. for Your Grooved Reducer Supply
Every Grooved Reducer that FLA Industrial & Trading Co., Ltd. makes is based on our nearly 40 years of experience making them. Our ductile iron fittings are certified by ISO9001, CE, and UL/FM. They are shipped from a stock of 2,000 tons and have engineering support that responds within 24 to 48 hours. For business fire prevention work in the U.S., you can count on us to make the Grooved Reducers you need, whether you need standard sizes in bulk or custom configurations. To get a quote right away, email us at sales@flaindustrial.com or go to flaindustry.com.
References
1. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. 2022.
2. American Water Works Association. ANSI/AWWA C606: Grooved and Shouldered Joints. 2015.
3. FM Global. FM Approval Standard 1920: Pipe Couplings and Fittings for Pressurized Pipe Systems. 2020.
4. Underwriters Laboratories. UL 213: Standard for Rubber Gasketed Fittings for Fire-Protection Service. 2019.
5. American Society of Civil Engineers. Manual of Engineering Practice No. 36: Design of Water Distribution Systems. 2012.
6. ASTM International. ASTM A536: Standard Specification for Ductile Iron Castings. 2014.
