Can Stainless Steel Rope Clips Maintain Secure Cable Connections in Harsh Environments?

Stainless steel rope clips absolutely maintain secure cable connections in harsh environments — and the evidence backs this up. A stainless steel rope clip is a precision-engineered fastening component consisting of a U-bolt, saddle, and hex nuts. When properly installed, it delivers 80–90% of the wire rope's rated breaking strength. Manufactured from AISI 304 or 316 stainless steel, these clips form a passive chromium oxide layer that resists oxidation, salt spray, and chemical exposure. For marine docks, construction scaffolding, or industrial crane assemblies, they remain a proven and trusted wire rope termination method.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips for Harsh Environments

Before choosing a wire rope fastener, it's helpful to know what you're dealing with. These clips look very simple, but they were made with very precise standards that affect how well they hold loads and how long they last.

What They Are and How They Work?

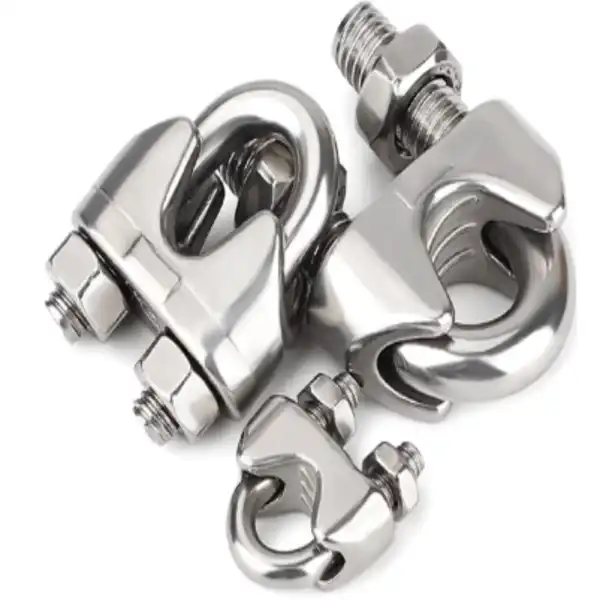

It's also known as a cable clamp or wire rope clamp. A wire rope clip holds the dead end of a rope against the live end inside a grooved saddle. The U-bolt squeezes the unit together, and the force is moved around by friction. Holding strength is usually between 80% and 90% of the rope's minimum breaking strength, but this depends on how many clips are used and how much force is used during installation according to DIN 741 or US Federal Specification FF-T-791b.

Grade 304 vs. Grade 316: Choosing the Right Material

The main difference between the grades is the amount of molybdenum they contain. Both grades have chromium in them to protect against corrosion. Grade 316 has 2–3% molybdenum in it, which makes it much more resistant to chlorides, acidic acids, and sea salt spray. Grade 304 works well indoors or in protected outdoor areas. Grade 316 is the right specification for installations near the coast, offshore rigging, or wastewater treatment plants. 316 should be specified from the start by procurement teams working on projects near saltwater.

Clip Types and Size Compatibility

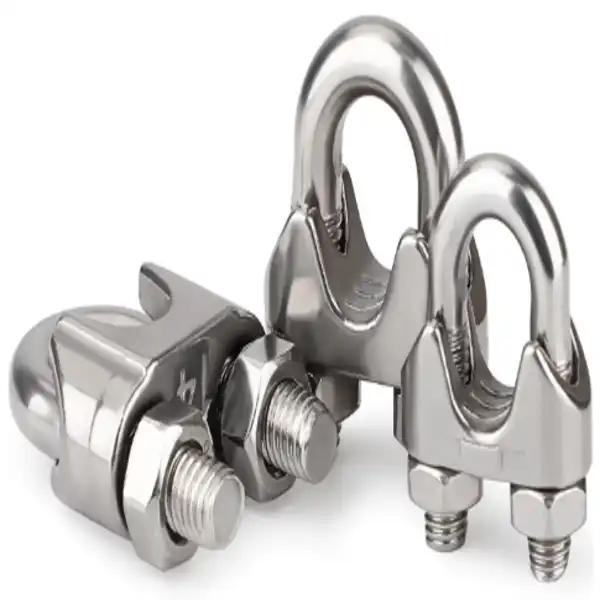

There are two main types of clips: the U-bolt single saddle clip and the double saddle (fist grip) clip. U-bolt clips come in a wide range of sizes, from M2 to M32, so they can be used with wire ropes of many different widths. With double saddle clips, the binding is even, and there is no chance of the saddle being positioned wrong. In order to choose the right size, the saddle gap radius must be matched to the rope diameter. This was checked with Go/No-Go gages during the quality checking process.

Can Stainless Steel Rope Clips Maintain Secure Cable Connections?

This is the question that purchasers and site workers ask all the time. The short answer is yes, as long as the installation follows the rules and the maintenance is done regularly.

Proper Installation Follows OSHA and EN Standards

Both OSHA 1926.251 and European EN 13411-5 list the minimum number of Stainless Steel Rope Clip clips, torque values, and times between re-torquing. Don't put the saddle on the end of the rope that doesn't go anywhere. Since the wire rope slightly shrinks after the first load application, you will need to tighten the nuts again. Most wire slips happen in the field because people skip this step. Correctly following these steps is what makes a job safe and not a risk.

Corrosion Resistance in Real-World Conditions

When tested with salt spray according to ASTM B117 (72 hours of 5% neutral salt mist), passivated 316 stainless steel clips always show no red rust growth. In hydrogen sulfide environments, 316 clips on submerged pump cables last longer than five years at wastewater treatment plants, while galvanized steel clips break after only a few months. Marine boat rigging that uses steel wire clamps on mast stays also shows that the clamps stay in place even when the temperature changes from -20°C to +60°C.

Preventive Maintenance Extends Service Life

It's easy to do regular inspections and cleaning. After being in salt water, rinse with clean water. Check the thread engagement for signs of galling. Stainless steel threads can cold-weld in high-friction conditions without any oil. This doesn't happen if you use a nickel-based anti-seize product before tightening. Dye penetrant tests can find tiny cracks in clips near the thread roots that are caused by high-cycle dynamic loads. This lets the clips be replaced before they break.

Stainless Steel Rope Clips vs. Other Solutions – Making the Right Choice

You don't always need stainless steel for a job. Knowing the trade-offs helps procurement teams make the best use of their budgets without putting safety at risk.

Stainless Steel vs. Galvanized Clips

When you buy galvanized clips, they are cheaper, but the zinc covering wears off in saltwater and chemical conditions in 12 to 18 months, revealing the carbon steel underneath. The initial cost of purchasing stainless steel clips is higher, but they last a lot longer in harsh environments. Stainless steel is almost always better in coastal, marine, or environmentally active settings because it has a lower total cost of ownership over three to five years.

Comparing Shackles, Nylon Clips, and Wire Rope Thimbles

Shackles are good for quick-connecting temporary rigging, but they shouldn't be used for long-term connections. Clips made of nylon or plastic can't hold much weight and break down when exposed to UV light, so they can't be used for any structural or load-bearing purpose. Wire rope thimbles keep rope eyes from getting worn down, but they are not replacements for clips.

Grade 304 vs. 316 for Procurement Decisions

The stainless steel clip is still the best choice for fixed, adjustable, field-installable terminations that don't need swaging tools.

Procurement Guide for Stainless Steel Rope Clips

To find the right wire rope fastener in large quantities, you need to look at more than just price when comparing suppliers.

Factory-Direct vs. Distributor Channels

When procurement managers buy Stainless Steel Rope Clip Products" target="_blank" style="color:blue" >products directly from an ISO9001-certified manufacturer, they can see certifications for materials, reports on measurements, and data from salt spray tests. Distributor outlets are convenient, but they add costs and can make it harder to track. For big orders, like when hardware wholesalers need to find thousands of SKUs or when building companies need to find clips for multiple phases of a project, buying directly from the factory saves money and provides proof of quality.

Quality Verification Before Ordering

Positive Material Identification (PMI) reports from X-Ray Fluorescence (XRF) spectrometry are given by reputable Stainless Steel Rope Clip providers. These reports prove the amounts of chromium, nickel, and molybdenum. U-bolts and nuts are compatible after measuring them with calibrated thread gages. The results of tensile and slip tests should show that the clips when they are put together meet the minimum holding efficiency at the rated load. It is normal practice in sensible business-to-business procurement to ask for these papers before making large orders.

OEM and Custom Orders

Projects that need non-standard rope diameters or specific load requirements benefit from OEM manufacturing. Precision casting, forging, machining, and polishing suppliers can make unique seat shapes and non-standard thread specs with very little error. Manufacturers can meet custom production run turnaround times of 7–15 days by keeping dedicated tools and 2,000-ton inventory buffers for standard specifications.

Best Practices for Long-Term Security and Performance

Without a regular check and repair plan, even the best hardware will break down.

Inspection Checklist by Frequency

Given below is a useful check plan that follows the rules for safety in the industry:

• Daily: Visually check for visible deformation, slippage of the rope in the saddle, or loose nut engagement.
• Weekly: Verify torque on all hex nuts using a calibrated torque wrench. Check for surface discoloration that may indicate galling or chemical attack.
• Monthly: Conduct a full dimensional check on clips in high-load or dynamic applications. Apply fresh anti-seize lubricant to thread surfaces and re-torque to specification.

This schedule makes sure that your installation meets OSHA standards and cuts down on unplanned downtime by a large amount.

Training and Safety Standards

Structured training should be given to installation staff on the DIN 741 clip spacing rules, the right way to position the saddle, and how much torque is needed based on the diameter of the rope. If you put the seat on the dead end instead of the living end, it will hold less efficiently by up to 40%. The most common installation mistake can be avoided by giving each site team member 30 minutes of training. This also makes the whole wire system more reliable.

Advances in Coatings and Material Standards

Electropolishing gets rid of the iron that is embedded in the surface of stainless steel clips. This makes the passivation layer better and increases the clips' corrosion resistance in aggressive media. Electropolished 316 clips from manufacturers offer extra safety for chemical plants or uses that are submerged. As environmental laws change in the EU and the US, suppliers are also being forced to use cleaner pickling and passivation methods. This is good for end users because it means that corrosion performance will be more consistent across production batches.

Conclusion

Stainless steel rope clips deliver dependable wire rope termination across marine, construction, industrial, and architectural applications when the right grade is specified, installation follows recognized standards, and maintenance is performed consistently. Grade 316 outperforms galvanized and 304 alternatives wherever chlorides or chemicals are present. Factory-direct procurement from ISO9001-certified manufacturers provides traceability, verified quality, and competitive pricing at volume. With proper inspection routines and trained installation personnel, these clips maintain secure cable connections reliably over multi-year service cycles.

FAQ

What is the difference between grade 304 and 316 stainless steel rope clips?

Grade 316 has 2–3% molybdenum, which makes it much more resistant to chlorides and saltwater than grade 304. 316 is the right specification for uses near the coast or in the ocean. Grade 304 is good for places that are inland or have shelter.

How many clips do I need per wire rope termination?

Usually, you need at least three clips, but the exact number depends on the diameter of the rope and the load rating according to DIN 741 or OSHA 1926.251. Always use the table that the manufacturer gives you to find out what diameter rope you need.

Why do stainless steel threads sometimes seize during installation?

Galling, which happens when there is a lot of pressure, can happen to stainless steel threads. This can't happen at all if you use a nickel-based anti-seize lube or molybdenum disulfide grease before pressing.

Are these clips rated for overhead lifting?

For lifting things from above, you can only use clips that have a Working Load Limit (WLL) stamped on them. Before using a crane or hoist, you should always check the pulling rate.

How do I detect fatigue in wire rope fasteners?

Look for tiny cracks near the thread roots or saddle ends. Dye penetrant testing is the usual way for professionals to find stress cracks on the surface of a material before they break.

Partner with FLA Industrial & Trading Co., Ltd. for Certified Wire Rope Fasteners

Every Stainless Steel Rope Clip that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. Our products come in sizes from M2 to M32 and are certified by both ISO9001 and CE. They are made of 304 and 316 grades. We are a reliable company that makes Stainless Steel Rope Clips. We can handle large orders, special requests, and quick shipping to the U.S. market. To get a price within 24 to 48 hours, email our team at sales@flaindustrial.com or go to flaindustry.com.

References

1. Wire Rope Users Manual — Wire Rope Technical Board, 2018.

2. DIN 741: Wire Rope Clips — Requirements and Testing — Deutsches Institut für Normung, 2021.

3. OSHA Standard 1926.251: Rigging Equipment for Material Handling — U.S. Department of Labor, Occupational Safety and Health Administration, 2019.

4. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019.

5. EN 13411-5: Terminations for Steel Wire Ropes — Safety — European Committee for Standardization, 2018.

6. Stainless Steel: The Role of Molybdenum in Marine Corrosion Resistance — British Stainless Steel Association (BSSA), 2020.
