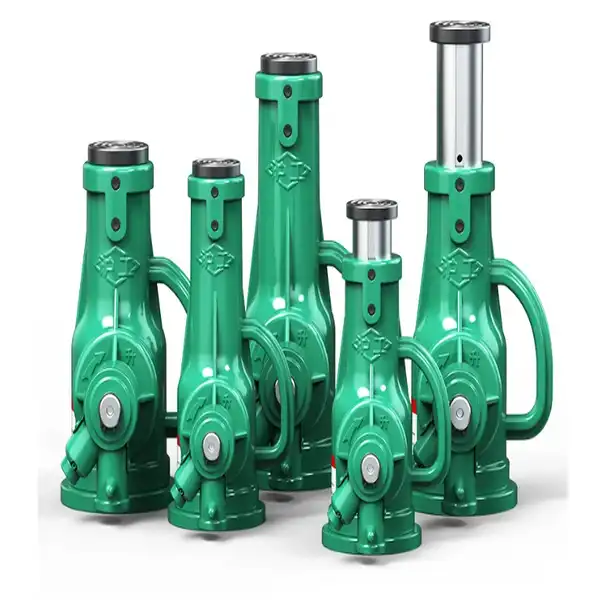

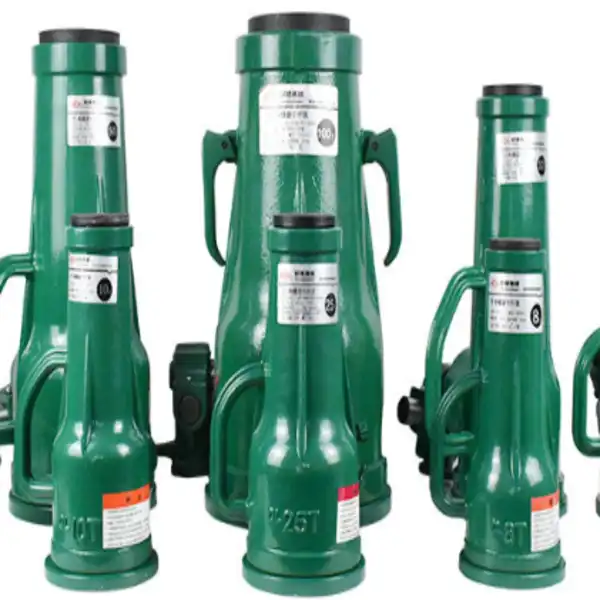

Industrial Screw Jack for Machine Positioning, Conveyor Adjustment, and Heavy Equipment Lifting

A mechanical Industrial Screw Jack is one of the most dependable lifting devices in industrial operations. Whether you need sub-millimeter positioning accuracy for a CNC machine, precise conveyor height adjustment on a production line, or controlled lifting of heavy equipment during installation, a quality screw jack delivers the mechanical rigidity and load stability that hydraulic systems often cannot match. This guide walks B2B procurement teams, engineers, and distributors through everything they need to know before selecting a worm gear jack or lead screw actuator for their specific application.

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4

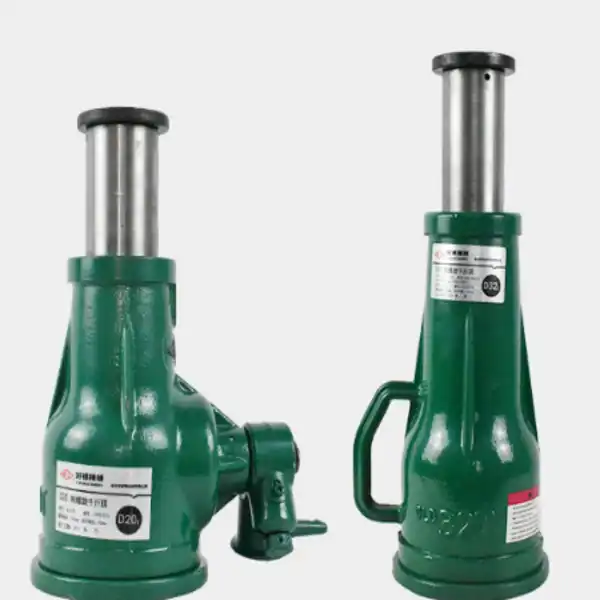

D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding How Screw Jacks Work and Their Core Features

The Mechanical Principle Behind Linear Actuators

A screw jack converts rotary input into controlled linear motion through a threaded lead screw — typically trapezoidal or Acme profile — driven by a worm gear set. This mechanical arrangement produces high axial force from relatively low input torque. Unlike hydraulic cylinders, there are no seals to leak or fluid pressure to drift, making trapezoidal screw models inherently self-locking under load.

Key Design Parameters That Affect Performance

Dynamic load capacity ranges from 2.5 kN to 3,500 kN depending on the model. Gear ratios typically fall between 5:1 and 32:1. Worm shafts are manufactured from hardened alloy steel such as 42CrMo, mated to high-wear bronze worm wheels. Housing materials include GG25 grey cast iron or GGG40 ductile iron for shock resistance. These parameters, published under DIN and AGMA standards, directly determine positioning accuracy, duty cycle, and service life.

Manual vs. Electric Drive: Choosing the Right Input

Manual screw jacks suit infrequent adjustments where power is unavailable. Electric-driven units, paired with a brake motor, support continuous conveyor adjustment or automated machine positioning cycles. Ball screw variants offer higher efficiency and faster linear speeds — up to 300 mm/s — but require a brake motor to hold position because they are not self-locking. Trapezoidal screw models are preferred when long-term static load support is the primary need.

Choosing the Right Screw Jack for Your Application

To choose the right lifting mechanism, you need to make sure that the product's specs match up with three things: the load size, the duty cycle, and the environment.

Matching Load Capacity to the Task

For heavy jobs like putting in place a press machine or maintaining a bridge, you need Industrial Screw Jack housings made of cast steel or alloy steel with lead screws that have been quenched and tempered. For smaller positioning jobs, like aligning the height of a conveyor belt or tilting a solar panel array, carbon steel models with engineering plastic nuts can be used. These nuts reduce friction and make the threads last longer. When giving a capacity, you should always add a safety factor of at least 1.5 times the working load.

Material and Surface Finish Selection

The choice of material is based on the operating environment. Models made of stainless steel can handle mild chemicals and moisture, so they can be used in places like food processing or HVAC pipework. Standard carbon steel units with coatings that are spray-painted and don't rust work well in production and building settings. Optional dust screens and lubrication surfaces make service times much longer in places with a lot of dust or high temperatures, like when steel mill rollers need to be adjusted.

Safety Certifications and Compliance Requirements

To make sure that U.S. providers follow quality control standards, they should make sure that they have ISO 9001 certification and CE marking for safety. Following the rules set by DIN, AGMA, and EN makes sure that the shape of the gears and their load values can be checked by someone else. For uses that need to keep people safe, like stage lifts or high work platforms, choose models that come with anti-drop safety nuts as an extra way to keep them in place.

Installation, Maintenance, and Safety Guidelines

Pre-Installation Checks and Alignment Procedure

Make sure the foundation or frame is level and that the jack's rated capacity is greater than the load that will be applied by the required safety margin before mounting. When the jack shaft and load direction are not lined up correctly, the lead screw is put under bent stress, which speeds up thread wear. As an extra safety measure against over-travel, put mechanical stop nuts on the screw and external limit switches on the motor to cut power before mechanical contact.

Routine Maintenance to Extend Service Life

Because of the temperature limits of the worm gear, standard trapezoidal screw jacks can only handle about 20 to 30 percent of their duty cycle. Every 500 hours of use or every three months, whichever comes first, check the state of the oil. Fill up the lubrication interface port with new grease, check the bronze worm wheel teeth for pits, and use a dial indicator to check the backlash of the lead screw against the ISO 2768 tolerances. Taking care of wear and tear early on keeps constant production lines from having to stop for no reason.

Operator Safety and Load Handling Practices

Do not go over the maximum horizontal load. On trapezoidal screw models, teach operators to make sure the self-locking mechanism is turned on before working with a load in the air. For synchronized multi-jack systems, connect units mechanically using drive shafts and miter gearboxes so that all jacks are driven by the same motor. This stops position deviation between lifting points and meets safety standards for large-scale synchronized lifts.

Comparing Screw Jacks with Other Lifting Solutions

Teams in charge of buying things often compare Industrial Screw Jack mechanical screw actuators to hydraulic cylinders and pneumatic systems. There is a clear range of ability for each device.

In terms of three important success factors, here is a straight comparison:

-- Accuracy in positioning: Because of the way the threads are designed, a worm gear screw jack can repeat measurements to within a millimeter. It's harder to keep precise positioning with hydraulic cylinders that don't have extra sensors because they depend on pressure control and can be affected by thermal shift.

• Positioning accuracy: A worm gear screw jack achieves sub-millimeter repeatability through mechanical thread geometry. Hydraulic cylinders depend on pressure regulation and are susceptible to thermal drift, making fine positioning harder to maintain without additional sensors.
• Maintenance complexity: Screw jacks require periodic lubrication and wear inspection but contain no hydraulic fluid, hoses, or pressure valves. Hydraulic systems need seal replacement, fluid changes, and contamination control — a higher maintenance burden over the equipment lifecycle.
• Load holding: Trapezoidal screw models hold loads mechanically without continuous power input. Hydraulic systems require either a mechanical lock valve or a maintained pressure source, adding cost and a potential failure point in long-term support applications.

For engineers who need precision, low upkeep, and passive load holding, the mechanical jack is the best choice because of these differences.

Optimizing Procurement: Where and How to Source Screw Jacks?

B2B buyers can lower their risk of buying by going with a manufacturer whose certifications have been checked and who can test their Products" target="_blank" style="color:blue" >products in-house.

Evaluating Supplier Capabilities

A good screw jack provider should give full-load run tests that check for temperature rise, noise, and vibration, as well as Rockwell C hardness checks on worm shafts and Brinell hardness checks on bronze wheels to make sure the materials are strong. Static overload testing at 1.5 times the rated capacity makes sure the structure is strong before it is shipped. As part of your process for choosing a source, ask for test results.

Customization for Non-Standard Applications

Standard catalog models can be used to change conveyors and place equipment where it needs to be. But for tasks like controlling the gap between steel mill rollers, CSP solar tracking systems, or precise machine tool alignment, custom stroke lengths, high-temperature seals, or specific mounting arrangements are often needed. Before you place an order, make sure that your supplier can deliver the 3D design files and production samples within a certain amount of time.

Bulk Ordering and After-Sales Support

Distributors and wholesalers who buy in bulk should look for providers with a lot of finished goods on hand to support short delivery windows on standard SKUs. Custom options usually take between 7 and 15 days to make. When looking at long-term supplier ties, you can't compromise on warranty terms, access to spare parts, and quick expert help after delivery.

Conclusion

To choose the right worm gear jack or Industrial Screw Jack lead screw actuator, you need to be honest about the load needs, duty cycle, environmental conditions, and compliance needs. Trapezoidal screw models are good for machine alignment, adjusting conveyors, and supporting heavy machinery because they hold loads passively and allow for exact placement. When a stop motor is added, ball screw versions are better for jobs that need higher speeds and higher duty cycles. Checking the licenses of the seller, asking for test results, and making sure that customization is possible before placing an order helps keep projects on schedule and operations safe.

FAQ

Are all screw jacks self-locking?

No. Trapezoidal screw models are generally self-locking due to thread friction — the load cannot back-drive the screw. Ball screw models are highly efficient but not self-locking, so they require a brake motor to hold position when power is off.

What maintenance interval is recommended?

Check lubricant condition every 500 operating hours or quarterly. Inspect bronze worm wheel teeth for wear, measure lead screw backlash, and replenish grease through the lubrication interface. Standard trapezoidal models support roughly 20–30% duty cycle; continuous operation requires a ball screw or bevel gear configuration.

Can one motor drive multiple jacks?

Yes. Connecting shafts, couplings, and miter gearboxes allow a single motor to drive multiple units in mechanically synchronized motion — two, four, or more jacks lifting simultaneously without position deviation.

What customization options are available?

Stroke length, mounting configuration, lead screw material, surface finish, dust covers, high-temperature seals, and safety nut assemblies are all adjustable based on the application. Suppliers with in-house machining — turning, grinding, milling, and heat treatment — can accommodate non-standard requirements.

How do I choose between a translating and rotating screw design?

Use a translating screw when the load attaches directly to the screw end and vertical clearance is sufficient. Use a rotating screw when overhead space is limited, as the nut travels along a stationary screw without extending above the housing.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Lifting Project

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has clients in the US, Germany, and Australia, some of whom are Fortune Global 500 partners. FLA is a reliable provider of Industrial Screw Jacks. Their products are ISO 9001 and CE-certified and are made to DIN/AGMA/EN standards. They can deliver unique solutions in 7–15 days and give price quotes within 24–48 hours. To get a price that fits your needs, email us at sales@flaindustrial.com or go to flaindustry.com right now.
