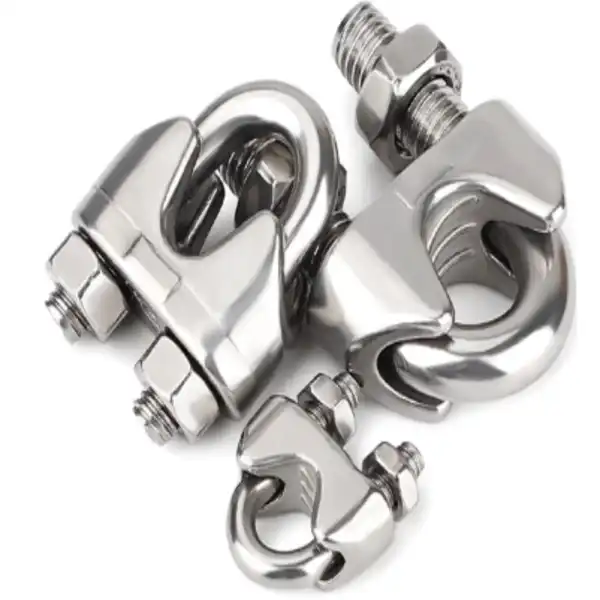

Cold Galvanized Wire Rope Clip Supplier Guide for Corrosion-Resistant Rigging Applications

If you are sourcing electro-galvanized wire rope fasteners for rigging projects, this guide gives you everything you need to make a confident procurement decision. A cold galvanized wire rope clip is a carbon steel termination device coated through an electrolytic zinc-plating process, producing a smooth silver-white finish with moderate corrosion resistance. It secures the dead end of a wire rope loop back onto the running line, forming a reliable mechanical connection. Covering material properties, supplier selection, installation protocols, and real application data, this guide helps procurement managers, site engineers, and hardware distributors choose the first time correctly.

Specification

Specification Type	Material	Surface Treatment	Specification (mm)
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	5
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	6
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	8
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	10
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	12
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	15
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	18
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	20
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	22
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	25
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	28
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	32
Cold Galvanized Wire Rope Clip	Carbon Steel	Cold Galvanized	36

Understanding Cold Galvanized Wire Rope Clips: Composition, Function, and Benefits

What Is the Product Made Of?

Each clip is made up of two nuts that hold together a cast carbon steel seat and a U-bolt. According to ISO 2081 standards, the electro-galvanizing method adds a zinc layer of 5–12 µm to the steel's surface. Electroplated hardware looks bright and bluish-silver, while hot-dip alternatives are dull gray. This thin, even coating is what gives electroplated hardware its unique look. The controlled deposition temperature keeps the thread dimensions accurate, so nuts can turn freely without getting stuck when torque is applied.

How Does It Work in a Rigging System?

The U-bolt goes over the dead (cut) end of the rope, and the saddle sits on the live (load-bearing) end. When the nuts are tightened, they press both rope pieces against the saddle gap. This creates a frictional grip that holds the end in place. Standard rigging engineering references say that a set of three to five clips properly installed gives the wire rope 80 to 90% of its rated breaking strength. The product comes in 13 size steps, ranging from 5 mm to 36 mm rope thickness, so it can meet a lot of different rigging needs.

Core Benefits for Procurement Teams

Electro-galvanized clips are much cheaper than hot-dip or stainless steel versions, and they protect well enough for indoor and light outdoor settings. Tight tolerances on dimensions make it easier to control torque on-site, which lowers the chance of installation mistakes. ISO 9001 and CE certifications show that the quality of the manufacturing is the same across all production batches. This is important when you are ordering in bulk for selling or project stocks.

Cold Galvanized Wire Rope Clip vs. Alternatives: Making the Right Choice

Electro-Galvanized vs. Hot-Dip Galvanized

Hot-dip galvanization adds a zinc layer of 40–80 µm or more, which makes it last much longer in outdoor, coastal, and humid settings. Cold Galvanized Wire Rope Clip cold galvanizing, on the other hand, makes the thread profile and finish smoother. Technically, hot-dip clips are the right choice for permanent outdoor installations or direct saltwater exposure. The electro-galvanized choice offers better safety at a lower cost per unit for indoor architectural rigging, temporary building guying, or controlled warehouse settings.

Electro-Galvanized vs. Stainless Steel

Stainless steel clips (usually Grade 304 or 316) don't rust and work well in places like the ocean, chemical plants, and food processing plants where zinc coatings would wear off quickly. Besides that, they cost the most. Electro-galvanized clips are a good compromise because they have a better finish and thread quality than bare black iron hardware but are much cheaper than stainless steel clips. Electro-galvanized clips are the right choice for procurement managers who are looking for general building, farm fencing, or light-duty material handling.

Key Quality Indicators to Check

Before you place an order, ask any seller you're thinking about for the following quality data that you can check:

• Salt spray test results (ASTM B117): Standard electro-galvanized clips should pass 24–72 hours before white rust appears, confirming plating thickness and passivation quality.
• Thread Go/No-Go gauge reports: Zinc plating must not clog threads; nuts must run freely on the U-bolt under gauged inspection.
• Slip load test data: Destructive testing should confirm the rope fractures before the clip slips, verifying the required holding efficiency is met.

Suppliers with ISO 9001 certification have quality management systems that are written down. This gives buying teams a standard that can be checked to see if there is consistency across big orders.

Procurement Insights: How to Source High-Quality Cold Galvanized Wire Rope Clips?

Supplier Types and Order Considerations

When looking for a lot of zinc-plated rope clips, you will come across selling companies, resellers, and direct makers. You have the most control over specifications, packaging, and lead time when you work with direct producers who can also do OEM work. FLA Industrial & Trading Co., Ltd. is a direct maker based in China. They keep 2,000 tons of standard sizes in stock and can make unique parts with unusual shapes in 7–15 days. Because there are no minimum order amounts, it's good for both wholesalers who need to order a mix of SKUs and contractors who need project-specific quantities of Cold Galvanized Wire Rope Clip.

Certifications That Reduce Procurement Risk

If a seller has ISO 9001 approval, it means that a third party has checked and approved their quality management system. When a product has CE approval, it means that it meets European safety and environmental guidelines. For shipments going to the U.S., make sure the product meets the relevant ASME or commercial standard dimension requirements for the rope diameter. When looking for a new supplier, it is common to ask for a copy of the quality inspection report for each batch. This report should include measurements of the coating thickness and confirmation of the dimensions.

Vetting a Supplier Before Committing

Before you place your first big buy, ask yourself these questions: What is the range of coating thickness that has been recorded? How long does it take to make things in sizes that aren't standard? Can the seller give test results for each batch? How is the packaging set up for shipping to other countries? If a seller answers these questions clearly and quickly, it shows that they are capable and well-organized. FLA Industrial & Trading Co., Ltd. promises to answer questions about price, technical specs, and 3D designs within 24 to 48 hours. This cuts down on the time it takes to qualify a seller.

Installation and Maintenance Best Practices for Cold Galvanized Wire Rope Clips

Correct Installation Procedure

It is said in the business world, "never saddle a dead horse." The U-bolt goes over the dead end, and the seat always goes on the live line. Put the initial working load on the nuts after tightening them to the torque recommended by the manufacturer. Then tighten the nuts again to the same torque. After the first load cycle, the width of the wire rope shrinks a little because the strands settle in. If the clip is not tightened again, this can cause it to come free. One of the most common mistakes in the field is skipping this step, which can cause the grip to fail.

Routine Inspection and Corrosion Monitoring

Check clips regularly—every three months if it's dry outside, or once a month if it's hot or in an industrial setting. Check the saddle for any cracks you can see, white zinc oxide buildup, or holes under the coating. When the thin electro-galvanized layer of a Cold Galvanized Wire Rope Clip starts to show signs of wear and tear, using a zinc-rich cold galvanizing compound can make the hardware last longer without having to be replaced completely.

When to Replace?

If a clip has saddle cracks, thread damage, or corrosion pits that can be seen on the U-bolt, it needs to be replaced. If a clip has fallen under load even once, it should be thrown away because the saddle groove shape may be changed forever. For installations that will be used outside or near the coast for a long time, upgrading to hot-dip galvanized or stainless steel hardware is the best long-term choice.

Case Studies and Industry Applications

Indoor Commercial Rigging

A business signs company looking for supplies for a stadium installation job asked for electro-galvanized clips to hold up HVAC ducting and lighting grids. The controlled indoor humidity stopped zinc from breaking down too much over a three-year service time, and the bright finish met the architect's requirement for hardware that could be seen. During that time, the worker said they didn't get any repair calls about corrosion.

Temporary Construction Guying

During six different stages of a project, a medium-sized building company used zinc-plated rope clips on temporary border fence and tarpaulin securing wires. Because the hardware was changed after every project, the difference in price between electro-galvanized and hot-dip choices saved money on materials without affecting safety on the job site.

Distributor OEM Partnership

A hardware store in the United States worked with FLA Industrial & Trading Co., Ltd. to create a line of electro-galvanized wire rope clips in eight different sizes. FLA sent production samples within 10 days, provided batch-level QC documentation, and took care of export packaging that met the distributor's branding requirements. Within a quarter of the first inquiry, the distributor put the product line on the market.

Conclusion

Electro-galvanized wire rope clips are a safe and inexpensive way to attach things for general setup, temporary building, indoor use, and light outdoor use. The important thing is to make sure that the coating requirements match the environment that your project will be exposed to. For places with mild rust, electro-galvanized carbon steel clips that are certified by ISO 9001 and CE offer reliable holding power at a price that is easy on the wallet. Upgrade to hot-dip or stainless steel for long-term use at the coast or in the water. The procurement risk is taken out of your supply chain when you choose the right product from the right supplier—one with documented quality control processes, quick technical support, and stable production capacity for Cold Galvanized Wire Rope Clip.

FAQ

How long does an electro-galvanized coating last outdoors?

In dry, rural environments, an electro-galvanized zinc coating (5–12 µm) typically performs adequately for several years. In humid, coastal, or industrial environments, the thinner zinc layer may show white rust within months. For permanent outdoor installations, hot-dip galvanized or stainless steel hardware is the recommended specification.

Are cold galvanized clips suitable for overhead lifting?

No. Most electro-galvanized clips follow DIN 741 light-duty standards and are not rated for overhead lifting or safety-critical load suspension. For lifting applications, use drop-forged clips meeting US Fed Spec FF-C-450 or EN 13411-5.

Why must nuts be retightened after the first load?

Wire rope strands bed in under initial loading, causing a slight reduction in rope diameter. This loosens the clip grip. Retightening to the specified torque after the first load application is a mandatory safety step.

What certifications should I require from a supplier?

Request ISO 9001 for quality management system documentation and CE for product safety compliance. For U.S. projects, verify conformance to applicable commercial standards for the specified rope diameter.

Can I get custom sizes or private-label packaging?

Yes. Manufacturers with OEM capability, such as FLA Industrial & Trading Co., Ltd., can produce non-standard sizes and custom packaging. Lead times for special configurations typically run 7–15 days from confirmed specifications.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Wire Rope Clip Order

Every sale of electro-galvanized and hot-dip wire rope clips from FLA Industrial & Trading Co., Ltd. comes from a company that has been making things for almost 40 years. We make it easy to buy in bulk because we have 2,000 tons of stock ready to ship right away; our production is ISO 9001 and CE certified, and we promise a response time of 24 to 48 hours. Get in touch with our team right away to get a price quote, detailed information, or a special OEM quote for the Products" target="_blank" style="color:blue" >products">Cold Galvanized Wire Rope Clip you need. You can email us at sales@flaindustrial.com or go to flaindustry.com.

References

1. Wire Rope Technical Board. Wire Rope Users Manual. 4th ed. Wire Rope Technical Board, 2005.

2. American Society of Mechanical Engineers. ASME B30.26: Rigging Hardware. ASME, 2015.

3. American Society for Testing and Materials. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.

4. International Organization for Standardization. ISO 2081: Metallic and Other Inorganic Coatings — Electroplated Coatings of Zinc. ISO, 2018.

5. European Committee for Standardization. EN 13411-5: Terminations for Steel Wire Ropes — U-bolt Wire Rope Grips. CEN, 2011.

6. Payer, J.H., and Friedersdorf, F.J. "Corrosion Performance of Zinc Coatings in Industrial Environments." Corrosion Science and Technology, vol. 18, no. 3, 2019, pp. 112–121.
