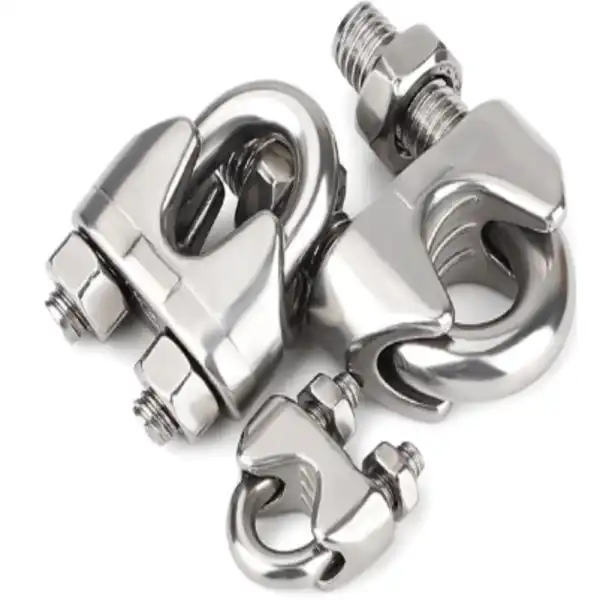

Stainless Steel Rope Clips Manufacturer: How to Ensure Quality for Marine and Industrial Use

When sourcing wire rope fastening hardware for marine or industrial projects, the quality of your clips directly affects safety outcomes. Stainless steel rope clips are precision-engineered fittings used to terminate, fasten, and connect wire ropes across demanding applications—from saltwater rigging and shipbuilding to construction safety lines and overhead crane systems. Choosing the right manufacturer and understanding what separates a reliable clip from a substandard one can prevent costly failures on the job. This guide walks you through everything procurement professionals need to know.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips: Types, Uses, and Key Features

Main Types and Their Functions

The market is mostly made up of three main styles. The U-bolt clip is the most common type. It has two hexagonal nuts, a cast saddle, and a U-shaped bolt. General rigging and lifting work can be done with it. The double saddle clip puts saddles on both sides of the rope, which spreads the load out more evenly. This is why it is chosen in building cable systems. Based on the grade of building, wire rope clamps made to DIN 741 or US Federal Spec FF-C-450 standards can be used for both light-duty guardrails and heavy-duty support.

Size Specifications and Load Capacity

The clip's size must exactly match the thickness of the wire rope. Most standard ranges cover rope sizes from 2 mm to 32 mm, which are equal to M2 to M32. Using a clip that is too small makes keeping much less effective. When installed correctly and according to the manufacturer's torque recommendations, an assembly will usually hold 80–90% of the wire rope's nominal breaking load. At least two clips are needed for ropes up to 5/16" (8 mm) in diameter; three to four clips are needed for larger diameters.

Why Stainless Steel Outperforms Alternatives?

Galvanized clips rust quickly in chloride-rich or chemically harsh settings. Within weeks of being in saltwater, they often turn red from rust. Aluminum clips are light, but they don't have as much mechanical strength when things are moving. AISI 316 stainless steel is especially resistant to pitting corrosion from chlorides and acid compounds. It also stays structurally sound at temperatures up to 425°C (800°F) and keeps up its load performance for a much longer time. The metallurgical advantage is not just a small one for marine, wastewater, and offshore uses; it is essential.

How to Ensure Quality When Sourcing Stainless Steel Rope Clips?

Grade 304 vs. Grade 316: Know the Difference

AISI 304 stainless steel is good for use in a wide range of industry and inland building settings. But AISI 316 has 2–3% molybdenum added to it, which makes it much more resistant to chlorides and industrial solvents. In marine engineering, offshore rigging, or chemical processing, 316 is the only metal that makes sense from a technical point of view. Before making large orders, procurement teams should ask for mill certificates that show the exact amounts of chromium, nickel, and molybdenum.

Testing Protocols That Actually Matter

Reliable makers check their Products" target="_blank" style="color:blue" >products in a number of ways before sending them out. The most important quality checks that buyers should ask any Stainless Steel Rope Clips wire rope clip provider to do are these:

• Positive Material Identification (PMI): X-Ray Fluorescence (XRF) spectrometry confirms the exact alloy composition, verifying that the batch is genuine 304 or 316 grade rather than a lower-grade substitute.
• Salt Spray Testing (ASTM B117): Samples are exposed to 5% neutral salt spray for 72+ hours. No red rust formation confirms effective passivation or electropolishing treatment.
• Dimensional Inspection: Go/No-Go thread gauges verify U-bolt thread accuracy, while saddle groove radius is checked against specific rope diameter tolerances.
• Tensile and Slip Testing: An assembled loop undergoes pull testing to confirm the clip holds rated load without rope slippage or U-bolt fracture.

When buyers put these four tests together, they give them clear proof that the product is real. If you skip any of them, you'll be taking on procurement risk that only shows up when things are busy, which is exactly when failure is most expensive.

Certifications and Compliance Standards

ISO9001 approval shows that a company has a quality management system that covers all stages of production, from getting the raw materials to packing them up at the end. Getting a CE certificate shows that you follow European safety and environmental rules. When buying things for offshore and naval use, ABS (American Bureau of Shipping) approval adds another level of structure check. Always ask for proof instead of taking verbal promises at face value.

Comparing Stainless Steel Rope Clips with Other Options in the Market

Stainless Steel vs. Galvanized vs. Aluminum

The cost and effectiveness of each element are different. Even though galvanized clips are cheaper up front, they don't last as long in acidic settings, which raises the total cost of ownership. Aluminum clips are light and can be used for decoration or low-load tasks, but they shouldn't be used for lifting or rigging that needs to be safe. It costs more to buy stainless steel clips at first, but they are the most cost-effective choice in harsh environments because they last longer and don't rust.

DIN 741 vs. US Type Drop-Forged Clips

Light-duty DIN 741 clips with cast saddles can be used for things like fencing, guardrails, and other non-critical tasks. US Type drop-forged clips have a heavier saddle construction and higher power values. They are made for moving and rigging tasks that need to be done carefully. B2B buyers who need gear for building sites or boats should look for the forged US Type design, which is the right standard for safety-rated uses.

Grade 304 vs. 316: Cost-Performance Balance

Grade 304 works well in dry factories and interior building sites where chloride contact is low. Grade 316 is the best choice for chemical plants, the coast, the ocean, and the sea. The price difference between the two grades of Stainless Steel Rope Clips is usually not very big when you think about how much it costs to fix or replace equipment that breaks down in harsh conditions. Distributors who keep stock for a wide range of customers can get covering without spending too much on premium material for low-risk uses if they keep both types in stock.

How to Choose the Right Stainless Steel Rope Clips for Marine and Industrial Use?

Procurement Checklist for B2B Buyers

Before placing an order, procurement professionals should make sure that the following meet the needs of the project:

• Wire rope diameter and corresponding clip size (M2–M32 range)
• Load capacity and required safety factor (minimum 80% holding efficiency)
• Environmental exposure (saltwater, chemicals, UV, temperature range)
• Applicable standards (DIN 741, US Fed Spec FF-C-450, ISO, CE, ABS)
• Number of clips required per termination (based on rope diameter)

With these parameters, the field is quickly narrowed down, and orders that don't match up don't cause delays on-site.

Vetting Supplier Credentials

If you ask, a good supplier should give you ISO9001 and CE certificates along with test results that are special to your batch. A quick answer time—ideally between 24 and 48 hours for quotes and technical questions—indicates that the business is reliable. Standard resellers can't compete with manufacturers who offer custom specifications, like saddle geometry that isn't standard or special coatings. Get references from clients who work in the same field, and look at product ratings if they're available.

Brand Benchmarks in the Market

When it comes to safety-critical hanging gear, brands like Crosby, Talurit, and Gunnebo have a good name. Their goods are a good example of quality. Using these established standards as a starting point, procurement teams can compare a new supplier's dimensional tolerances, holding efficiency data, and certification paperwork for Stainless Steel Rope Clips when evaluating them.

Maintenance and Longevity of Stainless Steel Rope Clips

Correct Installation Procedures

If you're installing something, the most important rule is "never saddle a dead horse." The U-bolt goes over the dead (cut) end of the rope, which is where the seat should go. If you do this backward, the breaking strength drops by a large amount. Tighten the nuts to the manufacturer's recommended pressure and then tighten them again after the first load is applied. Also, make sure that the distance between the clips is the right amount for the rope width that will be used.

Routine Inspection Schedule

At least once every three to six months, check the wire rope clips in marine or outdoor work environments. Look for thread damage on the U-bolt, saddle cracks, surface flaking, and any other distortion that can be seen when the bolt is loaded. Any clip that has threads that are damaged, deformed, or corrosion that goes deeper than the surface should be taken out of service right away.

Cleaning and Replacement Guidelines

Rinse clips with clean water after being in salt water to get rid of chloride residue. Do not use rough cleaning tools on the inactive chromium-oxide layer because they will damage it. Most of the time, clips can be used again as long as the U-bolt and seat are still in good shape and the threads are still clean. But the clamped rope section will be forever warped and needs to be trimmed before it can be re-terminated. If a clip fails a visible or dimensional check, it should be replaced instead of being put back into service.

Conclusion

Choosing and taking care of the right tools for attaching wire ropes has direct safety effects. Every element is important, from knowing the right fitting torque and check-in times to understanding the different types of material and clips. A lot of the risk is taken away when you buy from a qualified manufacturer whose quality control methods are written down. Whether you are equipping a ship, a construction site, or an industrial building, making sure that the clip specifications match the needs of the application and checking the credentials of the supplier for Stainless Steel Rope Clips protects your business and your team.

FAQ

Which stainless steel grade is best for marine applications?

AISI 316 is the correct choice for marine use. Its molybdenum content provides measurably better resistance to chloride-induced pitting compared to 304, which is better suited for dry industrial environments.

How often should wire rope clips be inspected?

In marine or chemically aggressive environments, inspect every three to six months. In standard industrial applications, annual inspection is a minimum. Always re-inspect after any significant dynamic load event.

Can rope clips be reused after removal?

Yes, if the saddle and U-bolt show no deformation and threads are undamaged. The rope section that was previously clamped must be cut away before re-terminating, as it will have permanently deformed under clamping pressure.

How many clips are needed per termination?

For wire ropes up to 5/16" (8 mm), a minimum of two clips is required. For larger diameters, three to four clips are standard. Always follow the manufacturer's torque and spacing data sheet.

Partner with FLA Industrial & Trading Co., Ltd. for Certified Wire Rope Fastening Solutions

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and brings that experience to every order. Our Stainless Steel Rope Clips come in grades 304 and 316 and sizes M2 to M32. They are certified by ISO9001 and CE and go through full quality control checks before they are shipped. We reply to prices within 24 to 48 hours and complete custom orders in 7 to 15 days as a reliable provider of Stainless Steel Rope Clips to customers in the U.S. and around the world. To get product details and prices, email our team at sales@flaindustrial.com or go to flaindustry.com.

References

1. Crosby Group. Wire Rope Clip Installation and Application Manual. 2022.

2. American Bureau of Shipping (ABS). Guide for Certification of Lifting Appliances. 2021.

3. ASTM International. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. 2019.

4. British Standards Institution. BS EN 13411-5: Terminations for Steel Wire Ropes — U-Bolt Wire Rope Grips. 2020.

5. Wire Rope Technical Board. Wire Rope Users Manual, 5th Edition. 2018.

6. International Organization for Standardization. ISO 9001:2015 Quality Management Systems — Requirements. 2015.
