Coupling Clamp Grooved for Fast Pipeline Assembly in Commercial HVAC Projects

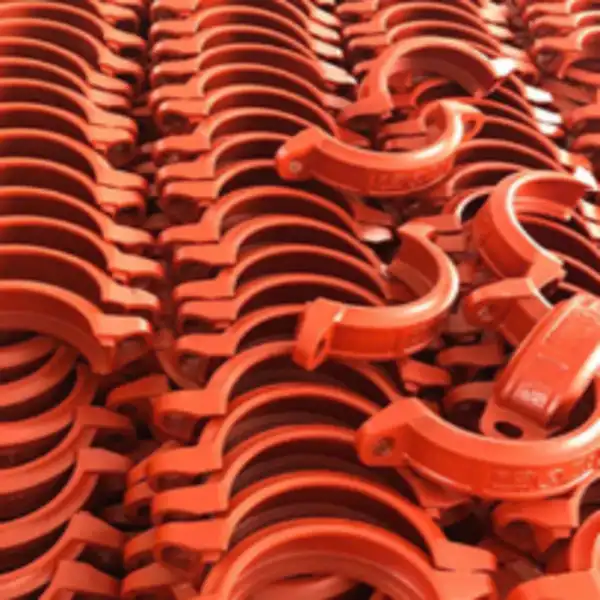

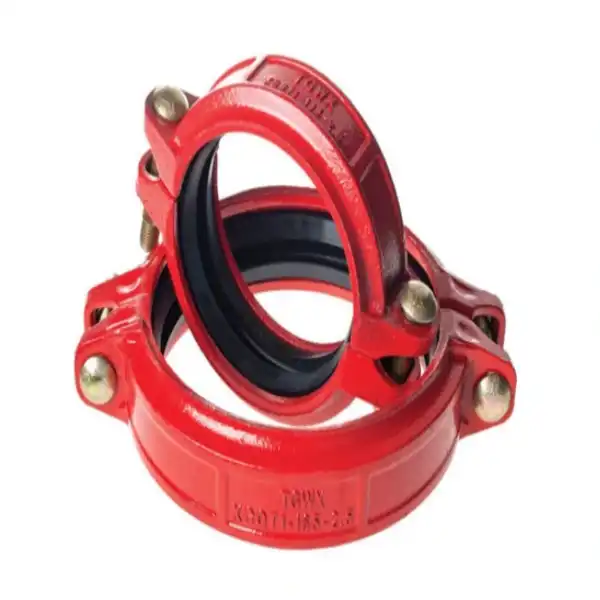

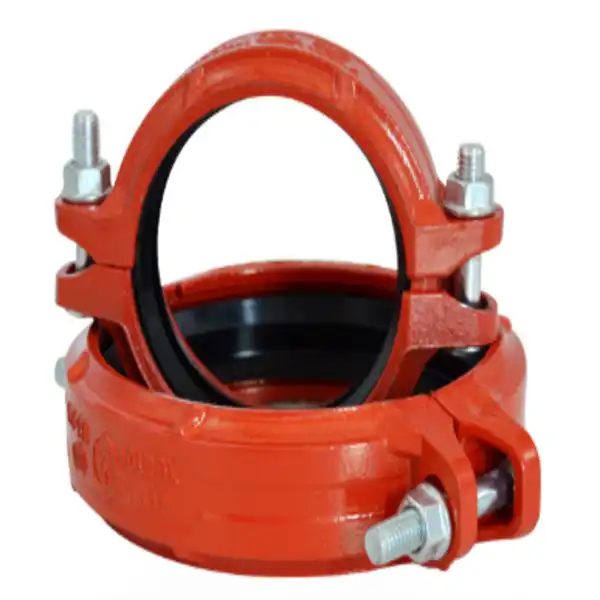

When contractors and procurement managers ask how to speed up commercial HVAC pipeline assembly without sacrificing joint integrity, the answer often points to one solution: the coupling clamp grooved system. This mechanical pipe joining method uses two ductile iron housing segments, an elastomeric gasket, and track-head bolts to grip a circumferential groove on the pipe end — no welding, no threading, no hot work required. For commercial HVAC projects where schedule pressure and safety compliance are daily realities, grooved mechanical couplings have become the connection method of choice across the United States and globally.

Specification

Specification	Size (inch)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding Coupling Clamp Grooved Technology

Prior to choosing a piping part, it is helpful to know what the technology does and why it works the way it does. The grooved coupling system works by fitting housing key pieces into a gap on the pipe end that has already been cut or rolled out. This presses an elastomeric gasket against the pipe end to make a seal that responds to pressure.

How the Grooved Joint Works

The housing fits snugly around the pipe gap, and as the pressure inside the line rises, the C-shaped gasket cross-section reacts by making the closing force stronger. This self-energizing seal design makes the joint tighter when it's under pressure, which is a big mechanical benefit over static compression fits.

Roll-Grooved vs. Cut-Grooved Ends

When you do roll grooving, the groove is cold-formed by moving pipe wall material outward while keeping the full wall thickness. Cut grooving tools make the hole right into the wall of the pipe. Roll grooving is the safer and better way to connect thin-wall Schedule 10 pipe, which is popular in industrial HVAC chilled water loops.

Grooved vs. Welded vs. Flanged Connections

Welded parts need hot work permits, skilled workers, and checks after the weld is done. Flanged connections need to be aligned perfectly with the bolt holes and take up a lot of space in small machinery rooms. Both problems can be solved with grooved mechanical couplings. ASHRAE installation studies show that installing welded systems takes 40–50% longer than installing non-welded systems. This is shown by data from commercial building projects.

Advantages of Using Grooved Mechanical Couplings for HVAC Pipeline Assembly

Speed doesn't tell the whole story. Cost, ease of upkeep, and long-term system performance are all reasons why grooved pipe joints should be used in business HVAC work. Here are the main benefits that procurement engineers and site supervisors always say they see:

• Faster assembly: A trained crew can assemble a grooved joint in under five minutes per connection, compared to 20–30 minutes for a comparable welded joint. On a mid-rise office building HVAC project with hundreds of pipe connections, this time savings is significant.
• Vibration isolation: The EPDM gasket absorbs mechanical vibration from pumps, chillers, and air handlers, protecting sensitive upstream and downstream equipment from fatigue stress.
• Thermal movement accommodation: Flexible grooved coupling variants allow controlled linear and angular pipe movement without expansion joints, which reduces material cost and simplifies system layout.
• Maintenance access: Disassembly for inspection or pipe section replacement requires only standard hand tools. There is no cutting, grinding, or welding involved during routine maintenance.

Easier to put together: It takes a skilled crew twenty to thirty minutes to put together a soldered joint of the same size, but less than five minutes to put together a Coupling Clamp Grooved joint. This saves a lot of time on an HVAC job for a mid-rise office building with hundreds of pipe links.

These benefits directly lead to lower total installed cost and lower lifetime upkeep costs. These are numbers that project engineers and procurement managers who are looking at total cost of ownership care about.

How to Select the Right Grooved Pipe Coupling for Your HVAC Project?

Choosing the correct fitting requires matching technical specifications to the actual operating conditions of the system. Several criteria deserve careful attention before placing a bulk order.

Pipe Material and Groove Compatibility

Grooved couplings must match the pipe material — carbon steel, ductile iron, stainless steel, or HDPE — and the groove dimensions must conform to ANSI/AWWA C606 or ASTM F1476 tolerances. Using a coupling with incorrect keyway dimensions will compromise sealing performance.

Pressure and Temperature Ratings

FLA Industrial's grooved couplings carry a working pressure rating of up to 300 PSI (2.07 MPa) and a temperature range of -29°C to 110°C, covering standard commercial HVAC chilled water, hot water heating, and condenser water applications. Always confirm these ratings against your system design parameters.

Gasket Material Selection

EPDM gaskets work well for water, glycol solutions, and steam service up to 230°F. For oil-based or hydrocarbon fluids, NBR (nitrile) gaskets are the appropriate choice. Specifying the wrong gasket material is one of the most common causes of premature joint failure in mixed-use industrial piping systems.

Certifications and Supplier Evaluation

For fire protection and HVAC work in the U.S. market, UL listing and FM approval are often required by the authority having jurisdiction (AHJ). ISO9001 certification confirms the manufacturer's quality management process. When evaluating suppliers, also review minimum order quantities, lead times, and technical support availability. FLA Industrial & Trading Co., Ltd. holds ISO9001, CE, and UL/FM certifications and typically provides pricing confirmation and technical documentation within 24–48 hours.

Installation Guide for Grooved Coupling Clamps in Commercial HVAC Projects

Whether a Coupling Clamp Grooved joint works as expected depends on how well it was installed. The next steps are based on what the manufacturer says should be done and what is best practice in the field.

Step-by-Step Installation Process

First, compare the pipe gap sizes to those on the coupler specification sheet. Get rid of any scale, dirt, or paint on the pipe end and groove channel by cleaning them. Before putting the gasket on the pipe end, grease it with the lubricant recommended by the manufacturer. Place the two halves of the housing on top of the gasket and insert the keys into the pipe grooves. Next, hand-tighten the bolts one at a time to make the housing fit evenly. Tighten the bolts to the given range, which for smaller sizes is usually 60 to 80 ft-lbs, until the metal pads touch each other.

Safety and Quality Checkpoints

Use a groove gage to check the depth of the grooves before putting them together. Check the seals for nicks or dirt on the surface. Now that the system is under pressure, walk the line to see if there are any tears at the joint sites. Any seepage usually means that either the seal is pinched or the groove's size is not within the acceptable range.

Real-World Application Example

By moving from welded carbon steel connections to grooved mechanical couplings on 4" and 6" pipe, a 12-story business office building HVAC retrofit project in Houston, Texas cut the time it took to set up the chilled water loop by 47%. The main things that made the plan better, according to the project team, were making it easier to get to ceiling areas that were already crowded and getting rid of the need for hot work permits.

Future Trends in Grooved Coupling Technology

Three things are affecting the grooved coupling market: progress in material science, the need for digital tracking, and concerns about the environment.

Corrosion-Resistant Material Advances

New polymer-lined ductile iron housings and duplex stainless steel options are making the service life longer in coastal and chemically aggressive areas, where epoxy coatings used to need to be reapplied every so often.

IoT Sensor Integration

Pressure and temperature microsensors are being built into connection housings by manufacturers. This lets pipeline health be monitored in real time. This information is used by predictive maintenance tools to keep important HVAC systems from going down without warning.

Sustainability and Recyclability

The whole ductile iron can be recycled, and installing a grooved system creates less trash than welding one because there is no weld spatter, flux leftovers, or grinding debris. For business building projects that want to get LEED approval, these things help show that they cut down on materials and waste.

Conclusion

Coupling Clamp Grooved mechanical couplings are the standard way to connect pipes in commercial HVAC projects because they offer measurable, repeatable performance benefits such as faster installation, reliable sealing, vibration absorption, and easy access for maintenance. The best source for procurement managers and building engineers looking for pipe fittings for HVAC, fire protection, or industrial fluid systems is one that has both technical know-how and a reliable supply chain. FLA Industrial & Trading Co., Ltd. backs up its grooved coupling Products" target="_blank" style="color:blue" >products with ISO9001, CE, and UL/FM certifications, a size range from 1" to 48", and full expert support from the time a customer asks for help until the job is finished.

FAQ

Are grooved couplings compatible with copper or PVC pipe?

Mechanical couplings with grooves are mostly made for steel, ductile iron, and stainless steel pipe. Roll-groove tools that are rated for the width of the copper wall can be used to make grooved joints in copper pipe. Grooved connections don't work with standard PVC pipe because the pipe wall can't hold the shape of the gap under pressure.

How long does it take to install a grooved coupling on-site?

Once the pipe groove is confirmed, a skilled worker can finish a single grooved joint in three to five minutes. It usually takes 8–12 minutes to install a joint, which includes checking the grooves and getting the seal ready. This depends on the size of the pipe and how easy it is to get to the spot.

What routine maintenance does a grooved joint require?

During yearly system shutdowns, it is common practice to look for gasket leaks visually. It is also suggested that the torque on the bolts be checked every two to three years, especially in systems that go through a lot of temperature cycles. It's easy to change the gasket and doesn't require cutting the pipe.

What causes a grooved coupling joint to leak?

The three most common reasons are the wrong depth of the groove, damage or debris on the gasket seating surface, and uneven bolt torque during installation. Most leaks that happen after installation can be avoided by checking the pipe's groove dimensions before putting it together.

Partner with FLA Industrial for Your Grooved Coupling Needs

Every grooved pipe fitting that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. Our Coupling Clamp Grooved products come in sizes from 1" to 48" and can be painted, epoxy coated, or hot-dip galvanized to fit the needs of your project. We are a trusted grooved coupling manufacturer that works with U.S. distributors and contractors. For your next commercial HVAC job, you can email our team at sales@flaindustrial.com or go to flaindustry.com to get product specs, bulk prices, or samples.
