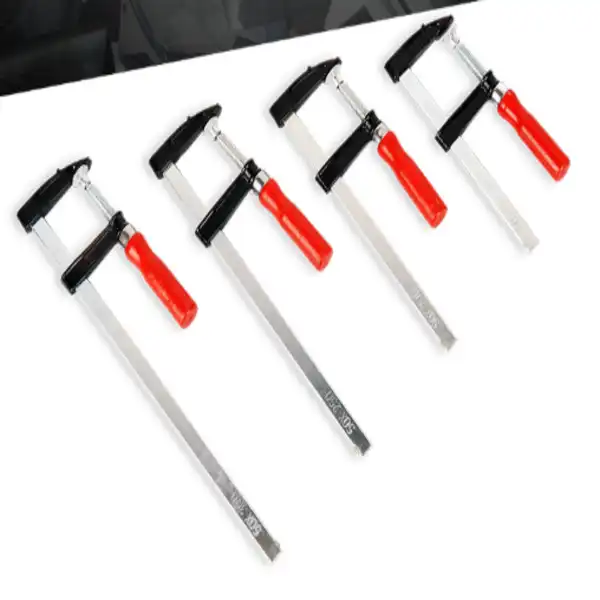

Light-Duty F-Clamp for Cabinet Assembly, Woodworking and General Workshop Tasks

A F-Clamps/light-duty-f-clamp">light-duty F-clamp is a sliding-jaw work-holding tool engineered to deliver controlled clamping force — typically between 600 N and 1,500 N — without damaging delicate surfaces or fatiguing the operator. Built from malleable cast iron and a steel rail with a precision-machined screw rod, this clamp type balances structural integrity with practical weight. Whether you run a cabinet assembly line, a carpentry workshop, or a general fabrication facility, choosing the right F-clamp directly affects joint quality, production speed, and worker safety. This guide covers everything procurement professionals need to know before placing a bulk order.

Specifications

Specification	Total Length (mm)	Total Width (mm)	Clamping Length (mm)	Clamping Width (mm)
6 Inch	248	110	160	60
12 Inch	395	110	308	60
18 Inch	550	110	460	60
24 Inch	700	110	615	60
30 Inch	850	110	765	60
36 Inch	1000	110	915	60

Understanding Light-Duty F-Clamps: Features and Applications

Core Design and Materials

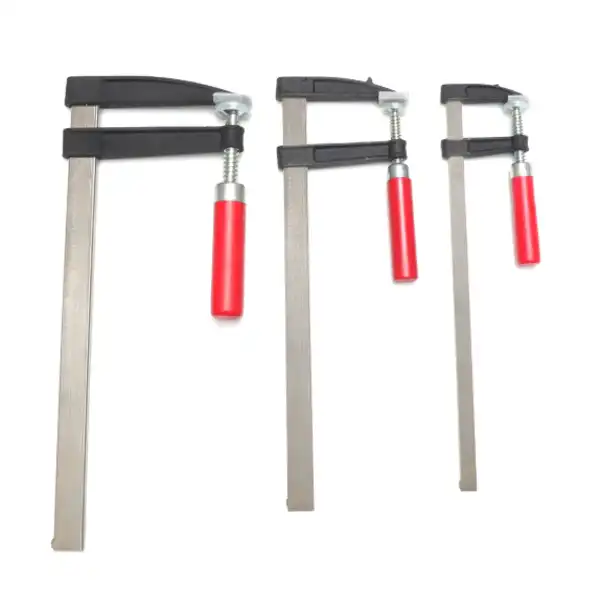

A flat steel rail, a fixed jaw, a moving jaw, and a threaded screw rod with a swivel pad make up a typical Light-Duty F-Clamp. FLA's version has jaw bodies made of cast iron that can be shaped and a steel rail-and-screw-rod system that can be sprayed or zinc-plated to protect it from rust. The zinc-plated version meets normal salt-spray resistance standards and can be used in a humid workshop all year. It can also be used outside in some light situations.

Size Range and Jaw Specifications

From 6 inches to 36 inches, FLA has six sizes. The clamping length (jaw opening) varies from 160 mm for the 6-inch model to 915 mm for the 36-inch model. The clamping width stays the same at 60 mm for all sizes. This steady throat width keeps the pressure even on all panel surfaces during glue-ups, which is important when putting together cabinet face frames or edge-joining boards.

Light-Duty vs. Heavy-Duty: What Procurement Teams Should Know?

Heavy-duty F-clamps are made of drop-forged steel all the way through and can be used for structural welding and masonry work. While light-duty models are designed for "delicate rigidity," which means they have just the right amount of force for woodworking joints without being too heavy, which can make workers tired on assembly lines where they do the same thing over and over again. Heavy-duty clamps are more expensive per use, but light-duty clamps are better for making cabinets, furniture, and other things around the workshop.

How to Use Light-Duty F-Clamps Effectively in Workshop Settings?

Proper Positioning and Tightening Technique

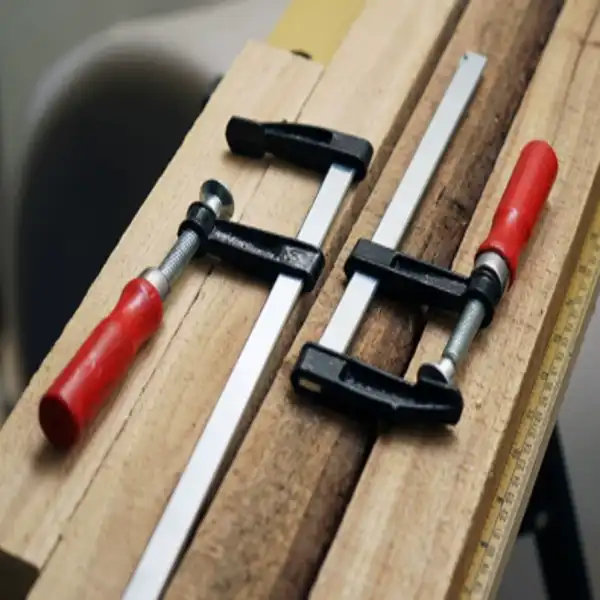

Place the clamp so that both jaw sides are parallel to the surface of the workpiece. Before turning the screw rod, slide the movable jaw against the material so that it fits tightly. This keeps the jaw from skewing when it's loaded. Gradually tighten the joint until you see a little glue squeeze-out. Tightening too much will rob the joint of glue and damage softwood fibers like pine or spruce.

Common Errors and Safety Precautions

In workshops, the slide jaw of a Light-Duty F-Clamp falling down the rail under long-term load is the most common failure type. This generally means that the rail serrations are worn. After 24 hours of keeping the maximum load, a good clamp should have no jaw movement. Never use a light-duty clamp for metal arc welding because the heat will damage the jaw pads and make it impossible for the clamp to slide. Before each use, you should always check the rail for permanent bending. If the rail is bent, it means the clamp has passed its yield point and needs to be replaced.

Maintenance and Longevity

Make sure the rail grooves are dry and clean. Glue residue and oil both weaken the clutch friction that keeps the jaws from moving. A dry wire brush can be used to clean the serrations. Next, a dry PTFE-based lube should be used on the screw rod threads instead of wet grease. Check the swivel pad every so often to see if it's cracking or coming off. Regular care greatly increases the life of clamps and lowers the costs of replacing them when they break.

Choosing the Best Light-Duty F-Clamp: Criteria and Comparisons

Key Procurement Specifications

When looking at F-clamps in bulk, these factors should be taken into account: the rail's material and hardness (rail serrations should usually measure HRC 30–35); the throat depth (50 mm is good for most cabinetry work); the handle torque resistance (at least 15–20 N·m before failure); and the surface finish's durability. FLA's manufacturing process is ISO9001-certified, and it checks for accuracy in dimensions at every stage of production, including casting, forging, cutting, and final assembly. This gives buying managers a way to measure quality assurance.

Comparing F-Clamps with Alternative Clamp Types

C-clamps have a small size but a strong clamping force. They can't reach across wide panels, though. Bar clamps have a longer reach, but they are heavier and take longer to move around on assembly lines with a lot of parts. Cordless clamps are faster, but they cost more per unit and need to have their batteries maintained. The Light-Duty F-Clamp is a good compromise because it is easy to set up, not too heavy to handle over and over, and cheap enough to buy in bulk.

Brand Landscape and Supplier Evaluation

In North America, well-known names like IRWIN, Bessey, and DEWALT have good places thanks to their warranties and easy availability in stores. When B2B buyers want to save money on large orders, they can work directly with an ISO9001-certified manufacturer like FLA Industrial & Trading Co., Ltd., which has over 1,000 product specifications and almost 40 years of manufacturing experience. This creates a direct supply chain with shorter lead times and no markups at the middleman.

Procurement Strategies for Bulk Purchase and Supply Chain Optimization

Evaluating Supplier Reliability

Before signing a contract with a seller, make sure you get material certifications, batch test results, and references from customers in the market you want to reach. The same lead time is just as important as the same unit price. FLA keeps 2,000 tons of standard specs in stock, which lets them quickly fill repeat orders without having to wait for production to start.

When evaluating a supplier, the following things should be given the most attention:

• Certification verification: Confirm that the supplier holds a current ISO9001 certificate, not a lapsed one. This ensures documented quality management across all production stages.
• Custom order capability: Some projects need non-standard jaw openings or special finishes. FLA can produce custom specifications with delivery in 7–15 days, which reduces the need to hold excess safety stock.
• Minimum order flexibility: Suppliers that impose high minimum order quantities add procurement risk. FLA accepts orders of all sizes, which matters when a distributor is testing a new SKU before full-scale stocking.

Over time, sourcing risk will be greatly reduced if you match these factors with your business needs before making a supply agreement.

Pricing Trends and Negotiation

Light-Duty F-Clamp prices change based on size, finish type, and number of orders. Zinc-plated styles usually cost a little more than painted ones because they last longer and are less likely to rust. When buying in bulk from other countries, prices usually start at container loads. Asking for detailed cost estimates of things like material, finishing, packing, and freight helps purchasing teams figure out where they can save money without lowering the quality of the product.

Enhancing Workshop Efficiency with the Right F-Clamps: Case Studies and Best Practices

Real-World Application in Cabinet Assembly

A mid-sized U.S. cabinet maker that needed clamps for putting together face frames discovered that using lighter F-clamps cut user reports of wrist strain by a significant amount after six months of use. The 12-inch and 18-inch models had narrow beam profiles that let more than one clamp sit next to each other on stile-and-rail joints that were less than 50 mm wide. This is something that heavier clamps with wider beam profiles can't do.

Workflow Integration Advice

Place clamps every 300 mm or so along parts that have been sealed to even out the pressure. For panel installation, most common cabinet widths can be covered by a set of 18-inch and 24-inch clamps. Along with your F-clamps, you should also have parallel jaw clamps for square-ing face frames and corner clamps for putting together picture frames. Having a standard clamp kit for each type of job cuts down on the time it takes to set up and train new workshop staff.

Emerging Trends in Clamping Technology

Ergonomic handle materials, like bi-material PP+TPR grips, are becoming standard on mid-range and higher-end Products" target="_blank" style="color:blue" >products because they cut down on friction loss when power is transferred to the spindle. Cordless air clamps are becoming more popular in automatic cabinet lines, but smaller workshops can't use them because they're too expensive and need a lot of upkeep. For most business-to-business buyers, the traditional threaded F-clamp is still the most affordable way to hold work in place today.

Conclusion

The Light-Duty F-Clamp is a useful and reliable tool for holding work that can be used in a lot of different industries for jobs like putting together cabinets, general woodworking, and workshop manufacturing. Getting the right size, material, and finish, as well as buying from a reputable manufacturer, has a direct effect on the quality of the product and the total cost of ownership. These clamps are made to ISO9001 standards by FLA Industrial & Trading Co., Ltd. They come in six sizes and can be painted or zinc-plated. The company has been making clamps for almost 40 years and can make any size you need.

FAQ

What size F-clamp works best for standard cabinet assembly?

Most of the time, 12-inch and 18-inch types can handle most joint lengths for face-frame and carcass assembly work. The 24-inch model works with bigger screens. FLA's jaw width stays the same at 60 mm across all sizes, so stable contact is guarantyd no matter what length you choose.

Can these clamps handle glue-up pressure without jaw slippage?

Yes, as long as the rail's grooves are clean and not broken. If you keep your clamp in good shape, it should be able to hold 95% of its clamping force for 24 hours.

Is the zinc-plated finish suitable for damp workshop environments?

Zinc-plated clamps are better at resisting rust than painted ones, and they can be used in workshops with some humidity. Neither finish is waterproof or meant to be used outside in wet conditions.

Can I order non-standard sizes for specialty woodworking projects?

Yes, FLA Industrial & Trading Co., Ltd. can make clamps to your exact specifications, even if they aren't the standard length or finish. Delivery is usually made 7–15 days after your order is confirmed.

What is the maintenance schedule for high-volume workshop use?

In production settings, check the rails and screw threads every 500 tightening cycles. Once a week, use a dry wire brush to clean the serrations. Right away, replace any clamp that shows permanent rail deformation.

Source Your Light-Duty F-Clamps Directly from FLA Industrial & Trading Co., Ltd.

FLA Industrial & Trading Co., Ltd. is a reliable company that has been making Light-Duty F-Clamps for almost 40 years, is ISO9001 certified, and has stock that can be sent out quickly. We can handle sales of any size, and there is no minimum order number. We answer all questions within 24 to 48 hours. You can look through our full clamp catalog at flaindustry.com, or you can email your specs and number needs to sales@flaindustrial.com to get a quote right away.
