Elevator Guide Rail Clamps Ensure Precise Rail Alignment for Reliable Lift Performance

Elevator guide rail clamps are precision-engineered fixation components that secure T-profile guide rails to hoistway wall brackets, maintaining exact vertical alignment throughout a lift's travel path. Without properly installed rail clamps, an elevator system becomes vulnerable to rail buckling, vibration transfer, and safety gear failure. These components must simultaneously hold rails rigid enough for consistent ride quality while allowing controlled thermal expansion in taller buildings. At FLA Industrial & Trading Co., Ltd., we manufacture cast steel and cast iron clamps certified to ISO9001 and EN81 standards, supporting T89, T75, H18, and multiple other rail configurations for global vertical transportation projects.

Understanding Elevator Guide Rail Clamps: Components, Types, and Specifications

What Are Guide Rail Clamps and How Do They Work?

A guide rail clamp connects the fixed structure of the hoistway to the moving parts of the elevator. It grabs the rail flange and sends sideways forces directly into the building's wall, which can happen when people get on or off the train, when safety gear is activated, or during an earthquake. If there isn't this transfer path, the rail gage distance changes, which throws off the track of the car's roller or slide guides. According to EN 81-20/50, all fixation points must stay within certain gage tolerances when under estimated load. This makes choosing the right clamp a very important safety engineering choice.

Common Materials: Cast Steel vs. Cast Iron

The choice of material has a direct effect on how much weight it can hold and how long it will last. Cast steel has a higher tensile strength and works well in freight and high-speed situations where loads are often not arranged in a straight line. Cast iron is great at reducing vibrations and works well for mid-rise passenger lifts in both business and home buildings. FLA Industrial sells both types of materials and can finish the outside with hot-dip galvanizing or a good paint covering that can withstand neutral salt spray tests. This keeps parts safe in damp shafts and seaside areas.

Key Specifications: Sizes and Certifications

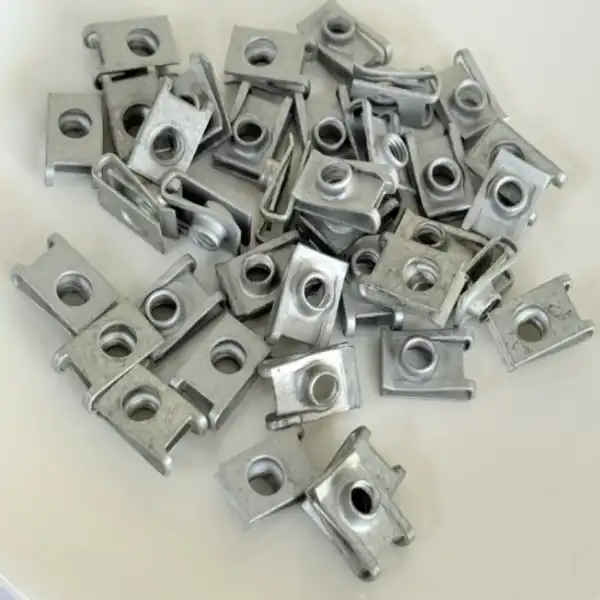

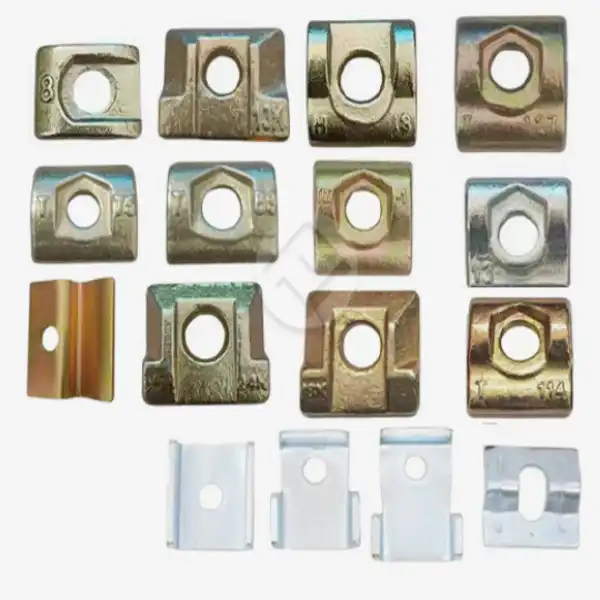

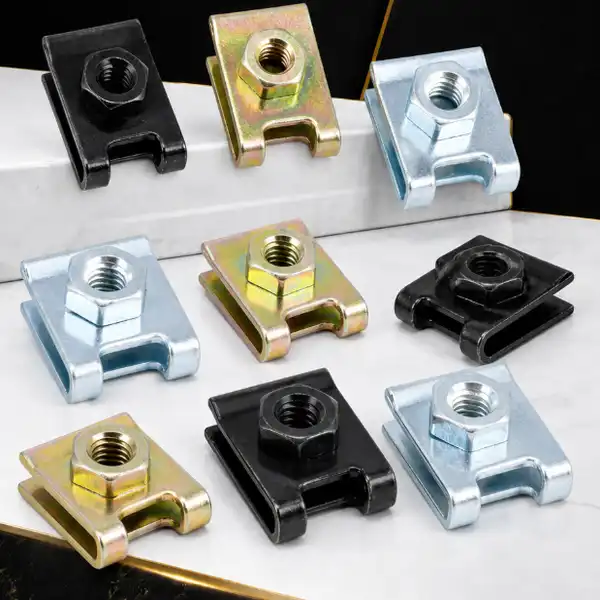

FLA Industrial has a wide range of Products" target="_blank" style="color:blue" >products in 8K, 13K, 18K, and 24K specifications. These products have nominal thread sizes from M8 to M24 and nominal lengths from 12 to 50 mm. For each SKU, there is a full set that comes ready to install and includes screws, flat washers, and all the tools. These goods have ISO9001 and EN81 approvals, which are in line with ASME A17.1 standards for buying things in the U.S. market. Some train profiles that are compatible are T89, T75, H18, and others. This gives procurement managers a lot of options to choose from to match different lift setups.

Installation and Maintenance Guide for Elevator Guide Rail Clamps

Step-by-Step Installation Protocol

Making sure the mounting bracket is level and properly attached to the hoistway wall is the first step in a proper installation. The clamp is then put on top of the rail flange, and Grade 8.8 bolts are tightened to the force recommended by the maker. For M12 bolts, this is usually 60–80 Nm. If you tighten a sliding clamp too much, it turns into a fixed point, which makes the rail buckle at travel heights above 40–50 meters. According to EN 81-20 guidelines, installers must switch between fixed and sliding clamp positions on high-rise buildings to account for thermal rail elongation.

Routine Maintenance Practices

A regular repair plan keeps your investment safe and the elevator in good working order. The main inspection tasks that a field team should do on a regular basis for Elevator Guide Rail Clamps are:

• Visual corrosion check: Inspect clamp surfaces and bolt heads for rust or coating damage every six months. Any red rust on the flange contact area warrants immediate replacement to prevent gauge drift.
• Bolt torque verification: Re-torque all fasteners annually or after any seismic event. Loose bolts are identified by "shiny spots" on the rail near the clamp, caused by micro-movement under traffic loads.
• Sliding function test: For sliding clamps in buildings above 50 meters, confirm the rail can move axially through the jaw without restriction. A seized sliding clamp must be freed or replaced before the next scheduled service period.

When done regularly, these checks stop the most common reasons why rails aren't lined up right and cut down on unplanned downtime.

Troubleshooting Common Problems

If an elevator's cabin shakes or makes noises that don't make sense, check the rail clamps first. When the clamps are too loose, the rail can shake, which sends vibrations through the roller bearings and into the car's structure. If the bolts are sheared, it means that the clamp wasn't tightened enough or that the wrong size was chosen for the rail profile. It is known that mismatched sizes can cause gages to widen when they are loaded; for example, a clamp made for a 16 mm flange T127 rail won't hold a 10 mm flange T89 rail well.

Comparing Elevator Guide Rail Clamps: Making Informed Procurement Decisions

Performance Under Heavy Loads

For freight and car lifts, stiff, bendable iron or cast steel clamps with large flange contact areas on T127 or T140 rails keep the gage from getting wider when multiple tons of stress are put on them from the side. Sliding clamps at intermediate fixing points are required by engineering for high-speed elevators going faster than 4 m/s in buildings taller than 100 meters. This is not a matter of choice. The maximum load that a clamp can hold should include a safety margin that is in line with EN 81-50 testing guidelines. This is to account for the dynamic forces that happen when the safety gear is engaged.

Cast Steel vs. Cast Iron: Procurement Trade-offs

Because they have a higher yield strength, cast steel clamps are better for heavy-duty uses. However, they need to be properly treated on the outside to match the rust resistance of cast iron in damp places. Cast iron clamps naturally reduce noise transfer by damping vibrations. This is a useful feature in hotel and hospital elevators where ride comfort is important. If you have a panoramic elevator shaft near the coast or in the water, hot-dip galvanized clamps or clamps with a Dacromet coating will protect them from corrosion long enough to pass salt spray tests for at least 72 hours.

Guide Rail Clamps vs. Mounting Brackets: Clarifying the Difference

Attaching clamps hold the hoistway wall in place and provide a stable structural contact. These brackets hold the rail in place with guide rail clamps. Both parts work together, but they can't be switched out. So that installation schedules don't get pushed back, procurement teams that are sourcing both must make sure that the dimensions of the bracket slots match the patterns of the clamp bolts.

Procurement Strategies for Elevator Guide Rail Clamps in Global B2B Markets

Identifying Credible Manufacturers and Suppliers

When looking for guide rail fixing gear, don't just look at the prices in a catalog. A reliable Elevator Guide Rail Clamps maker has ISO9001 production certification and EN81 compliance paperwork that can be checked. Major lift OEMs like Thyssenkrupp, Otis, and Mitsubishi have supplier qualification programs that check for things like accurate measurements, consistent surface treatment, and the right mix of materials. These are all things that should be looked at in any B2B procurement evaluation, no matter how much an order is.

Negotiating Bulk Orders and Managing Lead Times

FLA Industrial keeps 2,000 tons of standard specs in stock, which lets them quickly ship repeat orders. For custom clamp configurations that need different flange sizes or bolt patterns, it takes 7–15 days for us to make them. Within 24 to 48 hours, procurement managers can ask for 3D design models to make sure the parts will fit before committing to large orders. This step of approval saves money and keeps the field from being rejected.

Evaluating Supplier Credibility

Before you buy a lot of Elevator Guide Rail Clamps from a supplier, make sure of three things: the certifications are up-to-date and can be tracked back to a recognized body; the supplier can provide material test reports for each production batch; and the company has a written process for dealing with products that don't meet standards. All three are standard at FLA Industrial. This gives project engineers and purchasing managers the audit trail they need for project compliance files.

Ensuring Safety and Compliance in Elevator Guide Rail Clamp Selection

Relevant Regulatory Frameworks

In the U.S., elevator safety is regulated by ASME A17.1/CSA B44. In Europe and many other countries, EN 81-20 and EN 81-50 are used. Both models say how far apart guide rail bolts and clamps should be installed, what the minimum fixation force should be, and what the material qualities should be. If you choose parts that aren't third-party certified to meet these standards, there's a chance that they won't pass inspection, and the building occupancy certificates may be delayed.

Load Rating and Durability Evaluation

The standard quality control method for making sure that clamps won't break when safety gear is put on is to test their tensile and shear strengths on random production samples and compare them to EN 81-50 load requirements. In FLA Industrial's quality control process, incoming materials are checked for accuracy, dimensions are checked during production using Go/No-Go gages, coating thickness is measured, and the final load test is done before the product is packed. Rockwell hardness tests are also done on spring-type slide clips to make sure they keep their flexibility over thousands of vibration cycles.

Avoiding Common Pitfalls

Material mismatch is the most common installation mistake. Using a clamp made for one rail profile on a different profile can make it harder to align the safety gage. Before fitting, installation teams should compare the width of the rail's lip to the size of the clamp jaw. When mixing rail brands or retrofitting old shafts, procurement teams should ask the seller in writing to ensure that the products will work together.

Conclusion

It is very important for the safety, quality of the ride, and long-term functionality of an elevator that the guide rails are fixed correctly. Gage drift, vibration issues, and compliance failure are all less likely if you choose the right clamp material, specification, and surface treatment for your rail shape and building type. FLA Industrial has Elevator Guide Rail Clamps made of cast steel and cast iron that are approved to ISO9001 and EN81. These clamps can handle temperatures from 8K to 24K and work with T89, T75, H18, and other standard rail profiles. Our products can be hot-dip galvanized, painted, or come with all the hardware they need. They can be used for new building or renovations in business, residential, industrial, and healthcare settings.

FAQ

When should sliding clamps be used instead of fixed clamps?

They make it possible for the rail to grow vertically without breaking. Fixed clamps work well for low-rise systems or hydraulic systems that only need to move a short distance.

What torque should be applied to guide rail clamp bolts?

The torque is based on the bolt size. Most M12 nuts need between 60 and 80 Nm. If you put too much force on a moving clamp, the axial rail can't move. This makes the clamp a fixed point, which is not what it's supposed to do in engineering. Always follow the power specs given by the maker.

Can one clamp size fit multiple rail profiles?

No, most clamps are made to fit a certain thickness of flange. A clamp made for a 16 mm flange on a T127 rail won't work with a T89 rail's smaller flange. Before you buy, make sure that the clamp jaw dimensions and the rail flange thickness are compatible.

How do I detect a failing clamp during maintenance?

Check the rail for shiny wear marks close to the clamp, rust that you can see in the contact area, or bolts that have come loose. If the side rail moves when the car goes by a fixing point, that's a strong sign that the clamp needs to be checked out and replaced right away.

Does FLA Industrial offer custom clamp specifications?

Yes. FLA Industrial makes non-standard configurations based on the exact measurements of each project. Within 24 to 48 hours, engineering drawings are sent out, and custom production is finished in 7 to 15 days. To send in your professional needs, email the team at sales@flaindustrial.com.

Partner with FLA Industrial for Your Next Elevator Project

Every order for Elevator Guide Rail Clamps from FLA Industrial & Trading Co., Ltd. is made with almost 40 years of experience. Our products are ISO9001 and EN81 certified and meet specifications from 8K to 24K. They also work with T89, T75, H18, and other rail profiles and can be shipped from a stock of 2,000 tons. We treat all orders, no matter how big or small, with the same level of care, whether you are a grocery store building your inventory, a construction company looking for materials for a high-rise project, or a grounds team in charge of ongoing maintenance. To get a quote or product datasheet right away, email our sales team at sales@flaindustrial.com or go to flaindustry.com.

References

1. American Society of Mechanical Engineers. ASME A17.1/CSA B44 Safety Code for Elevators and Escalators. ASME, 2022.

2. European Committee for Standardization. EN 81-20: Safety Rules for the Construction and Installation of Lifts. CEN, 2020.

3. European Committee for Standardization. EN 81-50: Rules for Examination and Tests of Lift Components. CEN, 2020.

4. Strakosch, G. R., & Caporale, R. S. The Vertical Transportation Handbook, 4th ed. John Wiley & Sons, 2010.

5. Peters, R. D. Elevator Technology: Principles and Practice. Elevator World Inc., 2018.

6. International Organization for Standardization. ISO 7465: Passenger Lifts and Service Lifts — Guide Rails for Lift Cars and Counterweights — T-Type. ISO, 2007.
