Stainless Steel Wire Rope Fasteners Provide Durable Solutions for Marine and Construction Applications

Stainless steel wire rope fasteners are precision-engineered rigging components designed to terminate, tension, and secure wire rope assemblies across demanding environments. Whether you're managing offshore platforms, building suspension bridges, or installing architectural cable systems, these fasteners deliver the mechanical strength and corrosion resistance your project demands. Manufactured from AISI 304 and AISI 316 stainless steel, they maintain structural integrity in saltwater exposure, chemical contact, and wide temperature ranges — making them the preferred choice for marine engineering, construction, and shipbuilding applications worldwide.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Wire Rope Fasteners

It helps to know exactly what you're working with before you look for wire rope hardware. These parts are a big group of rigging fittings, and each one does a certain mechanical job in a cable assembly.

Key Component Types

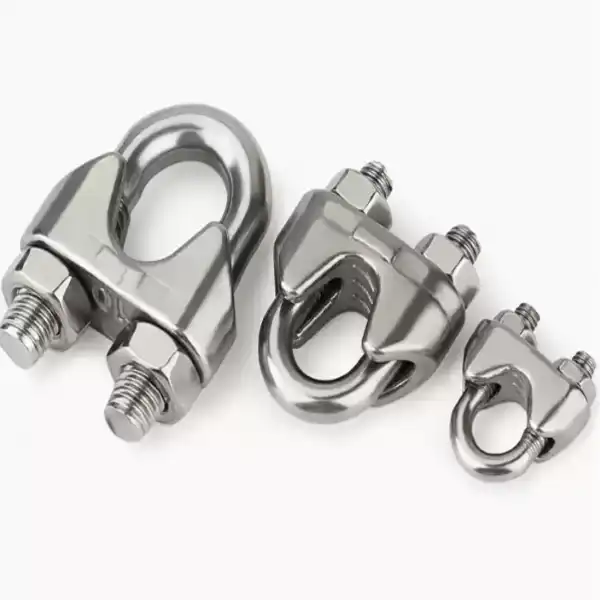

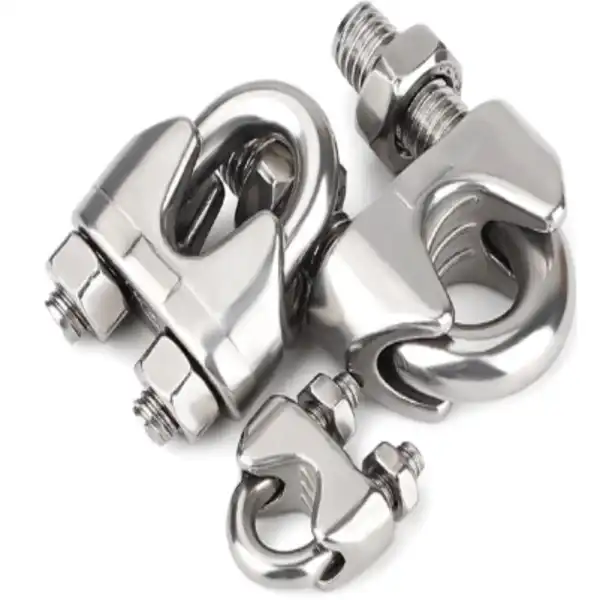

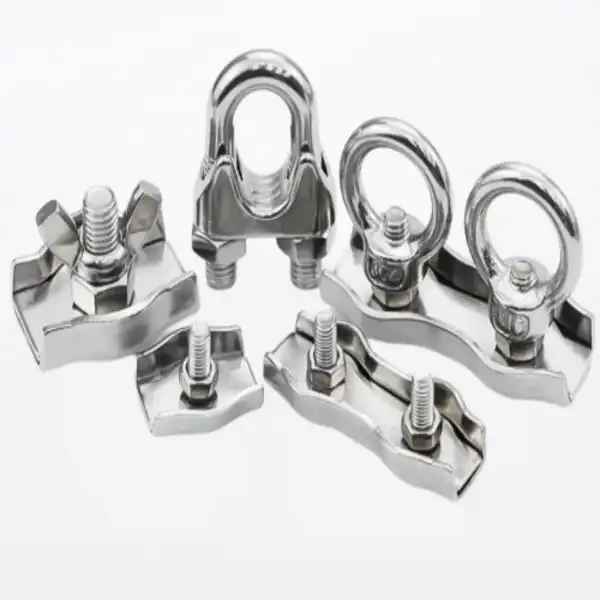

There are different kinds of tools that are used in wire rope connectors. Wire rope clips (DIN 741) hold the ends of the rope together. Thimbles keep rope eyes from getting worn down. Permanent, high-strength end fittings are made with ferrules and swage terminals. Shackles connect rope systems to anchor points, and turnbuckles let you change the stress. In the load path of a rigging system, each part has a clear job to do.

Material Grades: 304 vs. 316

18% chromium and 8% nickel make up ASTM 304 stainless steel. These two metals combine to form a solid chromium oxide passivation layer that keeps rust at bay in most outdoor settings. AISI 316 adds 2–3% molybdenum, which makes it much more resistant to chloride attack, which is the main cause of pitting corrosion in marine and coastal environments. 304 works well for building in the middle of the country. 316 is the right standard for any purpose that will be exposed to saltwater.

Standard Sizes and Compliance

FLA Industrial & Trading Co., Ltd. makes rigging parts, wire rope clips, and thimbles from M2 to M32. When it applies, Products" target="_blank" style="color:blue" >products meet DIN 741 for clips, DIN 1480 for turnbuckles, and U.S. Federal Specification FF-T-791b. Every product line has ISO9001 and CE approvals, which prove that the sizes are correct and that the products can hold weight across the whole size range.

Benefits and Applications in Marine and Construction Industries

Stainless steel harness gear is used in tough environments not only because it doesn't rust, but also because it lowers safety risks and long-term costs. Here are the main reasons why it's the best in two big areas.

• Marine Engineering: Grade 316 cable fittings withstand constant salt spray, UV exposure, and dynamic wave-impact loads without pitting or seizing. Offshore platform rigging, vessel standing rigging, dock mooring systems, and lifeline assemblies all rely on these fittings to maintain rated load performance over extended service cycles. Studies show chloride-induced corrosion is responsible for over 30% of structural failures in marine hardware — a risk that molybdenum-bearing 316 steel directly addresses.
• Construction and Architecture: On construction sites, wire rope clips and swage terminals secure tension structures, cable railings, suspension bridges, and canopy support systems. These fittings handle significant working loads while meeting OSHA and international safety standards. In architectural facades, the bright natural finish eliminates rust run-off staining — a common problem with galvanized alternatives — while maintaining visual appeal in glass curtain wall and green wall cable trellis systems.
• Shipbuilding and Industrial Use: Mast rigging, cargo lashing systems, and overhead conveyor assemblies in food processing or chemical plants depend on austenitic Stainless Steel Wire Rope Fasteners. Their non-reactive nature satisfies HACCP hygiene requirements, and their tolerance for cryogenic temperatures makes them suitable for cold-storage facility installations.

-- Building and Architecture: Wire rope clips and swage ends keep tension structures, cable fences, suspension bridges, and canopy support systems in place on building sites. These fittings meet OSHA and foreign safety standards and can handle heavy loads. In building surfaces, the bright natural finish gets rid of rust run-off stains, which is a common issue with zinc options. It also keeps the look of glass curtain walls and green wall cable trellis systems.

It is used in shipbuilding and in industry for things like mast rigging, cargo lashing systems, and overhead conveyor units in chemical or food processing plants. Because they don't respond, they meet HACCP cleanliness standards, and because they can handle cryogenic temperatures, they can be used in cold storage facilities.

How to Select the Right Wire Rope Fittings for Your Project?

Choosing the wrong type or size of clip can put you in danger and cost you money. Environment, load, and supply chain stability should all be taken into account in a structured way during the decision process.

Grade Selection: 304 or 316?

If the job is within 5 miles of the coast, will be exposed to de-icing salts, or will be washed down with chemicals, use 316 stainless steel. Use 304 for buildings in sheltered inland areas that don't get much chloride exposure. The difference in price between grades is small compared to the cost of having to repair something too soon or having the structure break.

Load Rating and Safety Factors

When it comes to professional fittings, the Minimum Breaking Load (MBL) is four to five times the Working Load Limit (WLL). So the safety factor is 4:1 or 5:1. Before using a fastener for lifting or carrying weight, always make sure that it has a stamped or certified WLL. For example, DIN 741 clips are not meant to be lifted overhead without the right approval. Always check with your seller to make sure of this.

Sourcing from Certified Manufacturers

Buying from a manufacturer that is ISO9001-certified guaranties uniform size control, XRF spectrometry tests to confirm material makeup, and quality records that can be tracked. Before making bulk orders, make sure you have material test certificates (MTCs), salt spray test results (per ASTM B117), and tensile strength data. FLA Industrial & Trading Co., Ltd. gives full technical documentation and answers questions about specifications within 24 to 48 hours.

Installation and Maintenance Guide for Optimal Performance

How long your wire rope setup works safely depends on how well it was installed. Sticking to a set of rules protects both the hardware and the people who work near it.

Step-by-Step Installation

Heading 3:007: Use a tool to make a good rope eye so that the end doesn't kink. Wire rope clips work best when they are installed with the U-bolt on the dead (short) end and the saddle on the live (load-bearing) end. If you switch these positions, the clips will not work as well, sometimes by as much as 40%. Use a calibrated torque wrench to tighten all the fasteners to the levels recommended by the manufacturer. Once the clips are fully loaded, they need to be re-torqued to account for the rope fitting and compression.

Routine Maintenance Practices

Check all rigging fittings at intervals that make sense for the environment you'll be working in, including Stainless Steel Wire Rope Fasteners. For example, once a month in a marine setting and every three months in a sheltered construction setting. To get rid of salt, grime, and chemical buildup, clean fittings with clean water and a light cleanser. Before tightening, use a molybdenum disulfide or nickel-based anti-seize solution on threaded parts like turnbuckles to stop galling, which is when threads cold weld together. This is a common problem with austenitic stainless steel.

Identifying Wear and Damage

Check the thread roots for tiny cracks and the eye fittings for deformation when they are loaded. Dye penetrant testing finds cracks on the surface that you can't see with the naked eye. Any fitting that has pitting deeper than 0.5 mm, thread wear that can be measured, or bending that can be seen should be replaced. It is much cheaper to repair something early than to wait until it breaks.

Procurement Guide: How to Buy Wire Rope Hardware Efficiently?

When buying a lot of rigging gear, you have to find a good balance between price, wait time, and supply stability. Costly project delays can be avoided by making a few smart choices during the buying stage.

Volume Purchasing and Lead Times

When you buy in bulk from a company that has a lot of Stainless Steel Wire Rope Fasteners in stock, you can get better prices and avoid gaps in your supply during busy projects. FLA Industrial & Trading Co., Ltd. keeps 2,000 tons of stock on hand, which lets them ship standard items quickly. It takes 7–15 days to ship custom or non-standard setups. They don't have a minimum order size, so you can place test orders before committing to full production numbers.

Verifying Supplier Credibility

Ask for ISO9001 and CE certificates, test reports for each batch, and make sure the supplier can do XRF material verification. Check how responsive the supplier is. If they answer technical questions quickly and clearly, they are more likely to be able to help you after the order is placed. This is reflected in FLA's promise to answer technical questions within 24 to 48 hours.

Customization Options

If the catalog sizes don't match your engineering plans, FLA Industrial & Trading Co., Ltd. can make custom-shaped fittings and non-standard specs, from the 3D planning phase all the way through production. Because of this, they are a good partner for OEM clients and project engineers who need to meet specific needs.

Conclusion

Stainless steel wire rope rigging fittings are clearly better at their job because they last longer, need less upkeep, and have load ratings that can be checked to protect people and buildings. Any project can have a strong base if the right grade is used (304 for freshwater use and 316 for marine and coastal areas) and it is installed correctly and inspected on a regular basis. Working with a qualified maker who offers Stainless Steel Wire Rope Fasteners paperwork and technical support takes the guesswork out of the supply chain for hardware stores, building companies, and buying teams that need to buy a lot of things.

FAQ

What is the main difference between 304 and 316 stainless steel wire rope fittings?

Grade 316 has 2–3% molybdenum in it, which makes it much more resistant to corrosion caused by chloride. 316 should be used in chemical, marine, or seaside settings. Grade 304 is good for uses in sheltered areas of the inland where chloride exposure is low.

Why do stainless steel turnbuckles sometimes seize during tightening?

Austenitic stainless steel threads often gall, which is a type of cold welding that happens when there is a lot of pressure. This can be avoided by using a nickel-based anti-seize substance or molybdenum disulfide grease before tensioning.

Can these fittings be used for overhead lifting?

For lifting things from above, you can only use fittings that have been stamped with a certified Working Load Limit (WLL). The standard DIN 741 wire rope clips are not designed to hold weight. Before using any part in an overhead application, you should always check with your seller to make sure it is certified.

How often should I inspect stainless steel rigging hardware?

In marine settings, check once a month. In building or sheltered areas, checks every three months are usually enough. Before putting the unit back into service after a shock load event, it should be inspected right away.

Are stainless steel fasteners magnetic?

Most of the time, austenitic stainless steel is not magnetic. It is normal for cold-working techniques like threading or swaging to cause a small amount of magnetism. This doesn't affect the material's ability to fight rust or its ability to hold together.

Request a Quote from FLA Industrial & Trading Co., Ltd. Today

FLA Industrial & Trading Co., Ltd. has been making Stainless Steel Wire Rope Fasteners for almost 40 years and has ISO9001 and CE certificates for all of them. We make it easy to buy in bulk because we keep 2,000 tons of stock on hand, can do custom engineering, and offer technical support within 24 to 48 hours. You can email our sales team at sales@flaindustrial.com or go to flaindustry.com to get detailed datasheets, installation guides, or a quote that is made just for your project.
