European Style C-Clamp for Welding Fixtures and Small-Batch Metal Fabrication

When precision matters in welding fixtures and small-batch metal fabrication, the right clamping tool makes a measurable difference. A European style C-clamp is a deep-throat, ribbed-frame clamping device built from malleable cast iron or drop-forged steel, engineered to deliver high clamping force with lower operator fatigue than traditional American-style clamps. Its extended throat depth allows reach further from the workpiece edge, and its reinforced frame geometry resists torsional flex under load. For procurement professionals sourcing tools for fabrication, cabinetry, or structural assembly, understanding this tool's design and specifications is the first step toward smarter purchasing decisions.

Specification

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75 × 45 × 12
2 Inch	33	58	115 × 53 × 18
3 Inch	65	86	170 × 95 × 25
4 Inch	70	110	204 × 106 × 28
5 Inch	80	140	245 × 115 × 28
6 Inch	85	160	275 × 120 × 28
8 Inch	105	220	330 × 150 × 30
10 Inch	105	260	375 × 155 × 30
12 Inch	115	310	440 × 170 × 33

Understanding the European Style C-Clamp: Features, Uses, and Advantages

What Sets the European Design Apart?

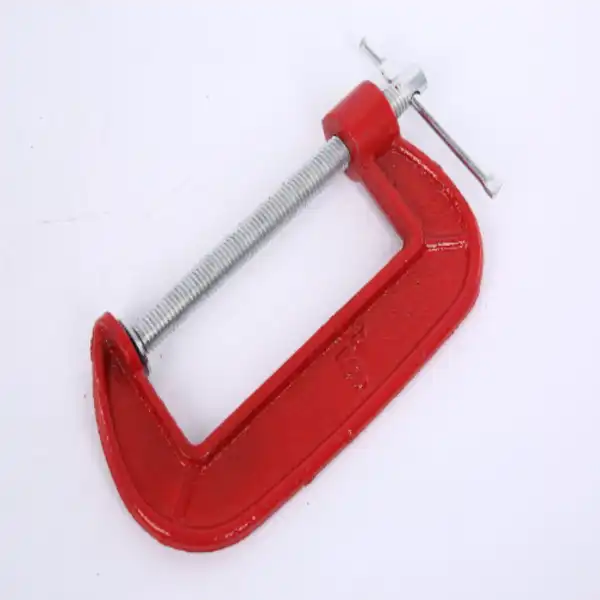

A deep-throat frame with I-beam or ribbed cross-sections is used for the European Style C-Clamp. Because of this shape, the binding stress is spread out evenly across the body, which stops the "springback" or frame twist that happens with lighter-duty clamps. This makes the clamping force uniform and predictable, which is a quality that fabrication engineers need to make sure that welded parts are the right size.

Materials That Deliver Performance

FLA's C-clamps are made of cast iron that can be shaped and a steel screw bar that has been strengthened. The steel spindle has fine thread contact for controlled pressure application, and the malleable cast iron has strong static stiffness and impact resistance. The surface treatment, which can be painted or powder-coated, protects against corrosion in damp workshop settings.

Advantages Over Other Clamp Types

The European heavy-duty clamp is lighter for its clamping capacity than standard American heavy-duty clamps. Its deeper throat makes it better for situations where the clamping point needs to be farthest from the edge of the material. It has better frame stiffness than quick-release clamps and F-Clamps for holding static fixtures during tack welding and glue-up.

Choosing the Right European Style C-Clamp for Your Welding and Fabrication Needs

Sizing and Load Capacity

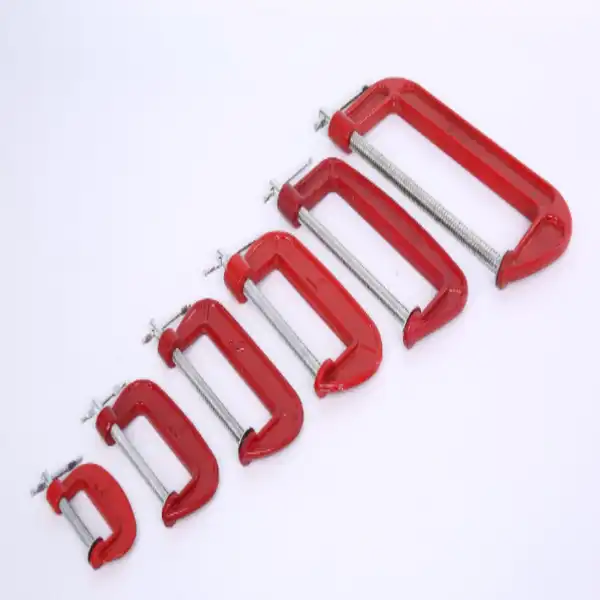

FLA has nine sizes with jaw openings that range from 1 inch to 12 inches. It's easy to match the jaw opening to the width of the workpiece, but throat depth is just as important when working with welding fixtures. A clamp with a good clamping force rating—usually between 400 kg and 1,200 kg, based on size—should be able to hold the unit being held or more.

Screw Mechanism and Thread Quality

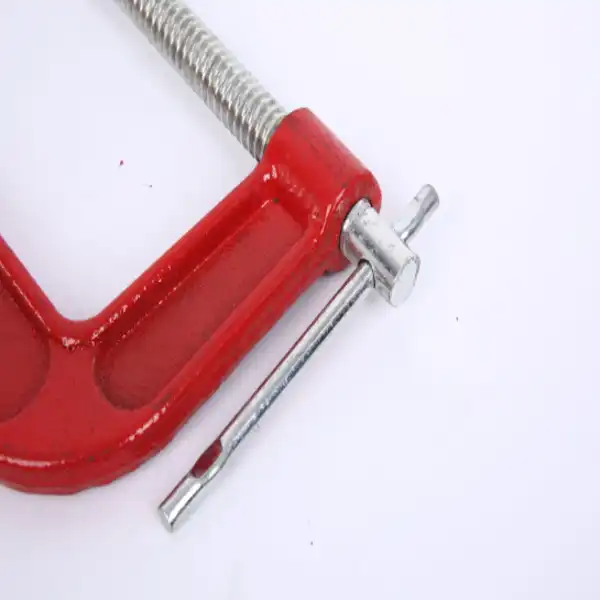

The thread on the spindle of a European Style C-Clamp controls how smoothly and accurately pressure is put on the part. Cold-rolled trapezoidal threads that have been treated with black oxide or zinc finishing work smoothly and won't rust. FLA's steel screw rods are thread-inspected to make sure they are the right size. This makes sure that all units in a batch order transmit torque in the same way.

Surface Finish Selection

The working climate determines whether a painted or powder-coated finish is best. Powder coating makes the surface layer thicker and more resistant to damage. It also works better in places with a lot of humidity. In line with ISO9001 quality control standards, both choices are checked for adhesion, thickness, and resistance to corrosion before they are sent out.

Maintaining and Safely Using European Style C-Clamps in Industrial Settings

Routine Cleaning and Lubrication

Over time, metal filings, weld spatter, and workshop dust build up in screw threads, making them more frictional and speeding up wear. The mechanism works well as long as the spindle is cleaned after each use and light machine oil is put on the threads once a week. One of the main reasons threads break too soon in high-cycle manufacturing settings is that this step is skipped.

Inspection and Early Fault Detection

Visual checks done on a regular basis can find frame deformation, tiny cracks in cast parts, and worn swivel pads before they become safety problems. High-quality clamps in the European style have a swivel pad design that is permanently sealed. If a pad comes off when it's loaded, it means there was a problem with how the binding collar was made. This means the tool should be taken out of service right away.

Safe Operating Practices

Never clamp more than the stated capacity, and make sure the metal-to-metal contact is clean before adding torque. When welding, use tape or a protective sleeve to keep the spindle threads from getting spattered. Wearing gloves during high-torque work keeps your hands from getting tired and improves your grip, which makes it less likely that you'll slip while setting up.

Procurement Strategies for European Style C-Clamps: Bulk Buying, Custom Orders, and Cost Efficiency

To get a lot of European Style C-Clamp tools, you have to find a balance between unit cost, wait time, and quality stability. When replacement rates, inspection failures, and production breaks are taken into account, the lowest price given by vendors rarely shows the total cost of ownership. This is something that procurement managers who have worked with more than one vendor know.

Before you place a bulk order, here are the main things you should think about when buying something:

• Bulk purchasing benefits: FLA carries 2,000 tons of stock ready for dispatch, meaning standard orders ship without production delays. Volume orders reduce per-unit cost and simplify inventory replenishment cycles.
• Custom order capability: If standard sizes from 1 inch to 12 inches do not match a specific fixture geometry, FLA's in-house casting and machining operation can produce special-shaped clamps to exact dimensional specifications, with custom orders fulfilled in 7–15 days.
• Certification and compliance: ISO9001 certification and CE marking confirm that manufacturing processes meet documented quality and safety standards. For procurement teams dealing with compliance requirements, these certifications reduce supplier qualification lead time.
• No minimum order restriction: Whether sourcing a sample set or a full container, FLA accommodates orders of any size, which suits both distributors managing SKU diversity and contractors handling project-specific tool requirements.

During all procurement cycles, these factors have a direct effect on operational readiness and budget control.

Case Studies and Practical Insights: Maximizing Efficiency in Welding and Small-Batch Metal Fabrication

Welding Fixture Stability in Structural Fabrication

For their tack-welding fixtures, a medium-sized steel fabrication shop that made special structural brackets moved from simple American-style clamps to European deep-throat models. Because the throat depth was wider, it was possible to get a uniform reach across 80mm channel sections. This cut the time needed to adjust each assembly by about 20%. Since the frame was rigid even after many heat cycles, the joint gaps stayed within the acceptable range for the whole production run.

Furniture Manufacturing Glue-Up Accuracy

A furniture factory that used deep-throat clamps for glue-ups of laminated panels saw fewer bowing problems after switching to a clamp with a ribbed frame and swivel pad. The ribbed frame geometry spreads pressure out perpendicularly, which kept the panels flat while the glue dried. This lowers the number of panels that were rejected because they were too big.

Distributor SKU Expansion

A U.S.-based tool distributor added FLA's nine-size clamp range to their product line and said they had a lot of people reordering within the first two quarters. Customers were less likely to return items because they were always the same size across all batches, and the powder-coated finish was praised for how long it lasts in store display circumstances.

Conclusion

A well-made European Style C-Clamp with a European frame shape is a useful and valuable tool for making welding fixtures, small batches of metalwork, and precise crafts. Its deep mouth, ribbed frame, and high-quality screw mechanism make it suitable for holding things that regular clamps can't. Procurement teams can increase the life of tools and lower the cost of each cycle by matching the jaw size to the job, choosing the right surface finish, and sticking to a basic upkeep plan. For purchases of any size, FLA Industrial & Trading Co., Ltd. supports them with nine common sizes, ISO9001-certified production, and flexible order numbers.

FAQ

How does a European style C-clamp differ from an American heavy-duty clamp?

The primary difference is frame geometry and throat depth. European models feature a deeper throat with a ribbed or I-beam cross-section, allowing reach further from the workpiece edge with less frame flex. American styles typically use shallower throats and blockier, heavier frames that prioritize raw compressive mass over ergonomic weight distribution.

What maintenance steps extend clamp service life?

Clean spindle threads after each use to remove debris, apply light machine oil weekly, and inspect the swivel pad and frame for deformation or cracking during routine checks. Replacing a clamp with visible frame distortion is safer and more cost-effective than continuing to use a compromised tool.

Can these clamps be customized for specific fabrication requirements?

Yes. FLA's in-house casting and machining capabilities support custom jaw openings, throat depths, and surface finishes beyond the standard nine-size range. Custom orders typically ship within 7–15 days, and FLA's technical team provides 3D design confirmation before production begins.

What is the difference between painted and powder-coated finishes?

Powder coating forms a thicker, more impact-resistant layer and performs better in high-humidity or chemically active environments. Painted finishes are suitable for general workshop use. Both options are tested for adhesion and corrosion resistance before shipment.

Partner With FLA Industrial & Trading Co., Ltd. for European Style C-Clamp Supply

Every gripping tool that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. FLA is a trusted European Style C-Clamp maker that serves the U.S. market and wholesalers around the world. They have ISO9001-certified production, CE-marked goods, and a 2,000-ton stock base to make sure orders are filled quickly. Our team responds with detailed technical feedback within 24–48 hours, no matter if you need standard sizes or specifics. To get a price, email us at sales@flaindustrial.com or go to flaindustry.com.
