Small Pneumatic Jack for Automotive Service, Equipment Maintenance, and Compact Lifting Stations

Small pneumatic jacks are compressed-air-powered lifting devices built for tight spaces where speed and precision matter. In automotive service bays, equipment maintenance shops, and compact lifting stations, they outperform manual jacks in both cycle time and operator safety. When paired with a properly rated European Style C-Clamp—a deep-throat, ribbed-frame clamping tool made from malleable cast iron and a steel screw rod—technicians gain a complete support system that holds components firmly while the jack positions the load. Together, these two tools define a more disciplined, safer workflow.

Specification

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75 × 45 × 12
2 Inch	33	58	115 × 53 × 18
3 Inch	65	86	170 × 95 × 25
4 Inch	70	110	204 × 106 × 28
5 Inch	80	140	245 × 115 × 28
6 Inch	85	160	275 × 120 × 28
8 Inch	105	220	330 × 150 × 30
10 Inch	105	260	375 × 155 × 30
12 Inch	115	310	440 × 170 × 33

Understanding Small Pneumatic Jacks and Their Industrial Applications

What Makes a Pneumatic Jack "Small"?

A small pneumatic jack can hold loads of one to ten tons and is low enough to slide under the bodies of cars or machines with little room to spare. It uses shop-line compressed air (usually 90–120 PSI) to extend a ram in seconds, so you don't have to keep pumping it as you do with a hydraulic floor jack. The small size—often less than 18 inches—allows it to fit into crowded service bays without getting in the way of other technicians or equipment.

Core Industrial Applications

Small air jacks show up in three main positions. They are used in auto shops to do work on the suspension, brakes, and tires because the quick lift-lower processes save a lot of time each shift. In factories, equipment maintenance teams use them to lift conveyor frames, motor bases, and gearbox assemblies so that they can be inspected. In warehouses and assembly lines, fixed or semi-fixed pneumatic jacks are used to place sub-assemblies at ergonomic working heights. This lowers the risk of back injuries for workers.

Safety and Efficiency Advantages

The U.S. Bureau of Labor Statistics says that overexertion accidents, many of which are caused by lifting heavy objects, cost American businesses more than $13.7 billion every year. This is directly addressed by pneumatic jacks, which use compressed air to provide pulling force. Good units have safety lock collars and pressure-relief valves that keep them from falling over by accident. Most models have an average response time of less than 10 seconds from the ground to full lift height. This is a clear productivity boost in service environments with a lot of work to do.

Comprehensive Overview of European Style C-Clamps for Industrial Use

Design Characteristics That Set European Clamps Apart

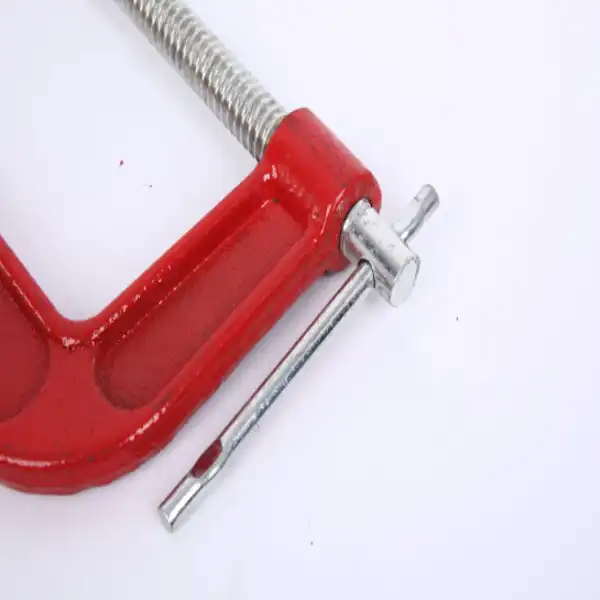

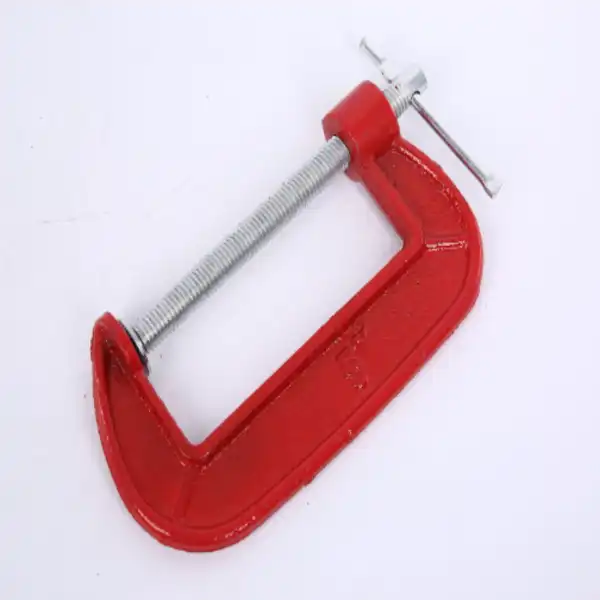

The European Style C-Clamp is unique because it has a deep throat and a reinforced I-beam or ribbed frame. The European design uses structural ribs to spread stress evenly across the frame, while the standard American pattern clamp relies on size and mass for compression strength. This stops the "springing" effect, which happens when the frame bends under force and shortens the life of the clamp in tough situations. The end result is a lighter tool with the same or more clamping force that doesn't make the operator tired.

Material and Size Specifications

The European Style C-Clamp from FLA Industrial is made of a fine steel screw bar and cast iron that can be shaped. Malleable cast iron is more flexible than gray iron, which means the frame bends a little before breaking from stress instead of snapping without notice. The swivel pad spreads the pressure evenly across the surface of the workpiece, saving both metal and wood finishing. There are nine sizes, with jaw openings that range from 1 inch to 12 inches. These sizes are good for light-duty carpentry as well as heavy structure glue-ups.

How It Compares to American-Pattern Clamps

American heavy-duty C-clamps have shorter throat levels and frames that are more blocky, which makes it harder for them to reach from the edge of a piece of work. The European version has a deeper throat that lets you clamp closer to the middle of a panel or beam, which is important for cabinetry, structural fabrication, and automotive jig work where edge-only clamping causes panels and beams to bow. Both styles have their uses, but when purchasing managers need clamps for precise metalwork or woodworking, they always choose the European profile because it has a better reach-to-weight ratio.

How to Optimize Automotive Service and Maintenance with Small Pneumatic Jacks and C-Clamps?

Selecting the Right Tool Combination

The first rule is that the load weight should match the jack's size. For private cars, a jack with a 3-ton capacity is fine, but heavy-duty trucks need one with a 10-ton capacity or more. When fixing a car, technicians often use C-clamps to hold parts in place, like brake calipers, exhaust brackets, or body panels, while the car is raised. If you choose a clamp with a jaw hole that fits the width of the part, you can avoid improvised stacking, which is unsafe and unstable.

When you use these two tools together, these basic steps will make things safer and faster:

• Inspect before every use. Check the jack's air fittings and pressure seals for leaks. Examine the clamp's screw threads and swivel pad for wear or cracks. A 90-second pre-use check prevents mid-job failures that delay entire service bays.
• Apply clamping force gradually. Tighten the steel screw rod in controlled increments rather than single hard turns. This distributes pressure evenly and prevents workpiece distortion, especially on wood assemblies where grain compression is irreversible.
• Use safety stands in tandem. Pneumatic jacks are lifting tools, not support tools. Once a vehicle or machine reaches the target height, transfer the load to rated jack stands before performing any work underneath.

These habits keep repair records clean and cut down on machine downtime, which is important for procurement managers who are keeping track of operational costs across multiple service bays.

Maintenance Intervals for Long-Term Performance

Every 50 hours of use, lubricate the jack ram seals with the oil recommended by the manufacturer. Once a month, clean the air filters on the jack's inlet port to keep particles from getting inside and speeding up seal wear. Give the screw threads on C-clamps a thin coat of machine oil every time you use them to keep them from rusting in humid shops. The powder-coated finish that FLA Industrial uses on their clamps protects against rust at a basic level, but owners are still responsible for maintaining the threads, which significantly increases the service life.

Decision-Making Guide for Procuring Pneumatic Jacks and Clamping Tools

Assessing Operational Requirements First

Before you send out a buy order, write down the maximum load, how often it will be used, and how much floor room is available. A shop that does 30 lifts every day needs a commercial-grade pneumatic jack with a duty-cycle rating that matches the number of lifts. A furniture shop looking for a European Style C-Clamp supplier for glue-up jobs needs clamps that can hold the weight of the panels they're working with, which is usually between 400 kg and 1,200 kg, based on the size of the jaws.

Evaluating Supplier Transparency and Certifications

If a seller has ISO9001 certification, it means that their production process has been recorded and checked. FLA Industrial follows ISO9001 standards and makes goods that have the CE mark, which means they meet European safety and environmental standards. Ask for load test reports, material composition certificates, and salt-spray test results to see how resistant the supplier is to corrosion. If suppliers give these papers without question, it shows that they have faith in the production process. Suppliers who refuse or take too long should be looked at more closely.

Bulk Ordering and Lead Time Considerations

FLA Industrial keeps 2,000 tons of stock that can be sent out right away. Standard orders are sent out right away, and custom orders, which may include different jaw sizes or finishes that are only available to that company, are delivered within 7 to 15 days. This production flexibility makes it easy for hardware dealers and wholesalers to fill in gaps in their catalogs quickly and handle seasonal demand spikes without the risk of overstocking.

Future Trends in Pneumatic Jacks and Clamping Tools

Smart Sensors and Digital Monitoring

Pressure and load monitors are being added to pneumatic jack cylinders by engineers. This lets them check the load in real time using screens on the shop floor or mobile apps. With this information, maintenance supervisors can mark events of overloading before they cause structural wear. Clamping tools are moving in the same direction. High-end tool lines are starting to include torque-indicating handles that let woodworkers and makers know exactly how much pressure they are applying without having to guess.

Advanced Materials and Sustainability

Nodular cast iron (QT450-10) is being used instead of gray iron in high-performance clamp frames because it has a tensile strength higher than 450 MPa and isn't too heavy. To meet EPA and REACH standards that are getting stricter, powder coating methods are also moving toward low-VOC formulations. Companies that are ahead of the curve are already including these requirements in their RFQs. Suppliers who meet these requirements have an advantage in regulated markets.

Digital Procurement Platforms

Buyers can now use B2B sourcing tools to compare seller certifications, look at third-party audit reports, and place sample orders without having to go to the factory. Purchasing managers at building companies, power utilities, and HVAC companies can use this openness to get confirmed supplier data before signing large contracts. FLA Industrial is part of this change by sending customers technical datasheets, 3D models, and reports on production updates immediately.

Conclusion

Small pneumatic jacks and precise European Style C-Clamp tools are useful in fixing cars, keeping machines in good shape, and putting things together in factories. The jack is in charge of speed and safety when lifting, and the C-clamp is in charge of accurate fixturing. They cut down on cycle times, keep workers safe, and make it so that equipment doesn't need to be serviced as often. In the long run, the best way to protect procurement budgets and operational continuity is to choose suppliers whose Products" target="_blank" style="color:blue" >products come with verified certifications, clear quality records, and quick technical support.

FAQ

What air pressure does a small pneumatic jack require?

Most small pneumatic jacks need between 90 and 120 PSI, which can be supplied by normal shop pumps without any changes. Before you connect your air line, you should always check the manufacturer's recommended inlet pressure.

Can a European Style C-Clamp handle metal fabrication tasks?

Yes. The clamp is made to meet European standards for woodworking, but its steel screw rod and cast iron frame can also be bent to do light welding chores well. For big structural welding fixtures, make sure the load number matches the needs of your application.

How many sizes does FLA Industrial's C-clamp range cover?

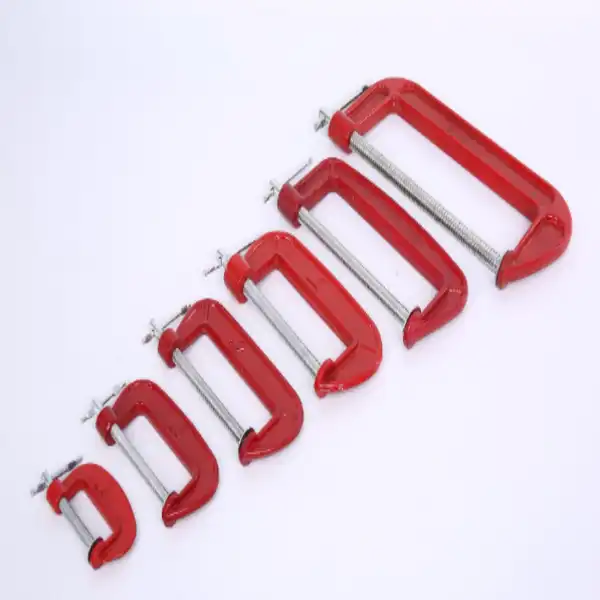

The range has nine sizes with jaw openings ranging from 1 inch to 12 inches. This should cover most crafts and light manufacturing tasks. Custom sizes can be made for specific business needs.

What finish options are available?

Finishes from FLA Industrial can be painted or powder-coated. Powder coating is the best choice for places that are damp or exposed to chemicals because it sticks better and doesn't rust.

What certifications should I verify when sourcing these tools?

Ask for ISO9001 certifications for quality control, CE markings to show that the product meets European standards, load test reports, and salt-spray corrosion test results. These papers prove the supplier's production standards on their own.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Order

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has partners in the Fortune Global 500 in the US, Germany, and Australia. We can get back to you within 24 to 48 hours with full technical paperwork, whether you need a European Style C-Clamp maker for a large order of woodworking supplies or pneumatic lifting equipment for a service bay. To get a quote right away, email us at sales@flaindustrial.com or go to flaindustry.com.
